4040 Fiber Glass Membrane Housing for RO System

Product Description

Products Details:
SS membrane housing is the basic component of reverse osmosis equipment and the RO system. The material is 304 or 316L stainless steel seamless tubes. The sealing form of the end cover includes: clamp, flange, built-in; Water inlet mode covers end port and side port. The length is matched with the number of reverse osmosis membrane components. Inside and outside of the tube is polished.

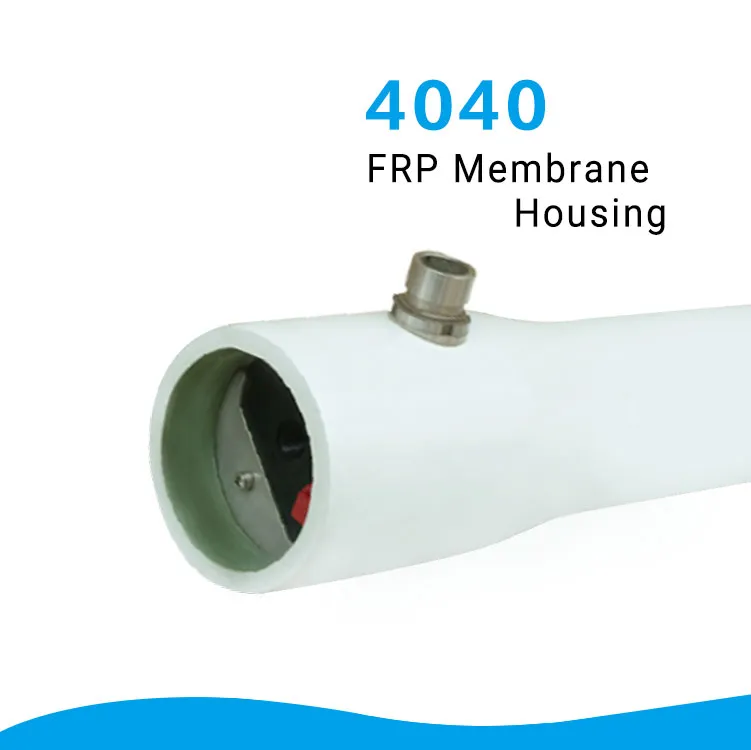

4040 Fiber Glass Membrane Housing for RO System

4040 Fiber Glass Membrane Housing for RO System

Specifications	End port
Available pressure rating (psi)	250/ 300/ 450/ 1000
Length (No. of elements)	1 to 4
Main Material	FRP
Color	White (other colors are available on request)
Head assembly	Included
Adaptor	N/A
Straps and saddles	Included
Packaging	PVC plastic wrapping with carton outer pack
Max. operating Temp	49ºC (120ºF)

Membrane Housing Dimension:

Model	PSI	Connection	Membrane size	Number of elements
2521	300	End Port	2521	1
2540	300	End Port	2540	1
4040-250	250	Side Port/End Port	4040	1-4
4040-300	300	Side Port/End Port	4040	1-4
4040-450	450	Side Port/End Port	4040	1-4
4040-1000	1000	Side Port/End Port	4040	1-4
8080-150	150	Side Port/End Port	8040	1-7
8080-250	250	Side Port/End Port	8040	1-7
8080-300	300	Side Port/End Port	8040	1-7
8080-450	450	Side Port/End Port	8040	1-7
8080-600	600	Side Port/End Port	8040	1-7
8080-800	800	Side Port/End Port	8040	1-7
8080-1000	1000	Side Port/End Port	8040	1-7
8080-1200	1200	Side Port/End Port	8040	1-7

Related Products:

About HID Membrane

HID, one of China leading ro membrane MANUFACTURERS, has been making ro membrane for over 11 years, and producing flat sheet for 5 years; so far our ro membranes have well be supplied to worldwide markets with good acceptance!
HID has developed full-auto rolling lines for residential/commercial/industrial RO membrane making, with annual output to 5.5 million pieces, and models from 50GPD/75GPD/100GPD/200GPD, to 300GPD/400GPD/600GPD, and up to 4040/8040!
With our latest auto production line of flat sheets (film) and testing facility, HID offers you the most reliable quality control and cost-efficiency!

Our Customers:

4040 Fiber Glass Membrane Housing for RO System

FAQ:

Q: Are you a trading company or a manufacturer?
A: We are one of China leading RO membrane manufacturers since 2008, with our OWN auto rolling line and OWN RO flat sheet making line!

Q: Where is your factory? How can I visit?
A: We located in Zhenjiang city of Jiangsu Province, which is west of Shanghai, 1.5 hours by express bullet train available every 30 minutes.

Q: Can we OEM from your factory?
A: Yes. Normally, we export under our brand name HID. If you have any request, we also provide OEM, ODM service.

Q: Can I get some samples? Can I place small order before bulk purchase?
A: We're glad to provide free sample, trial order welcome for first time, please kindly contact us.

Q: How can I place order? How can I pay you?
A: You can contact us by email about your order details, or place order on line. After you confirm our PI, we will request you to pay. T/T (Citibank) and Paypal, Western Union are the most usual ways we are using.

Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. Or it is 7-15 days if goods are not in stock, it is according to quantity.
