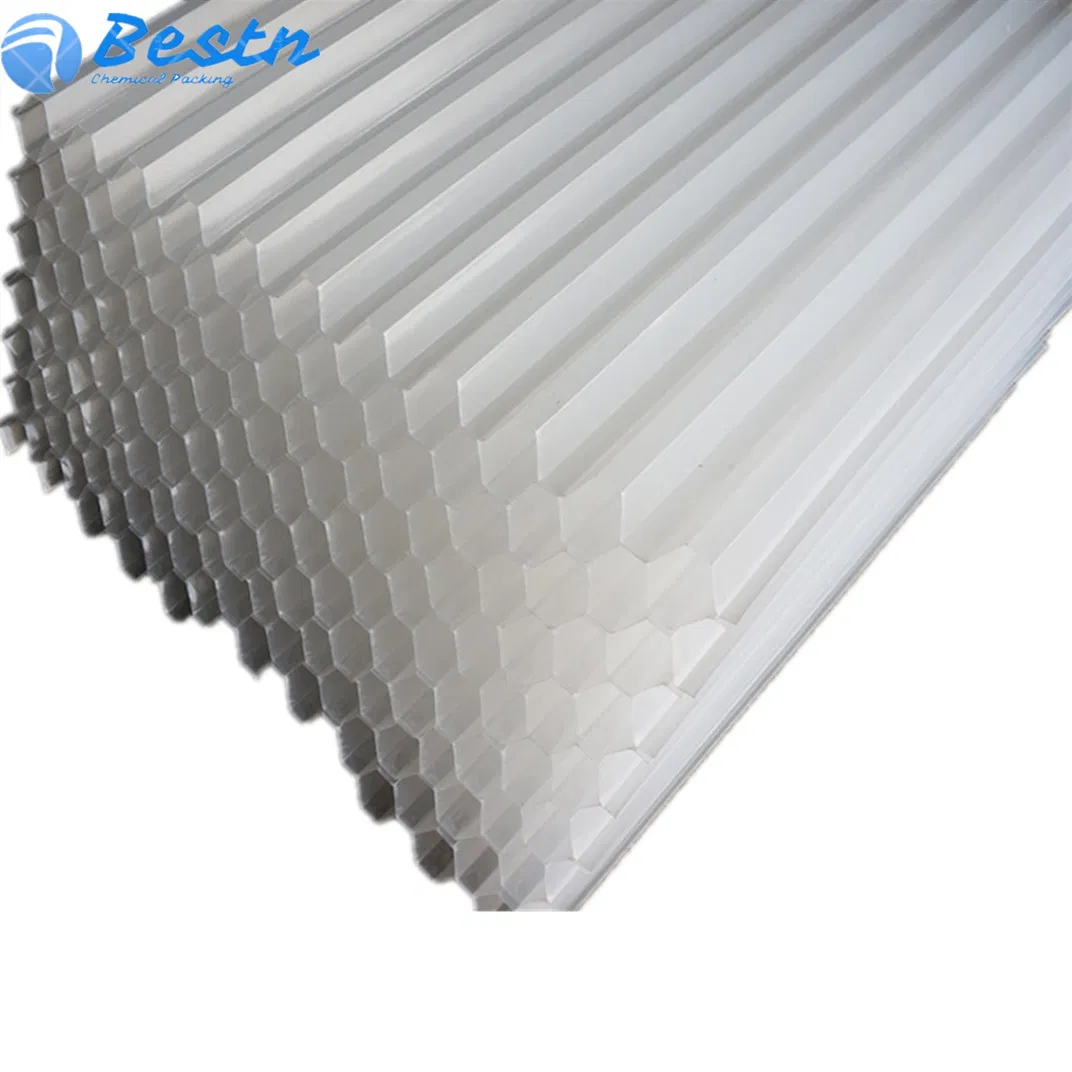

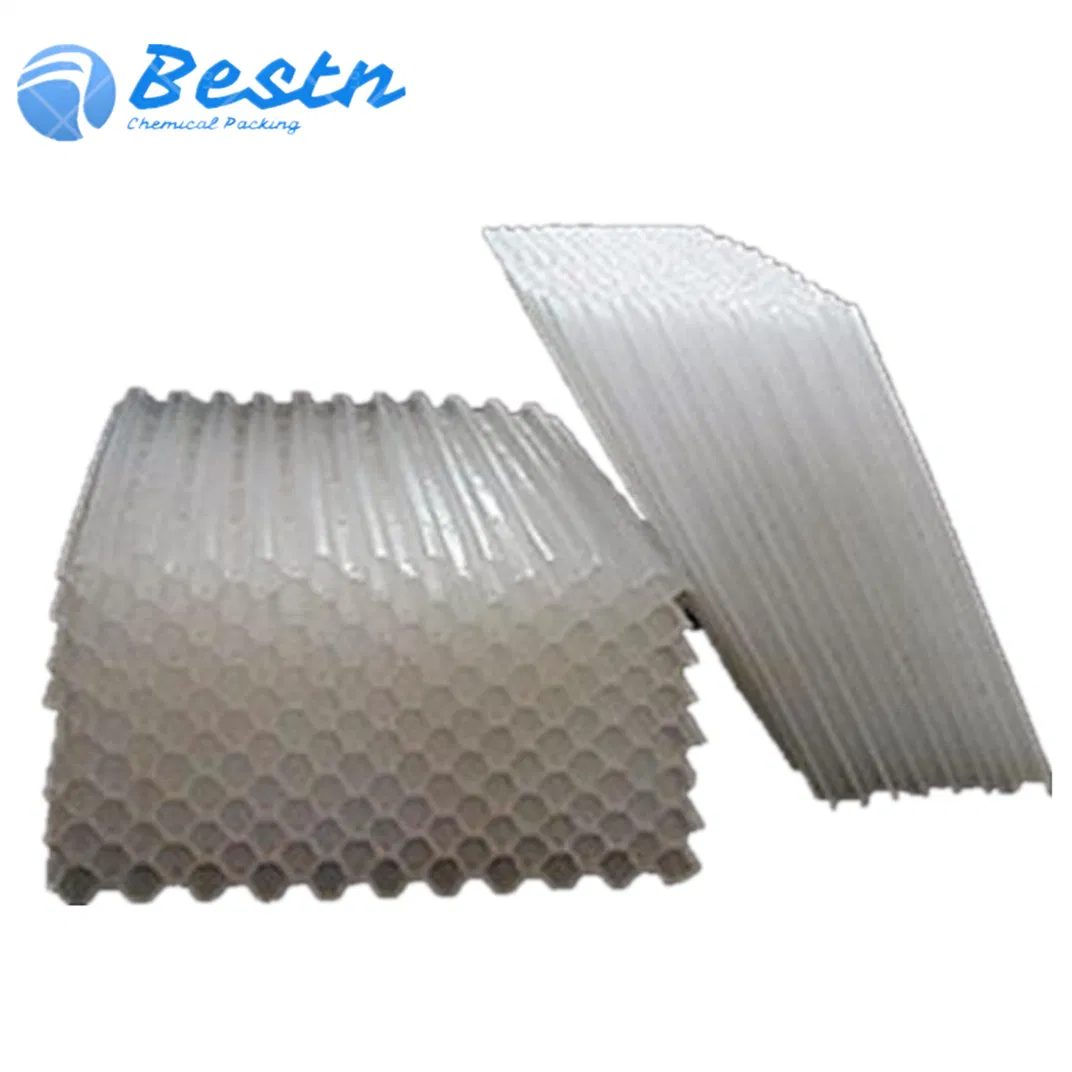

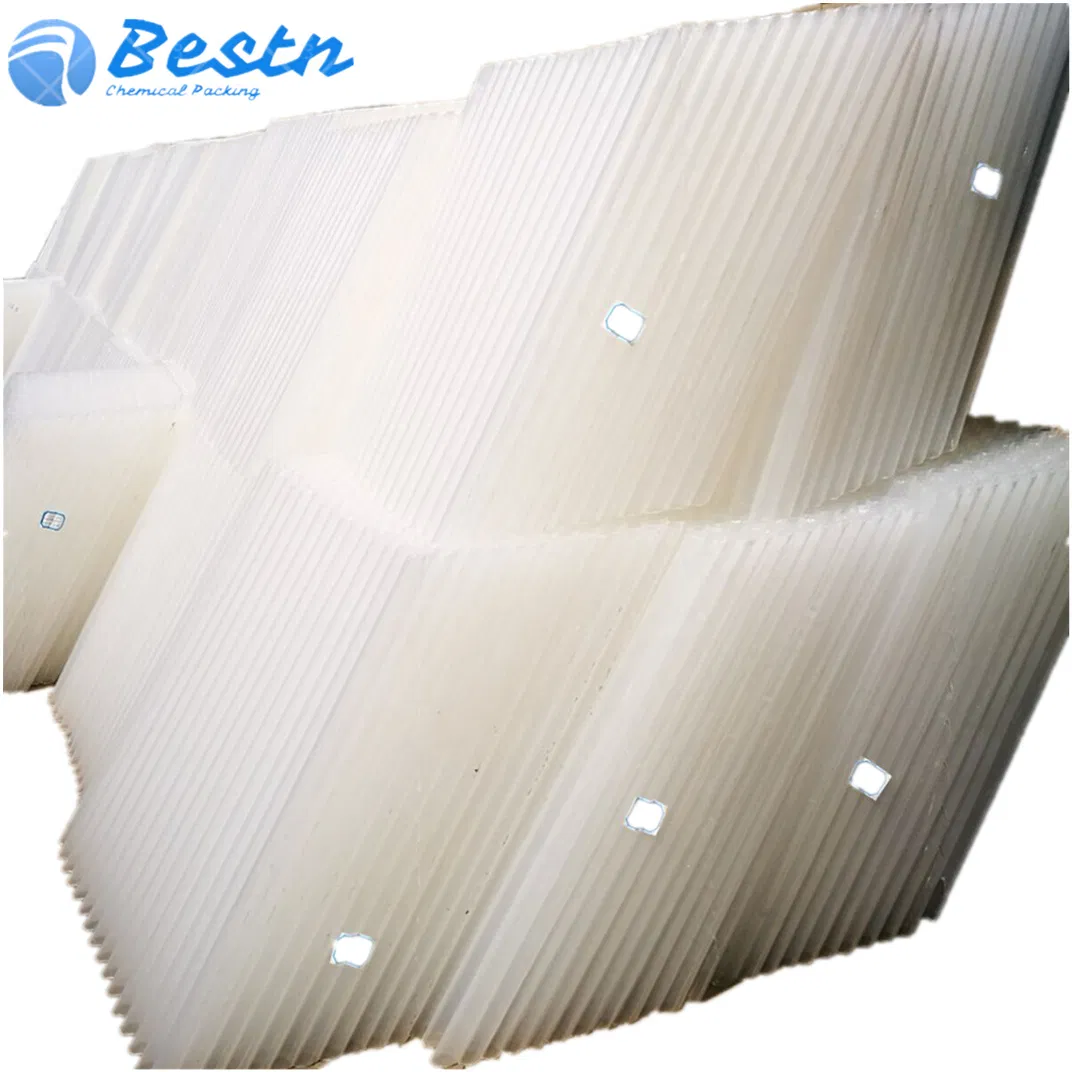

80mm Hexagonal Honeycomb Lamella Clarifiers Plate PP PVC Tube Settler for Water Plant
80mm Hexagonal Honeycomb Lamella Clarifiers Plate PP PVC Tube Settler for Water Plant Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment.tube settlers are single plastic profiles combined to tubes. This design multiplies the sedimentation area up to......
Send Inquiry
Product Description
80mm Hexagonal Honeycomb Lamella Clarifiers Plate PP PVC Tube Settler for Water Plant
Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment.
tube settlers are single plastic profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants.
Different executions support a better process and cost reduction of the plant.
1. Process efficiency
From multiplication of the sedimentation area, chevron equidistant channel shape and adaptation of the settling area spacing and slope
2. Flexible dimensions
It can be adapted to all kinds of shapes, inclinations, round settlers and allows cut outs.
3. Easy handling
Simple on site assembly method grants low cost, safe delivery to any place in the world.
4. Sophisticated support system
With stainless steel and specially shaped glass fibre reinforced plastic beams minimizing turbulence and sludge deposit.
5.Strong and high quality material
· We provides high stability of the modules for easy maintenance - PP material approved for high standards of potable water applications
Applications
Design and build new clarifiers and settling tanks equipped with tube settlers
· Retrofit existing clarifiers and sedimentation basins with tube modules to increase settling capacity and increase throughput
· Provide replacement tube modules for existing installations
· Our Environmental designs and builds liquid cleaning and recycling equipment including:
· Circular Clarifiers
· Parallel Plate Settlers
· Tube Settlers
· Horizontal and Vertical Clarifiers
· Air Strippers
· API Separators
· Oil Recovery Units
· Complete Engineered Systems
Technical Data
Packing and delivery
Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment.
tube settlers are single plastic profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants.
Different executions support a better process and cost reduction of the plant.
1. Process efficiency
From multiplication of the sedimentation area, chevron equidistant channel shape and adaptation of the settling area spacing and slope
2. Flexible dimensions
It can be adapted to all kinds of shapes, inclinations, round settlers and allows cut outs.
3. Easy handling
Simple on site assembly method grants low cost, safe delivery to any place in the world.
4. Sophisticated support system
With stainless steel and specially shaped glass fibre reinforced plastic beams minimizing turbulence and sludge deposit.
5.Strong and high quality material
· We provides high stability of the modules for easy maintenance - PP material approved for high standards of potable water applications
Applications
Design and build new clarifiers and settling tanks equipped with tube settlers
· Retrofit existing clarifiers and sedimentation basins with tube modules to increase settling capacity and increase throughput
· Provide replacement tube modules for existing installations
· Our Environmental designs and builds liquid cleaning and recycling equipment including:
· Circular Clarifiers
· Parallel Plate Settlers
· Tube Settlers
· Horizontal and Vertical Clarifiers
· Air Strippers
· API Separators
· Oil Recovery Units
· Complete Engineered Systems
Technical Data

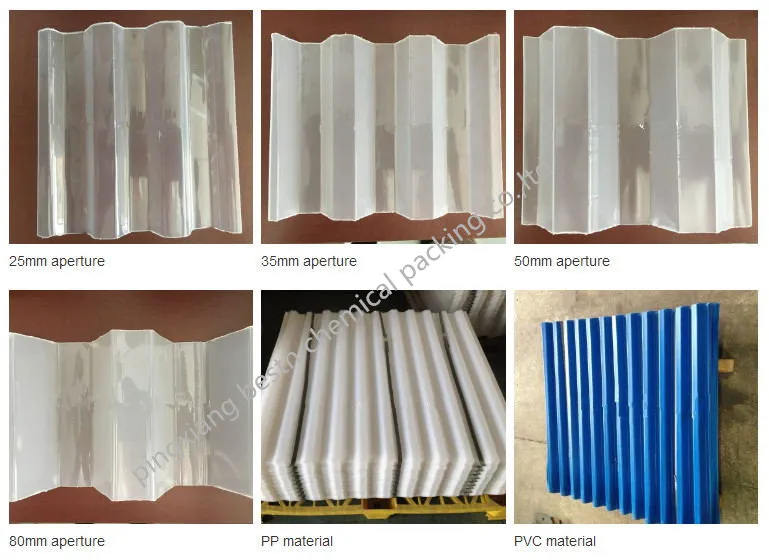

| Type | The key technical indexes | ||||||||
| Inscribed circles diameter | Exteriors size of Single Unit | Angle of bevel | Thickness of Pipe | Weight /Single Unit Kg | |||||
| Dimen | Devia | Dimen | Devia | Dimen | Devia | Dimen | Devia | ||
| PP Oblique Pipe | -sion | -tion | -sion | -tion | -sion | -tion | -sion | -tion | |
| 25 | ±1.5 | 1000 *500* 1000 | ±10 | 60 | ±2 | 0.4-0.5 | ±0.05 | 19-30 | |
| 30 | ±1.5 | 0.45-0.55 | ±0.05 | 18-27 | |||||
| 35 | ±2.0 | 0.5-0.6 | ±0.05 | 18-25 | |||||
| 50 | ±2.5 | 0.6-0.8 | ±0.08 | 14-24 | |||||
| Product name | PP PVC RPP Plastic Inclined Fliter Tube Lamella Clarifier For Water Treatment |
| Material | PP/RPP/PVC |
| Certification | ISO9001:2008 |
| Others | life span > 3years |
| Below are the different types of Tube Settlers | |
| Model I | Honeycomb Inclined Tube |
| Model II | S Wave Lamellas |
| Model III | Oblique Wave Lamellas |
| Model IV | Oblique Double Lamellas |
| Model V | Oblique Cross Round Lamellas |
| Model VI | Custonized Lamellas |
| Funtion | 1.Increasing settling area whitout incrasing footprints |
| 2.Minizime turbidity load on filters | |
| 3.Cut coagulant dosage by up to half | |
| 4.Ingegrate sedVac & Polychem for sludge removal | |
| 5.Increase alloable flow capacity by expanding settling capacity and incresing the solid removal rate in the settling tank. | |
| 6.New installation can be designed smaller because of the increased flow capacity | |
| 7.Less filter backwashing equates significant | |
| Application | 1.Drinking water & wastewater treatment plants |
| 2.Water following physical & chemical treatment | |
| 3.Tailing in mining and metallurgical beneficiation | |
| 4.Solutions from gold leaching processes | |
| 5.Wet scubbing effluents | |
| 6.Effluents treatment in pulp and paper mills | |
| 7.Filter backwash | |

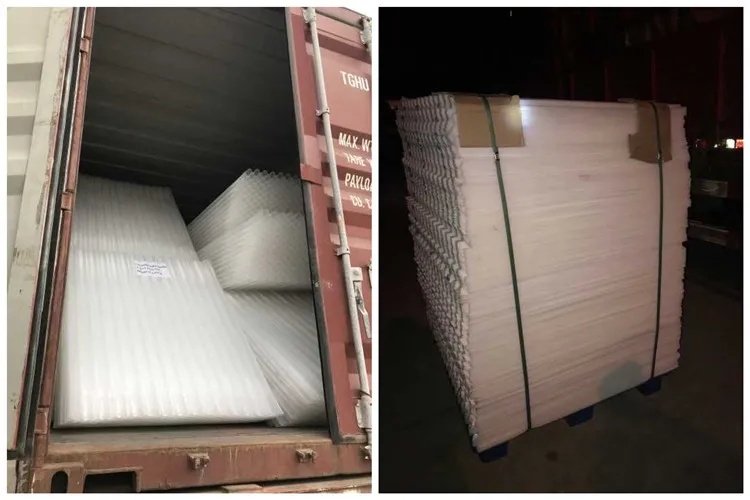

Packing and delivery
