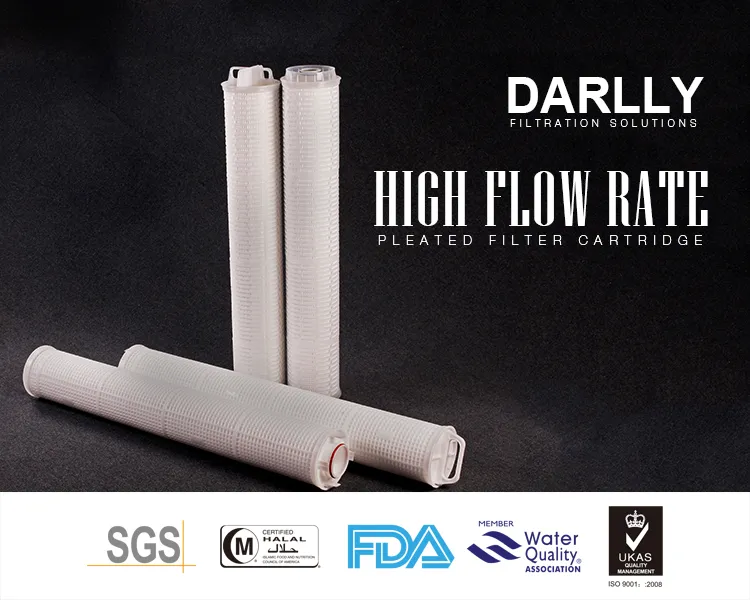

Dlmhf High Flow Filter Cartridge for Mineral
Outside Diameter:6.5 inch(165mm)Length: 39 inch(1000mm)Filter media:Polypropylene (PP),Glass FiberSupport/Drainage and End caps :Polypropylene (PP)End Cap Material : Glass Fiber reinforced Polypropylene (PP)Seal Material :EPDM, FEP encapculated Viton Removal Rating: 1, 3, 5, 10, 20, 50, 70&......
Send Inquiry
Product Description
| Outside Diameter: | 6.5 inch(165mm) |
| Length: | 39 inch(1000mm) |
| Filter media: | Polypropylene (PP),Glass Fiber |
| Support/Drainage and End caps : | Polypropylene (PP) |
| End Cap Material : | Glass Fiber reinforced Polypropylene (PP) |
| Seal Material : | EPDM, FEP encapculated Viton |
| Removal Rating: | 1, 3, 5, 10, 20, 50, 70µm |
| Maximum Operating Temperature: | 80°C |
| Maximum Differential Pressure: | 3.4Bar,80°C |
| Recommended Change out Differential Pressure: | 2.4Bar,20°C. |
| Suggested maximum flow rate: | 1300LPM |
Product Details
1.Media: Polypropylene, Glass Fiber;
2.Support/Drainage: PP
General Description:
MHF Series Filter Cartridge is a new product developed by Darlly Filtration Equipment Co.,Ltd in Hangzhou China. This cartridge is designed to be used in different filter housings which contains 1 to 37 filter cartridges. It can be used for a variety of hardwares and for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required.
Applications:-- Prefiltration of RO, Pretreatment of sea water desalination
-- Condensate water filtration, hot water recovery in power generation
-- API, solvents, and water filtration in BioPharm market
-- The filtration of bottled water, high Fructose, edible oil, soft drinks,and milk
-- Paints and coatings, Petrochemical, Refineries
-- Microelectronics, film, fiber and resin
Features:
-- High dirt holding capacity, longer service life
-- Less cartridge change out to save the labor cost
-- O-ring design cause no bypass to ensure the filtration efficiency
-- Easy handing result in less manpower
-- Wide chemical compatability for different applications
Part numbers/Ordering information
Darlly Multi-high flowment filter cartridge P/N :
DLMHF * - = - # - + (e.g.,DLMHF-5-PP-F-A)
| Code * Removal Rating | Code= Media Type | Code # Seal Material | Code+ End Cap Type | |
| DLMHF | 1=1um 3=3um 5=5um 10=10um 20=20um 50=50um 70=70um | PP=Polypropylene GF=Pleated glass fiber | EEPDM FE-FKM | ACode A BCode B |
