Factory PP Sediment Filter Multi-Filter

Product Description

Factory PP Sediment Filter Multi-Filter

Features:

Constructed from light weight, 100% polypropylene that is strong and high resistance to a wide range of chemicals.

An innovated ultra strong polypropylene material is used for broad application.
VARSep vessel can stand over 95ºC(203ºF)@ 7Kg/cm2(100PSI) Made with UV inhibitor for long-lasting, all-weather operation and durability.

Easily convertible between bag filters and cartridge filters for greater adaptability with 1-800 micron ratings available.

Self-seal Gaskets ensure the maximum operative pressure up to 10.5Kg/cm2(150PSI)

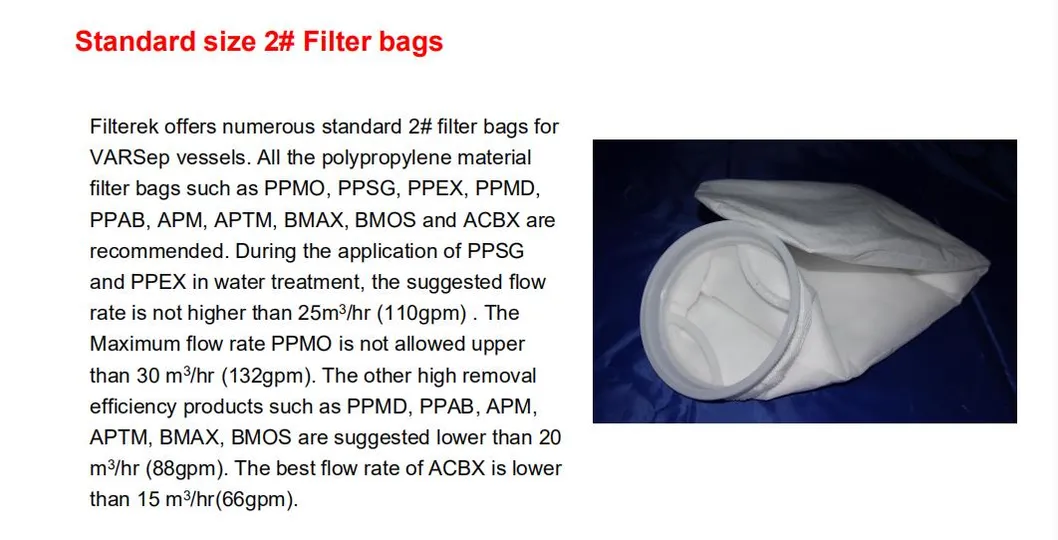

VARSep 45 fits for all standard size 2# filter bags with unique seal structure. Bypass flow is strictly avoided.

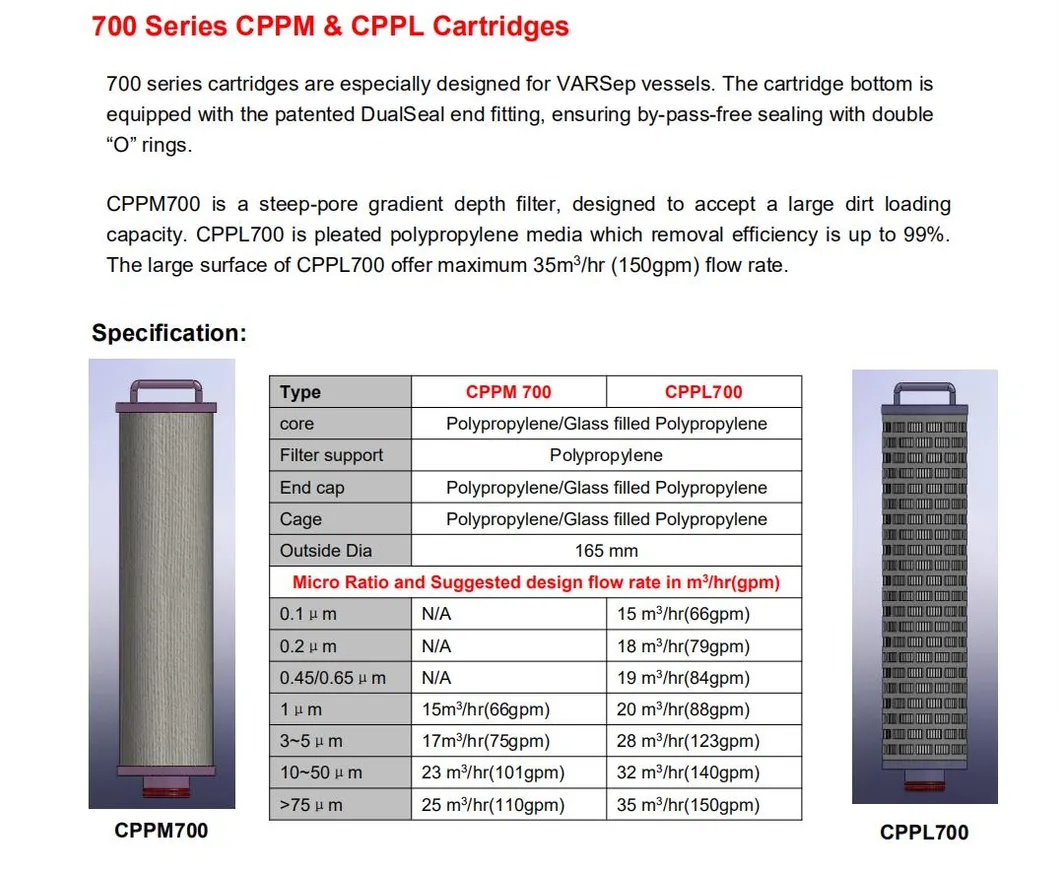

VARSep 700 fits for the big size cartridges. Filterek offers 2 types of products, one is melt blown polypropylene cartridges and the other one is pleated polypropylene cartridges. The maximum flow rate is up to 35m3/hr(150GPM).

Cartridge vessels hold one large 75mm ID x 152mm OD x 700mm long (3" ID x 6.0" OD x 27.5" long)cartridge.

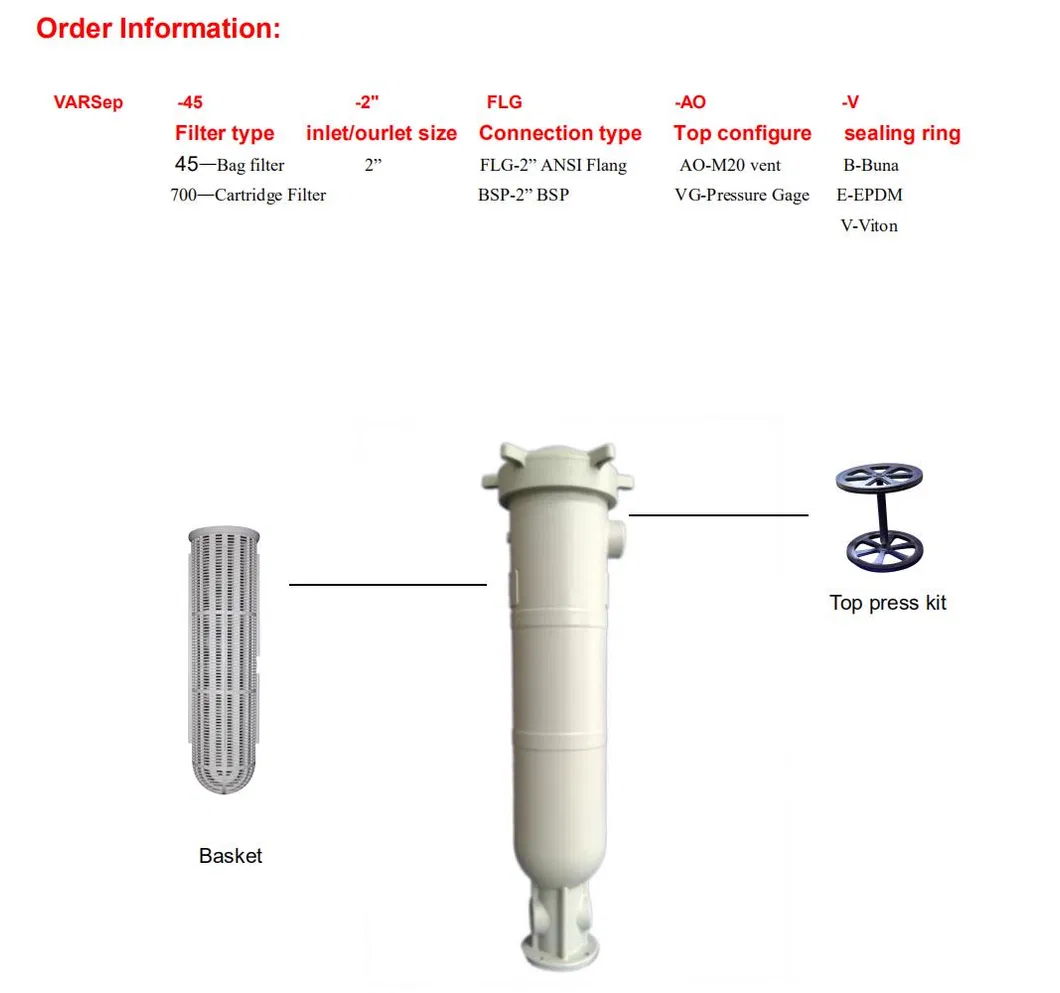

Twist-off lid design requires no tools for opening and closing vessel to provide quick and easy element change-out

Application:

Desalination, Waste water treatment, Pre-treatment of RO. Electronics chemical process, PCB process, Fine chemical process

Operation Data:

Maximum operating Temperature @ Pressure

25ºC(77ºF)@ 6.0Kg/cm2(85PSI)

45ºC(113ºF)@ 5.5Kg/cm2(78PSI)

60ºC(149ºF)@ 5.0Kg/cm2(71PSI)
