High Capacity Rotary Drum Screen Trommel Filter

High capacity rotary drum screen trommel filter

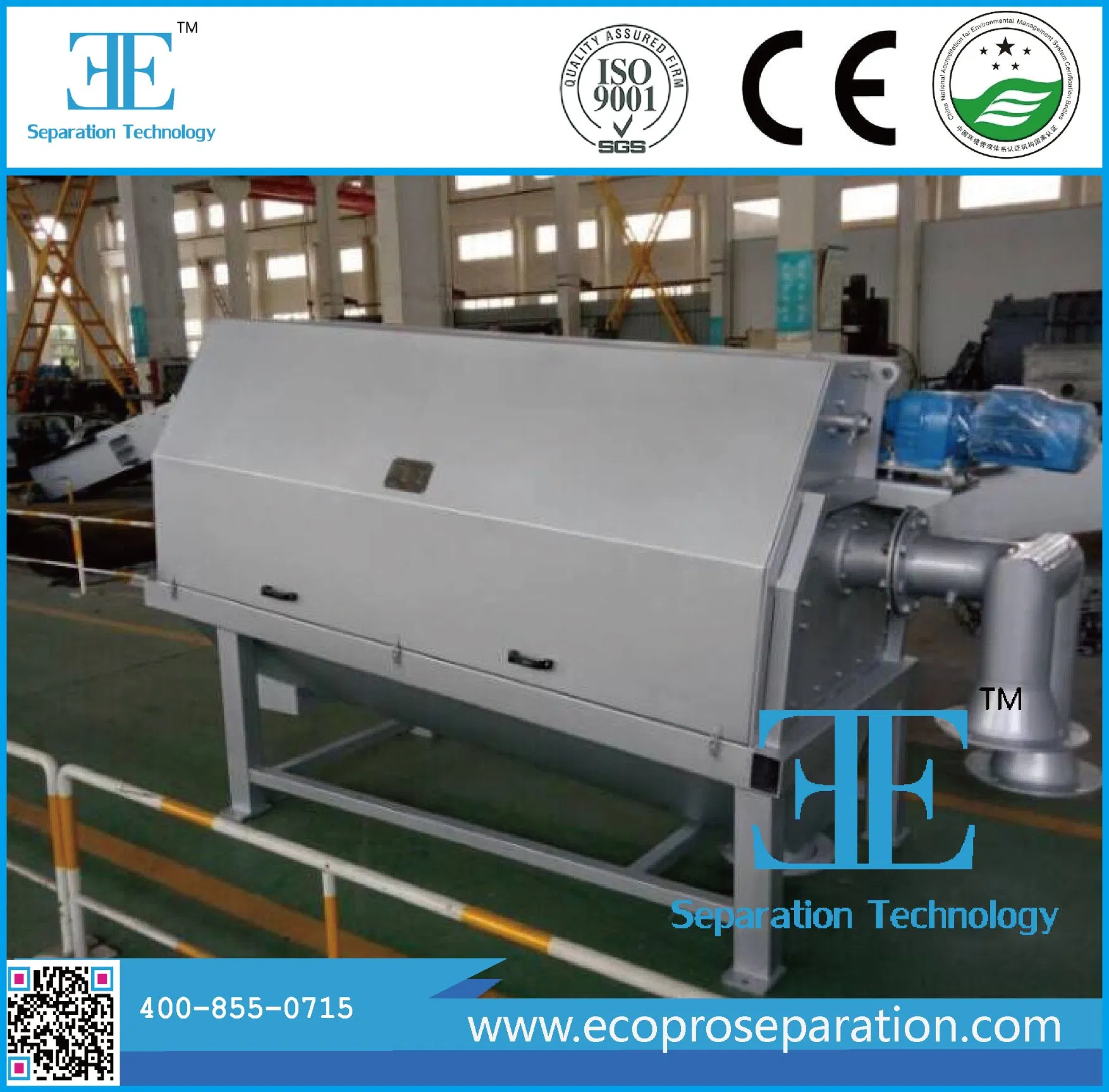

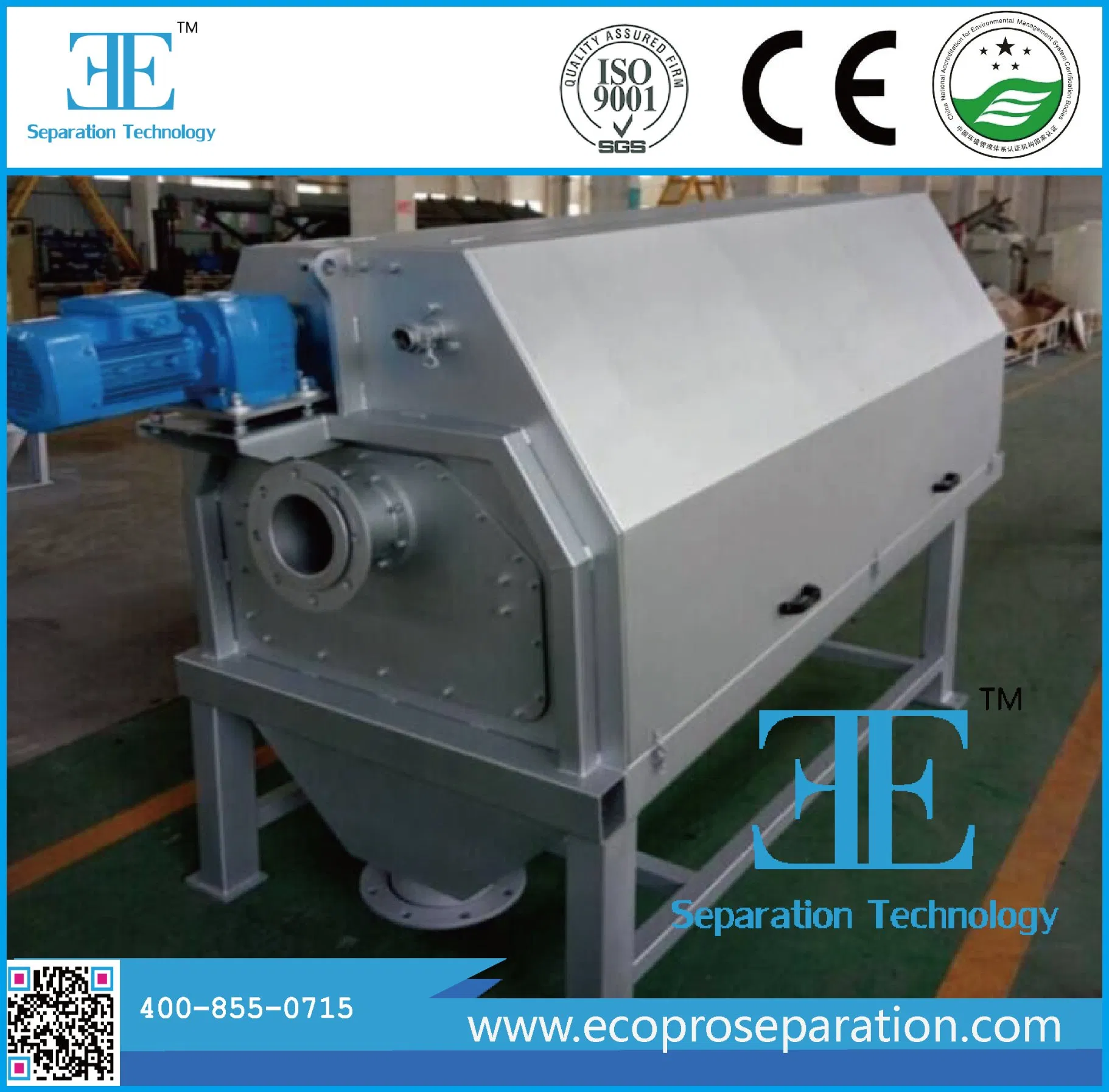

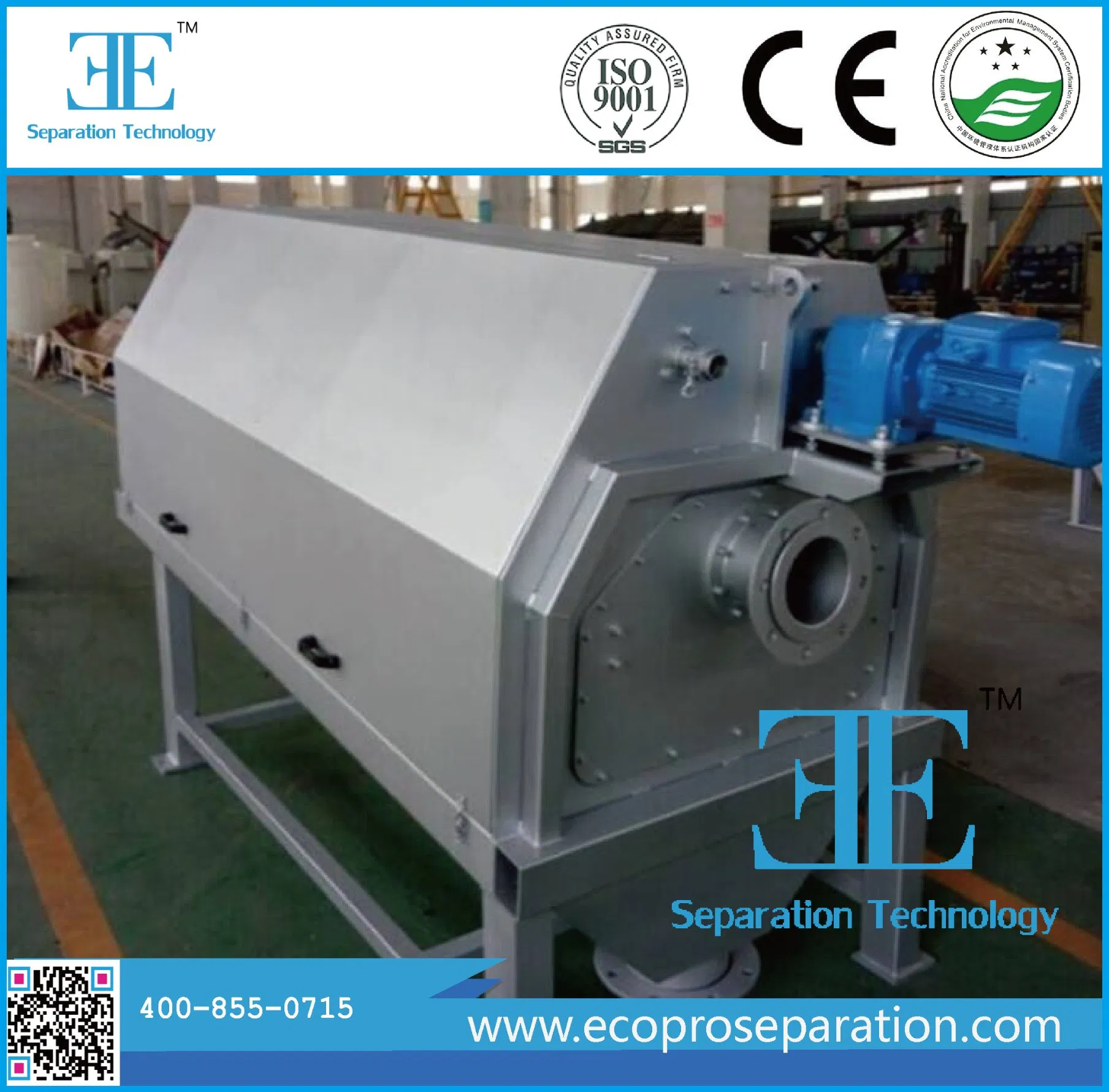

Rotary Drum Screen Introduction
The drum is horizontally rotated under the support of four runners. It is driven by TEFC reducer, anti-corrosion roller chain and stainless steel sprocket. The spray system automatically sprays clean water. The raw water flows in the inner of the drum through the overflow tank. The filtered raw water is diverted to the central drainage area through the bottom plate deflector and flows into the next sewage treatment unit; the slag in the raw water is blocked on the inner surface of the drum filter and is discharged as the drum rotates.

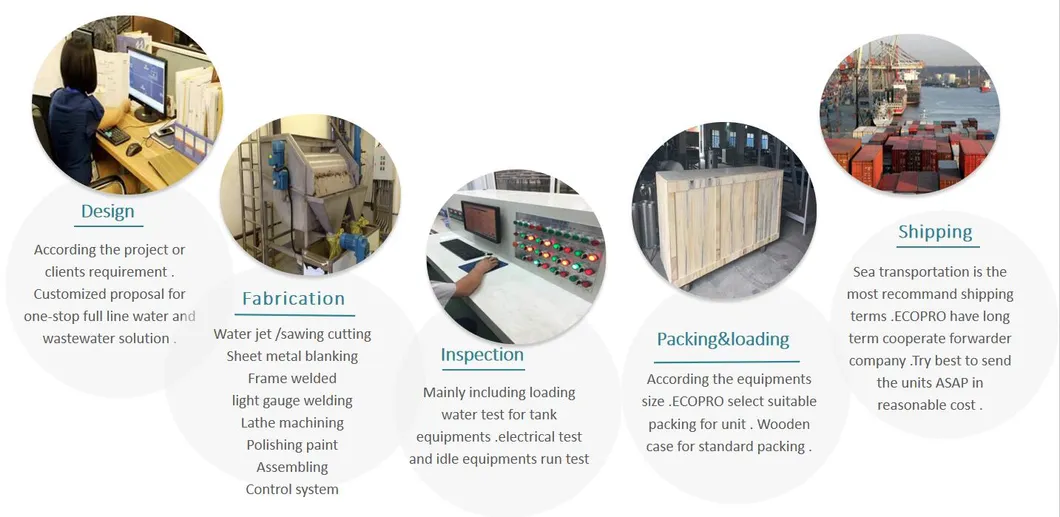

Rotary Drum Screen Fabricate Process

Rotary Drum Screen Technical Data


Rotary Drum Screen Details
