Product Description

Industry Pleated Ultipleat High Flow Filters HFU640GF200H13

General Description

The Hi-Flowment Filter cartridge is a new product developed by xinxiang lifeierte filter corp., in Xinxiang China. It has a 6 inch/152mm large diameter, and is coreless, single open-ended with an inside to outside flow pattern. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimention of housing required.The long service life and high flowrate result in low investment and less manpowert in many applications.

Outside Diameter:	6 inch(152mm)
Length:	20 inch(528mm),40 inch(1022mm),60 inch(1538mm)
Filter media:	Pleated glass fiber Pleated depth Polypropylene (PP) PP Melt blown
Support/Drainage:	Polypropylene (PP)

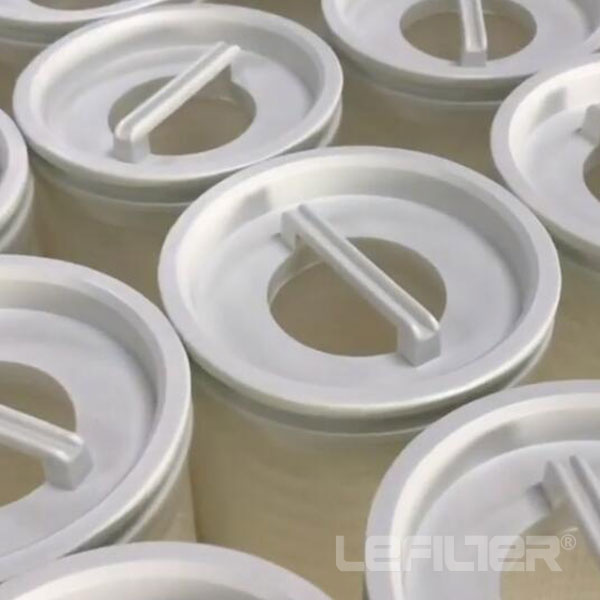

End caps :	Glass fiber reinforced Polypropylene
Seal Material :	EPDM, NBR
Removal Rating:	1 µm , 4.5 µm , 6 µm , 10 µm ,20 µm ,40 µm ,70 µm,100µm
Maximum Operating Temperature:	Pleated glass fiber:121°C Pleated PP: 82°C Melt Blown PP: 65°C
Maximum Differential Pressure:	Pleated glass fiber:3.4 Bar at 121°C Pleated PP: 3.4Bar at 82°C Melt Blown:1.03Bar at 65°C
Recommended Change out Differential Pressure:	2.4Bar at 20°C
Suggested maximum Flow of water:	20 inch length:660LPM 40 inch length:1,300LPM 60 inch length:1,900LPM

Features
--Gradient pore structure
--Up to 110m3/H flowrate per filter cartridge for water filtration
--Maximum 50% reduction of filter system

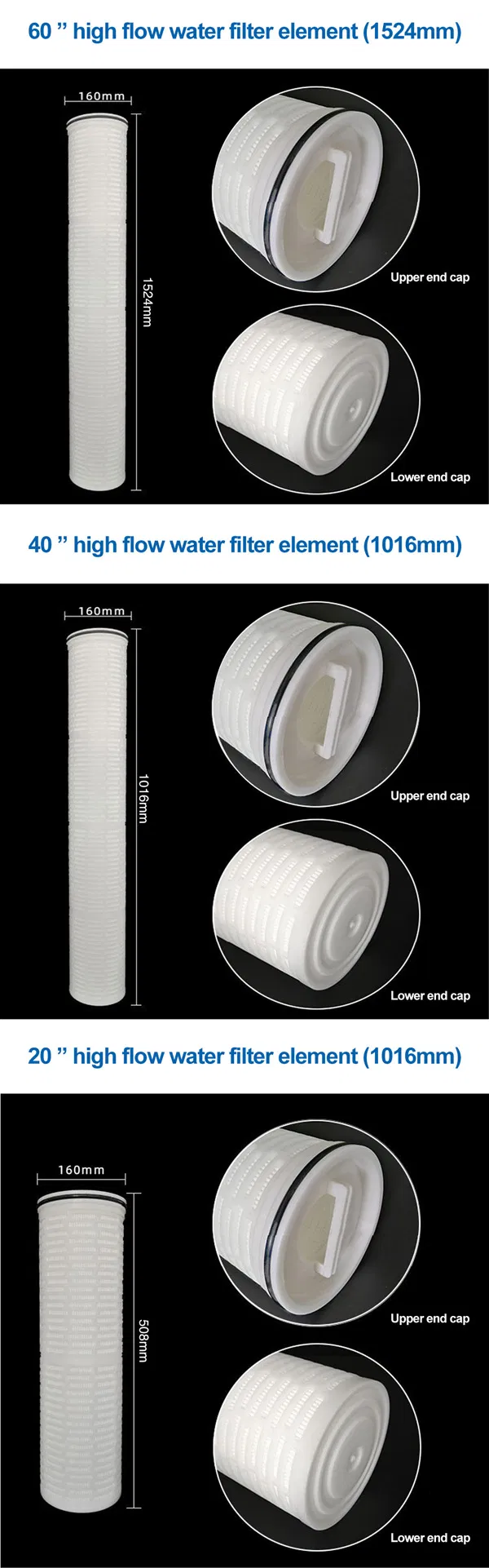

--20 inch/508mm, 40 inch/1016mm and 60 inch/1524mm lengths are available
--All contaminants can be removed within the cartridge because of the flow direction

Applications
Prefiltration of RO, pretreatment of sea water desalination
Condensate water filtration, hot water recovery in power generation
API, solvents, and water filtration in Bio-Pharm market
The filtration of bottled water, high Fructose, edible oil, soft drinks, and milk
Paints and coatings, petrochemical, refineries
Micro-electronics, film, fiber and resin

Industry Pleated Ultipleat High Flow Filters Hfu640GF200h13

Industry Pleated Ultipleat High Flow Filters Hfu640GF200h13

Filter Cartridge:

HFU620UY200H4
HFU620UY200H4W
HFU620UY200HW
HFU620UY200J
HFU620UY400H
HFU620UY400H1
HFU620UY400H13
HFU620UY400H13W
HFU620UY400H4
HFU620UY400H4W
HFU620UY400HW
HFU620UY400J
HFU620UY700H1
HFU620UY700H13
HFU620UY700H13W
HFU620UY700H4
HFU620UY700H4W
HFU620UY700HW
HFU620UY700J

HFU640UY200H4
HFU640UY200H4W
HFU640UY200HW
HFU640UY200J
HFU640UY400H
HFU640UY400H1
HFU640UY400H13
HFU640UY400H13W
HFU640UY400H4
HFU640UY400H4W
HFU640UY400HW
HFU640UY400J
HFU640UY700H1
HFU640UY700H13
HFU640UY700H13W
HFU640UY700H4
HFU640UY700H4W
HFU640UY700HW
HFU640UY700J
HFU640J100J

HFU660UY200H4
HFU660UY200H4W
HFU660UY200HW
HFU660UY200J
HFU660UY400H
HFU660UY400H1
HFU660UY400H13
HFU660UY400H13W
HFU660UY400H4
HFU660UY400H4W
HFU660UY400HW
HFU660UY400J
HFU660UY700H1
HFU660UY700H13
HFU660UY700H13W
HFU660UY700H4
HFU660UY700H4W
HFU660UY700HW
HFU660UY700J
HFU640J200H1

FAQ
Q1: Are you manufacturer?
A: Yes, we are manufacturer , and was public listed successfully in 2016,also our factory is located in Xinxiang City, Henan Province,China. Welcome to visit us!

Q2: How is the quality of the filters?
A: 'Quality is our culture!"
As a result, all of our replacement elements are manufactured rights here in China, under the most rigorous quality standards. Additionally, all of our filter elements carry Seven ISO Standards and we fully guarantee all of our products.

Q3: How do you guarantee the after-sale service?
A: Before shipment, our products are checked one by one. If any problems caused by the product itself, we will supply you the new replaced ones.

Q4: Do you accept OEM?
A: Yes, we can manufacture according to your requirement.

Q5: Can you design filters according to the working condition?
A: Yes. We have professional R&D department , and we can design the more suitable filters for you.

Looking for ideal HFU640GF200H13 Filter Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the HFU640GF200H13 Filter Element are quality guaranteed. We are China Origin Factory of WATER FILTER HFU640GF200H13 If you have any question, please feel free to contact us.
