Lamella Clarifier System Can Expand The Processing Capacity in a Limited Area.

Industrial Water Clarifier Lamella Clarifier Sewage Treatment Machine

Lamella Clarifier
Lamella Clarifier System Technical Data

Lamella Clarifier System Introduction
The Lamella Clarifier Machine is mainly used as the primary sedimentation tank, the existing sewage plant taps the potential or expands the treatment capacity when the sewage treatment plant is limited by the floor space.

Lamella Clarifier System Process

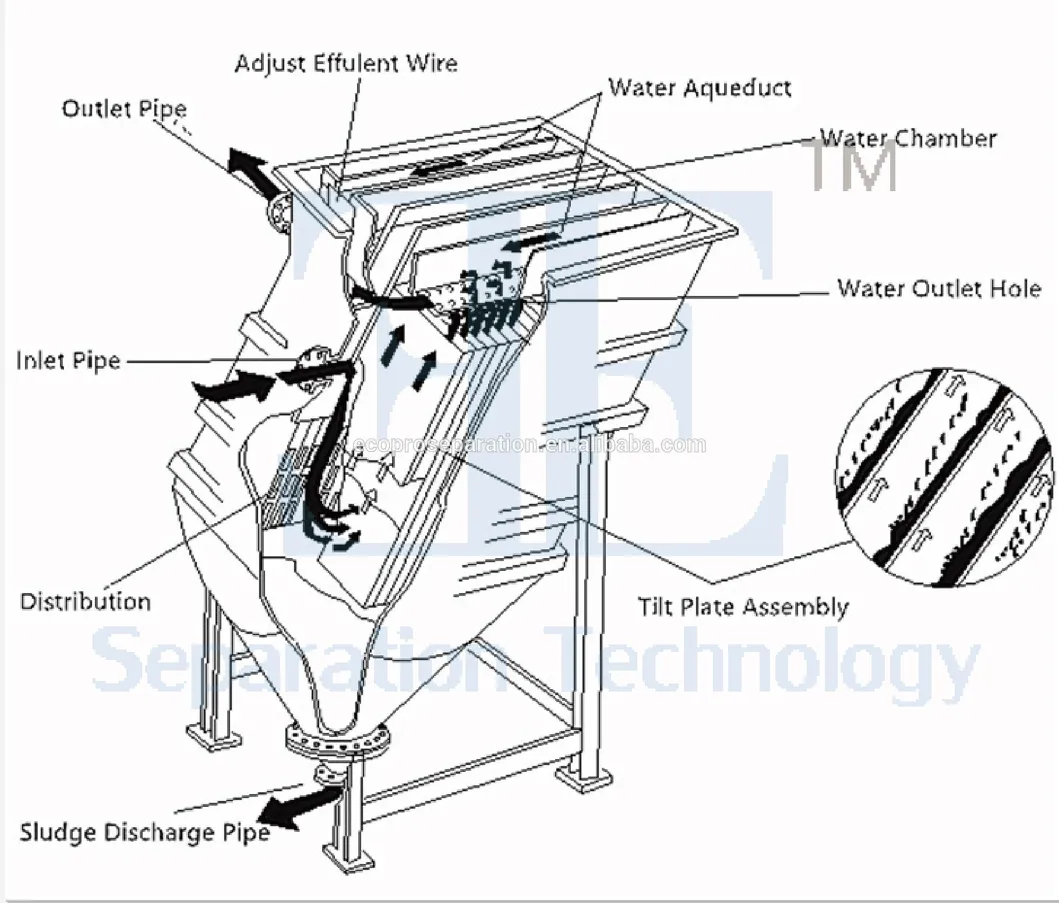

Lamella Clarifier System Work Process
The waste water enter the pool from the inlet pipe and flow down through the middle water inlet chamber,it is reflected by the deflector plate, and then enters the tilt plate through the inlet water distribution.
As the waste water flows upward, the solid particles are settled on the parallel tilt plates assembly, and then slide into the sludge hopper at the bottom of the sediment hopper. In the sludge hopper, the sludge is concentrated and discharged through the sludge outlet. The clarified liquid exit the tilt plate and water collecting channel by top water outlet road, then gathering into outlet sink via  its adjustable weir plates. The  water outlet tube in the tank will discharge the water outside.

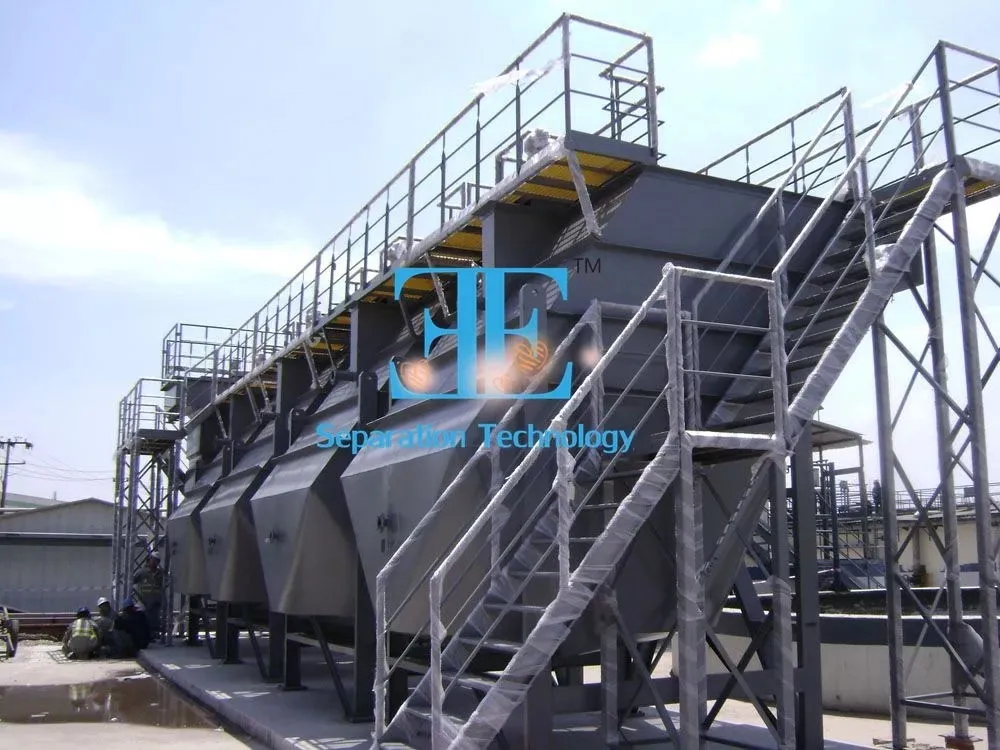

Lamella Clarifier System for References
