Mechanical Screen Water Treatment

Product Description

Mechanical Screen Water Treatment

Mechanical Screen Introduction
Stainless steel powder rectangular Separator is a classical and universal screening equipment.The movement track of its screen box is close to straight line. Almost all the linear vibrating screens are consisted of the screen box,supporting or hanging device,driving unit, vibration isolation part, etc.

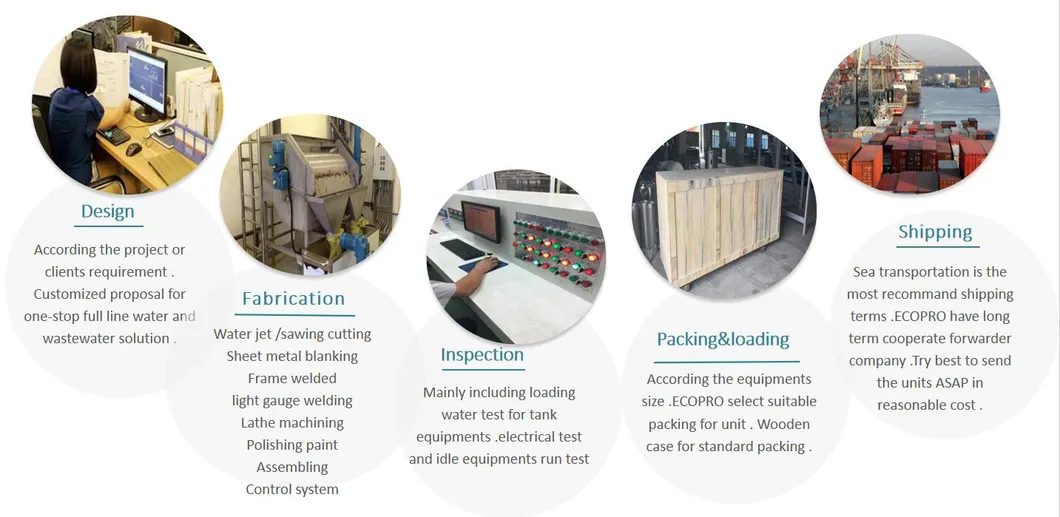

Mechanical Screen Fabricate Process

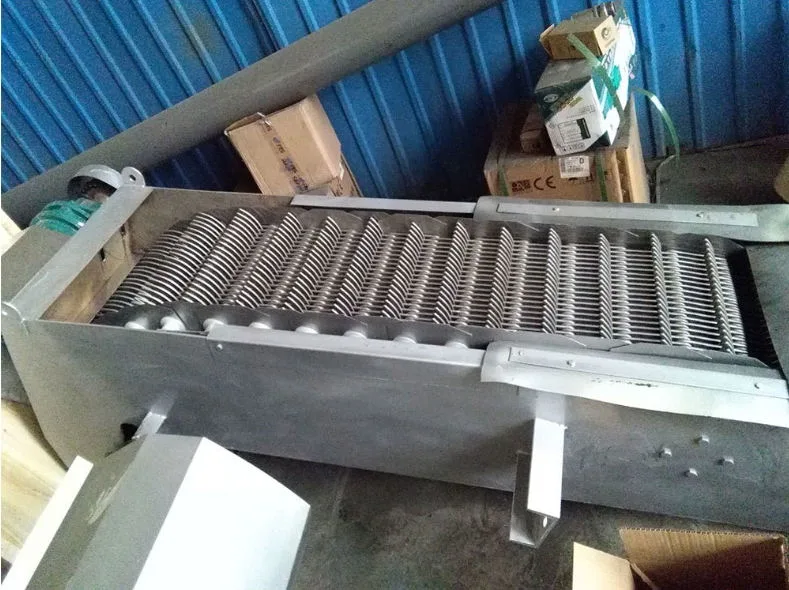

The mechanical grille is assembled by a unique rake tooth factory into a set of rotary grille chains. Driven by the motor speed reducer, the harrow chain rotates against the direction of water flow.

When the harrow chain runs to the upper part of the equipment, due to the guidance of the groove wheel and the curved rail, a relatively self-cleaning movement occurs between each group of harrow teeth, and most of the solid matter falls by gravity. The other part relies on the reverse movement of the cleaner to clean the debris sticking to the rake teeth.

The rake tooth chain according to the water flow direction is similar to the grille, and the rake tooth gap assembled on the rake tooth chain shaft can be selected according to the usage conditions. When the harrow teeth separate the solid suspended matter in the fluid, it can ensure the smooth flow of water. The entire working process is continuous or intermittent.

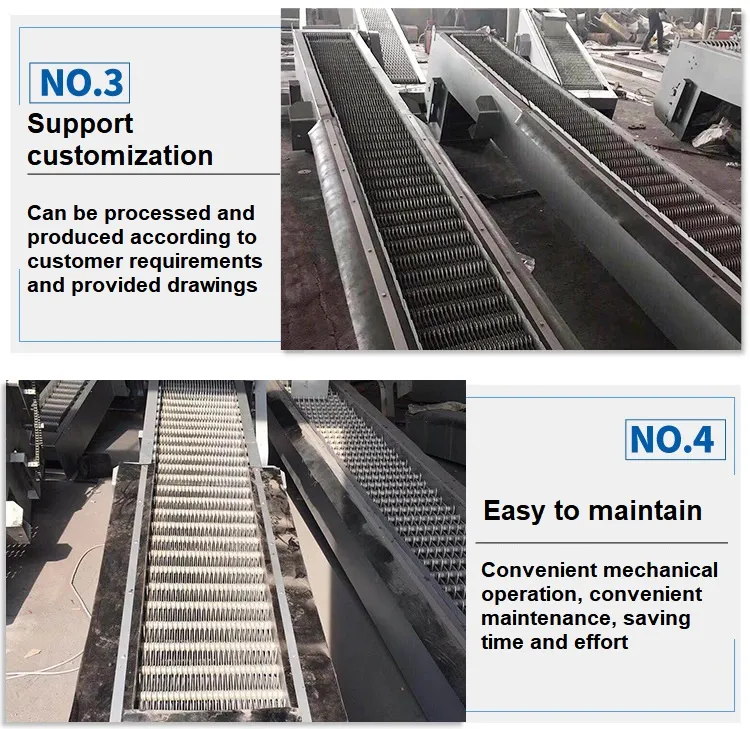

Mechanical Screen Details
