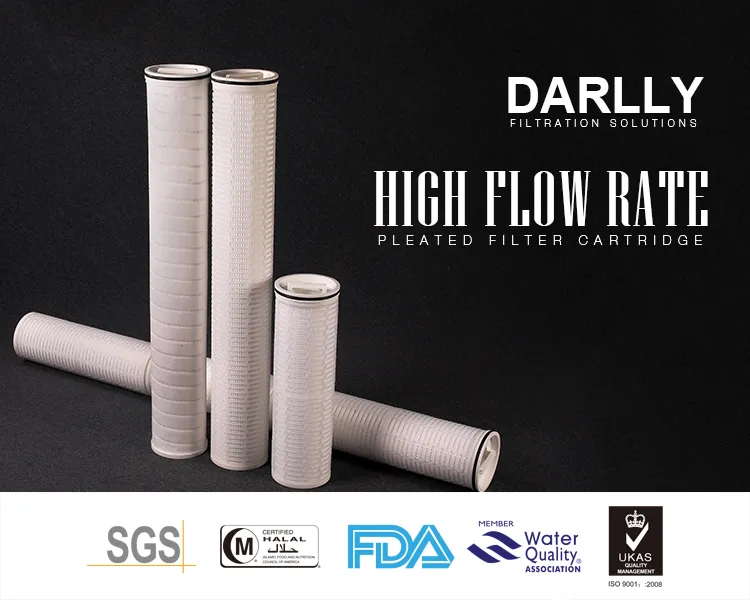

PP Sediment High Flow Filter Cartridge

Product Description

Darlly Ultipleat Replacement Pre filtration water filter
Replacement of Darlly Ultipleat of Pre filtration water filter
OD:6 inch

The Darlly Ultipleat Replacement Pre filtration water filter is a new product developed by Darlly Filtration Equipment Co.Ltd in Hangzhou China. It has a 6 inch/152mm large diameter, and is coreless, single open-ended with an inside to outside flow pattern. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required .The long service life and high flow rate result in low investment and less manpower in many applications

-- Prefiltration of RO, Pretreatment of sea water desalination
-- Condensate water filtration, hot water recovery in power generation
-- API, solvents, and water filtration in BioPharm market
-- The filtration of bottled water, high Fructose, edible oil, soft drinks, and milk
-- Paints and coatings, Petrochemical, Refineries
-- Microelectronics, film, fiber and resin

Features:
_____________________________________________________________________

-- Gradient pore structure
-- Up to 110M3/H flow rate per filter cartridge for water filtration.
-- Maximum 50% reduction of filter system
-- 20 inch /528mm,40inch/1022mm and 60 inch/1538mm lengths are available
-- All contaminants can be removed within the cartridge because of the flow direction.

Outside Diameter:	6 inch(152mm)
Length:	20 inch(528mm),40 inch(1022mm),60 inch(1538mm)
Filter media:	Pleated glass fiber Pleated depth Polypropylene (PP) PP Melt blown
Support/Drainage:	Polypropylene (PP)
End caps :	Glass fiber reinforced Polypropylene
Seal Material :	EPDM, NBR
Removal Rating:	1 µm , 4.5 µm , 6 µm , 10 µm ,20 µm ,40 µm ,70 µm ,100µm
Maximum Operating Temperature:	Pleated glass fiber:121°C Pleated PP: 82°C Melt Blown PP: 65°C
Maximum Differential Pressure:	Pleated glass fiber:3.4 Bar at 121°C Pleated PP: 3.4Bar at 82°C Melt Blown:1.03Bar at 65°C
Recommended Change out Differential Pressure:	2.4Bar at 20°C
Suggested maximum Flow of water:	20 inch length:660LPM 40 inch length:1,300LPM 60 inch length:1,900LPM
