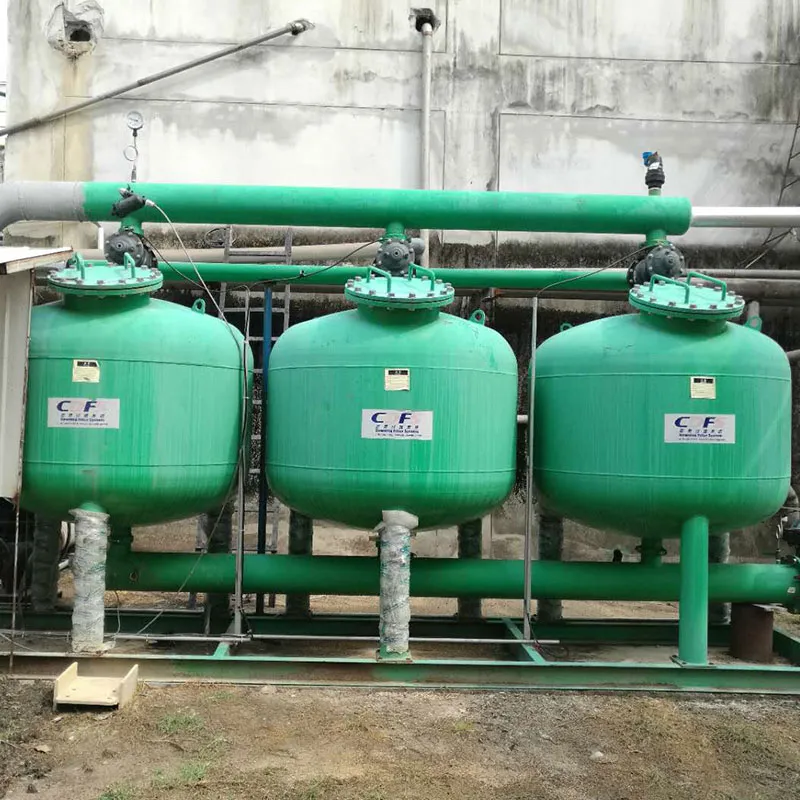

Product Description

Technical requirements

Min. pressure: 0.15Mpa
Max. pressure: 1.0Mpa
Working temperature: <65ºC
Tank thickness: 4/6/8mm
Power: 220V/110V/battery

Working princinple

The Filtering Process
Filtering with media filters, also known as depth filtration, is done by filtering water through a thick layer of graded particles, called the filter bed. These particles can be sand, gravel or other granular materials. The filtration degree depends on the effective size of the bedding and the water velocity through the filter.

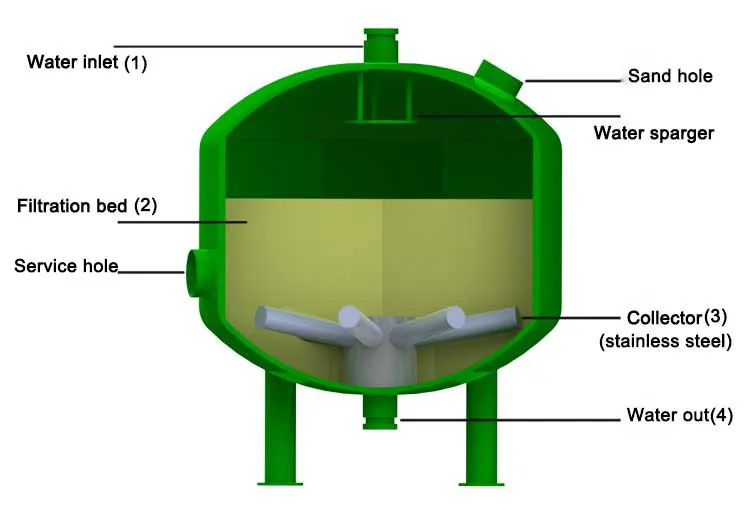

Raw water enters from the filter inlet (1) and percolates through the filter bed (2). Suspended materials come into contact and attach to the media particles. Clean water flows through the filtration nozzles (3) and out of the filter via the outlet valve (4).
The gradual dirt buildup in the filter bed causes an increase in the pressure differential across the filter and when it reaches its maximum design value, a cleaning process should be performed. In automatic media filter installations a pressure differential switch senses the pressure differential and when it reaches a preset value, the self cleaning process begins.

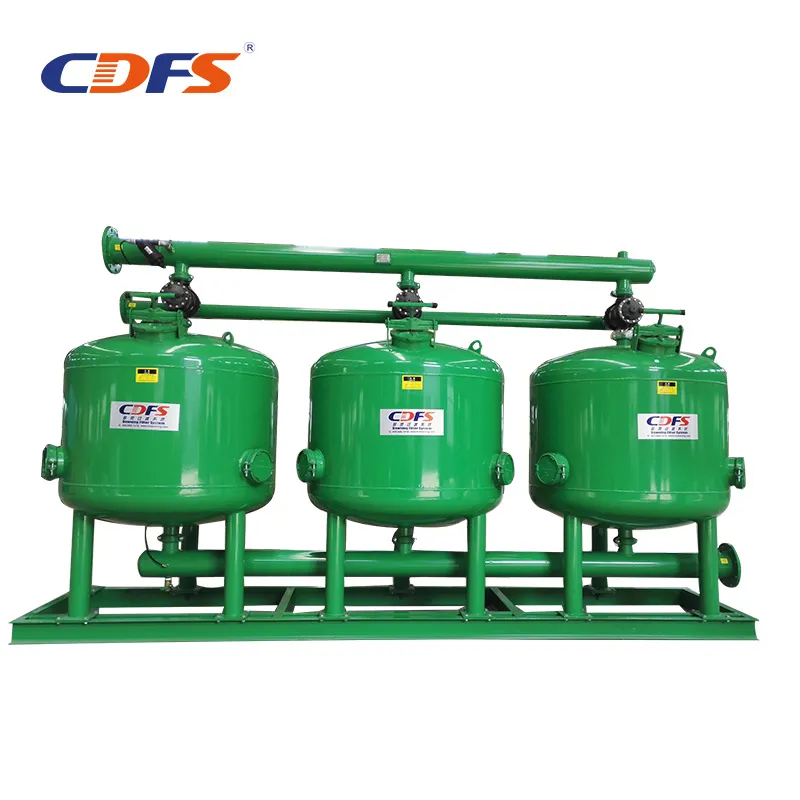

Pressure Sand Media Filter for Water Treatment Unit Protect
The Cleaning Process

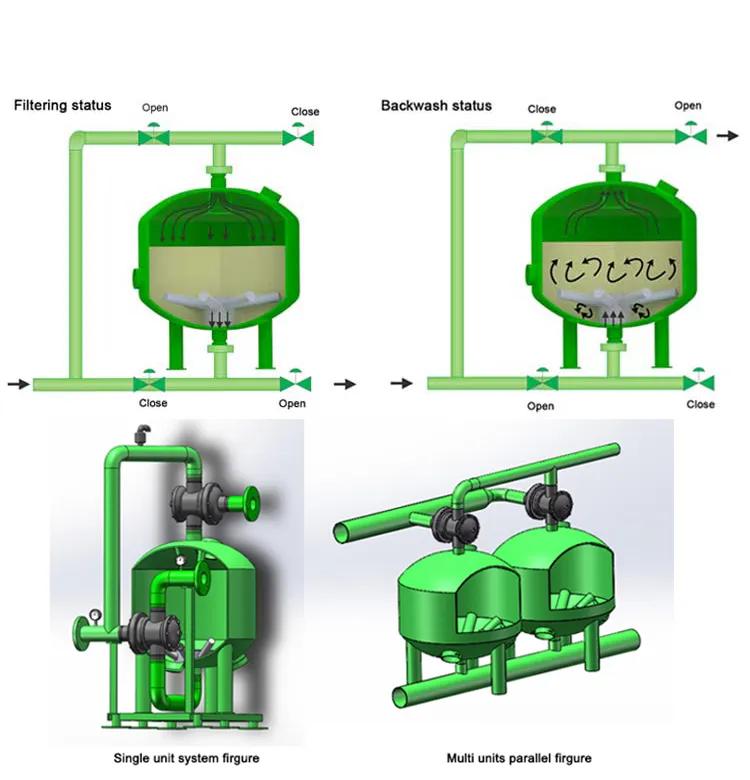

Cleaning is done by backwashing; pressurized water flows in reverse direction - from the nozzles upwards, causing suspension of the filter bed, thus releasing the suspended matter from the bedding. The dirt particles are then washed out of the filter through the back-flush valve. In automatic media filters installations the cleaning process is done by the system's controller. When the pressure differential switch senses that the differential pressure across the system reached a pre-set value, a signal is sent to the flushing controller and the self cleaning process begins.

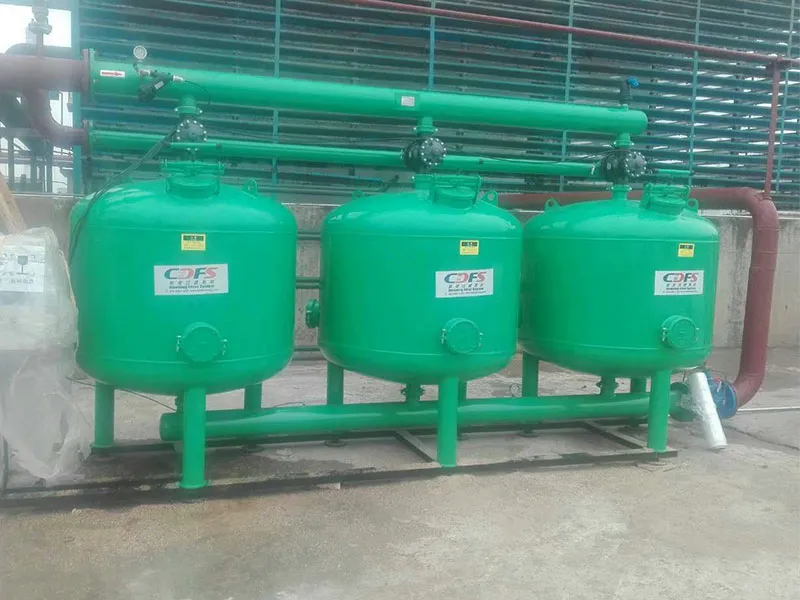

Pressure Sand Media Filter for Water Treatment Unit Protect

Sand filter specification sheet table

Model	Vessels QTY	Max.flow (agri.)	Max.flow (indus.)	Min. pressure	Max. pressure	Backwashing flow	Water in/out (mm/inch)
DMF24-2-A	2	30	22	0.2	1.0	15	80 / 3
DMF24-3-A	3	45	33	0.2	1.0	19	80 / 3
DMF28-2-A	2	60	30	0.2	1.0	30	100 / 4
DMF28-3-A	3	90	45	0.2	1.0	50	100 / 4
DMF32-2-A	2	75	40	0.2	1.0	35	100 / 4
DMF32-3-A	3	115	60	0.2	1.0	50	150 / 6
DMF36-2-A	2	80	70	0.2	1.0	40	100 / 4
DMF36-3-A	3	120	105	0.2	1.0	50	150 / 6
DMF48-2-A	2	160	100	0.2	1.0	80	150 / 6
DMF48-3-A	3	240	150	0.2	1.0	80	200 / 8

Remark: The agri.- agricultral, The indus- industrial.

The flow is different when used for agricultral and industrial

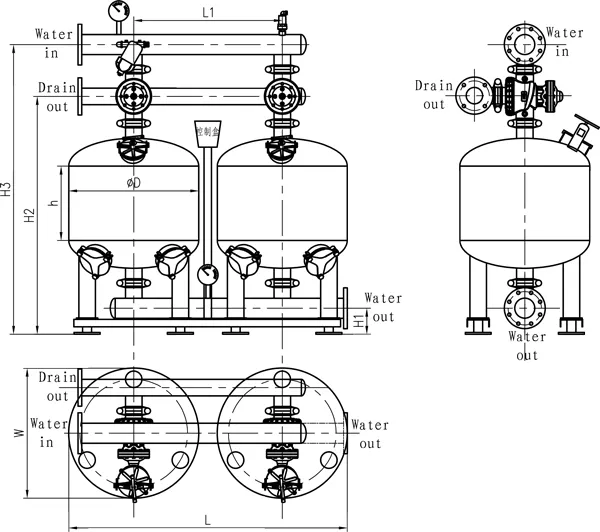

Multi vessels auto sand filter dimensions

Model	D	L	W	H1	H2	H3	h (agri.)	h (Indus.)
DMF24-2-A	600	1330	630	130	1215	1450	400	600
DMF24-3-A	600	2030	630	130	1215	1450	400	600
DMF28-2-A	700	1520	720	140	1305	1580	400	600
DMF28-3-A	700	2320	720	140	1305	1580	400	600
DMF32-2-A	800	1720	820	140	1345	1620	400	600
DMF32-3-A	800	2620	820	170	1395	1695	400	600
DMF36-2-A	900	1920	920	140	1385	1660	400	600
DMF36-3-A	900	2920	920	170	1440	1740	400	600
DMF48-2-A	1200	2620	1220	170	1593	1925	400	600
DMF48-3-A	1200	4020	1220	200	1648	2005	400	600

Packing picture
