Product Description

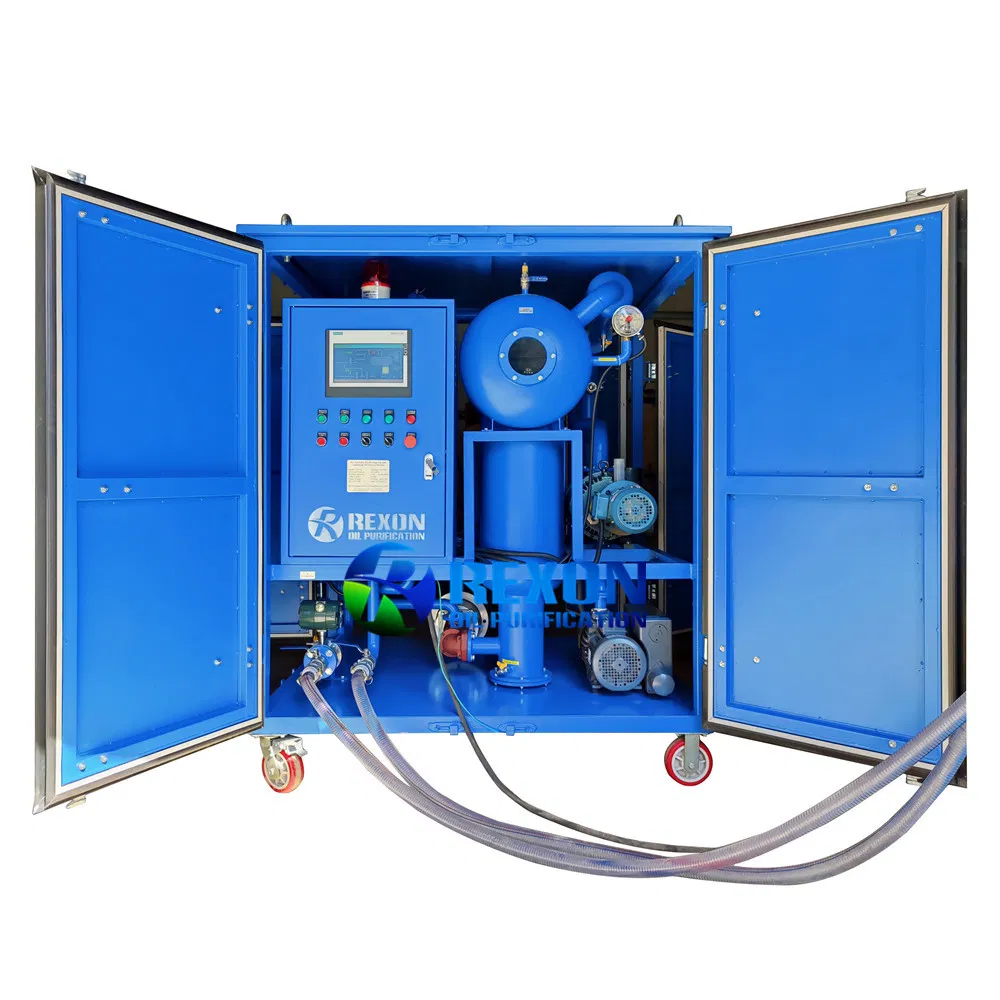

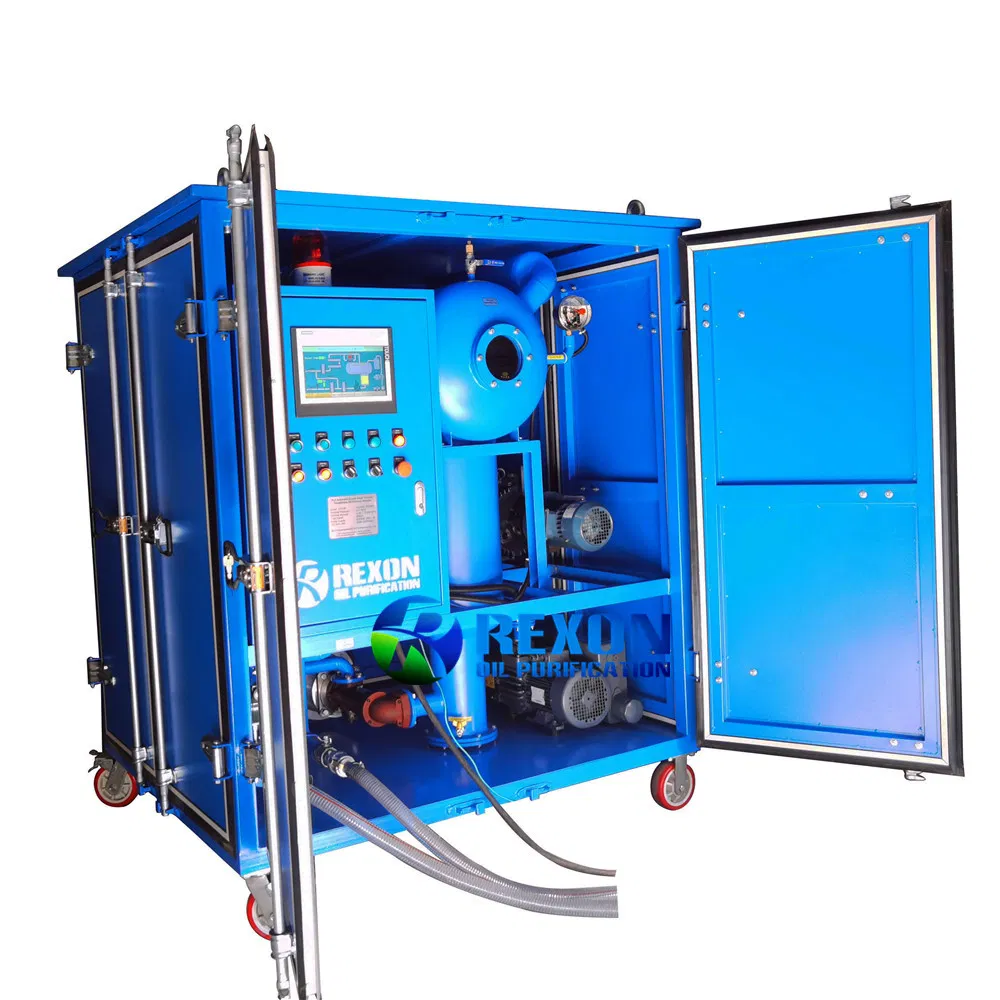

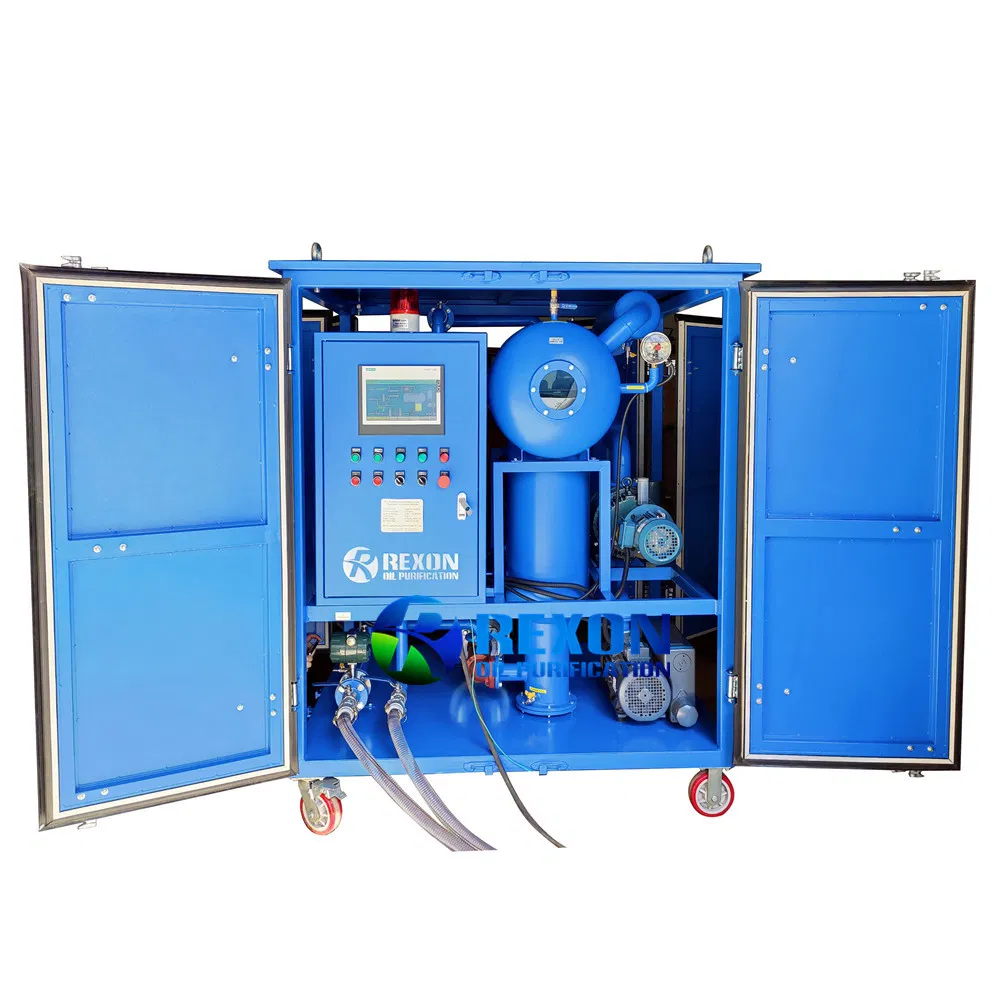

Double Vacuum Transformer Oil Filter Machine High Speed Degas Dewater

Application:

Transformer Oil Filter Machine ZYD-50 is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index. It is mainly applied to purification for high voltage insulating oil of 110KV, 220KV, 500KV, 750KV, 1000KV from power transmission equipment.

Advantage:

1. Double stage vacuum system ( vacuum pump+booster vacuum pump), high speed oil dehydration and degasification.

2. High precision three-stage filtration system ( 50/5/1micron), remove impurities & metal particles from oil.

3. Restore the dielectric strength of transformer oil to 75~85KV.

4. In addition to transformer oil purification, it can also be used as a separate transformer oil injection/ filling, and transformer vacuum pumping.

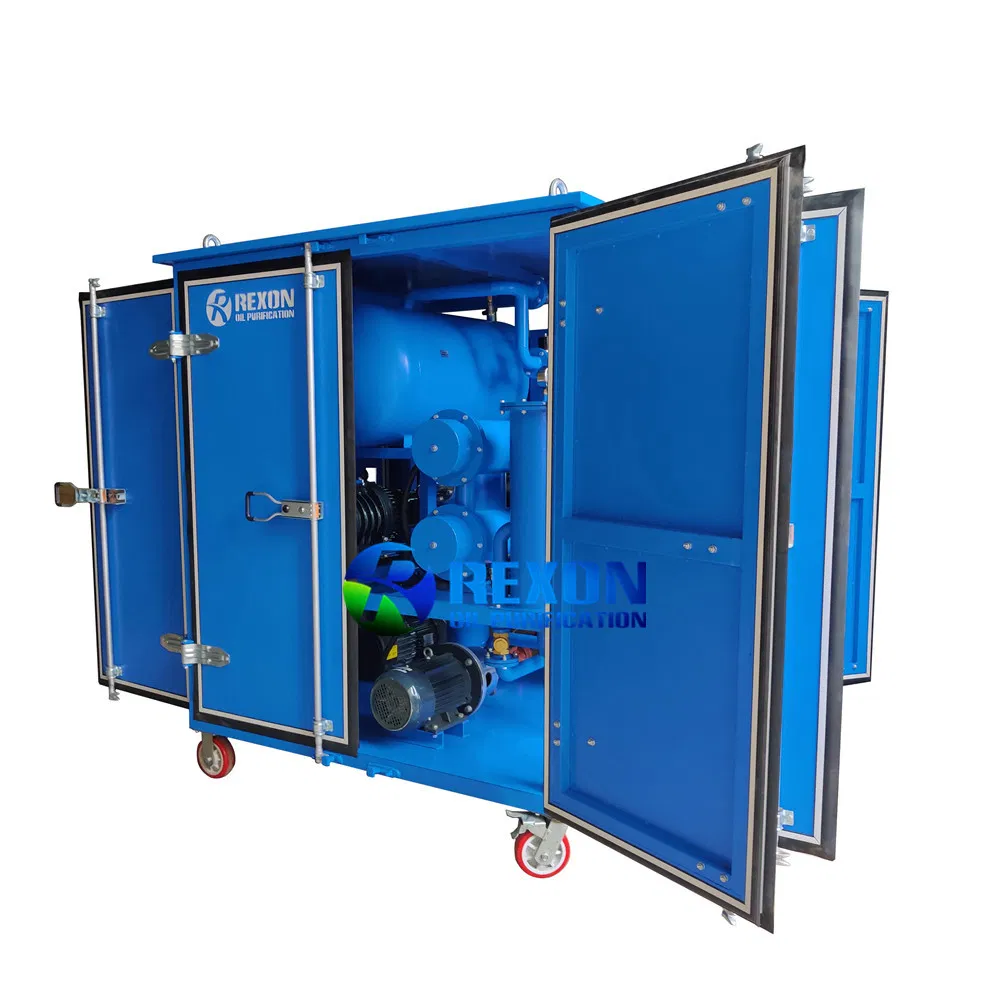

5. Thickened metal enclosure, fully weather-proof, dust-proof, keep machine in good and clean condition when used at onsite projects.

6. REXON oil purifier machines all are equiped with famous brand main components and spare parts, ensured machine quality.

Double Vacuum Transformer Oil Filter Machine High Speed Degas Dewater

1. Especially for removing water from transformer oil, such as free water, trace water and so on by the double stage vacuum system for high voltage oil.

2. Remove gas, air content from the old high voltage transformer oil by vacuum degassing system.

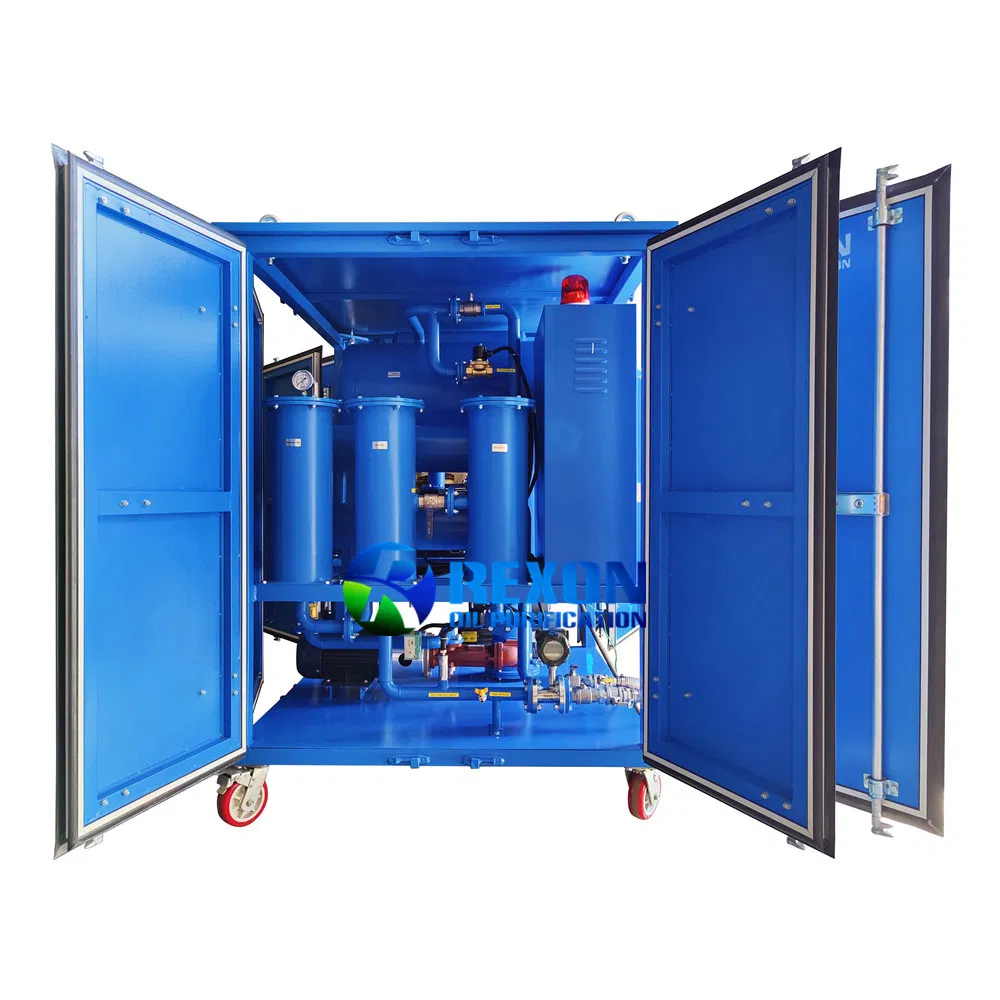

3. Remove impurities, tiny particles, acidity, sludge, free carbon, other soluble oil decay products and discoloration substances by 3 stages of filters (Primary filter, secondary filter, fine filter).

4. Independent vacuum oiling system for transformers, this oil purifier can also vacuum dry transformer and on-line operation with transformers.

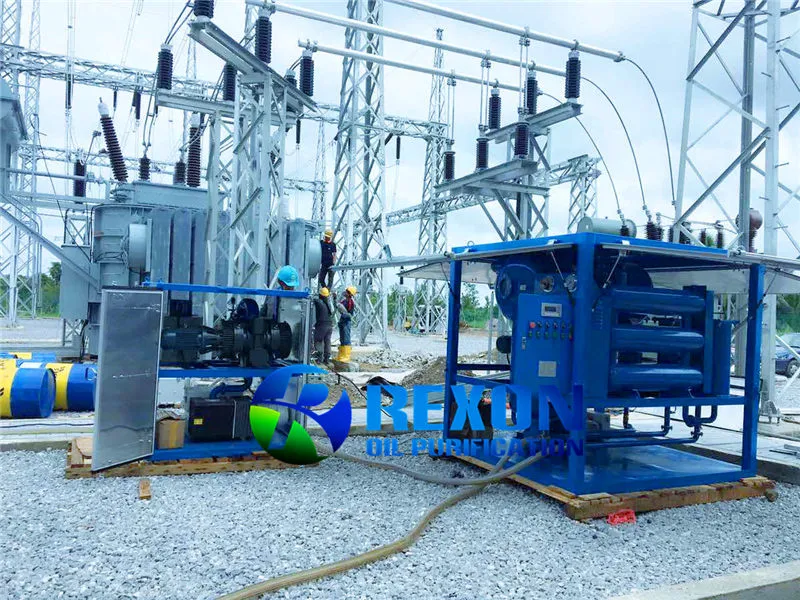

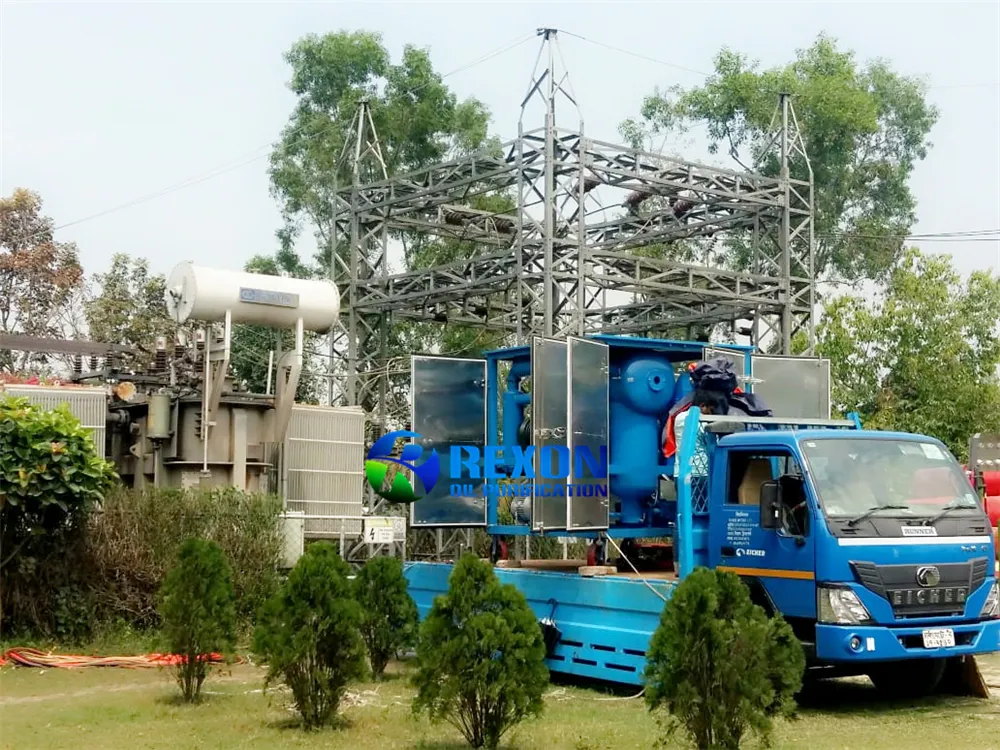

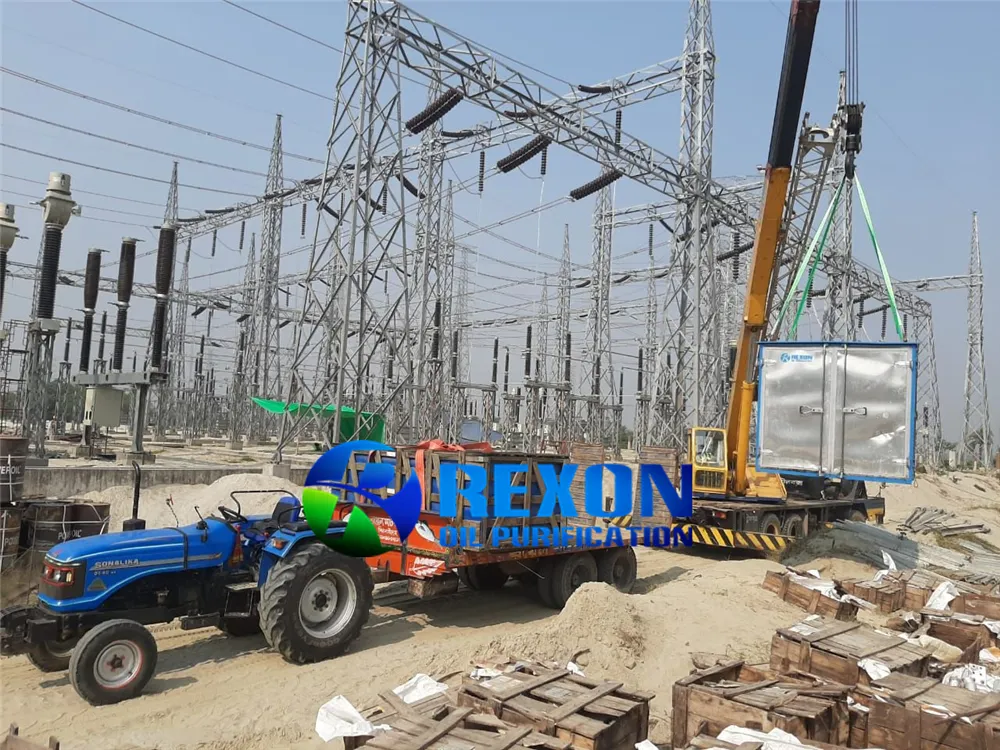

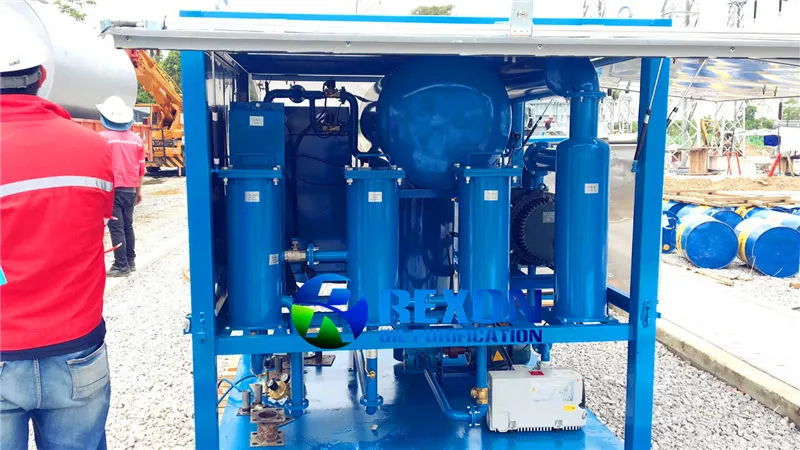

5. Designed for processing high voltage insulating oils in workshops, onsite power stations, purifying oil in oil storage tanks or directly in transformers(energized or de-energized transformers).

6. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
7. Double-infrared liquid level sensor, pressure protective system and foaming detecting and eliminating to ensure machine operation easily and safely.

8.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping.

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Working Vacuum		Mpa	-0.08 ~-0.099
Working Pressure		Mpa	≤ 0.3
Temperature Range		ºC	0~100. Best recommended heating temp. is 55~60ºC
Power Supply			380V, 50Hz, 3Phase( As per required)
Working Noise		Db	60 - 80 (Depended on the configuation)
Heating Power		KW	30	60	90	135	160	180	180
Total Power		KW	35	67.5	101.5	149	175	198	198
Inlet/Outlet Diam		MM	25	32	42	50	50	60	60
Weight		KG	450	550	750	950	1200	1850	2000
Size	Length	MM	1450	1450	1750	1850	1950	2050	2150
	Width	MM	950	1000	1250	1300	1350	1400	1450
	Height	MM	1700	1750	1950	2000	2050	2100	2150
AFTER TREATMENT
Dielectric Strength		KV	≥ 75-85
Water Content		PPM	≤ 3
Gas Content		%	≤ 0.1
Particle Size		μ	≤ 1
Cleanliness ≤NAS 1638 Grade 5

Our Transformer Oil Purification and Maintenance Machines can bring you:

→Purifying your transformer oil high efficiently

→Maintain your transformer oil always in good status

→Save your old transformer oil replacement cost

→Solve your waste transformer oil disposal problem

→Guarantee your transformers working normally with qualified oil property

→Protect your transformers and power equipment from oil pollution problems

→Reduce your maintenance time, energy and invest on transformers and power plant

→Create a safety and cleaning oil use environment for your transformers of power station

→Bring a green oil ideal to the world and save oil energy for all of our generations

Chongqing Rexon Oil Purification Co., Ltd is a leading oil purifier manufacturer in China, which engages in developing, producing, selling a series of oil purifier such as transformer oil purifier, turbine oil purifier, engine oil purifier, lube oil purifier, cooking oil purifier and so on. We practiced in this line near 20 years, so we have a strong technology and gain rich experience. Our products have been exported to many countries, and get a high reputation.

Since the foundation of our company, under the duty of devoting our efforts to develop the advanced purifier for saving energy sources, adopting the advanced management like SUBI, and with the reliance on the strong technical force, advanced equipment of production, perfect quality check method, fast and outstanding after-sales service, our company has developed into a national big base specialized in producing oil purifier. Our products are outstanding because of its excellence in quality, stability in service, and diversity of products.

Rexon owns a number of national-class oil purifier experts and experienced engineers. Encouraged by the company's modern management mechanism, we have developed six big series, including hundreds of models oil purifier equipment which have the independent property right and advanced filter technology. Those equipment can be applied to many fields, such as the electric power, petroleum chemical, metallurgical industry, mine, aviation, shipping and railway, and so on.

We adhere to the tenet of mutual-benefit and win-win. With the sincere and pragmatic work attitude, we would like open up new Sci&Tech oil purify era with our customer.
