Transformer Substation Used Dielectric Oil Purifier 9000lph
Transformer Substation Used Dielectric Oil Purifier 9000LPHDouble-stage vacuum Transformer oil filtration system is designed for the following application: It is mainly used for purifying the insulating oil, transformer oil, mutual oil, switch oil, dielectric oil and so on.1. Double-stage High Vacuu......
Send Inquiry
Product Description
Transformer Substation Used Dielectric Oil Purifier 9000LPH
Double-stage vacuum Transformer oil filtration system is designed for the following application: It is mainly used for purifying the insulating oil, transformer oil, mutual oil, switch oil, dielectric oil and so on.
1. Double-stage High Vacuum dehydration and degassing and removing impurities from the used transformer oil.
2. Eliminate acidity, sludge, free carbon, discoloration elements, and other soluble matters in the oil, which decays the transformer.
3. It can vacuum filling oil to transformers, and it can vacuum dry transformers and on-line operation with transformer.
4. The standard ZYD system is designed for purifying and filtering oils in workshops, in storage tanks or directly in transformers (energized or de-energized transformers).
Technical Parameters:
Application:
Transformer Substation Used Dielectric Oil Purifier 9000LPH, Dielectric Oil Purifiation System is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can deal with contaminted transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.
Feature:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.
11. Can be installed by PLC programming control system to achieve machine working fully automatically.
Advantage:
REXON Transformer Substation Used Dielectric Oil Purifier 9000LPH, is a high capacity oil treatment machine for onsite transformer oil processing. It can deal with 18000liters oil per hour, to achive a fast oil dehyration, oil degassing process. It can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength highly, and effectively making sure electric equipments working safely and normally. ZYD-150 sytem also can be used an independent vacuum power supply, which can vacuuming and oil injecting tranformers and other electric insulation devices.
The oil technical data after treatment:
1. Gas content is less than 0.1%
2. Impurity size is less than 1μm without free carbon
3. Water content is less than 3 part per million
3. Oil dielectric strength (breakdown voltage) is more than 75KV
4. Acidity value is less than 0.01 mg KOH/g
5. Dielectric loss factors at 90ºC is less than 0.001
Our Transformer Oil Purification and Maintenance Machines can bring you:
→Purifying your transformer oil high efficiently
→Maintain your transformer oil always in good status
→Save your old transformer oil replacement cost
→Solve your waste transformer oil disposal problem
→Guarantee your transformers working normally with qualified oil property
→Protect your transformers and power equipment from oil pollution problems
→Reduce your maintenance time, energy and invest on transformers and power plant
→Create a safety and cleaning oil use environment for your transformers of power station
→Bring a green oil ideal to the world and save oil energy for all of our generations
Customer Visit

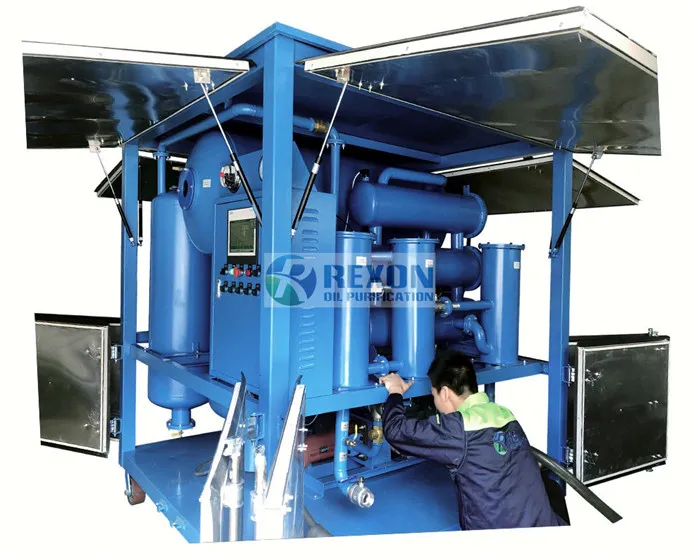

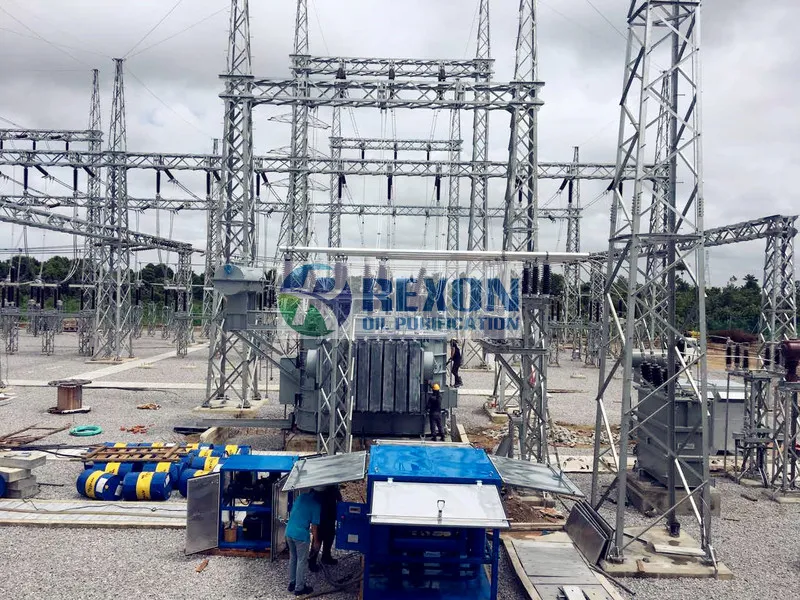

Onsit Project

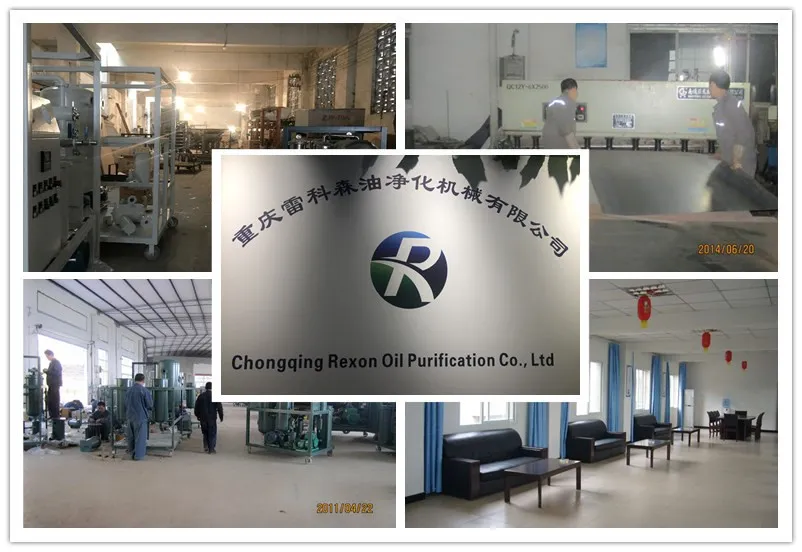

Factory View
Packing & Delivery
We are the biggest leading manufacture of oil purifiers for all kinds of used or new oils in China. We supply best quality machines and offer professional technical support, A-class after-sales-service for customers. Our price is competitive and we take responsibility to guarantee any quality uncertainty. We design and produce our oil purifier machines with high quality raw materials and mature-technology by lots of well qualified technicians and skilled workers.
For more information about any model of our oil purifier's specs, please leave us your Email, Tel, Mobile No. etc. then we can feedback to you immediately.
Or you can contact us directly from our website. Don't hesitate to send us enquiry now! Welcome to visit us!
Double-stage vacuum Transformer oil filtration system is designed for the following application: It is mainly used for purifying the insulating oil, transformer oil, mutual oil, switch oil, dielectric oil and so on.
1. Double-stage High Vacuum dehydration and degassing and removing impurities from the used transformer oil.
2. Eliminate acidity, sludge, free carbon, discoloration elements, and other soluble matters in the oil, which decays the transformer.
3. It can vacuum filling oil to transformers, and it can vacuum dry transformers and on-line operation with transformer.
4. The standard ZYD system is designed for purifying and filtering oils in workshops, in storage tanks or directly in transformers (energized or de-energized transformers).
Technical Parameters:
| Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
| Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
| Working Vacuum | Mpa | -0.08 ~-0.099 | |||||||
| Working Pressure | Mpa | ≤ 0.3 | |||||||
| Temp Range | ºC | 20 ~80 | |||||||
| Power Supply | 380V, 50Hz, 3Phase( As per required) | ||||||||
| Working Noise | Db | 60 - 80 (Depended on the configuation) | |||||||
| Heating Power | KW | 30 | 30 | 48 | 72 | 72 | 90 | 120 | |
| Total Power | KW | 33 | 35 | 55 | 80 | 82 | 102 | 135 | |
| Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 | |
| Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 | |
| Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
| Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 | |
| Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 | |
| AFTER TREATMENT | |||||||||
| Dielectric Strength | KV | ≥ 75-85 | |||||||
| Water Content | PPM | ≤ 3 | |||||||
| Gas Content | % | ≤ 0.1 | |||||||
| Particle Size | μ | ≤ 3 | |||||||
| Cleanliness ≤NAS 1638 Grade 5 | |||||||||
Application:
Transformer Substation Used Dielectric Oil Purifier 9000LPH, Dielectric Oil Purifiation System is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can deal with contaminted transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.
Feature:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.
11. Can be installed by PLC programming control system to achieve machine working fully automatically.
Advantage:
REXON Transformer Substation Used Dielectric Oil Purifier 9000LPH, is a high capacity oil treatment machine for onsite transformer oil processing. It can deal with 18000liters oil per hour, to achive a fast oil dehyration, oil degassing process. It can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength highly, and effectively making sure electric equipments working safely and normally. ZYD-150 sytem also can be used an independent vacuum power supply, which can vacuuming and oil injecting tranformers and other electric insulation devices.
The oil technical data after treatment:
1. Gas content is less than 0.1%
2. Impurity size is less than 1μm without free carbon
3. Water content is less than 3 part per million
3. Oil dielectric strength (breakdown voltage) is more than 75KV
4. Acidity value is less than 0.01 mg KOH/g
5. Dielectric loss factors at 90ºC is less than 0.001
Our Transformer Oil Purification and Maintenance Machines can bring you:
→Purifying your transformer oil high efficiently
→Maintain your transformer oil always in good status
→Save your old transformer oil replacement cost
→Solve your waste transformer oil disposal problem
→Guarantee your transformers working normally with qualified oil property
→Protect your transformers and power equipment from oil pollution problems
→Reduce your maintenance time, energy and invest on transformers and power plant
→Create a safety and cleaning oil use environment for your transformers of power station
→Bring a green oil ideal to the world and save oil energy for all of our generations
Customer Visit
Onsit Project
Factory View
Packing & Delivery
We are the biggest leading manufacture of oil purifiers for all kinds of used or new oils in China. We supply best quality machines and offer professional technical support, A-class after-sales-service for customers. Our price is competitive and we take responsibility to guarantee any quality uncertainty. We design and produce our oil purifier machines with high quality raw materials and mature-technology by lots of well qualified technicians and skilled workers.
For more information about any model of our oil purifier's specs, please leave us your Email, Tel, Mobile No. etc. then we can feedback to you immediately.
Or you can contact us directly from our website. Don't hesitate to send us enquiry now! Welcome to visit us!
