Product Description

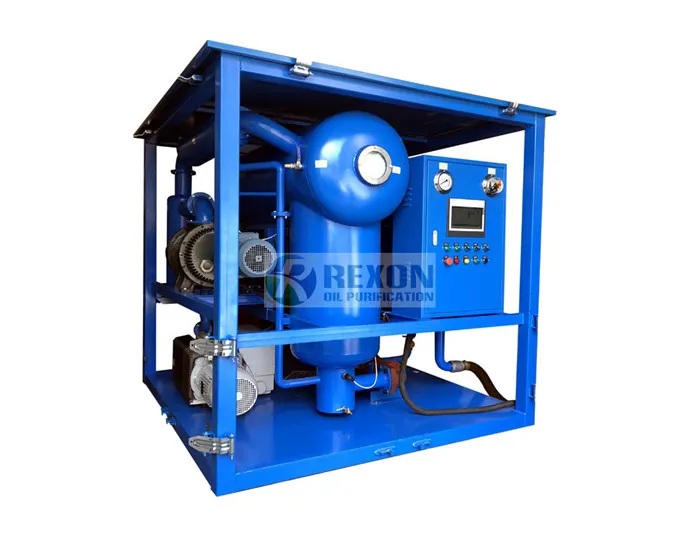

Vacuum Transformer Oil Purifier with Timer Working and Online PPM Tester

REXON ZYD vacuum oil purifier is made up of ultra-strong vacuum system (one rotary vane vacuum pump and one Roots pump/air compressor), electronic control system, PLC program, constant temperature heating system, three high Precision filtration system, oil high and low liquid level detection indicator, vacuum degree detection indicator, automatic d-foaming device, alarm system, automatic protection system and so on.

Application:
High Vacuum Dehydration Insulating Oil Cleaning System 9000LPH, Comparing with the single-stage vacuum oil purifier, series ZYD adds ROOTS vacuum system, second stage of separating system to improve the effect of purification which dewaters, degases and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher. This machine also can remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly. As the bridge-type vacuum linking system that can filter and be an independent vacuum power supply, this machine can be vacuum treating the electric insulating devices. Series ZYD utilizes coacervation technology, coalescing technology, separating technology and refined purification technology.
Vacuum Transformer Oil Purifier with Timer Working and Online PPM Tester

Feature:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Functions of live line work onsite, vacuum drying and vacuum oil filling.
9. Weather Proof designing which can be used outside even in raining weather.
10.Designed for processing oil in workshops, in storage tanks or directly in transformers (energized and de-energized transformers both).

Advantage:
High Vacuum Dehydration Insulating Oil Cleaning System 9000LPH, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. As the bridge-type vacuum linking system that also can be an independent vacuum power supply, which can vacuuming and oil injecting for electric insulation devices.
Vacuum Transformer Oil Purifier with Timer Working and Online PPM Tester

Technical Parameters:

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Working Vacuum		MPa	-0.08 ~-0.099
Working Pressure		MPa	≤ 0.3
Temp Range		ºC	20 ~80
Power Supply			380V, 50Hz, 3Phase( As per required)
Working Noise		dB	60 - 80 (Depended on the configuation)
Heating Power		KW	30	30	48	72	72	90	120
Total Power		KW	33	35	55	80	82	102	135
Inlet/Outlet Diam		mm	25	32	42	50	50	60	60
Weight		KG	450	550	750	950	1200	1850	2000
Size	Length	mm	1450	1450	1750	1850	1950	2050	2150
	Width	mm	950	1000	1250	1300	1350	1400	1450
	Height	mm	1700	1750	1950	2000	2050	2100	2150
AFTER TREATMENT
Dielectric Strength		KV	≥ 75-85
Water Content		PPM	≤ 3
Gas Content		%	≤ 0.1
Particle Size		μ	≤ 3
Cleanliness ≤NAS 1638 Grade 5

Our Transformer Oil Purification and Maintenance Machines can bring you:
→Purifying your transformer oil high efficiently
→Maintain your transformer oil always in good status
→Save your old transformer oil replacement cost
→Solve your waste transformer oil disposal problem
→Guarantee your transformers working normally with qualified oil property
→Protect your transformers and power equipment from oil pollution problems
→Reduce your maintenance time, energy and invest on transformers and power plant
→Create a safety and cleaning oil use environment for your transformers of power station
→Bring a green oil ideal to the world and save oil energy for all of our generations

We are the biggest leading manufacture of oil purifiers for all kinds of used or new oils in China. We supply best quality machines and offer professional technical support, A-class after-sales-service for customers. Our price is competitive and we take responsibility to guarantee any quality uncertainty. We design and produce our oil purifier machines with high quality raw materials and mature-technology by lots of well qualified technicians and skilled workers.

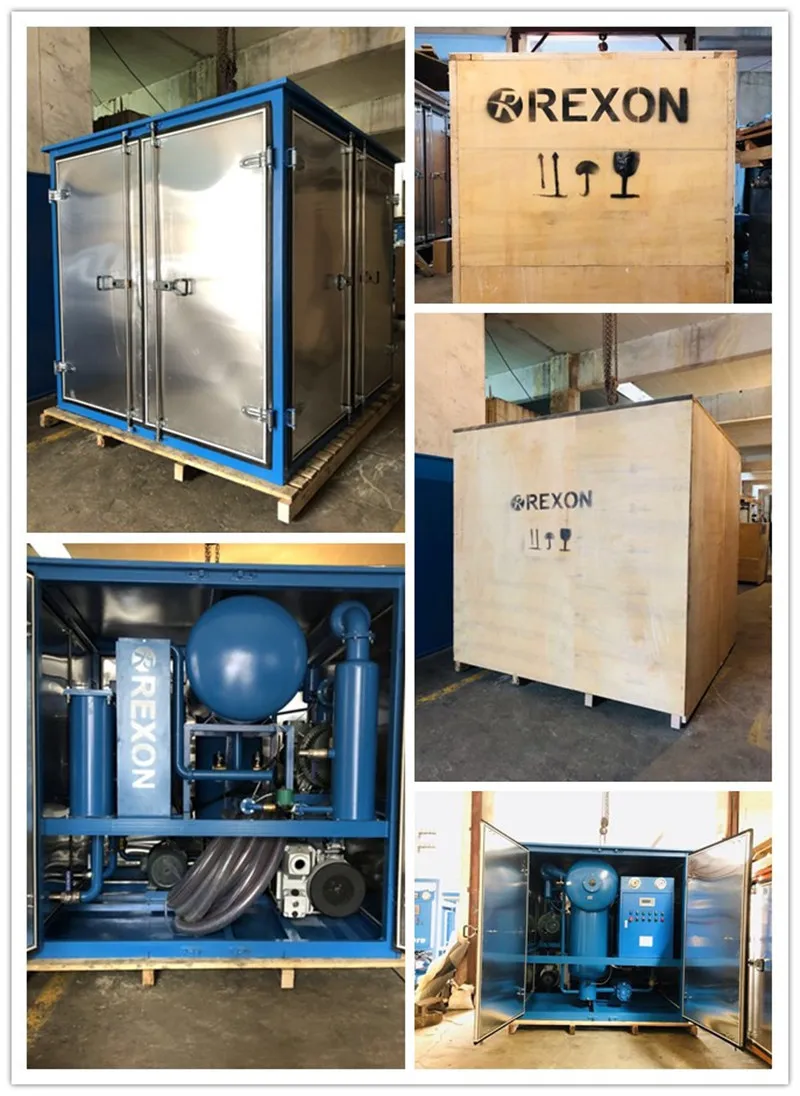

Packing & Delivery
Vacuum Transformer Oil Purifier with Timer Working and Online PPM Tester

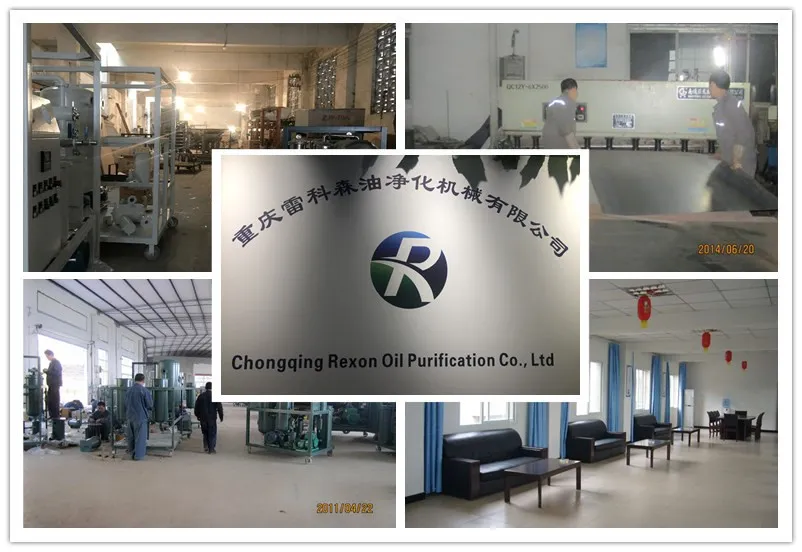

Factory View
Vacuum Transformer Oil Purifier with Timer Working and Online PPM Tester

Customer Visit
Vacuum Transformer Oil Purifier with Timer Working and Online PPM Tester

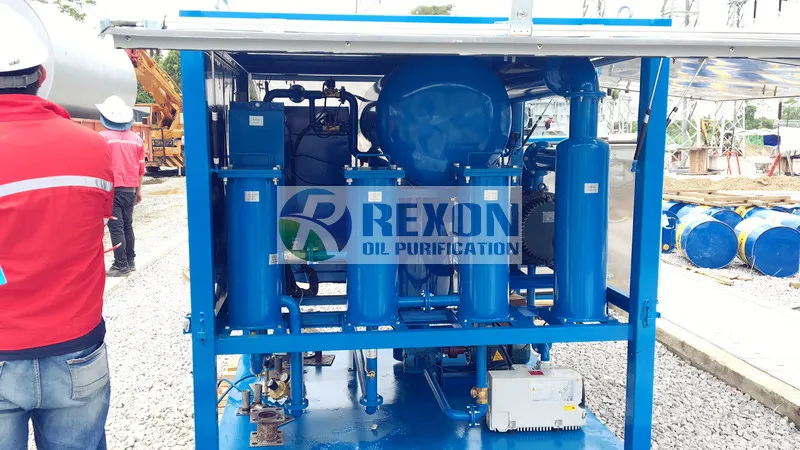

Onsite Project

After Sales Service
-We will help to arrange the transport and shipping for the machine to customer.
-We offer full set documents for customs clearance at customer's destination port.
-We will offer lifetime technical support for our equipment, free technical upgrade, free or chargeable spare parts supply, etc.
-We offer online service for customers 24 hours everyday. If you have any question while using our machine, you can contact us by online chat software, or by email, phone etc, we will get back to you very soon within 4 hours.
-We will also offer operation training for free in our factory and offer door-to-door service to send our engineer to your place for the machine's installation service and operation training if you need.
-Installation, Operation and Maintenance details will be in the operation manual booklet and videos which will be sent to you with machine.
-Rexon's guarantee time is two years for each of our equipment.

For more information about any model of our oil purifier's specs, please leave us your Email, Tel, Mobile No. etc. then we can feedback to you immediately. Or you can contact us directly from our website. Don't hesitate to send us enquiry now. And you are welcome to visit us!
