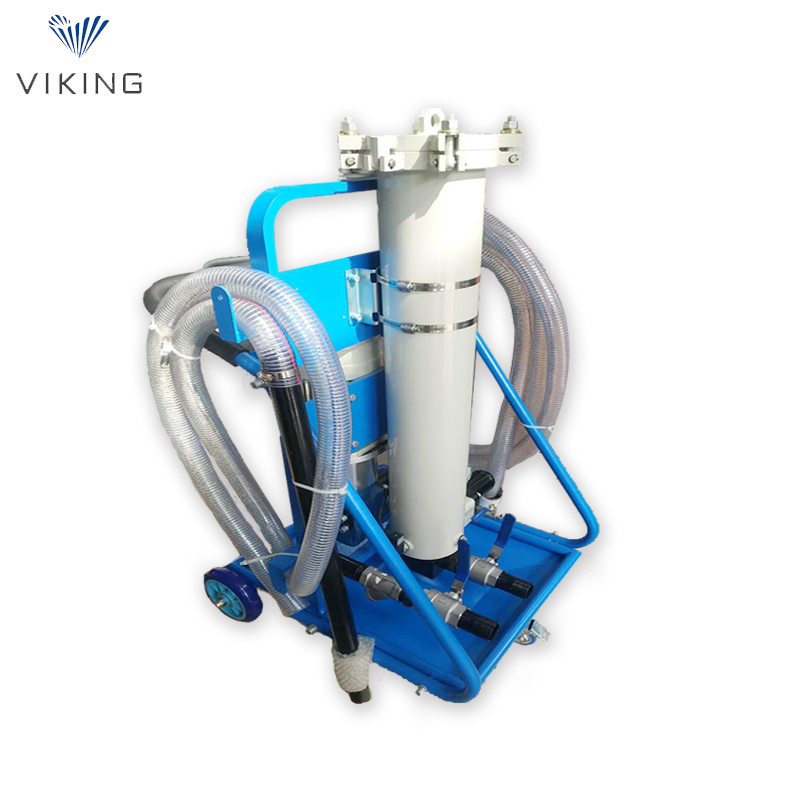

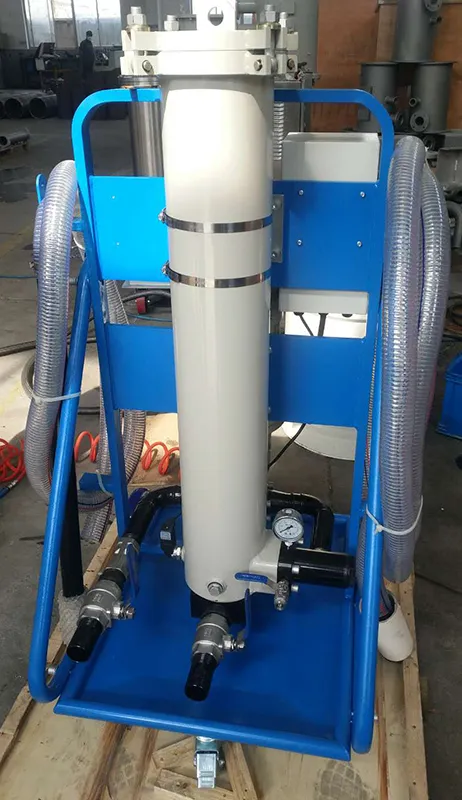

Viking Vkmc Portable Insulating Oil Treatment Equimpent
VKMC series mobile high efficiency oil filter machine has reliable performance, compact structure, beautiful appearance and convenient maintenance.According to the target cleanliness level, the filter element with the corresponding precision is selected, and the appropriate flow range is selected ac......
Send Inquiry
Product Description
VKMC series mobile high efficiency oil filter machine has reliable performance, compact structure, beautiful appearance and convenient maintenance.According to the target cleanliness level, the filter element with the corresponding precision is selected, and the appropriate flow range is selected according to the user requirements, so as to effectively filter the solid particles of various liquid media.It is also an effective auxiliary equipment for the bypass filtration of hydraulic and lubrication systems, and the guarantee for oil tank cleaning and refueling.Meanwhile Viking also provides cleanable metal mesh filter elements, which can meet the requirements of high viscosity medium and special environment.
Specifications and Instructions
Design Pressure: 1.0MPa
Power supply: 380V
Working temperature: 0-80 ºC
Suitable medium: mineral oil, water glycol, phosphate fire-resistant liquid, etc
Medium viscosity: ≤ 460 CST

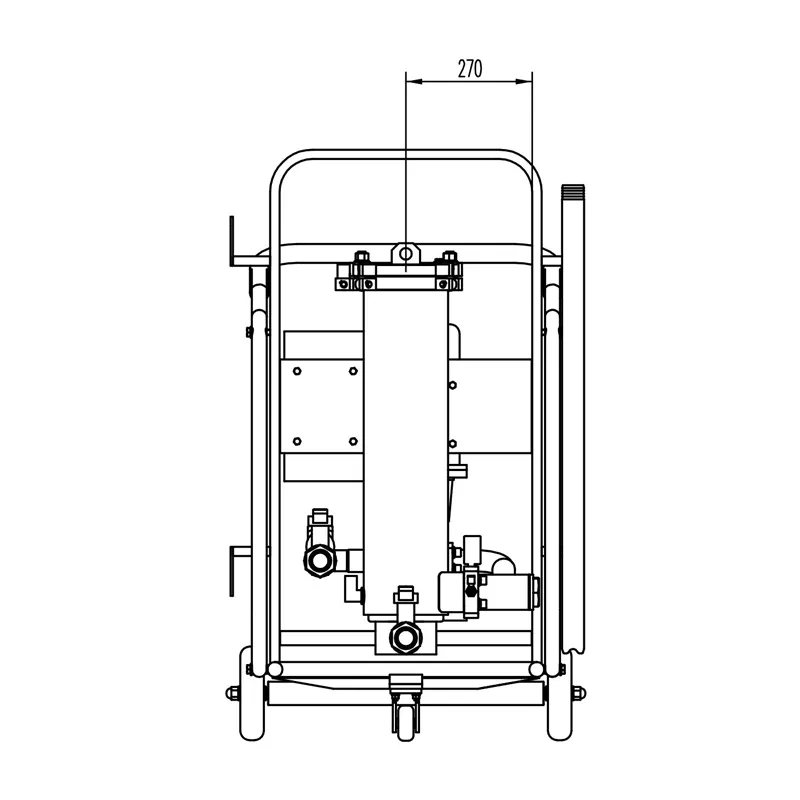

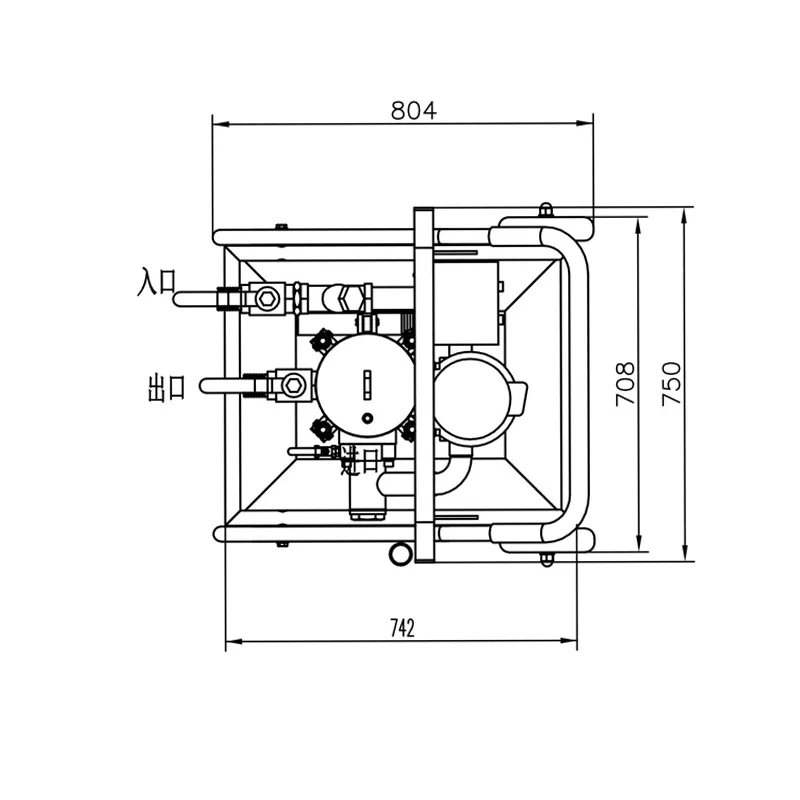

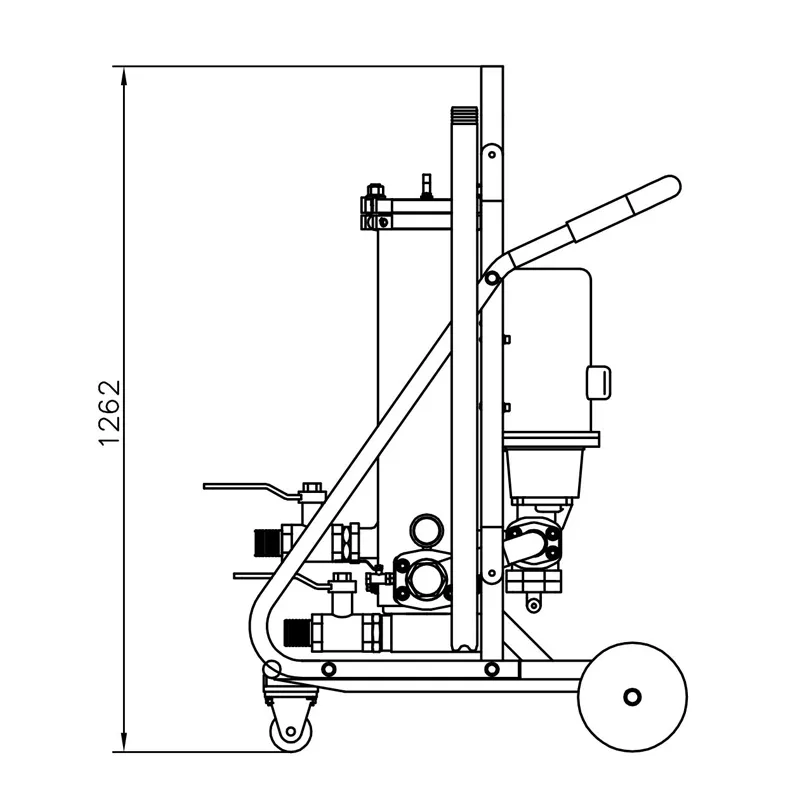

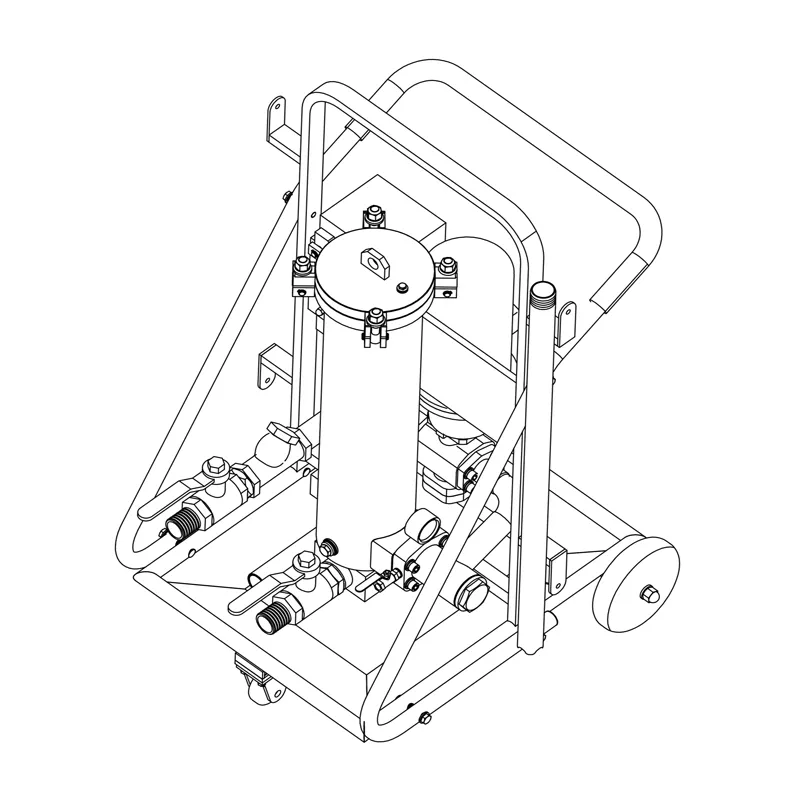

Dimensions
Technical Parameters
The connection form of oil inlet and outlet and oil suction pipe can be threaded or flanged according to the user's requirements.
Specifications and Instructions
Design Pressure: 1.0MPa
Power supply: 380V
Working temperature: 0-80 ºC
Suitable medium: mineral oil, water glycol, phosphate fire-resistant liquid, etc
Medium viscosity: ≤ 460 CST
Dimensions
Technical Parameters
| High Efficiency Oil Filter | VKMC050 | VKMC070 | VKMC100 | VKMC150 | |
| GS series | Motor Power(kw) | 1.5 | 1.5 | 3 | 4 |
| Design Flow rate(L / min) | 50 | 70 | 100 | 150 | |
| HS series | Motor Power(kw) | 2.2 | 2.2 | 4 | 5.5 |
| Design Flow rate(L / min) | 50 | 70 | 100 | 150 | |
| IS series | Motor Power(kw) | 3 | 3 | 5.5 | 7.5 |
| Design Flow rate(L / min) | 50 | 70 | 100 | 150 | |
| Oil Inlet | DN40 | ||||
| Oil Outlet | DN40 | ||||
The connection form of oil inlet and outlet and oil suction pipe can be threaded or flanged according to the user's requirements.
