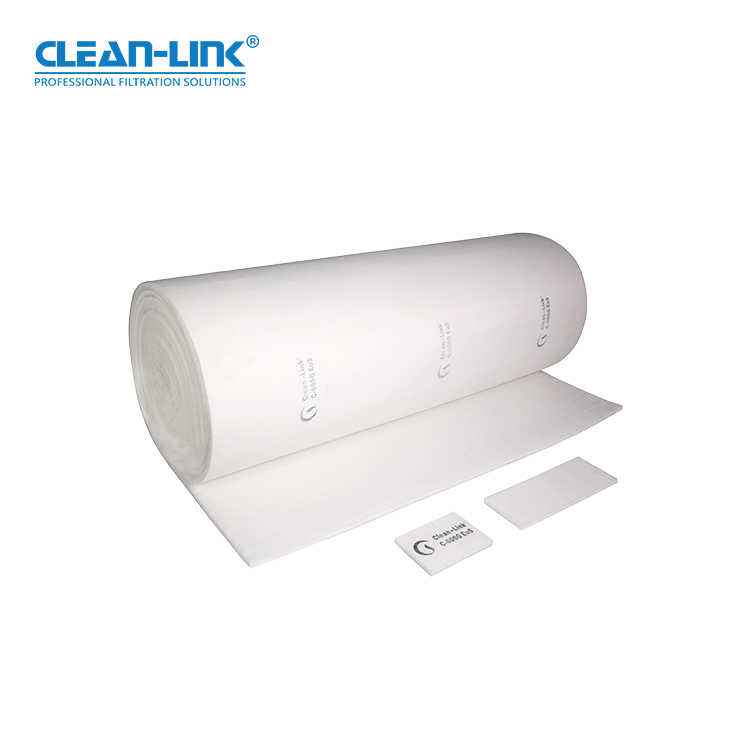

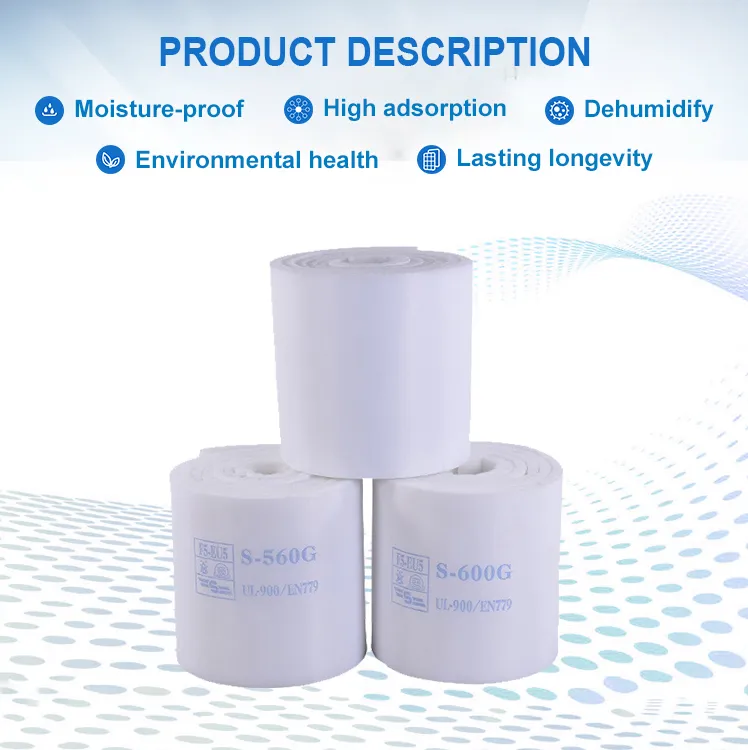

Clean-Link EU5 /F5 Filtration 560g 600g Glue Ceiling Filter Cotton Filter Ceiling Filter Flame Retardant Filter for Paint Booth
Product DescriptionIt is designed for premium cross-draft and select downdraft intake filtration in paint spray booths in the automotive refinishing and industral finishing markets.--90+% efficiency on particle sizes greater than 10 microns--2 layers, 100% polyester, 3 ply media with impregnated tac......
Send Inquiry
Product Description
It is designed for premium cross-draft and select downdraft intake filtration in paint spray booths in the automotive refinishing and industral finishing markets.
--90+% efficiency on particle sizes greater than 10 microns
--2 layers, 100% polyester, 3 ply media with impregnated tackifier
--Heat sealed to 9 gauge internal support frame
--Rated UL 900, Class1.
Product advantages
1. It is made from the anti-break organic synthesis fiber in high-powered melt way;
2.Gradual structure, the fiber density increases gradually towards pure air;
3. Fully imgrenated media with adhesive treatment makes dust particles unable to pass;
4.It is at the customers' choice that the material have the entire coherency, the surface viscosity, dry processing
5.Conform to European DIN53438-F1 and American UL900-class 2
Note: Other specifications are available on request.

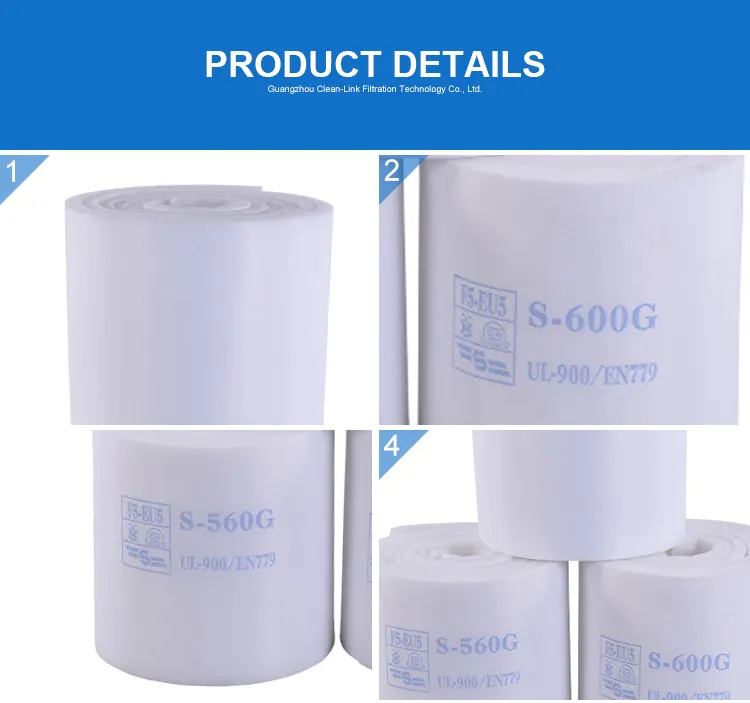

Type | CL-630G | C-600G | FS-350G | S-560G |
Material | Polyester | |||
Avg.arrestance | 99% | 98% | 95% | 95% |
Weight | 630 g/m2 | 600 g/m2 | 420 g/m2 | 400 g/m2 |
Air velocity | 0.25m/S | 0.25m/S | 0.25m/S | 0.25m/S |
Rated air flow | 900 m³/h | 900 m³/h | 900 m³/h | 900 m³/h |
Initial resistance | 45Pa | 35Pa | 28Pa | 25Pa |
Final resistance | 350Pa | 400Pa | 450Pa | 300Pa |
Dust holding at tested final | 520 g/m2 | 450 g/m2 | 400 g/m2 | 380 g/m2 |
Filtration class | F5 | F5
| F5
| F5
|
Resistance humidity | 100% | 100% | 100% | 100% |
Temp.resistance | 120ºC | 140ºC | 120ºC | 120ºC |
Normal thickness | 25mm | 22mm | 20mm | 22mm |
Roll sizes standard | 1.6*21 2.0*21 1.0*21 | 1.6*21 2.0*21 1.0*21 | 1.6*21 2.0*21 1.0*21 | 1.6*21 2.0*21 1.0*21 |

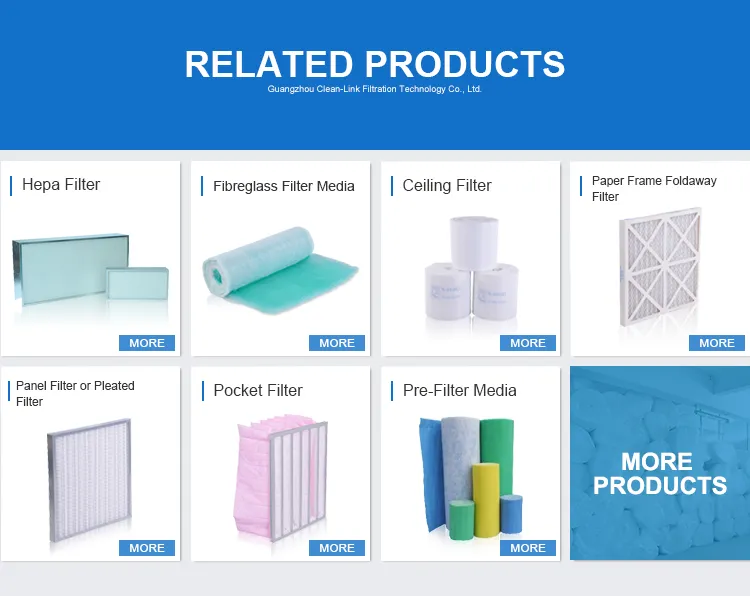

Related Products
Production Application
Pre-filtration and second filtration for the ventilation system of the air condition;
The filtration for entering or returning the air in the clean room.

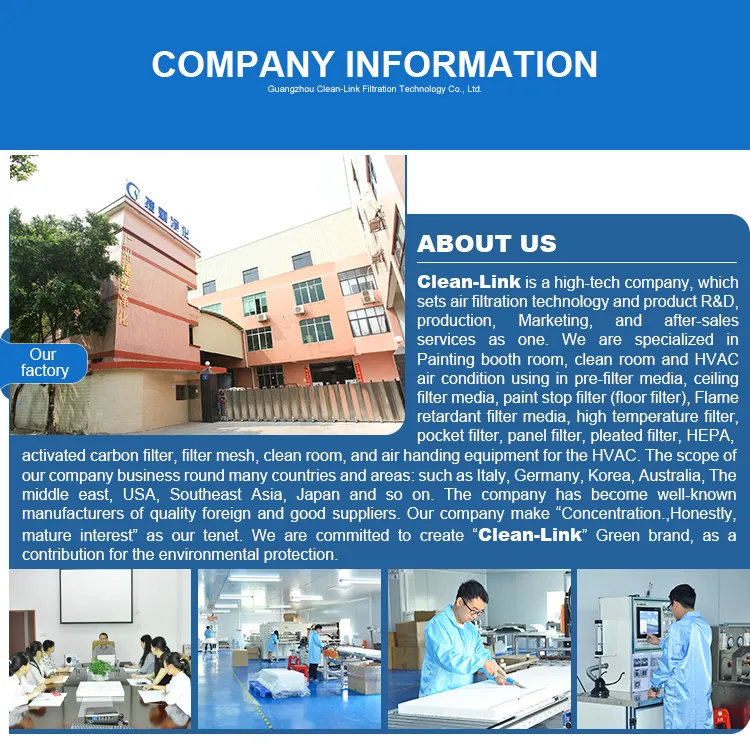

Company Information
