Secondary Efficiency F5 Pocket Air Filter Bag Filter Polyurethane Filter for Industrial
Secondary Efficiency F5 Pocket Air Filter Bag Filter Polyurethane Filter for IndustrialProduct show:Application:Mainly used for intermediate filtration of central air conditioning ventilation systems, pharmaceutical, hospital, electronics, semiconductor, food and other industrial purification.Featur......
Send Inquiry
Product Description
Secondary Efficiency F5 Pocket Air Filter Bag Filter Polyurethane Filter for Industrial

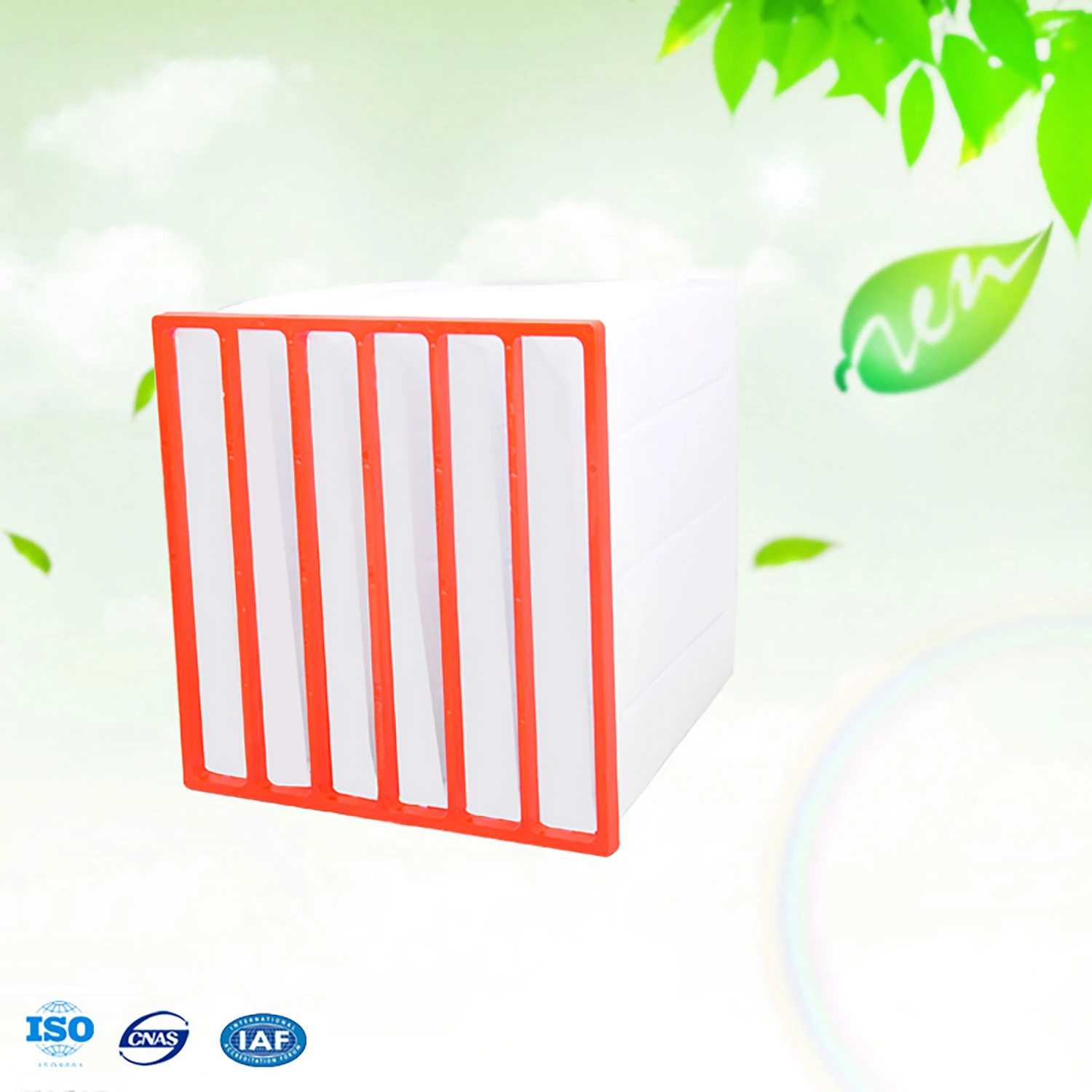

Product show:
Application:
Mainly used for intermediate filtration of central air conditioning ventilation systems, pharmaceutical, hospital, electronics, semiconductor, food and other industrial purification.
Features:
Specification:
Application:HVAC industry
Frame:Galvanized steel/Aluminum alloy/stainless steel
Medium: synthetic fiber
Gasket:optional continuous poured gasket
Filter class:F5/F6/F7/F8/F9
Maximum final pressure drop :450pa
Maximum temperature :70
Maximum relative humidity:90%
Specification size:
Tips: Customized according to customer specifications and requirements.
Our Workshop
Our Team
FAQ:
Q1:Can I make other different size?
A1:Yes, custom size is available
Q2:Can you send samples?
A2:Yes, we can send you sample free of charge, but the freight should be on your account.
Q3:What's the payment terms can you accept?
A3:L/C, T/T, D/P, Western Union.
Q4:How about the shipment?
A4:By sea.
Q5:How about is the lead time?
A5:About 3-10 days.
Q6:Are you a factory or trading company?
A6:We are a professional factory, specialized in manufacturing air filters.
Q7:Can we visit your factory?
A7:Surely you can. If you could inform us your air flight no.,we can pick you up.
Product show:
Application:
Mainly used for intermediate filtration of central air conditioning ventilation systems, pharmaceutical, hospital, electronics, semiconductor, food and other industrial purification.
Features:
1.Large dust capacity .
2.Low resistance
3.Synthetic fiber filter material
4.Galvanized steel/Aluminum /stainless steel frame
Specification:
Application:HVAC industry
Frame:Galvanized steel/Aluminum alloy/stainless steel
Medium: synthetic fiber
Gasket:optional continuous poured gasket
Filter class:F5/F6/F7/F8/F9
Maximum final pressure drop :450pa
Maximum temperature :70
Maximum relative humidity:90%
Specification size:
| Type | Effectiveness | Boundary Dimensions | Number of Bags | Effective Filtration Area | Initial Resistance / Air Volume Pa / M³/h | |||||
| XDC/F 6660/06-F5 | F5 | 592*592*600 | 6 | 4.64 | 20 | 2500 | 45 | 3600 | 70 | 5000 |
| XDC/F 3660/04-F5 | F5 | 287*592*600 | 4 | 3.09 | 20 | 1250 | 40 | 1800 | 70 | 2500 |
| XDC/F 5650/05-F5 | F5 | 490*592*500 | 5 | 3.22 | 25 | 2000 | 40 | 3000 | 70 | 4000 |
| XDC/F 6665/08-F6 | F6 | 592*592*650 | 8 | 6.60 | 35 | 2500 | 65 | 3600 | 110 | 5000 |
| XDC/F 3655/04-F6 | F6 | 287*592*550 | 4 | 2.79 | 40 | 1250 | 75 | 1800 | 125 | 2500 |
| XDC/F 5665/08-F6 | F6 | 490*592*650 | 8 | 6.45 | 35 | 2000 | 60 | 3000 | 100 | 4000 |
| XDC/F 6655/08-F7 | F7 | 592*592*550 | 8 | 5.58 | 50 | 2500 | 80 | 3600 | 125 | 5000 |
| XDC/F 3665/05-F7 | F7 | 287*592*650 | 5 | 4.03 | 45 | 1250 | 70 | 1800 | 120 | 2500 |
| XDC/F 5655/06-F7 | F7 | 490*592*550 | 6 | 4.19 | 50 | 2000 | 80 | 3000 | 125 | 4000 |
| XDC/F 6665/12-F8 | F8 | 592*592*650 | 12 | 9.44 | 60 | 2500 | 100 | 3600 | 170 | 5000 |
| XDC/F 6655/08-F8 | F8 | 592*592*550 | 8 | 5.58 | 70 | 2500 | 110 | 3600 | 170 | 5000 |
| XDC/F 3665/06-F8 | F8 | 287*592*650 | 6 | 4.72 | 60 | 1250 | 100 | 1800 | 170 | 2500 |
| XDC/F 3665/05-F8 | F8 | 287*592*550 | 5 | 4.03 | 60 | 1250 | 100 | 1800 | 175 | 2500 |
| XDC/F 5655/06-F8 | F8 | 490*592*550 | 6 | 4.19 | 70 | 2000 | 110 | 3000 | 175 | 4000 |
Tips: Customized according to customer specifications and requirements.

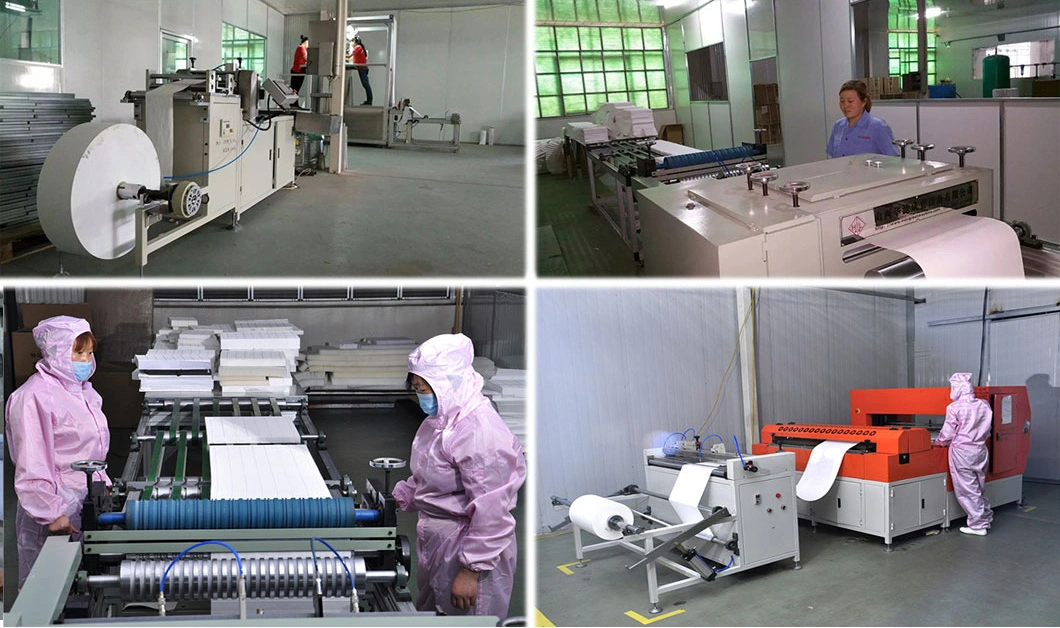

Our Workshop
Our Team
FAQ:
Q1:Can I make other different size?
A1:Yes, custom size is available
Q2:Can you send samples?
A2:Yes, we can send you sample free of charge, but the freight should be on your account.
Q3:What's the payment terms can you accept?
A3:L/C, T/T, D/P, Western Union.
Q4:How about the shipment?
A4:By sea.
Q5:How about is the lead time?
A5:About 3-10 days.
Q6:Are you a factory or trading company?
A6:We are a professional factory, specialized in manufacturing air filters.
Q7:Can we visit your factory?
A7:Surely you can. If you could inform us your air flight no.,we can pick you up.
