Clean-Link G3 EU3 Green Fiberglass Felt Spray Booth Exhaust System Filter
SpecificationsFiberglass Paint Spray Booth Paint Arrestor 1) small resistance 2) tempreture resistance up to 170 degree Speciality:1) Made of long fibreglass in non-woven way,large ventilation quantity,small resistance, good efficiency of the dust arrestance for the over-spray.2) It is applied t......
Send Inquiry

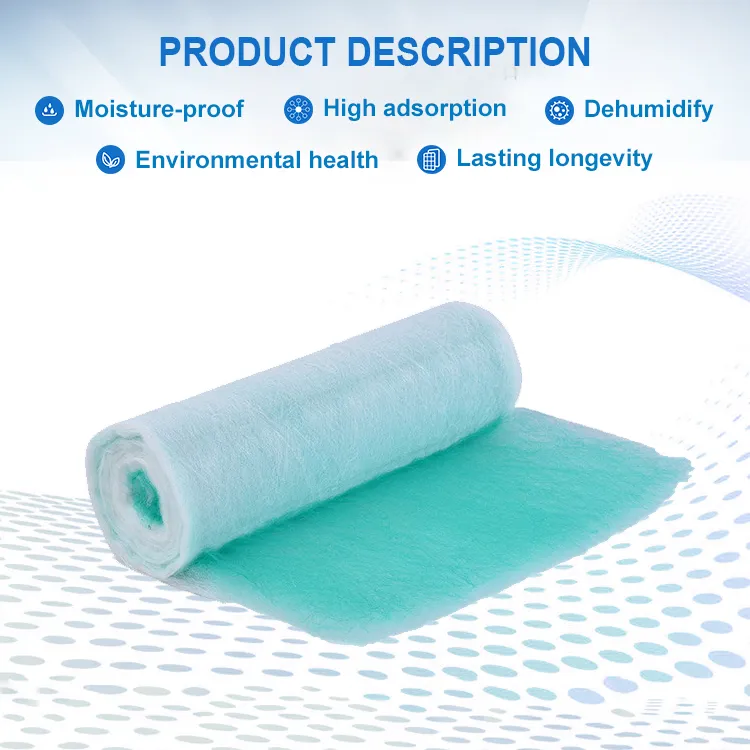

Product Description
Specifications
Fiberglass Paint Spray Booth Paint Arrestor
1) small resistance
2) tempreture resistance up to 170 degree
Speciality:
1) Made of long fibreglass in non-woven way,large ventilation quantity,small resistance, good efficiency of the dust arrestance for the over-spray.
2) It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching, specially , PA-50/60/PA-100 is suitable for using heat recovery system

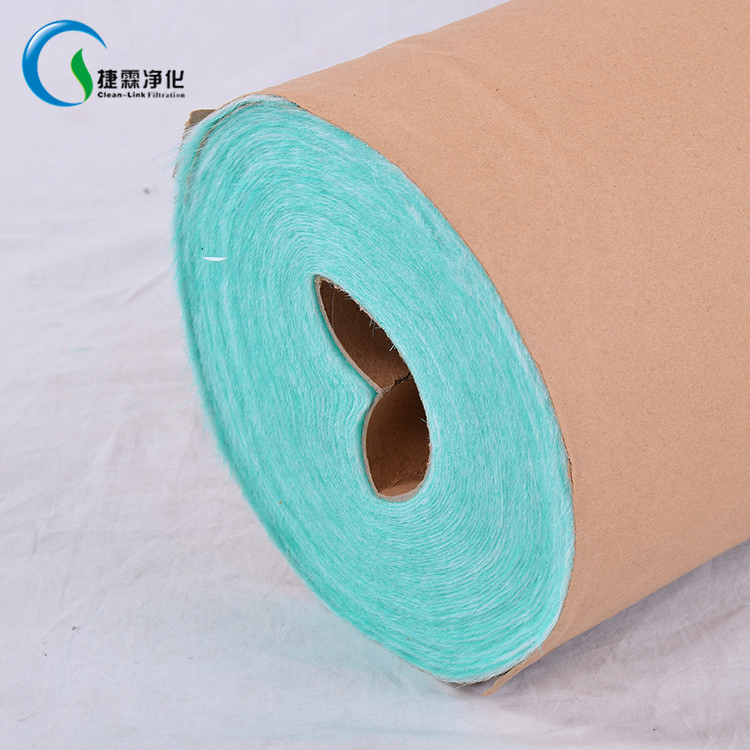

3) High strength fibreglass increasing structure;the windward side is green ,the leeward side is white..
4) The low compression performance maintains its outlook,which is completely useful for the filtration fibre to keep the oil mist and the dust
5) Nonflammability, heat resistance 170 temperature
6) The compression packing may save the fare and the storage space in the transportation.After decompression, it will regain its original condition
7) Outer frame may choose the paper frame , the galvanization iron frame,or aluminium alloy frame.
Using:
1) Thick dust filtration for the general air-condition system.
2) Applied to the dry spray painting platform and the exchaust gas system of the automobile spray paintting room.It is environment-friendly, reducing the pollution to the environment
Remark:
Wide variety of sizes and thickness
Specification:
Model | PA-50/60 | PA-100 |
Avg.arrestance(acc.EN779) | 92%-96% | 97%-99% |
Initial pessure drop | 15Pa | 20Pa |
Final pessure drop | 250Pa | 280Pa |
Air velocity | 0.7-1.75m/s | 0.7-1.75m/s |
Dust holding at tested final | 3200-3600 g/ | 3600-4900g/ |
Temp.resistance,const | 170 | 170 |
Temp.short peaks | 190 | 190 |
Normal thickness | 50/60mm | 100mm |
Using:
1.Thick dust filtration for the general air-condition system.
2.Applied to the dry spray painting platform and the exhaust gas system of the automobile spray painting room.It is environment-friendly, reducing the pollution to the environment.
Remark:
Wide variety of sizes and thickness.

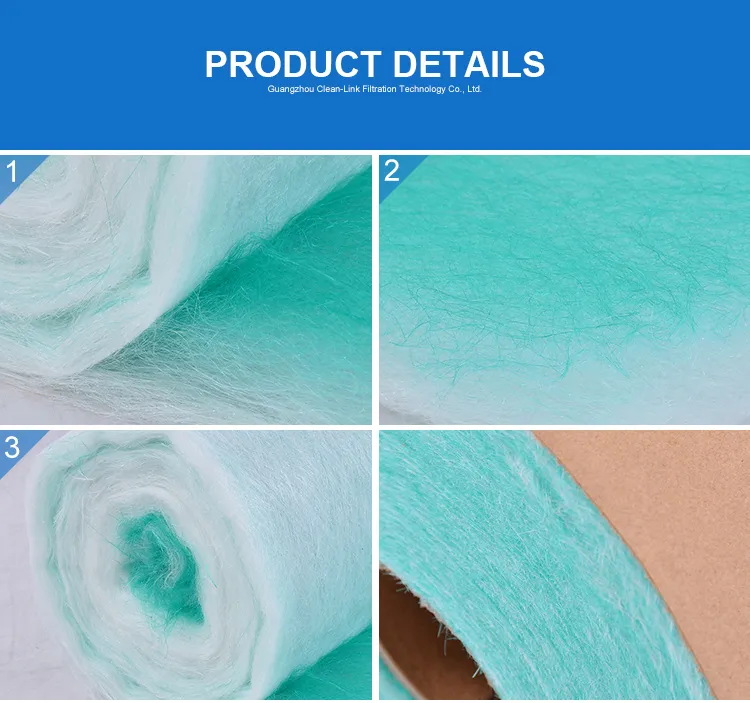

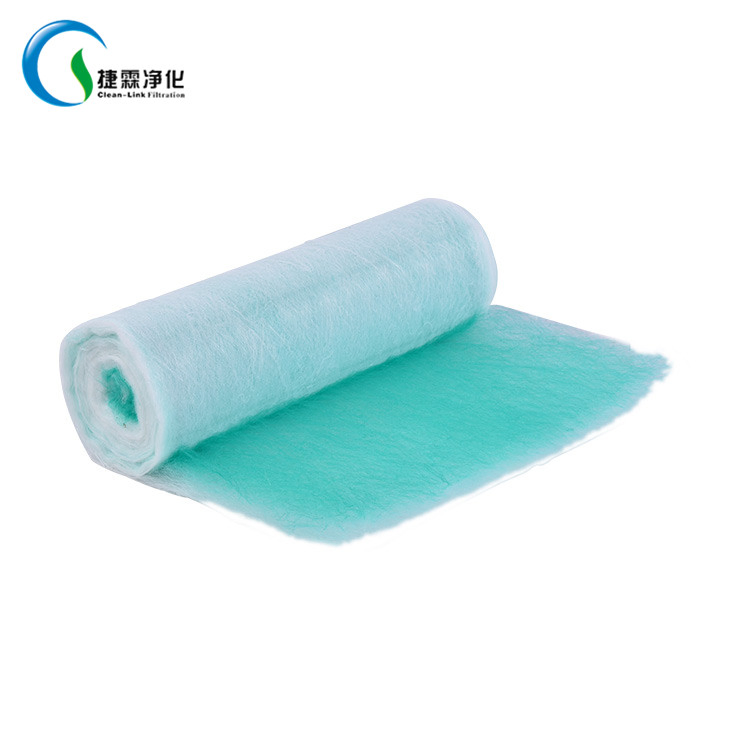

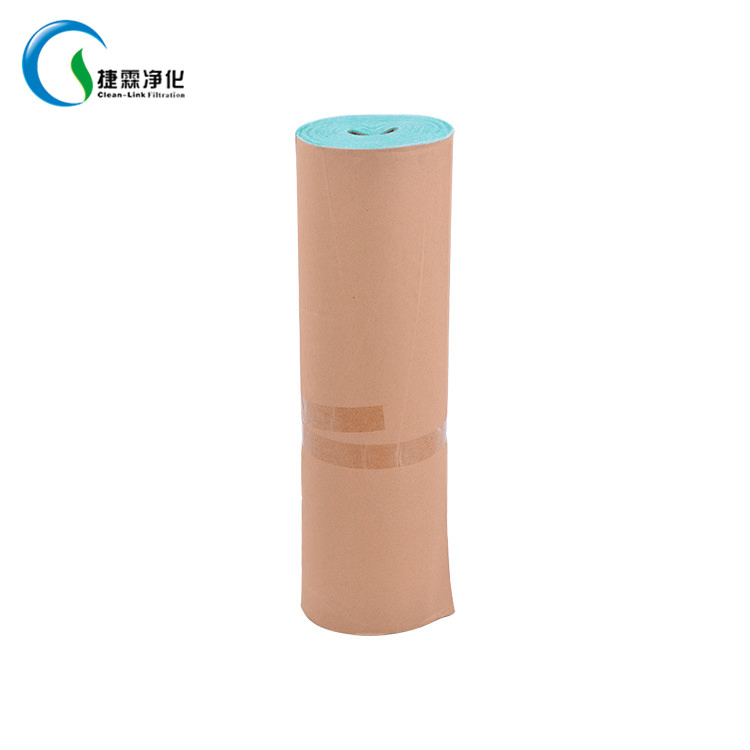

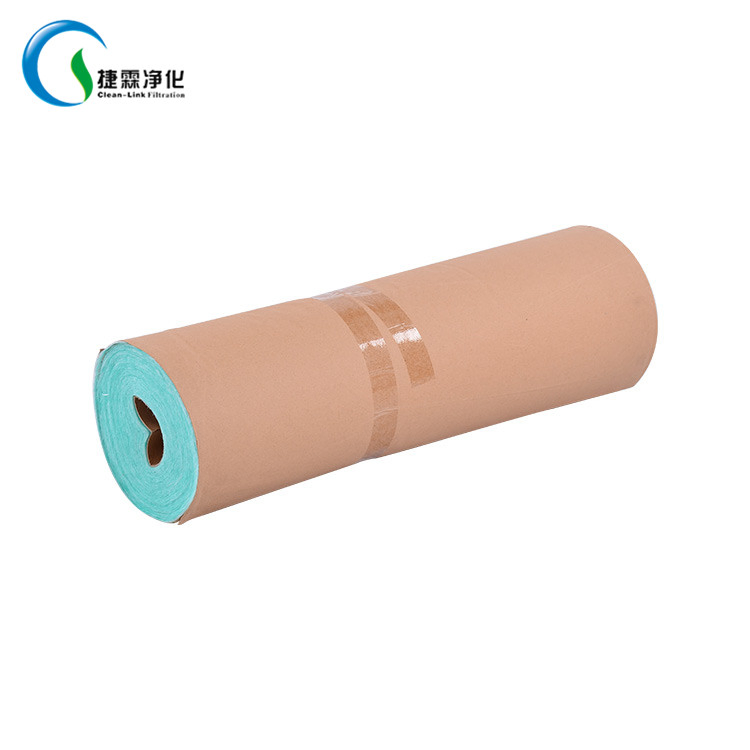

Products show:
Related Products

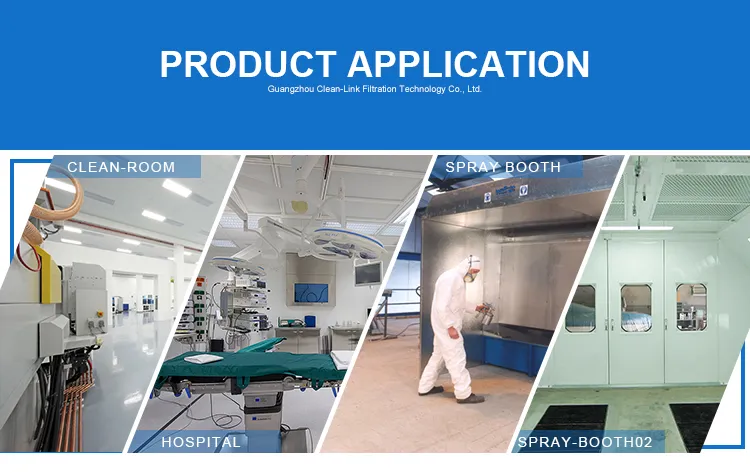

Production Application
Pre-filtration and second filtration for the ventilation system of the air condition;
The filtration for entering or returning the air in the clean room.
