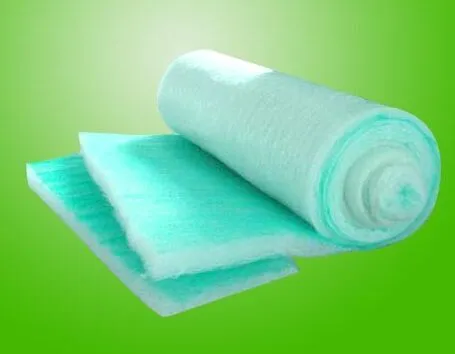

Floor Filter for Paint Stop
Spray Booth Floor FilterIt is made of formed quartz glass fiber, the fiber is much thinner, and it expands and rebounds quickly and thoroughly. This series is mainly used to absorb the over dissociative particles and decrease the pollution. Model: AP-60Test Air Velocity (m/s) : 2Thickness (mm): 60Ma......
Send Inquiry
Product Description

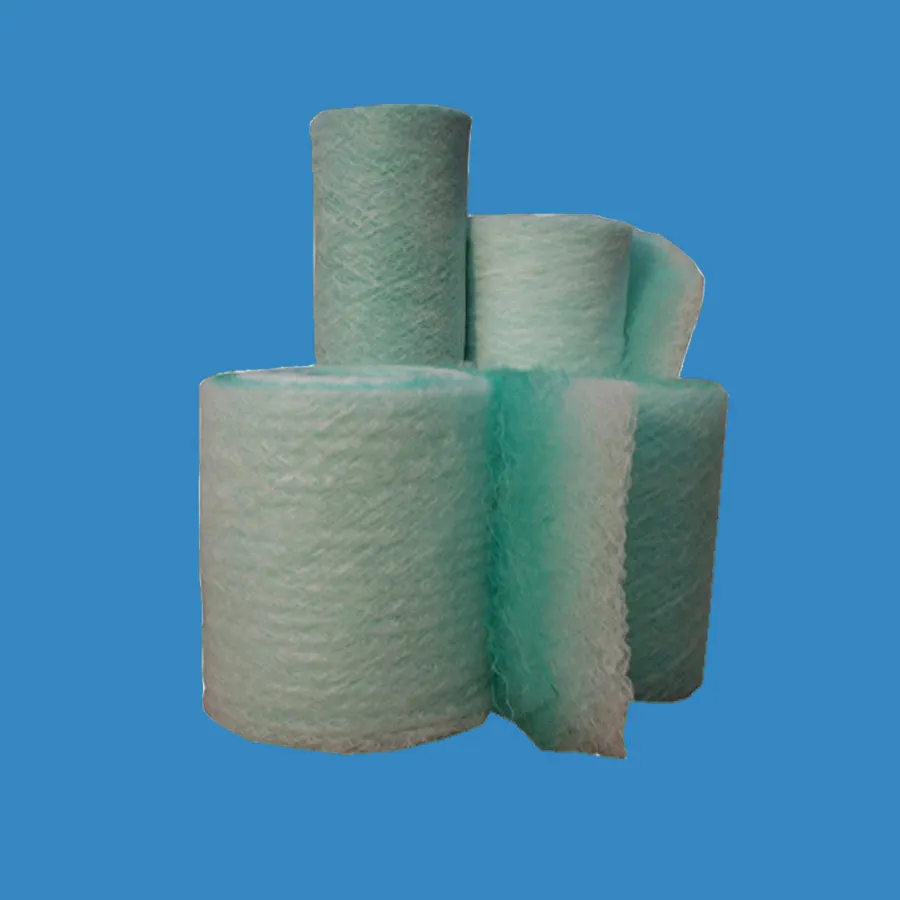

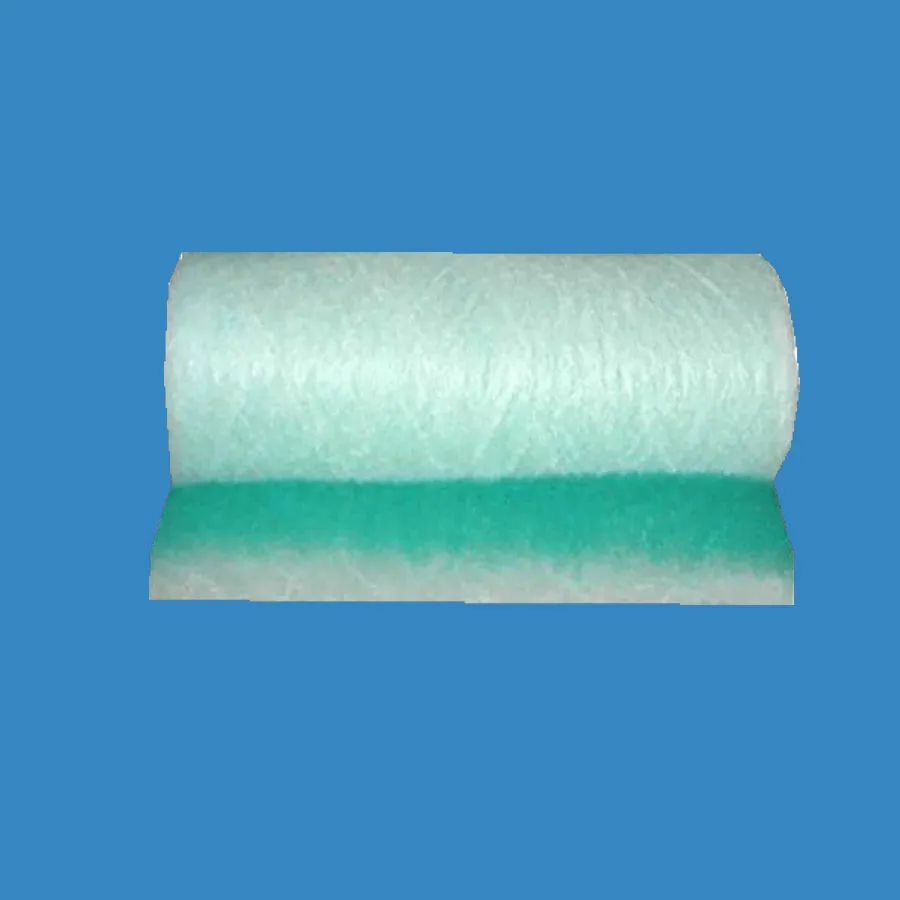

Spray Booth Floor Filter

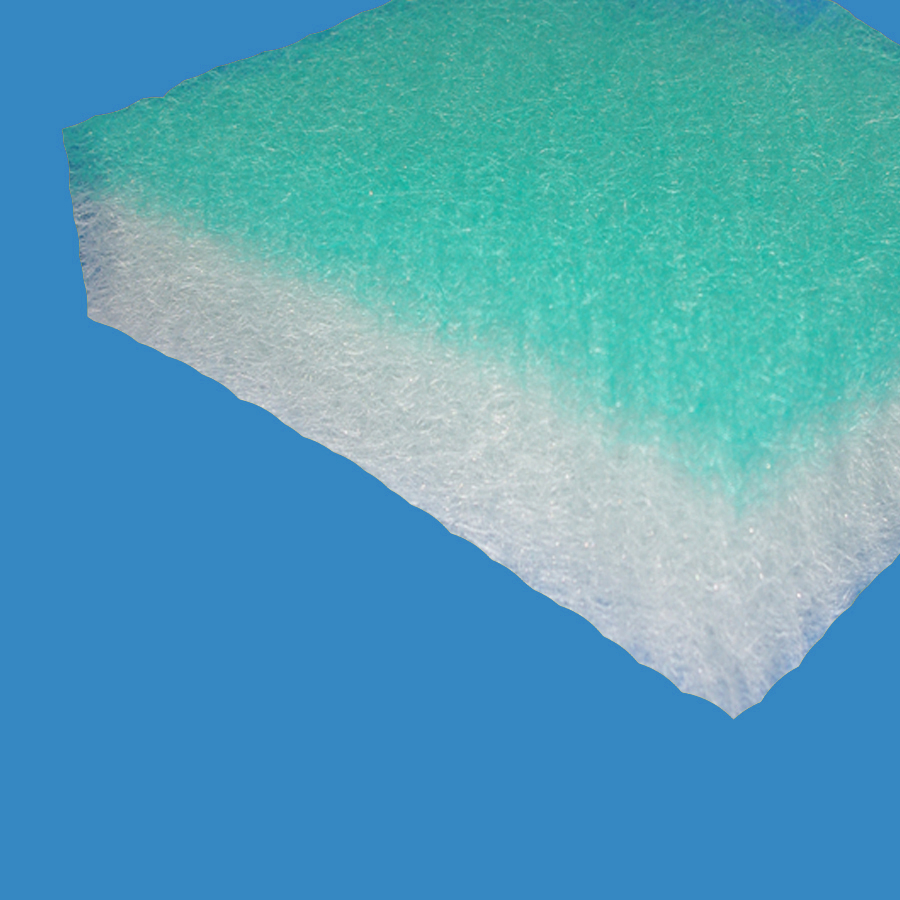

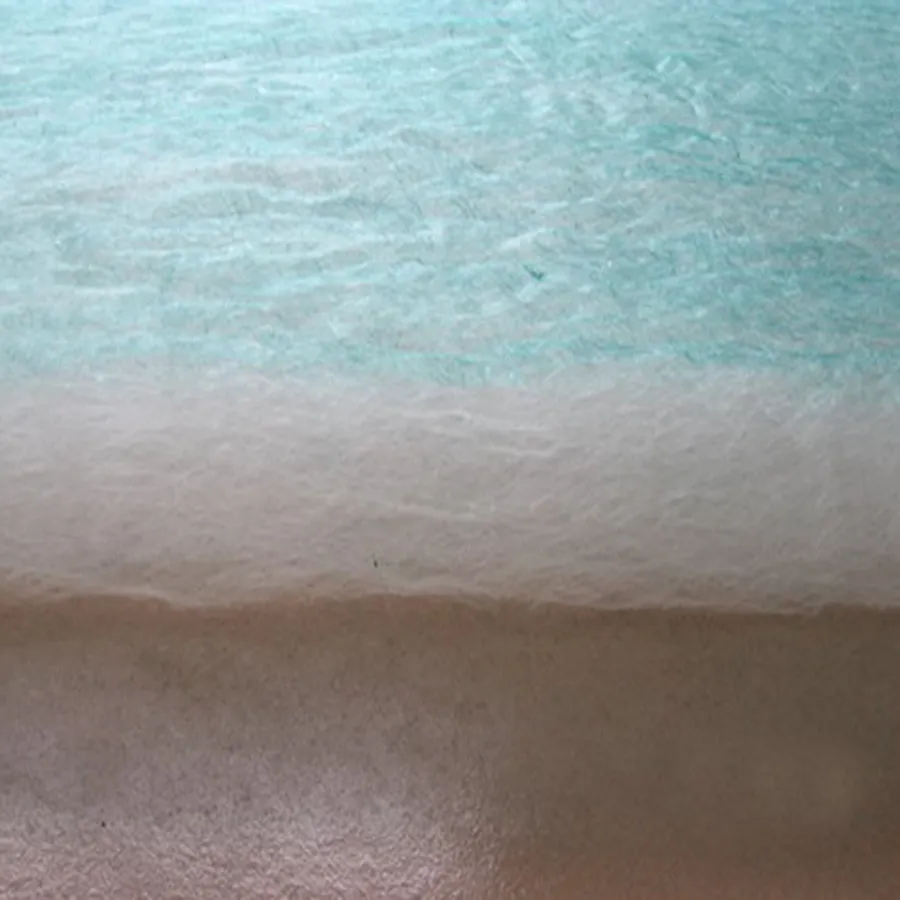

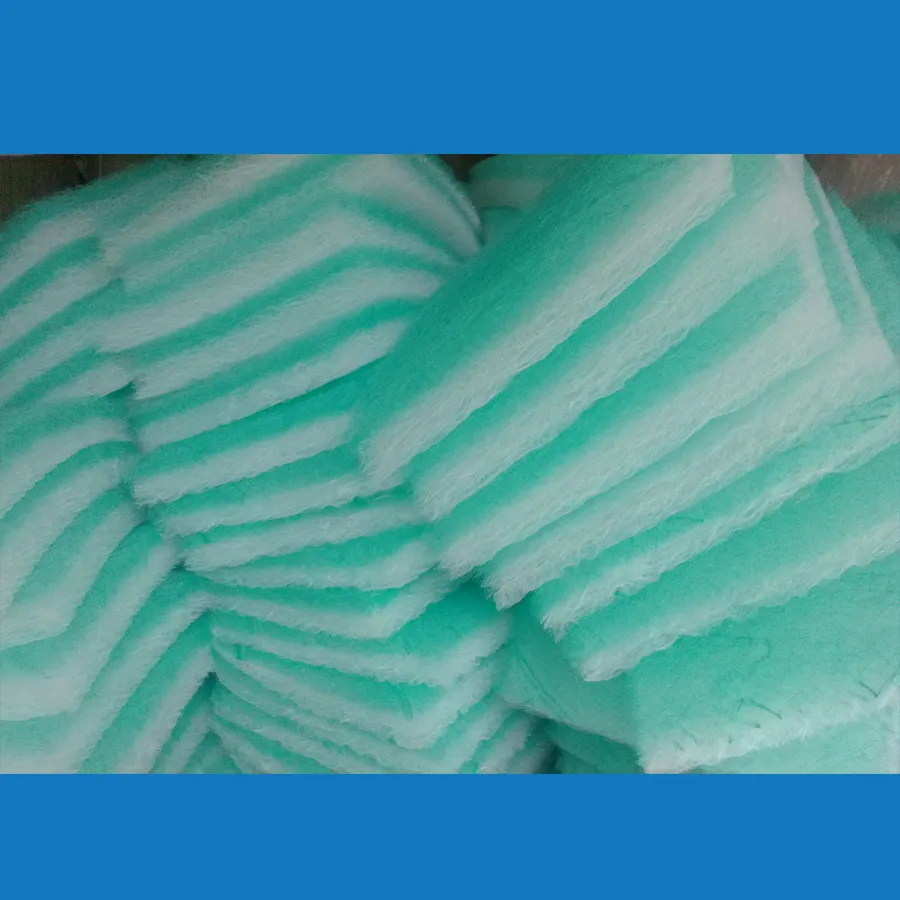

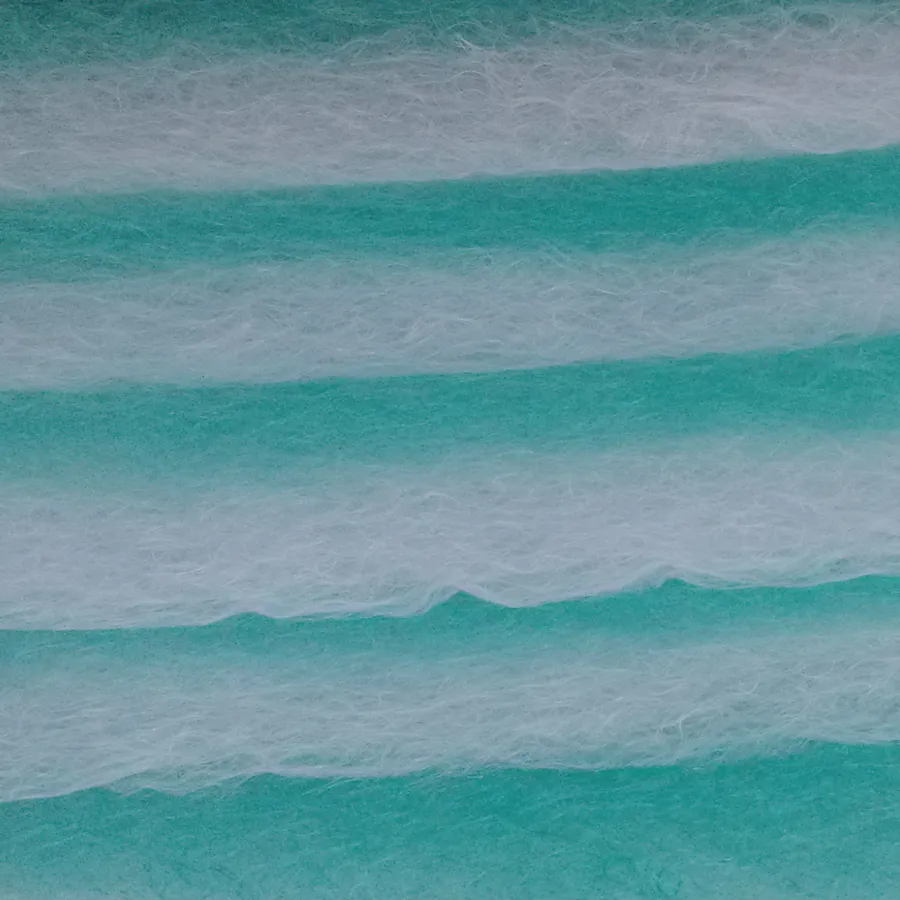

It is made of formed quartz glass fiber, the fiber is much thinner, and it expands and rebounds quickly and thoroughly. This series is mainly used to absorb the over dissociative particles and decrease the pollution.
Model: AP-60
Max. dust holding (g/m2): 3200
Filter class according to EN779: G3
Average Arrestance (%): 85%
Rated airflow (m3/h): 7200
Initial resistance (pa): 20
Recommend final resistance (PA): 150
FlammabilityDIN53438 (F2) :F1
Temperature resistance (cel degree): ≤ 170
Short max temerature (cel degree):≤ 190

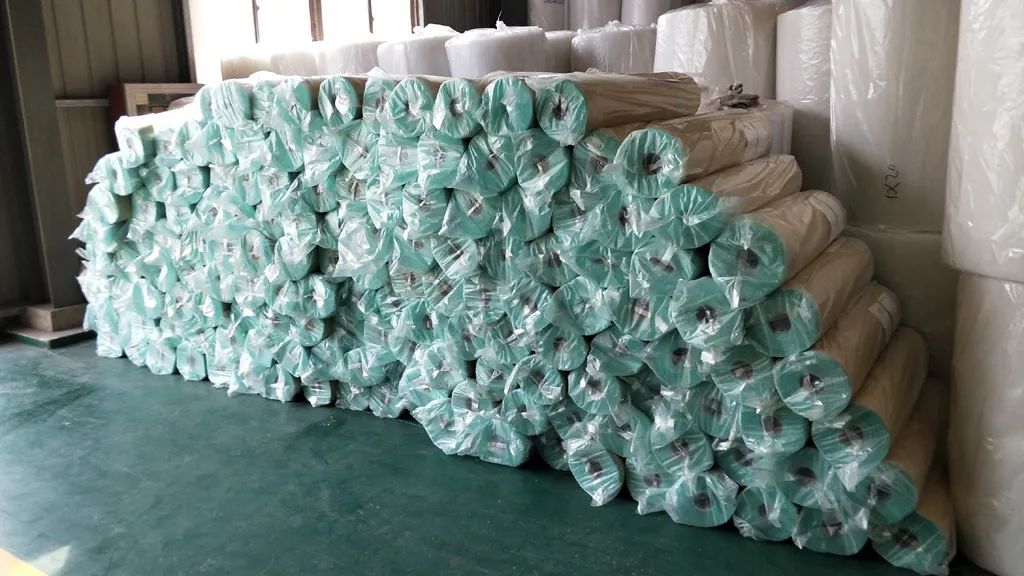

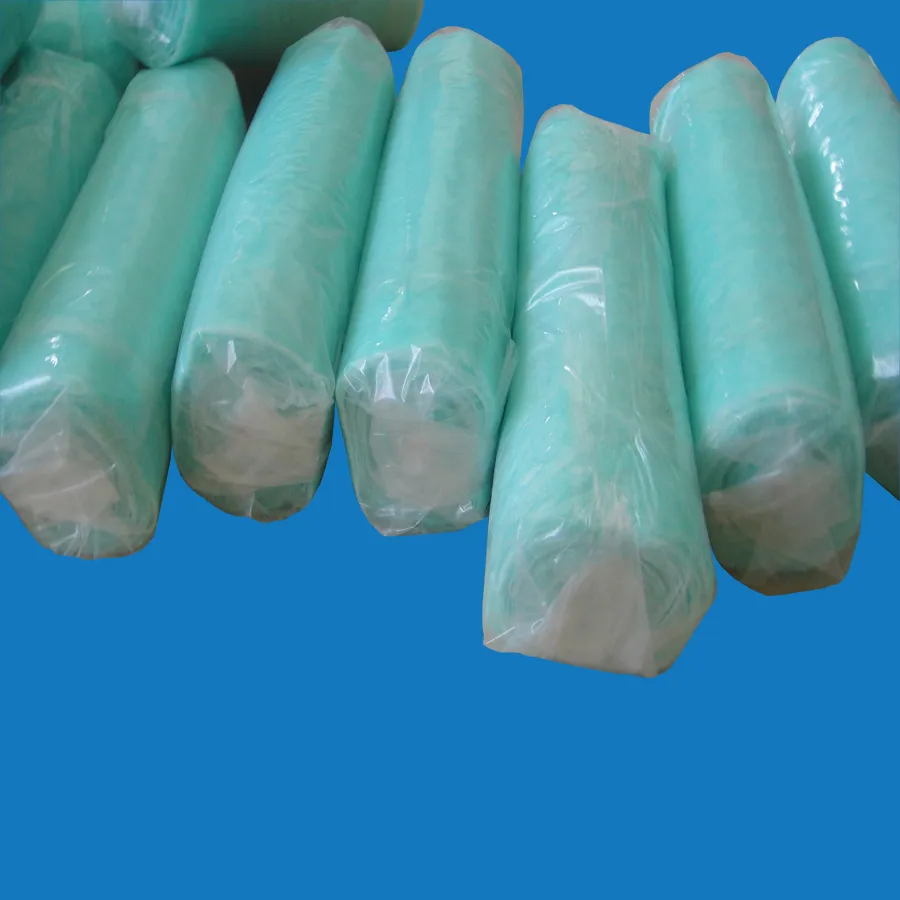

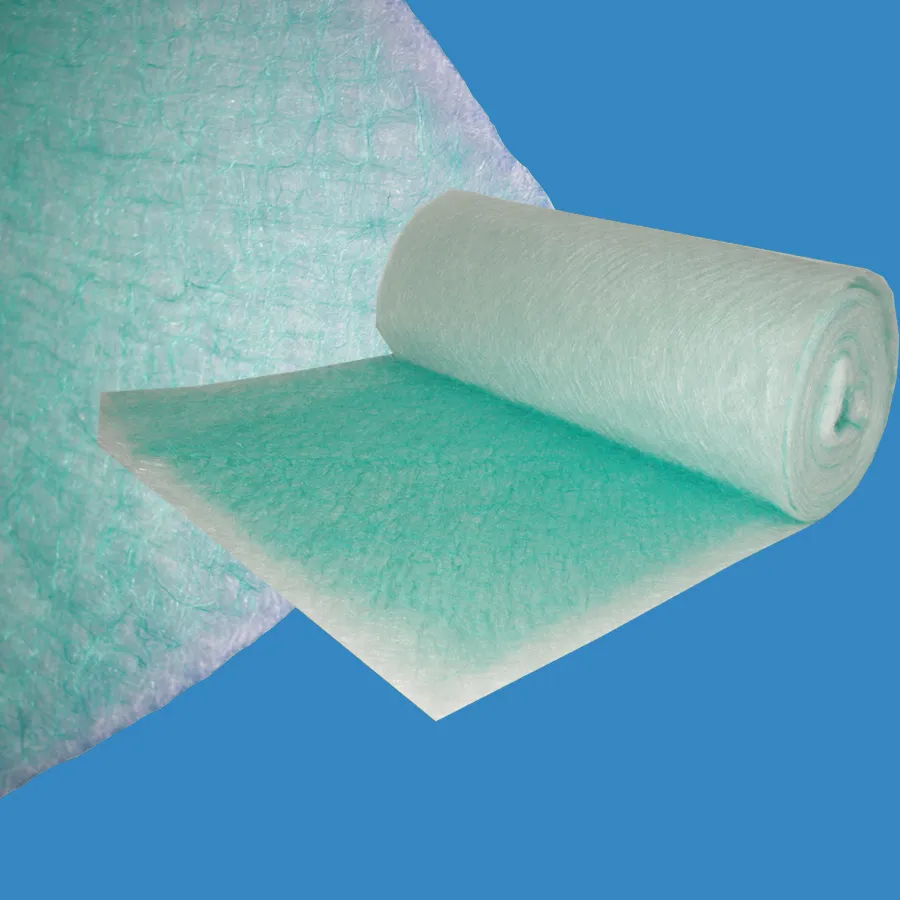

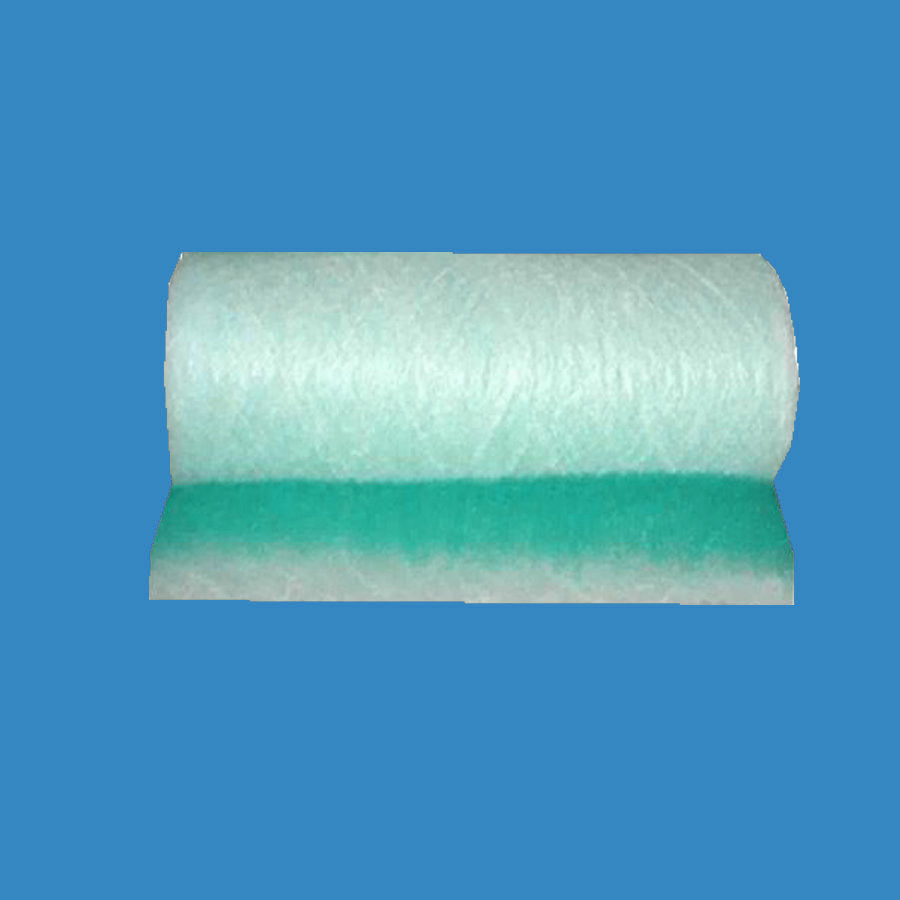

Standard roll size (m) : 2 * 20m, 0.8*15m ( customized size is avaliable)
It is made of formed quartz glass fiber, the fiber is much thinner, and it expands and rebounds quickly and thoroughly. This series is mainly used to absorb the over dissociative particles and decrease the pollution.
Model: AP-60
| Test Air Velocity (m/s) : | 2 |
| Thickness (mm): | 60 |
Max. dust holding (g/m2): 3200
Filter class according to EN779: G3
Average Arrestance (%): 85%
Rated airflow (m3/h): 7200
Initial resistance (pa): 20
Recommend final resistance (PA): 150
FlammabilityDIN53438 (F2) :F1
Temperature resistance (cel degree): ≤ 170
Short max temerature (cel degree):≤ 190
Standard roll size (m) : 2 * 20m, 0.8*15m ( customized size is avaliable)
