H13 (Above 99.995% @0.3 um) Deep Pleat HEPA Filter with Paper Clapboard and Aluminium Profile Frame
Deep pleat HEPA filter (H13) PRODUCT INTRODUCTIONApplication:Mainly used in terminal filtration of electronics, Bio,pharmaceutical industries,hospitals that requires high cleanliness.Frame: Aluminium alloy/Galvanized steel/Stainless steelMedia: Ultra fine glass fiberSeparator :Aluminium foil / Paper......
Send Inquiry
Product Description

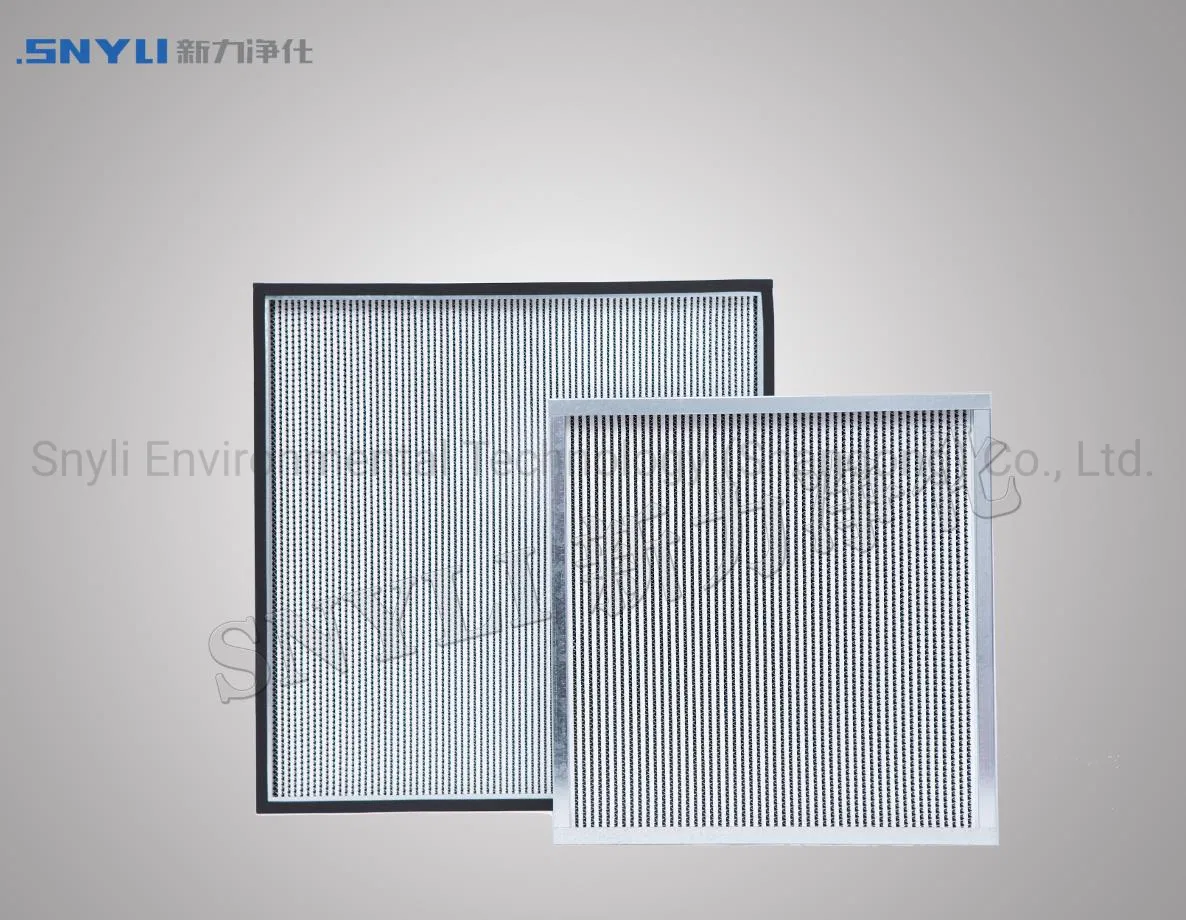

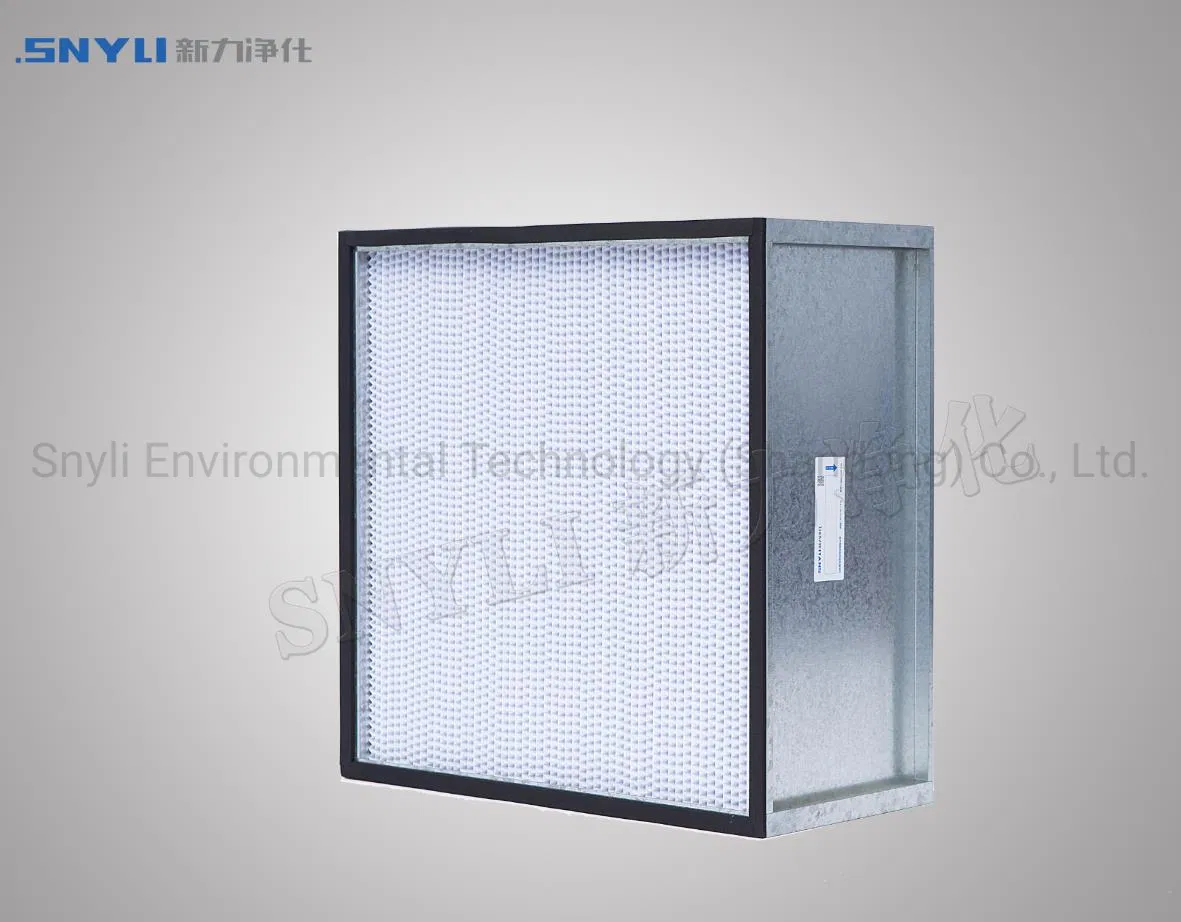

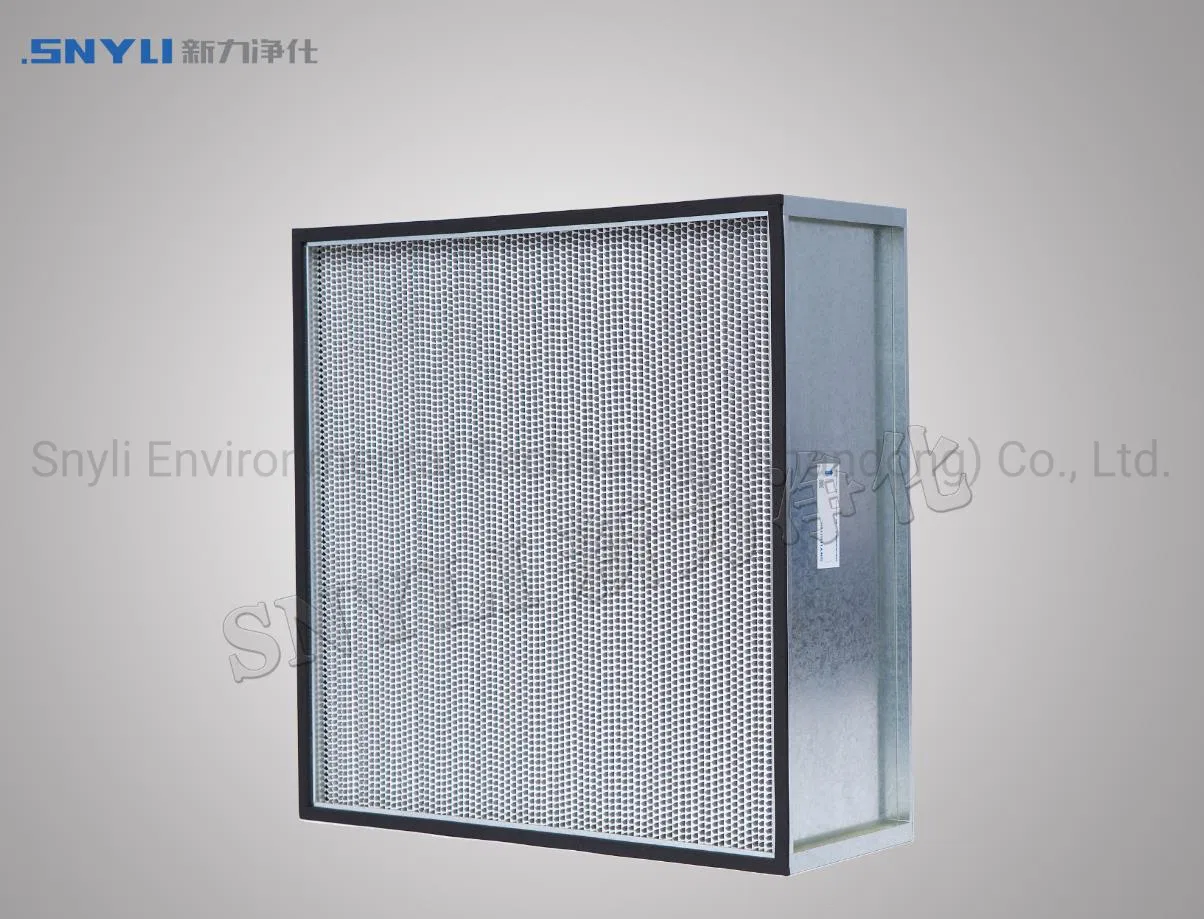

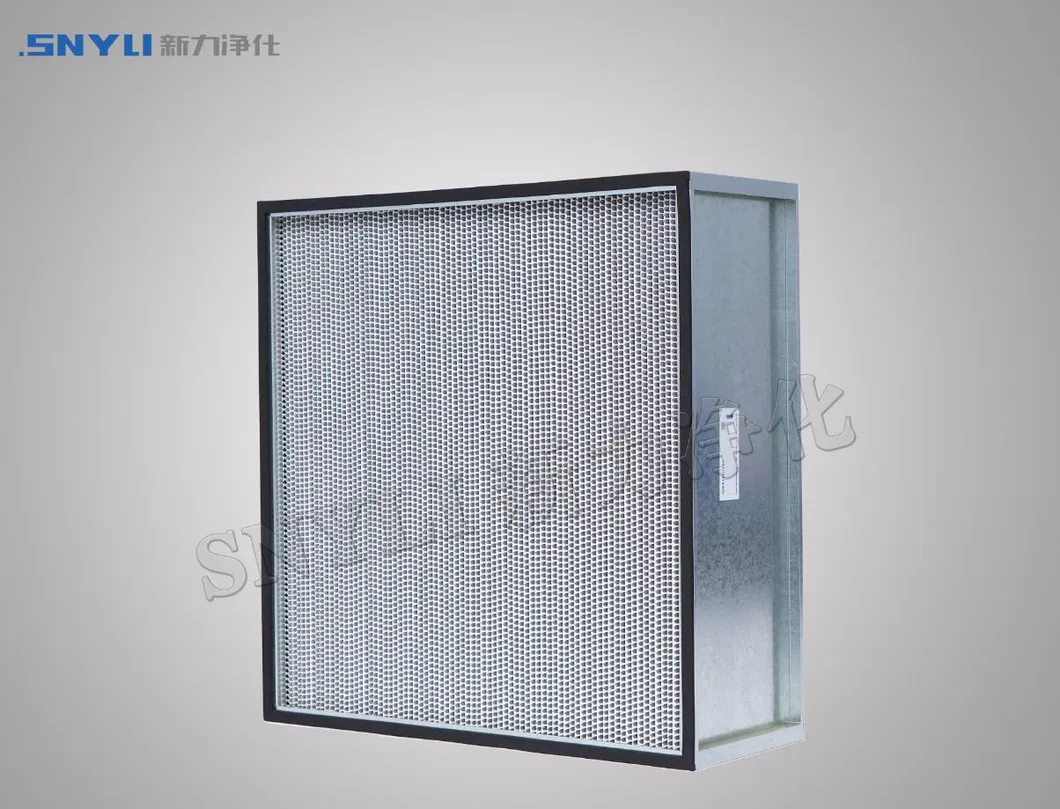

Deep pleat HEPA filter (H13)
PRODUCT INTRODUCTION
Application:Mainly used in terminal filtration of electronics, Bio,pharmaceutical industries,hospitals that requires high cleanliness.
Frame: Aluminium alloy/Galvanized steel/Stainless steel
Media: Ultra fine glass fiber
Separator :Aluminium foil / Paper
Fiber class according to EN1822:2009 : H13
Efficiency: ≥99.995%@0.3μm (DOP/PSL/PAO Counting method)
Maximum temperature: 70ºC
Maximum relative humidity: 100%
Customized size: Available
ADVANTAGES

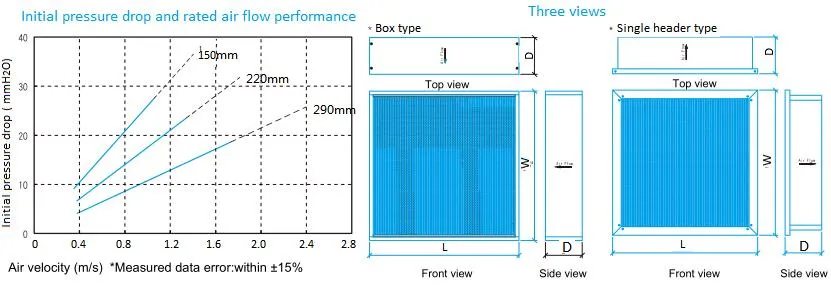

| Model | Actual size W×H×D(mm) | Rated Air flow (m³/h) | Initial pressure drop(Pa) | Final pressure drop(Pa) | |
| Standard | High airflow | ||||
| H4BH320320150 | 320×320×150 | 340 | 540 | 122/220/333 | 250/500 |
| H4BH484484150 | 484×484×150 | 800 | 1260 | ||
| H4BH630630150 | 630×630×150 | 1400 | 2200 | ||
| H4BH915610150 | 915×610×150 | 2080 | 3300 | ||
| H4BH320320220 | 320×320×220 | 400 | 630 | ||
| H4BH484484220 | 484×484×220 | 1000 | 1580 | ||
| H4BH630630220 | 630×630×220 | 1700 | 2700 | ||
| H4BH945630220 | 945×630×220 | 2600 | 4100 | ||
| H4BH305610290 | 305×610×290 | 1050 | 1700 | ||
| H4BH610610290 | 610×610×290 | 2100 | 3400 | ||
FAQ
Q1.Are you a manufacture or trading company?
We are a manufacure.
Snyli Environmental Technology (Shandong) Co., Ltd was established in 2010, is a professional service provider of air purification products integrating R&D, production and sales, with registered brand- SYNLI.
Q2: What do you need from me to quote a price?
1.Mode & Size
2.Quantity.
3.Used material.
4.Payment term,delivery terms.
5.Special requirements.
Q3: Do you supply samples?
Yes,we could supply free sample,but customers bear shipment costs.
Q4: What is sample and commercial order lead time?
-Sample lead time is about 3-7 working days plus transit time;
-Commecial order lead time is about 15-25 working days plus transit time;
Note:All lead times are from the point that advanced payment or deposit are received.
Q5.What is the recommended shelf life of a Deep pleat HEPA filter?
Generally speaking,10 years is the recommed shelf life. This assumes that filters are stored in the original packaging,in a dry climate controlled area and not sujected to extemes in temperature or humidity.
Q6.How long will a Deep pleat HEPA filter last?
Filter life depends upon the operating conditions.A general recommendation is that,at minimum,the filter will be replaced when the pressure drop reaches two times the initial pressure drop(loss).
