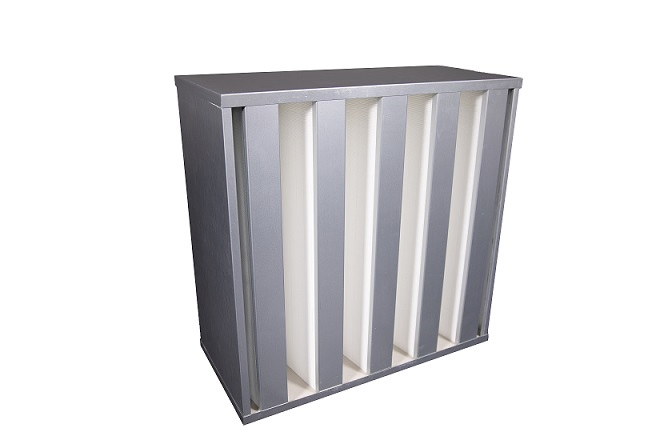

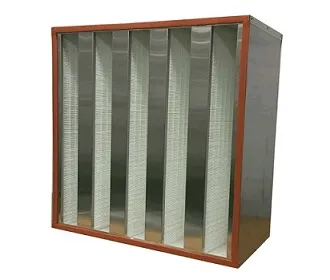

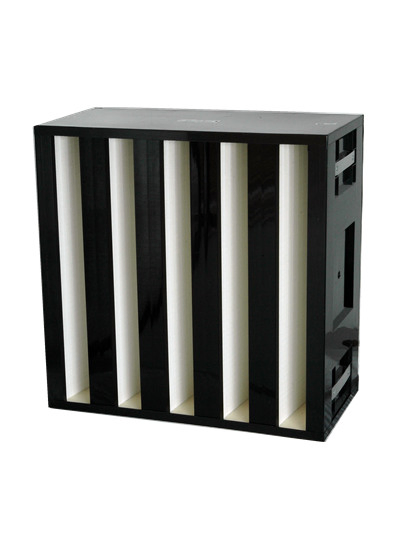

HEPA Filter V-Bank Type E11 E12 H13 H14 HVAC System and Clean Room
Features and applications:Very large media area,long lifetime, dependable HEPA filtration under high volume;Suitable for the terminal HEPA filtration of the air conditioning system and exhaust air purification system,and the air cleaning facility Requiring large air flow.Materials and operating cond......
Send Inquiry
Product Description

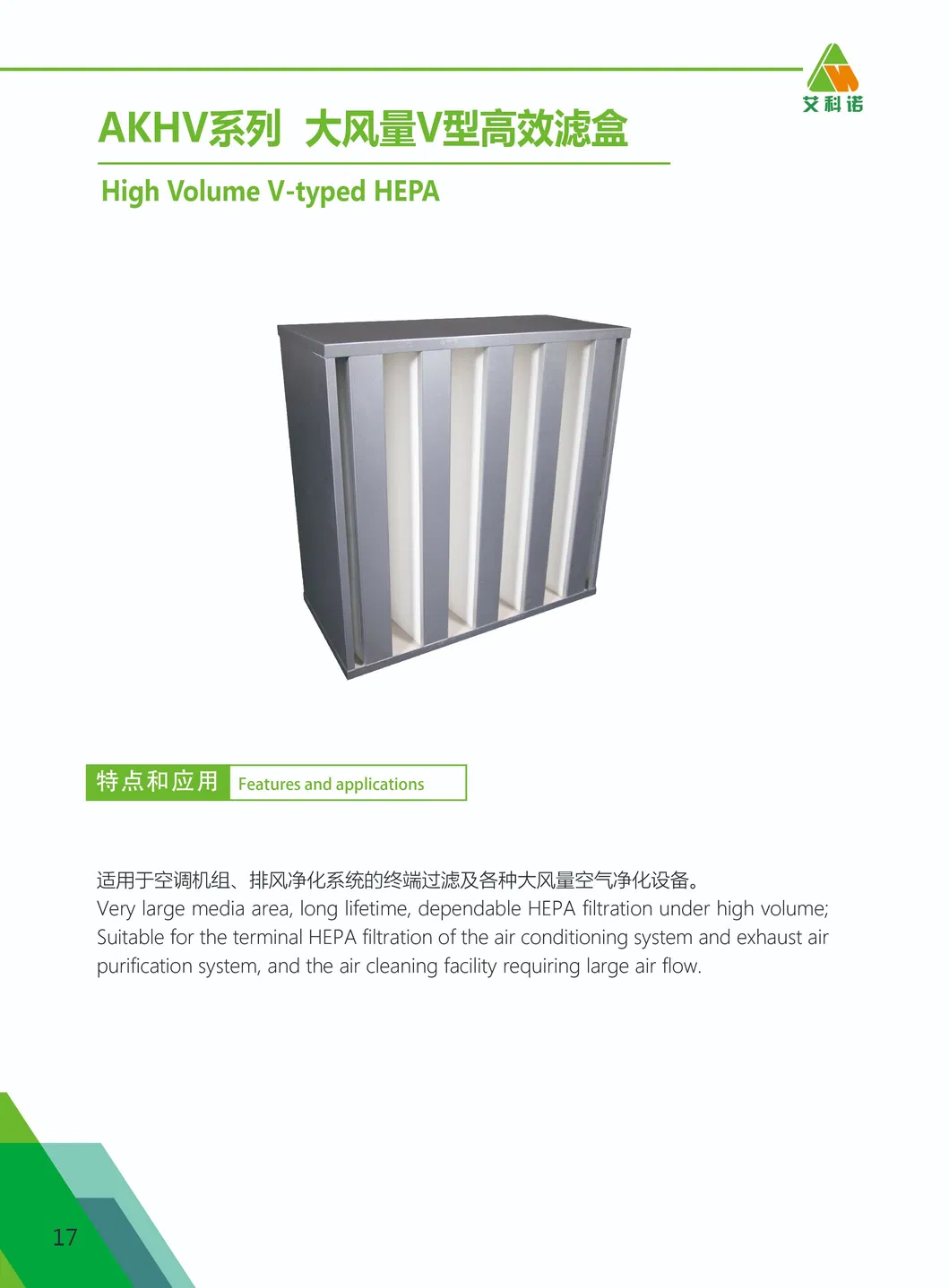

Features and applications:
Very large media area,long lifetime, dependable HEPA filtration under high volume;Suitable for the terminal HEPA filtration of the air conditioning system and exhaust air purification system,and the air cleaning facility Requiring large air flow.
Materials and operating conditions:
Standard specifications:
Other sizes and class are available on request.
High temperature type(120ºC-250ºC) is available.
Very large media area,long lifetime, dependable HEPA filtration under high volume;Suitable for the terminal HEPA filtration of the air conditioning system and exhaust air purification system,and the air cleaning facility Requiring large air flow.

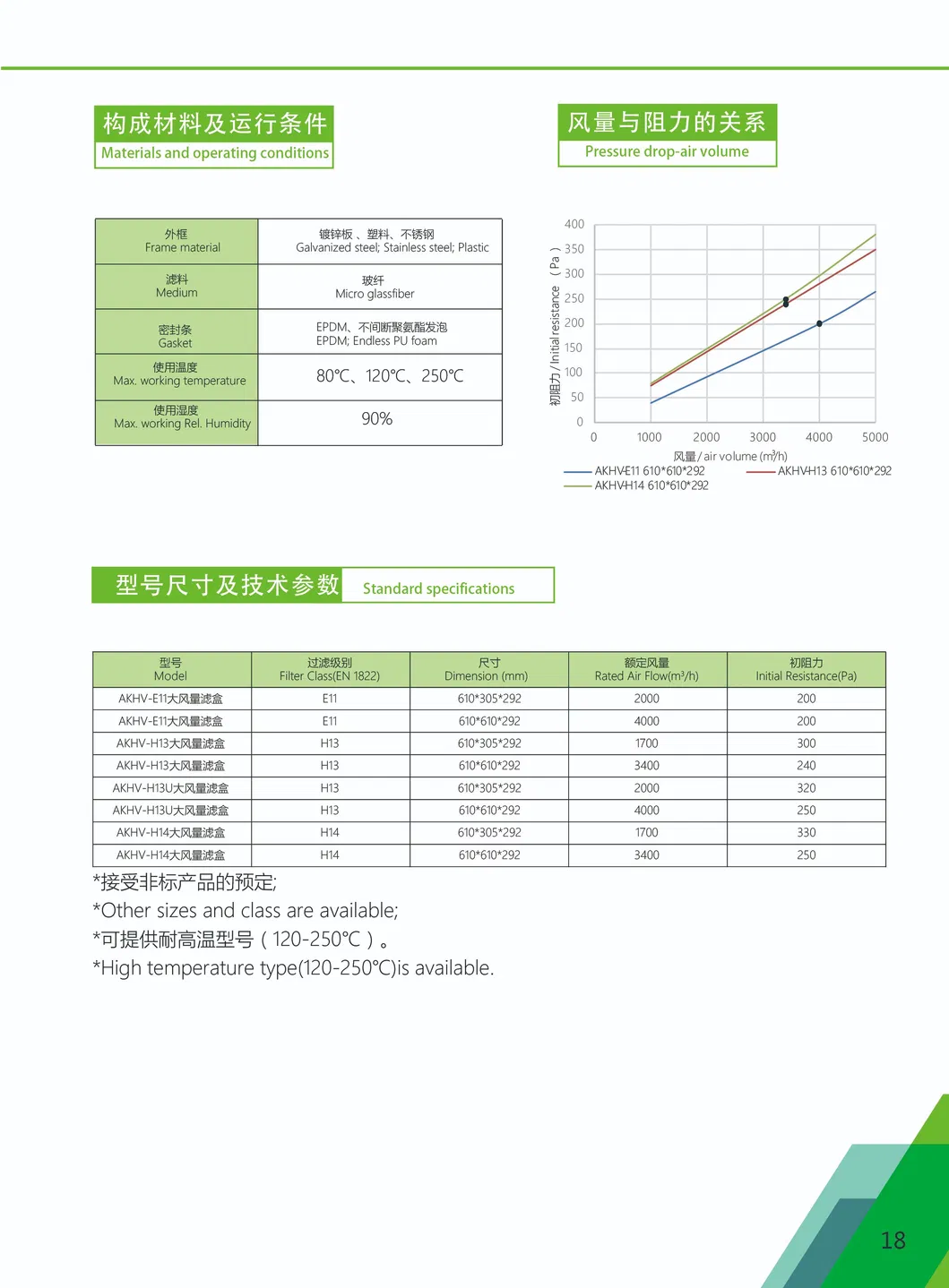

Materials and operating conditions:
| Frame material | Galvanized steel;Stainless steel;Plastic |
| Medium | Micro glassfiber |
| Gasket | EPDM;Endless PU foam |
| Max.working temperature | 80ºC. 120ºC. 150ºC. |
| Max.working Rel.Humidity | 90% |
Standard specifications:
| Model | Filter Class (EN1822) | Dimension (mm) | Rated Air Flow (m3/h) | Initial Resistance (Pa) |
| AKHV-E11 | E11 | 610*305*292 | 2000 | 200 |
| AKHV-E11 | E11 | 610*610*292 | 4000 | 200 |
| AKHV-E13 | E13 | 610*305*292 | 1700 | 300 |
| AKHV-E13 | E13 | 610*610*292 | 3400 | 240 |
| AKHV-E13U | E13 | 610*305*292 | 2000 | 320 |
| AKHV-E13U | E13 | 610*610*292 | 4000 | 250 |
| AKHV-E14 | E14 | 610*305*292 | 1700 | 330 |
| AKHV-E14 | E14 | 610*610*292 | 3400 | 250 |
Other sizes and class are available on request.
High temperature type(120ºC-250ºC) is available.
