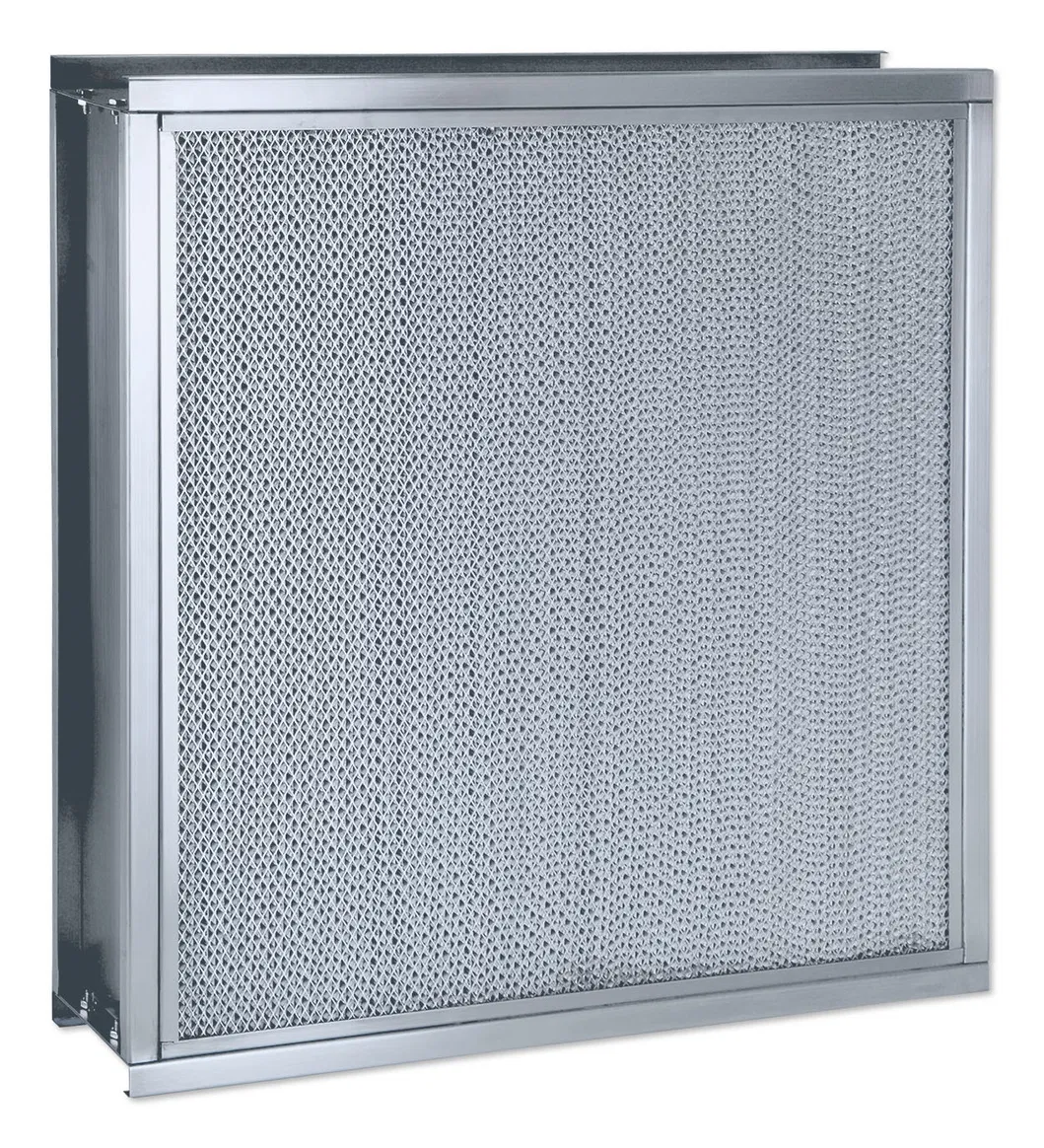

High Temperature Resistant Filter HEPA Air Filter H11 H12 H13 H14
AdvantagesTraps 40~60% of ≥5.0μm particles.Use special low-resistance, high-throughput and temperature resistance fiberglass fiber as the filter material, with high dust-holding capacity.Frame can be made of galvanized steel sheet or aluminum alloy.Temperature resistance: ≥ 250&......
Send Inquiry
Product Description
Advantages
Traps 40~60% of ≥5.0μm particles.
Use special low-resistance, high-throughput and temperature resistance fiberglass fiber as the filter material, with high dust-holding capacity.
Frame can be made of galvanized steel sheet or aluminum alloy.
Temperature resistance: ≥ 250ºC.
Meeting EN779:2012.
Material Instructions
Media: Special low-resistance and high-through fiberglass mat with high dust collecting capacity, flat structure or pleated structure
Frame: Galvanized steel sheet or aluminum alloy
Temperature resistance: ≥250°C

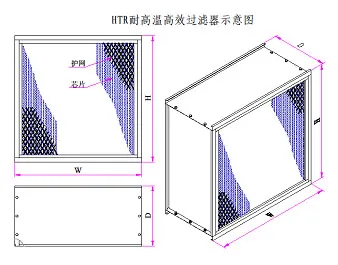

Structure Drawings
Application
Applies to fresh air and return air, act as pre-filter to protect high-performance filters and clean room ventilation system filters.
| Common Specifications | ||||||
| Model | Dimensions | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) | Media Area (m2) | ||
| W×H×D (mm) | Standard | High Capacity | Standard | High Capacity | ||
| HPR-500×500×25 | 500×500×25 | 1200 | 2400 | ≤20 | ≤45 | 0.25 |
| HPR-500×500×20 | 500×500×20 | |||||
| HPR-500×500×15 | 500×500×15 | |||||
| HPR-595×595×25 | 595×595×25 | 1700 | 3400 | 0.35 | ||
| HPR-595×595×20 | 595×595×20 | |||||
| HPR-595×595×15 | 595×595×15 | |||||
Note: HEFIL makes various of other models' HPR filter not listed in above table. Please consult with us if you need.

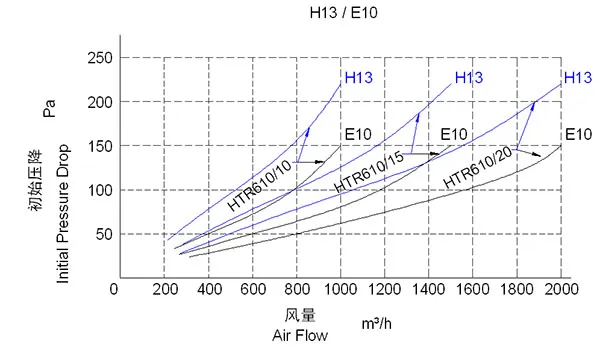

The Initial Pressure Drop and Rated Air Flow Performance Curve
In case of specifications or structures changes, HEFIL will provide up-to-date data on website: hefilter.en.made-in-china.com.
