Nylon Mesh Pre-Filter in Air Conditioning System
Nylon Mesh Pre-Filter In Air Conditioning System Specification:·Washable·Large air flow and low resistance·Temperature and moisture resistance ·High acid and alkali resistance Application: Filter dust, be widely used in Fan Unit,diffuser and the indoor equ......
Send Inquiry
Product Description
Specification:
·Washable
·Large air flow and low resistance
·Temperature and moisture resistance
·High acid and alkali resistance
Application: Filter dust, be widely used in Fan Unit,
diffuser and the indoor equipments with the large
air flow, also applied to the pre-filtration of the air
condition system and the cleanroom.
Outside Frame: aluminum alloy or nylon mesh
Media: PP, PA, PE material
Inside frame: galvanized or stainless steel
EN779 class: G1,G2
Average arrestance:<65%
Type | Dimension | Rated air flow (m3/h) | Media layers | Initial pressure drop (Pa) | ||
Height(mm) | Width(mm) | Thickness(mm) | ||||
FRS-CN-1 | 595 | 595 | 10 | 4000 | 1-2 | ≤25 |
FRS-CN-2 | 595 | 295 | 10 | 2000 | 1-2 | |
FRS-CN-3 | 595 | 595 | 21 | 4000 | 1-2 | |
FRS-CN-4 | 595 | 295 | 21 | 2000 | 1-2 | |
Special sizes available upon request.

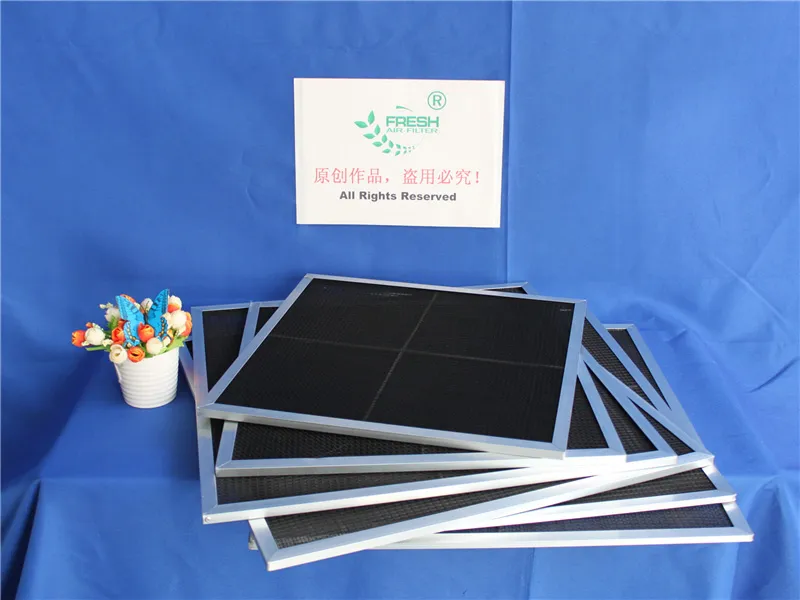

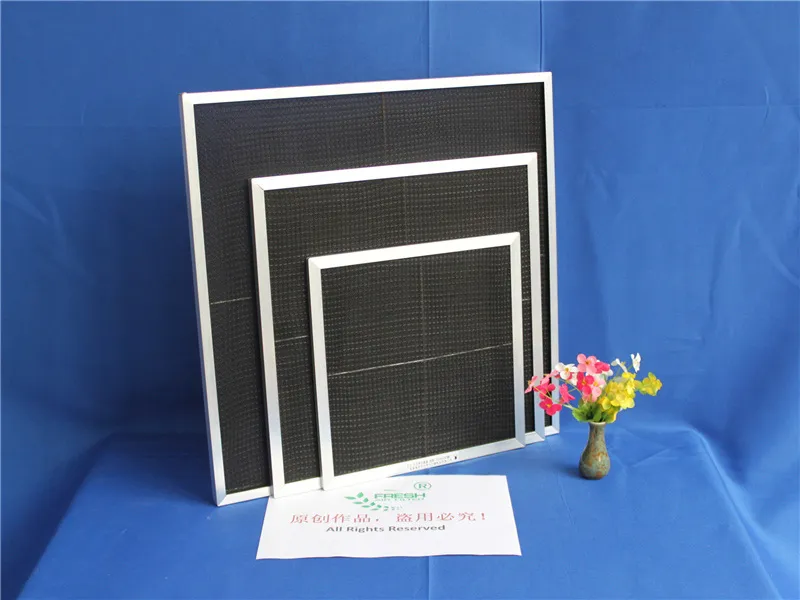

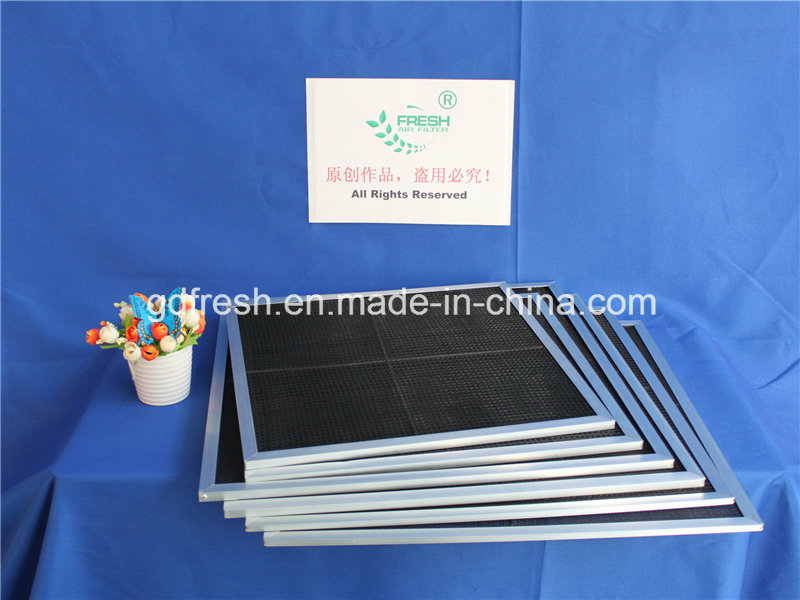

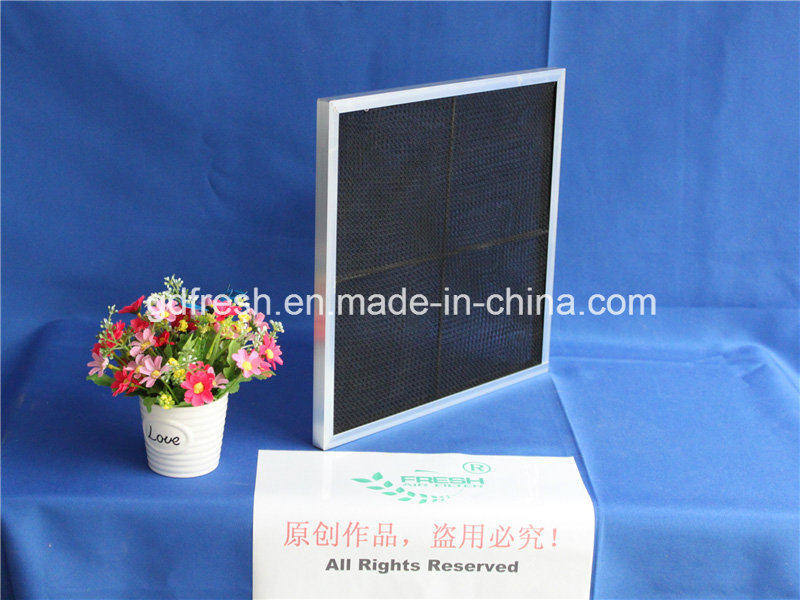

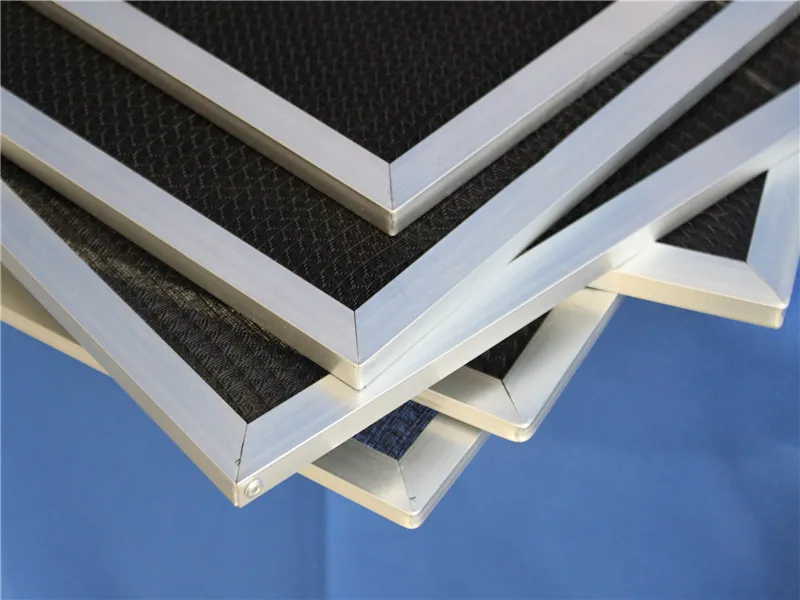

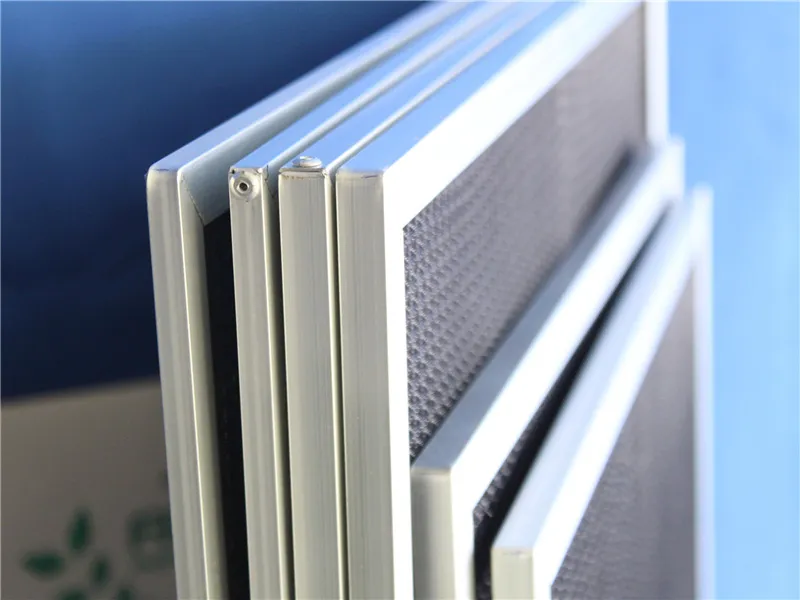

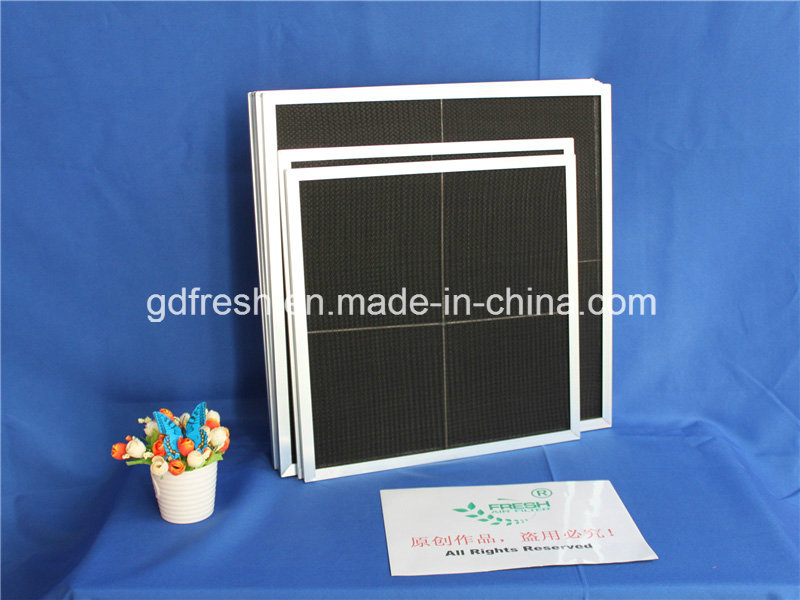

Product Pictures:
