5000 10000 Liter Per Day Seawater Desalination RO Plant for Well Water

Product Description

5000 10000 Liter Per Day Seawater Desalination RO plant for Well Water

Introduction:
The (RO)reverse osmosiswater treatment plant is the advanced equipment to purify water with the action of pressure difference of semi-permeable membrane. RO membranes have pore size of 0.0001 microns, can effectively remove majority of ion, organics, heavy metal, harmful substances, bacteria, particulates etc. RO system is widely used in water treatment and purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production, power stations, electronic industries, medicine manufactories, and medical treatment etc. The removal rate is from 95% to 99%.
5000 10000 Liter Per Day Seawater Desalination RO Plant for Well Water

Applications:
1. Electronic industry
2. Food and beverage industry
3. Medicine industry
4. Chemical industry
5. Petroleum industry

Working process:

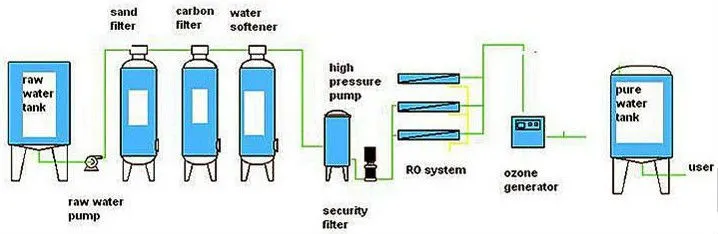

Raw water pump→ quartz sand filter→ activated carbon filter→ water softener→ security filter→ high pressure pump →Reverse osmosis→(Ozone generator→Alkaline filtration→Precision filter→ UV sterilizer→bottle water refill station option.)

OEM services are available. Please kindly advise the raw water, flow rate, usage, and local power supply.
5000 10000 Liter Per Day Seawater Desalination RO Plant for Well Water

Main Parts and functions:

Item NO.	System	Application	Remark
1	Raw water tank	Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system	Offered by customer, because of big size expensive freight.
2	Raw water pump (booster pump)	Provide needed pressure for every pretreatment filter	CNP pumps or Grundfos pumps
3	Quartz sand filter	fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.	1 to 2 years
4	Activated carbon filter	fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.	1 to 2 years
5	Water softener, demineralizer, or called Na+ exchanger	Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling	1 to 2 years
6	Security filter or pp sediment filter	prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm	1 to 3 months
7	High pressure pump	Provide needed working pressure for RO system, ensure production capacity of pure water.	CNP pump, Grundfos optional
8	RO(reverse osmosis) system	Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.	RO membranes USA Filmtec Dow / or Toray or others. 1 to 2 years
9	Ozonation (option)	Apply Pure Oxygen Ozone generator. Inhibits growth of bacteria and algae from forming in our water storage tanks.
10	Alkaline Filtration (option)	Bio Akaline PH filter contains several types of healthy material, including alkaline ball, maifan ball, tourmaline ball, far-infrared ball, negative iron ball and more, to release healthy mineral materials and adjust the water PH to be alkalescence.	1 year
11	Precision filter, post micron filtration (option)	Use PES filter or titanium filter cartridge, avoid second pollution from the Alkaline multi-element. Absoluted rate of 0.2 micron, remove bacteria, rust, dirt and other particles.	3 month
12	Ultraviolet Sterilizer (option)	Removes bacteria, viruses, algae & fungi as it dispenses to your water bottles	9000~10,000hours

RO plant Capacity:

Model	Flow rate (L/h)	Power(KW)	Water use efficiency	RO membrane	Dimension L* W * H(mm)
RO-250L	250	1.5	≥ 15%	4040	1550X620X1670
RO-500L	500	1.5	≥ 50%	4040	1650X630X1800
RO-750L	750	2.5	≥ 50%	4040	1870X 630 X 1850
RO-1000L	1000	2.5	≥ 50%	4040	1870X 650 X 1850
RO-2000L	2000	3.5	≥ 50%	4040	2440X650X1750 (host machine)
RO-3000L	3000	4	≥ 50%	4040	2440X620X1850 (host machine)
RO-5000L	5000	7.5	≥ 50%	8040	2000X900X1800 (host machine)
RO-6000L	6000	9.5	≥ 60%	8040	3000X900X1800 (host machine)
RO-8000L	8000	13.5	≥ 60%	8040	3000×900×1800 (host machine)
RO-9000L	9000	14	≥ 60%	8040	4000X900X1800 (host machine)
RO-10T	10T/H	19	≥ 60%	8040	3000X900X1800 (host machine)
RO-12T	12T/H	19.5	≥ 60%	8040	4000X900X1800 (host machine)
RO-15T	15T/H	23	≥ 60%	8040	4000X900X1950 (host machine)
RO-20T	20T/H	28	≥ 60%	8040	5000X900X1950 (host machine)
RO-30T	30T/H	55	≥ 60%	8040	7000X900X1950 (host machine)
