Reverse Osmosis RO Water Treatment Purifier System Price Plant Ozone Generator UV 500L-10000L
Semi-automatic production line,Water treatment EDI,ultraviolet(alternative) water tank Ozone generator,pump(alternative) homogenizer emulsifier material tank semi-automatic filling machine semi-automatic capping machine semi-automatic labeling machine ink printer conveyor(alternative)Fully ......
Send Inquiry
Product Description
Semi-automatic production line,
Water treatment → EDI,ultraviolet(alternative)→ water tank → Ozone generator,pump(alternative) → homogenizer emulsifier → material tank → semi-automatic filling machine → semi-automatic capping machine → semi-automatic labeling machine → ink printer → conveyor(alternative)

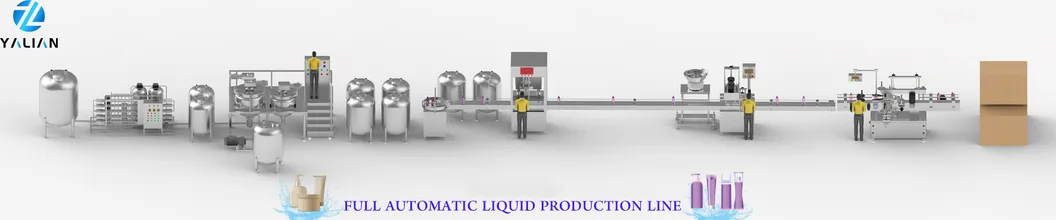

Fully automatic production line,
Water treatment → EDI,ultraviolet(alternative) → water tank → Ozone generator,pump(alternative) → homogenizer emulsifier → material tank → automatic filling and capping machine → automatic labeling machine → ink printer
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99.999% of organic, including pyrogens, and 99% bacterials in the feed water.
Flow Chart
raw water - raw water tank - raw water pump - sand filter - carbon filter - softener (optional) - security filter - 1 stage high pressure pump - 1 stage reverse osmosis system - 2 stage high pressure pump - 2 stage reverse osmosis system - pure water tank - UV sterilizer / ozone generator (optional) - water supply points
STEP<1>. Sand Filter: Use quartz sand media with a diameter of 2-4mm to remove some big suspended solids like colloids, rust, mud, impurity etc.
STEP<2>. Carbon Filter: Active carbon can absorb some organism, dissolved air, odor & color matter etc.
STEP<3>. Softener: Use cation exchange resin to remove Calcium, Magnesium etc. to make soft water.
STEP<4>. Security Filter: Use 5 -20 micron sediment cartridge filter / bag filter, to remove the passed suspended solid from pre-treatment, so that to ensure the safety of the entrance of RO system.
STEP<5>. Reverse Osmosis: The nanometer RO membrane can intercept the inorganic salt, heavy metal ions, organic matter, colloid, bacteria, viruses and other impurities but H2O of the source water, so it can produce the pure water.
Company introduce :
Guangzhou Yalian is a large-scale company specialized in design, manufacturing, installation and commissioning of daily chemical, chemical, food and pharmaceutical machinery, as well as water treatment equipment. With powerful technical strength, complete inspection facilities, unique and advanced technique as well as great varieties of products, the enterprise strictly implements ISO9001 standard management.
RFQ
1. Q: Are you a manufacturer or just a trading company?
A: Guangzhou yalian cosmetics Machinery Co. Ltd is one of the top technology-oriented machinery manufacturer in China.
2. Q: I am new in this field , can you recommend the whole production line?
A: We can recommend you the whole production line depends on what products you will make:
(1). If for paste or cream product, the following machine we will recommend you:
RO water treatment equipment → Vacuum homogenizer → Storage tank → Paste filling machine or Heating mixing filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc.,
(2). If for liquid product, the following machine we will recommend you:
RO water treatment equipment → Blending tank → Storage tank → Liquid filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc.,
(3). If for Perfume, the following machine we will recommend you:
RO water treatment equipment → Perfume making machine → Perfume storage tank → Perfume filling machine → Perfume crimping machine → Perfume collar machine → Inkjet printer → Shrink film packing machine etc.,
(4). There are Full automatic production line and Semi automatic production line for your option.
3. Q: What is your payment term?
A: We usually pay by T/T., 40% deposit after sales confirmation, 60%before delivery.
4. Q: What is your delivery day?
A: Our delivery day is about 15-30 days after receive the deposit.
Water treatment → EDI,ultraviolet(alternative)→ water tank → Ozone generator,pump(alternative) → homogenizer emulsifier → material tank → semi-automatic filling machine → semi-automatic capping machine → semi-automatic labeling machine → ink printer → conveyor(alternative)
Fully automatic production line,
Water treatment → EDI,ultraviolet(alternative) → water tank → Ozone generator,pump(alternative) → homogenizer emulsifier → material tank → automatic filling and capping machine → automatic labeling machine → ink printer

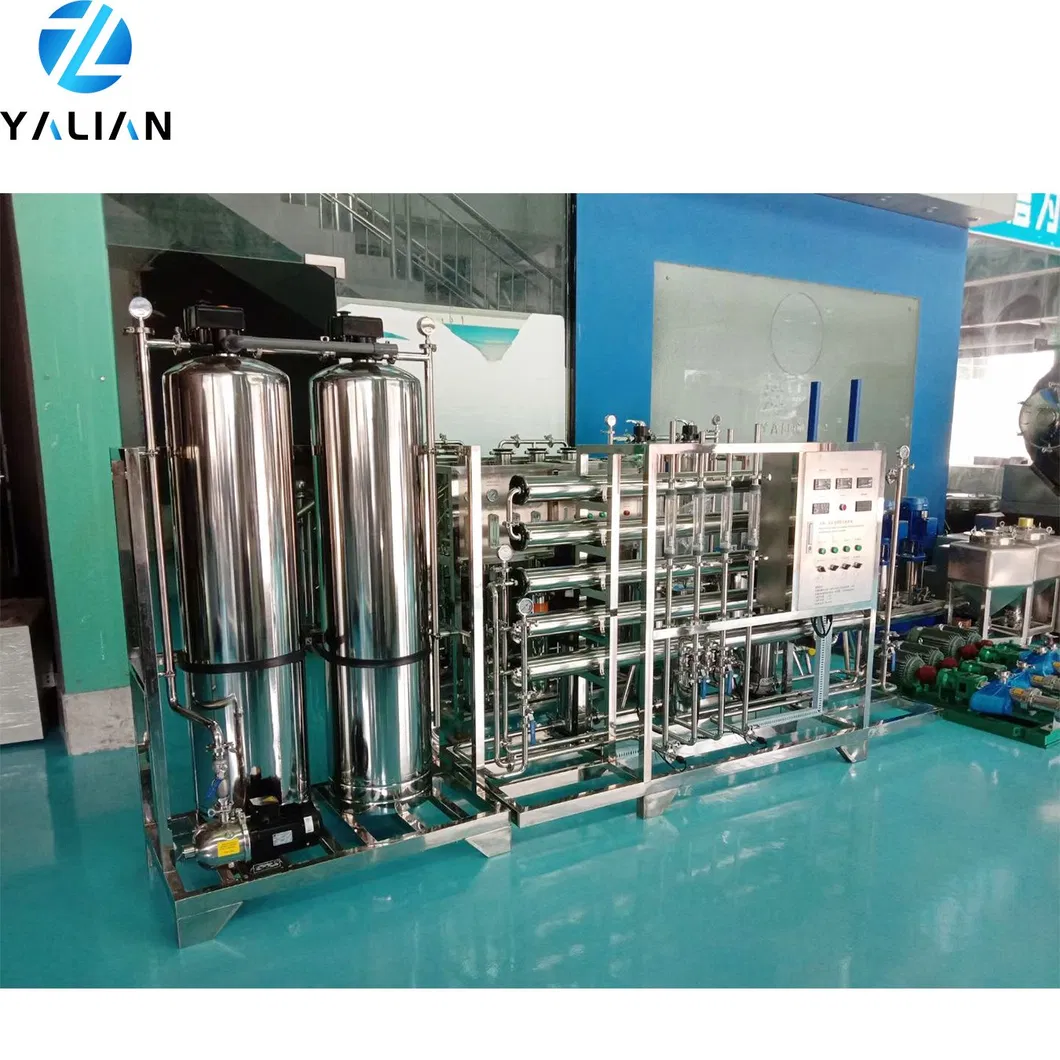

Reverse osmosis RO water treatment purifier system price plant ozone generator UV 500L-10000L
Brief introduction of reverse osmosis systemReverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99.999% of organic, including pyrogens, and 99% bacterials in the feed water.

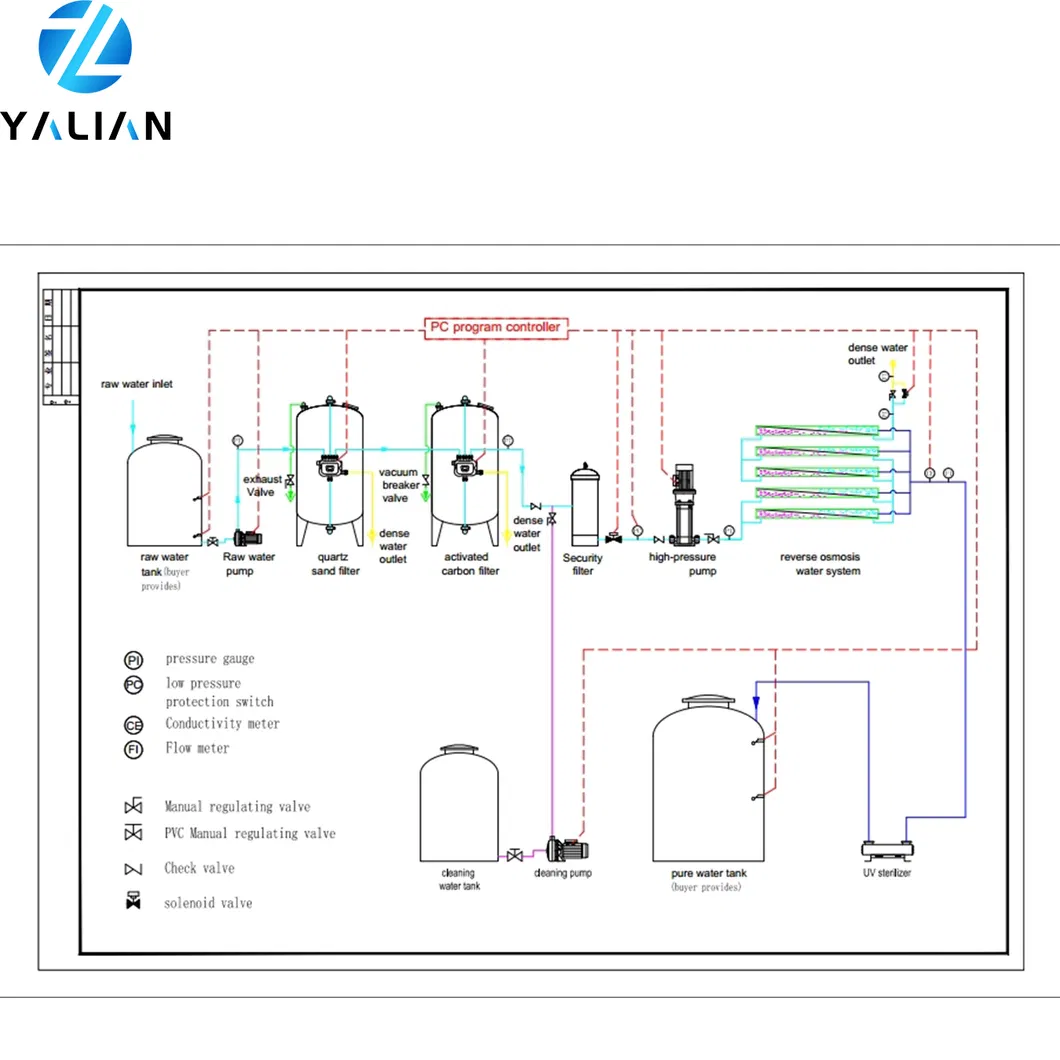

Flow Chart
raw water - raw water tank - raw water pump - sand filter - carbon filter - softener (optional) - security filter - 1 stage high pressure pump - 1 stage reverse osmosis system - 2 stage high pressure pump - 2 stage reverse osmosis system - pure water tank - UV sterilizer / ozone generator (optional) - water supply points
STEP<1>. Sand Filter: Use quartz sand media with a diameter of 2-4mm to remove some big suspended solids like colloids, rust, mud, impurity etc.
STEP<2>. Carbon Filter: Active carbon can absorb some organism, dissolved air, odor & color matter etc.
STEP<3>. Softener: Use cation exchange resin to remove Calcium, Magnesium etc. to make soft water.
STEP<4>. Security Filter: Use 5 -20 micron sediment cartridge filter / bag filter, to remove the passed suspended solid from pre-treatment, so that to ensure the safety of the entrance of RO system.
STEP<5>. Reverse Osmosis: The nanometer RO membrane can intercept the inorganic salt, heavy metal ions, organic matter, colloid, bacteria, viruses and other impurities but H2O of the source water, so it can produce the pure water.
| No. | Name | Function | Remark |
| 1 | Raw water tank | Store water, buffering pressure, overcome instability ofsupplying water by pipe, ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight. |
| 2 | Raw water pump or called booster pump | Provide needed pressure for every pretreatment filter | We can provide CNP pumps or Grundfos pumps |
| 3 | Mechanical filter /quartz sand filter /sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities,suspended substances, colloids etc. | |
| 4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. | |
| 5 | Security filter /pp filter / sediment filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5 micron, | |
| 6 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional |
| 7 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99.999% dissolved salts. | RO membranes USA Filmtec Dow |
| 8 | UV/ Ozone generator | Kill bacterials in water. UV for direct drinking water. Ozone generator for bottle water |

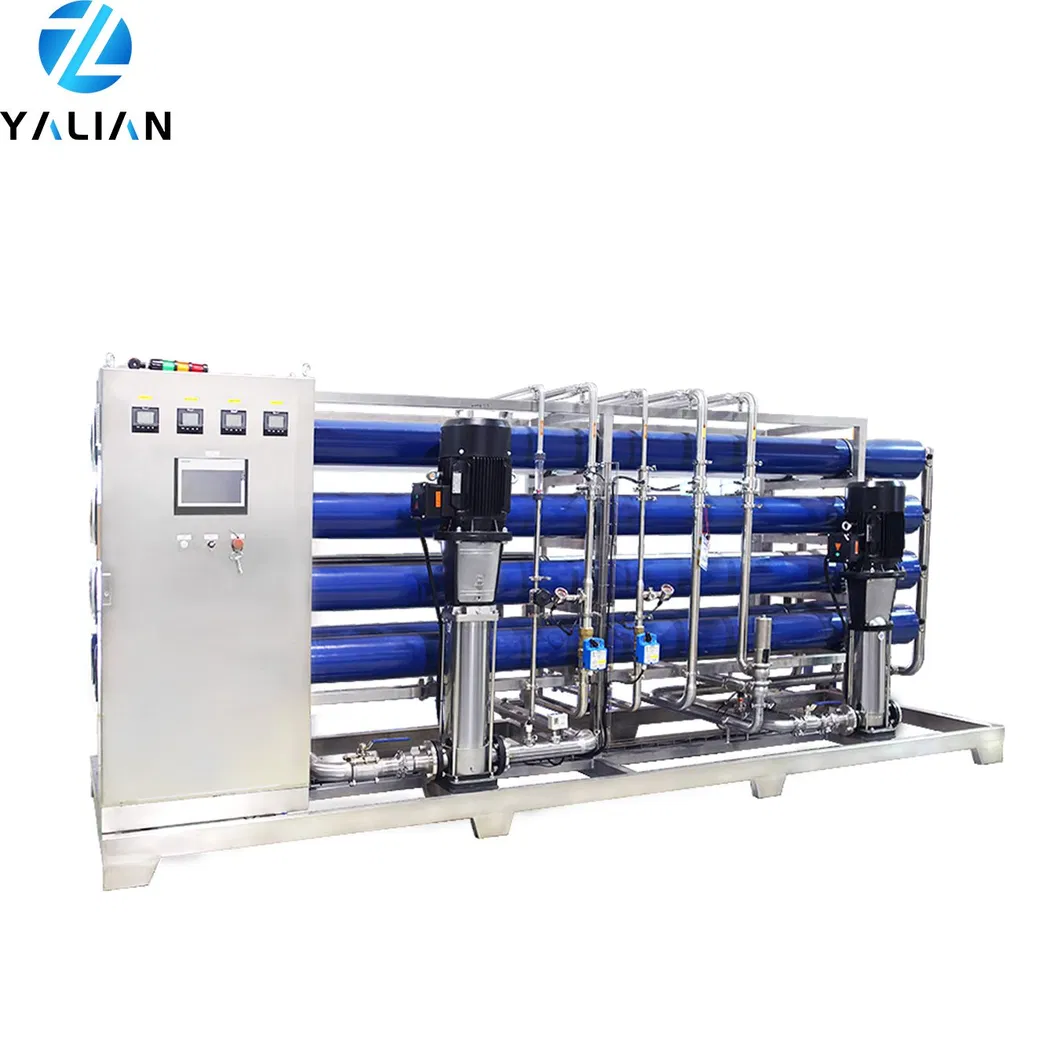

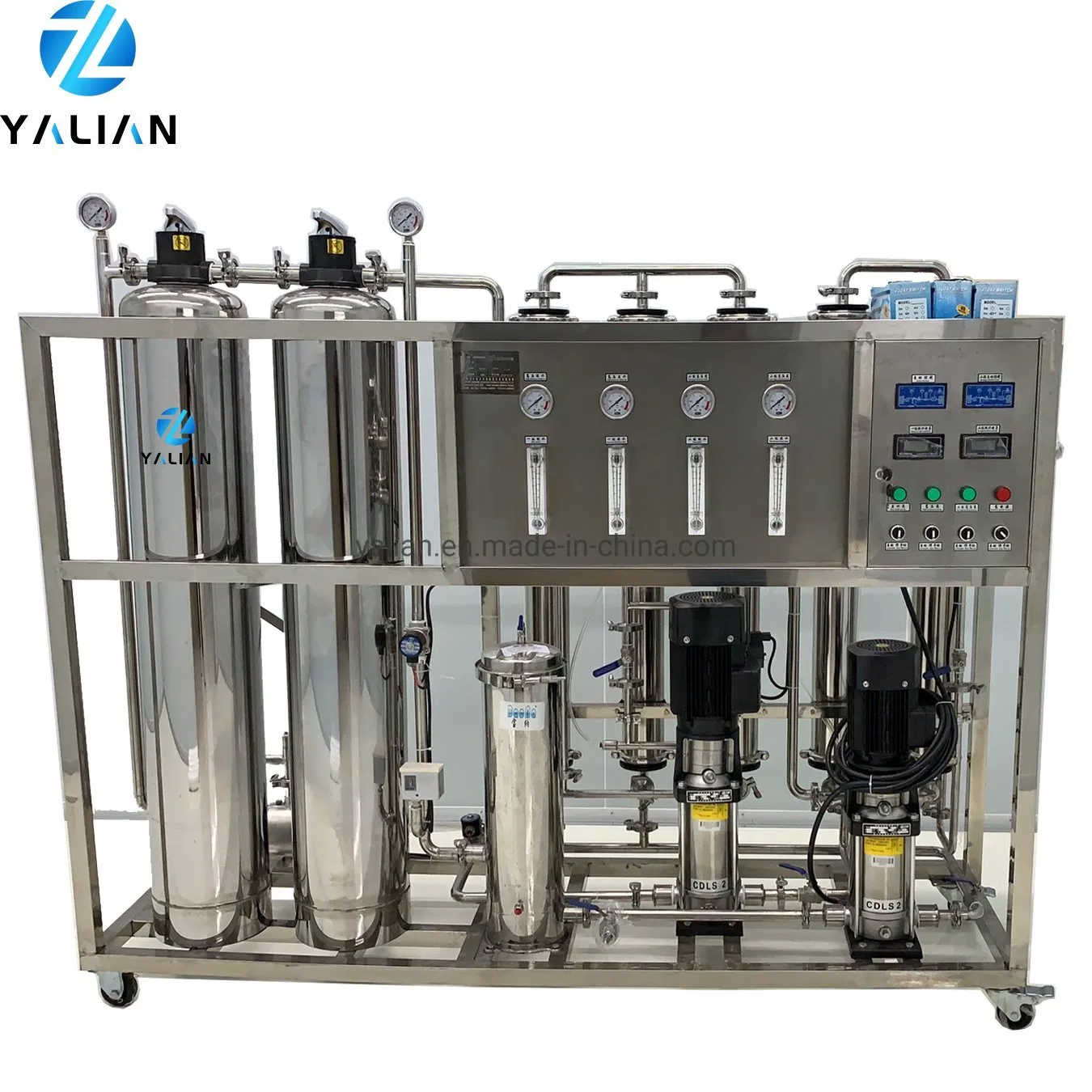

stainless steel water treatment

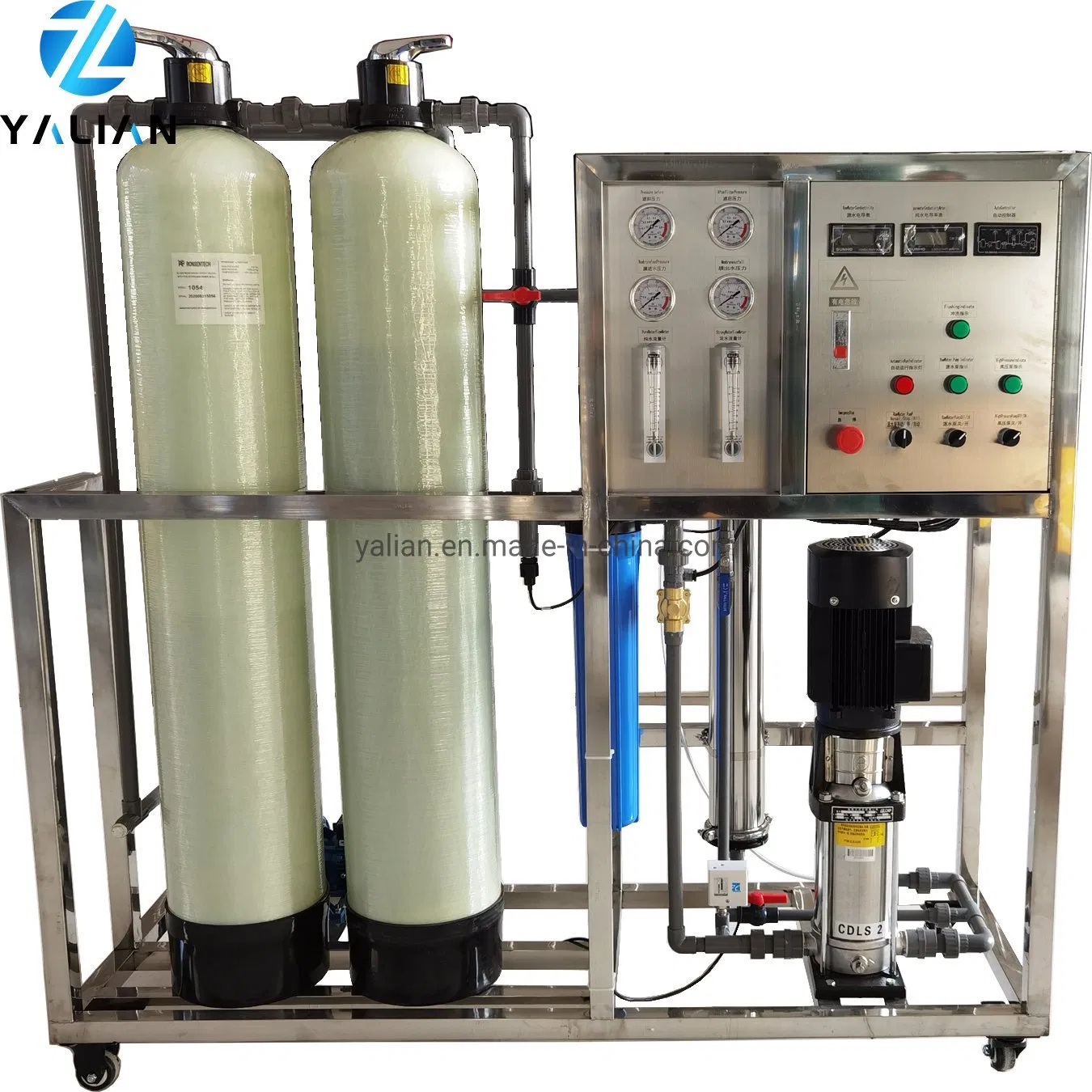

PP water treatment

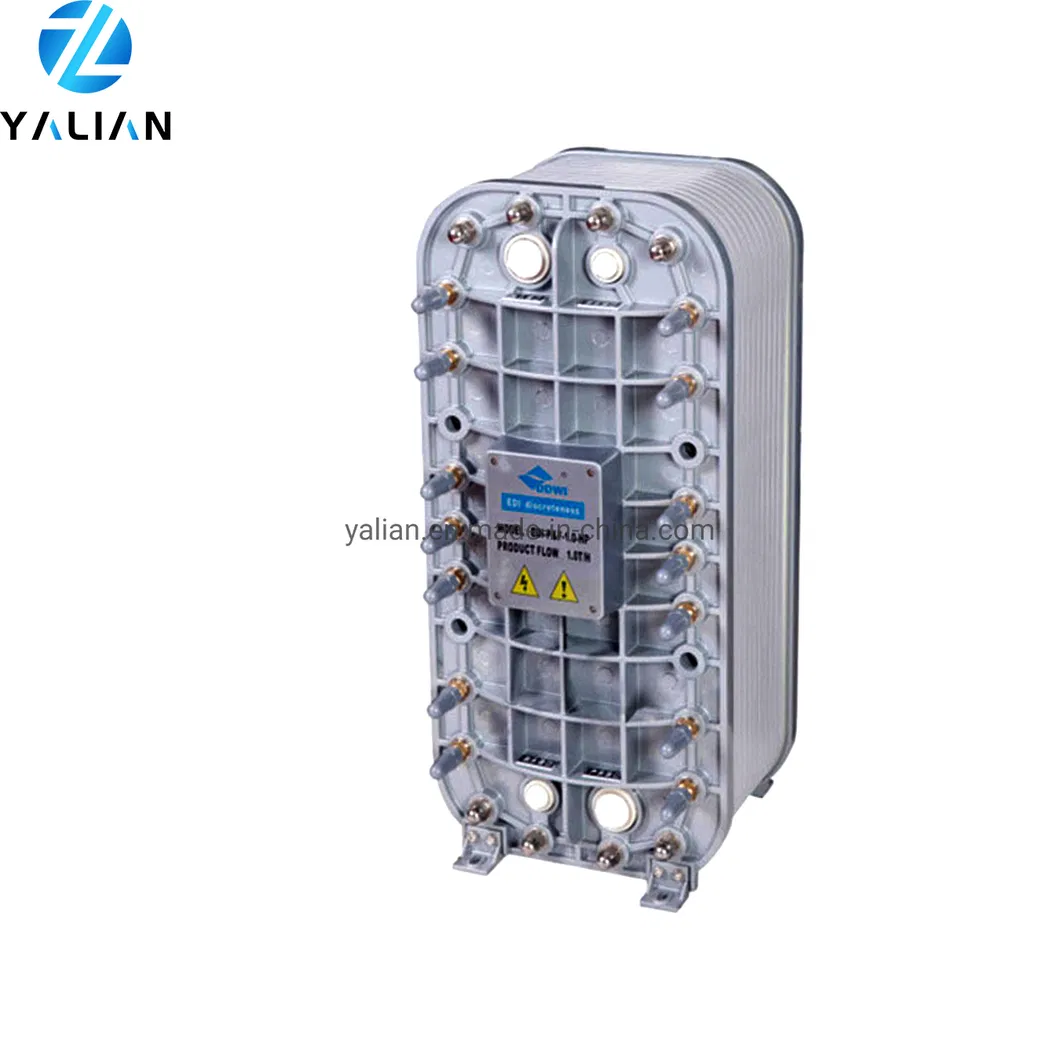

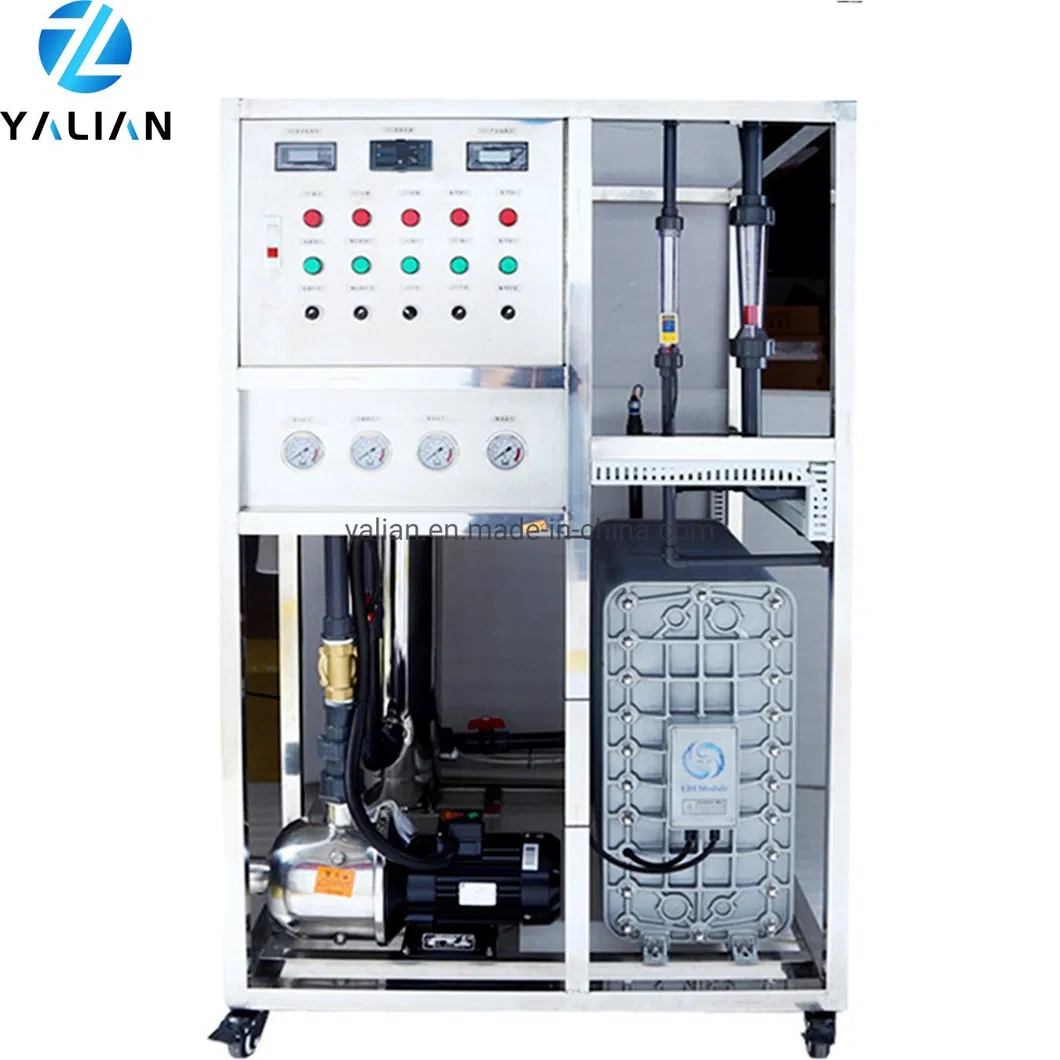

EDI

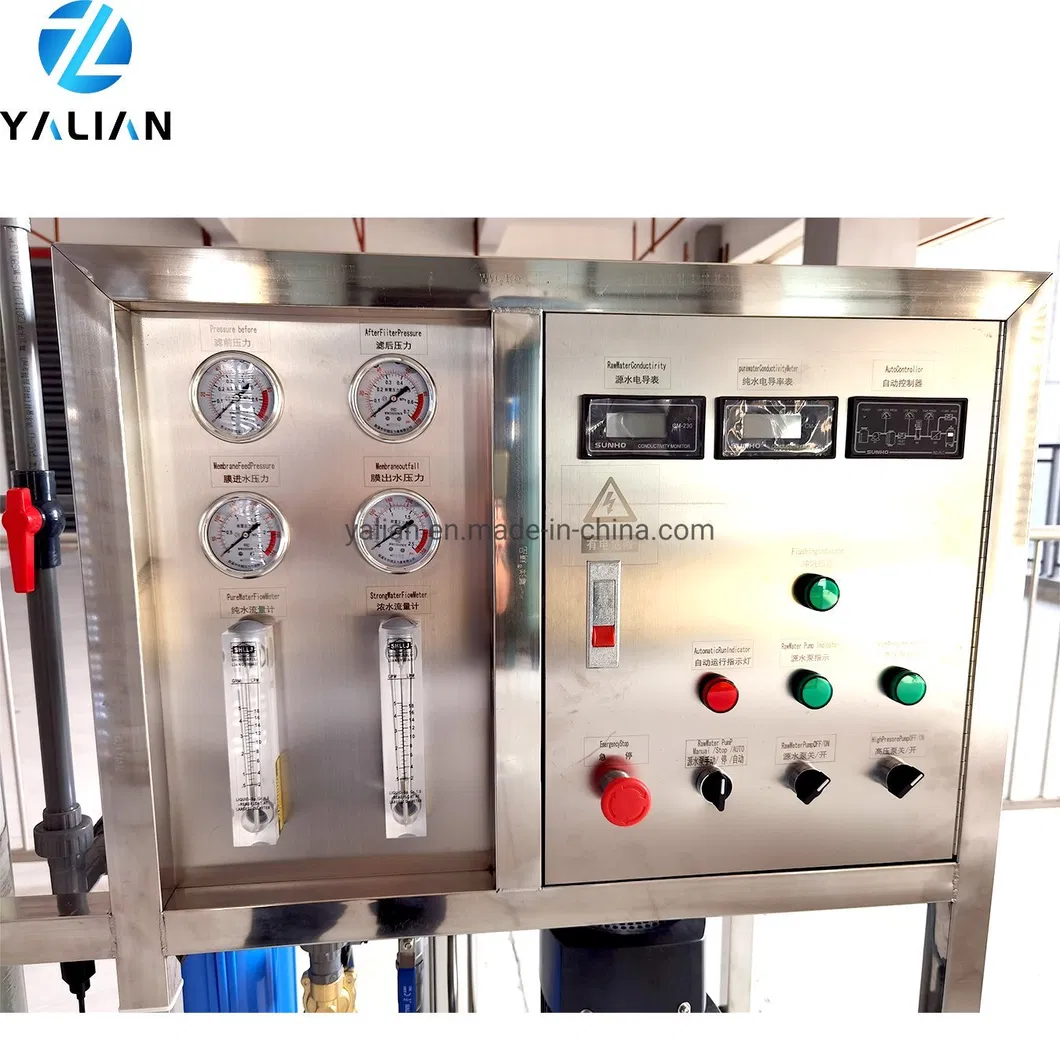

AUTO, PLC, press-button

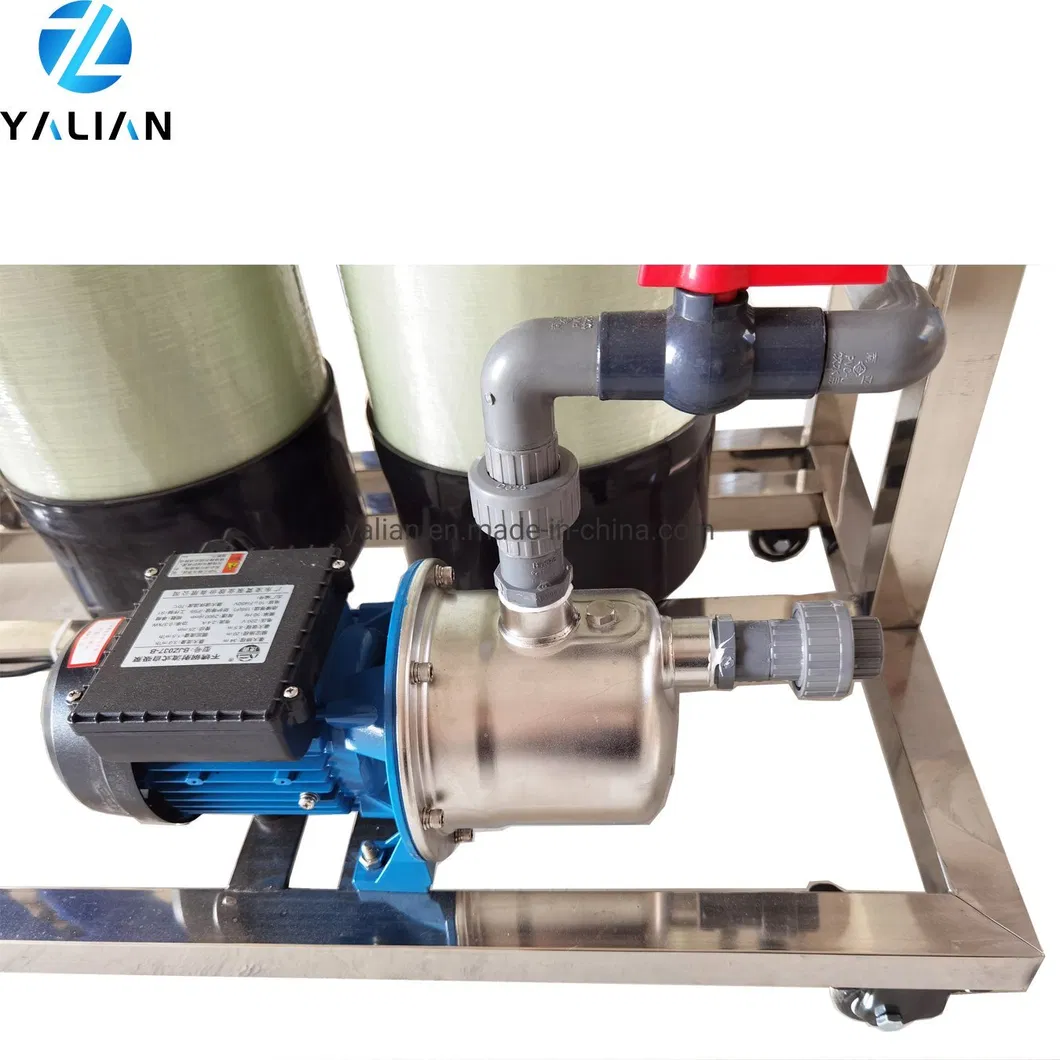

Raw water pump

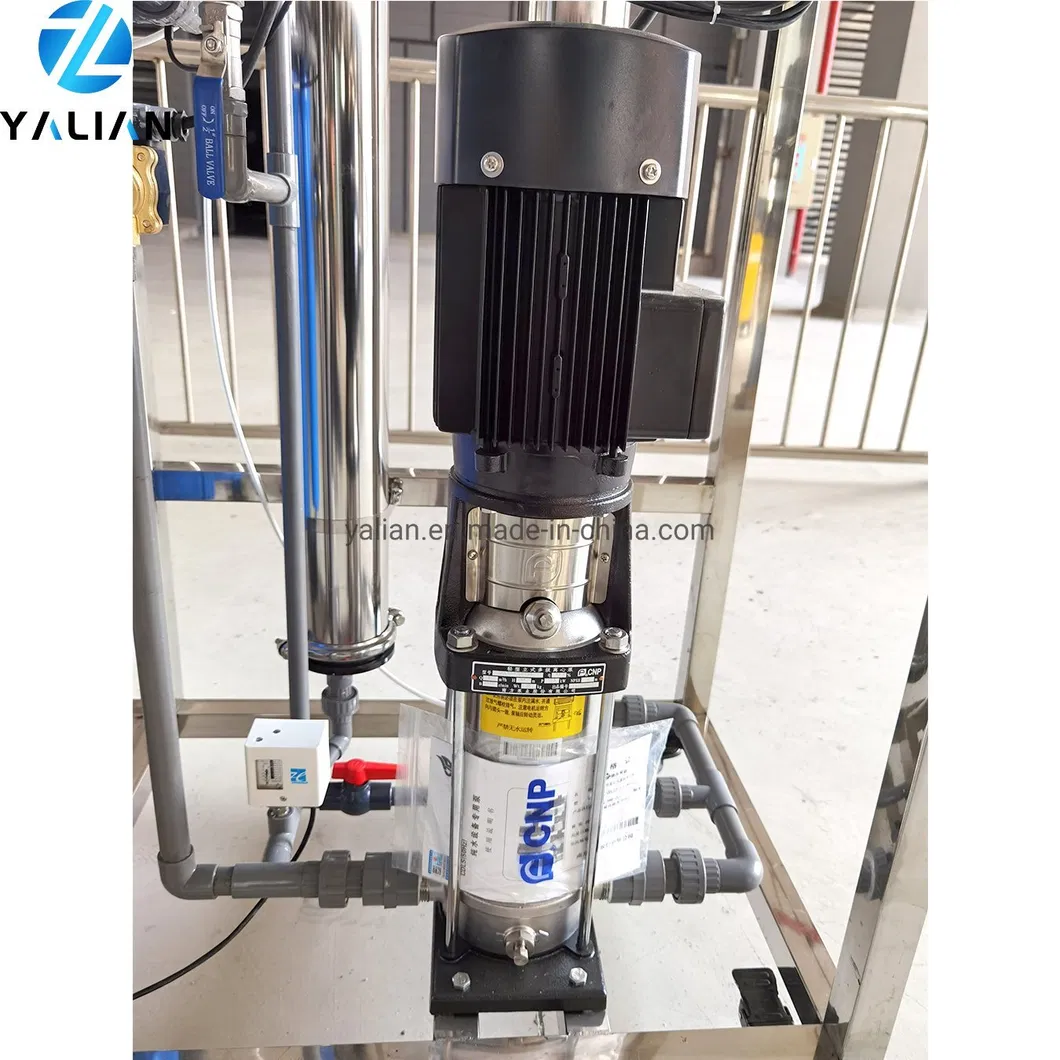

high pressure pump
Guangzhou Yalian is a large-scale company specialized in design, manufacturing, installation and commissioning of daily chemical, chemical, food and pharmaceutical machinery, as well as water treatment equipment. With powerful technical strength, complete inspection facilities, unique and advanced technique as well as great varieties of products, the enterprise strictly implements ISO9001 standard management.
1. Q: Are you a manufacturer or just a trading company?
A: Guangzhou yalian cosmetics Machinery Co. Ltd is one of the top technology-oriented machinery manufacturer in China.
2. Q: I am new in this field , can you recommend the whole production line?
A: We can recommend you the whole production line depends on what products you will make:
(1). If for paste or cream product, the following machine we will recommend you:
RO water treatment equipment → Vacuum homogenizer → Storage tank → Paste filling machine or Heating mixing filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc.,
(2). If for liquid product, the following machine we will recommend you:
RO water treatment equipment → Blending tank → Storage tank → Liquid filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc.,
(3). If for Perfume, the following machine we will recommend you:
RO water treatment equipment → Perfume making machine → Perfume storage tank → Perfume filling machine → Perfume crimping machine → Perfume collar machine → Inkjet printer → Shrink film packing machine etc.,
(4). There are Full automatic production line and Semi automatic production line for your option.
3. Q: What is your payment term?
A: We usually pay by T/T., 40% deposit after sales confirmation, 60%before delivery.
4. Q: What is your delivery day?
A: Our delivery day is about 15-30 days after receive the deposit.
