Custom Designed RO Systems (RO-1000)

Product Description

Item: RO-1000
Pre-filter System
1.Original water tank:
Model :CHL2-40
Material :SS.304; Brand :HANG ZHOU NANFANG
Power :0.55 KW
Voltage :Single Phase AC220/50Hz
2.Mutil-sand Filter
Auto Control Valve :TMF67B; Brand :RUNXIN
2.1.Vessel
Material :FRP; Model :330X1400 (1054)/150PSI
2.2.Padding
Material :Quartz Sand; Model :4#
3.Active Carbon Filter
Auto Control Valve :TMF67B; Brand :RUNXIN
3.1.Vessel
Material :FRP; Brand :330X1400 (1054)
3.2.Padding
Material :Active Carbon; Model :20 Items
4.Softener
Auto Control Valve :TMF63B; Brand :RUNXIN
4.1.Vessel
Material :FRP; Model :330X1400 (1054)
4.2.Padding
Material :Cation Resins
Model :001*7
4.3.Solt Tank:PE-80L
5.Catridge Filter
Model :20" Big blue bottle
Material:Enginnering Plastics
Filter
Material :Big PPF size:20"
RO System
1.High Pressure Pump
Model :CDLF2-150
Material :SS.304
Brand :HANG ZHOU NANFANG
Power :1.5KW
Voltage :Single Phase AC220/50Hz
2.Reverse Osmosis device
2.1.RO Vessel
Material :SS.304; Model :4040-1
2.2.Reverse Osmosis
Model :BW-4040
3.Low Pressure Control Device
Model :BD-A3 ; Origin:TAIWAN
4.Flow Meter
Model :PMMA ;Origin:10GPM
5.Pressure Gage
Material :Shell stainless steel, oil immersion type
Model :3.0MPa/1.0MPa
6.Solenoid Valve
Material :Brass ; Model :CJ-25/20/220V
7.Pipe System
Material :U-PVC
8.Electronic Control System
9.Conductivity
Model :CT-3320 ; Brand :ROC
10.RO Programmable Controller
Model :Ro-2008 ; Brand :ROC
11.Frame
Material :SS.
Size :1600*700*1500mm
Package:wooden case packing

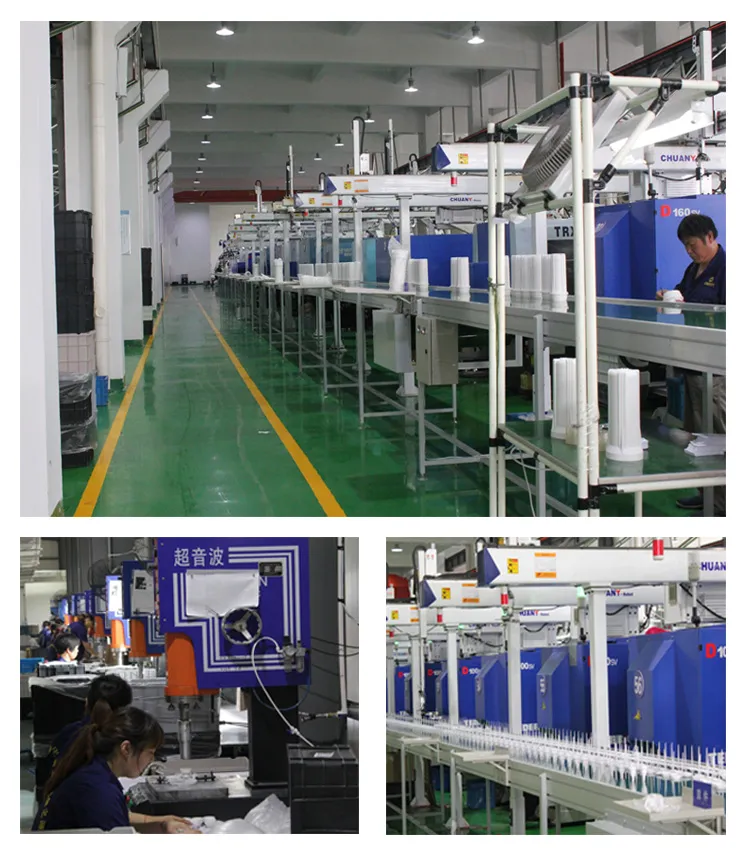

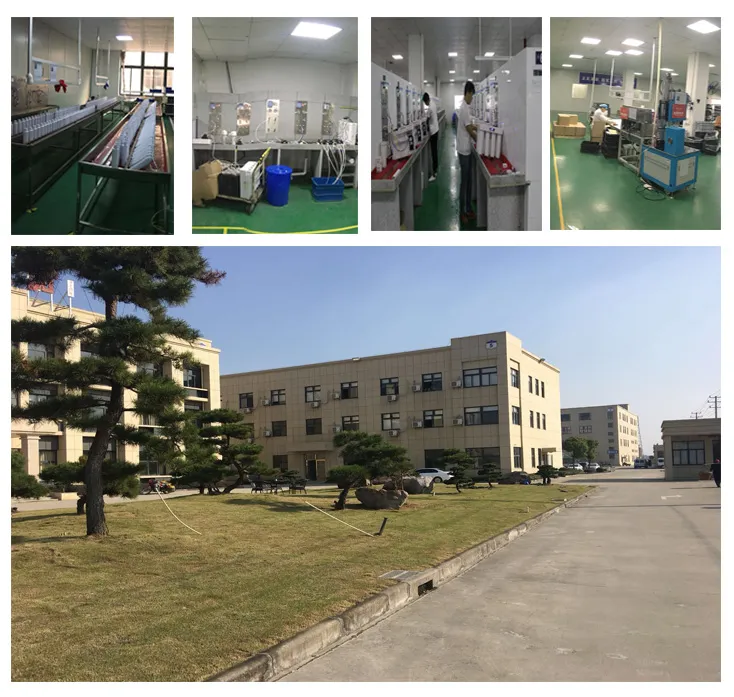

Ningbo Homaster Electrical Appliances Co., Ltd. is one of the largest & leading water filter and water dispenser manufacturers in China. We have been producing water dispenser and water filter units for more than ten years. Most of the products have obtained international approvals like SGS, CE, ISO9001, etc. Our products have fast sales all over the world. And the main export market is Western Europe, Eastern Europe, Southeast Asia, Eastern Asia, and MID East. With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply customers with highest quality and best design products.
