Pilot Ceramic Membrane Separation Device, Water Membrane Filtration Product
Basic informationModel: MCS-90Process Capacity: 500~2000 L/HMembrane Element: French original imported ceramic membrane, 1812 roll-type membraneContact Material: Material AISI 304, food grade hoseMaterial Circulation Tank: Effective volume V=1500LSystem surveyCeramic membrane experiment device (MCS-......
Send Inquiry
Product Description
Basic information
Model: MCS-90
Process Capacity: 500~2000 L/H
Membrane Element: French original imported ceramic membrane, 1812 roll-type membrane
Contact Material: Material AISI 304, food grade hose
Material Circulation Tank: Effective volume V=1500L
System survey
Ceramic membrane experiment device (MCS-90) can be applied to microfiltration, ultrafiltration and fine ultrafiltration
the membrane can be selected according to the size of material molecular weight, it can separate the material of 1.4 μm -1KD
With advantages of simple and flexible operation and easy cleaning, etc.
Power Unit
Imported GRUNDFOS pump
Frequency converting control
High pressure protection device
Membrane Shell
PH range: 0-14
Working pressure: <95ºC
Maximum working pressure: <10bar
Connection type: ANSI High pressure clamp quick disconnection
Ceramic Membrane Element
French original imported ceramic membrane
Mmebrane type: φ25mm: 580/1178mm
Range of application: Microfiltration, ultrafiltration and fine ultrafiltration
Electrical Control Cabinet
Temperature, pressure, on-line monitoring of liquid velocity
Pump frequency conversion controller, real-time display speed and frequency
Temperature, pressure preset alarm
Material Standard
Contact material part: Material AISI 304, food grade hose material circulation tank
Non-contact material part: Material AISI 304, carbon steel + spray paint
Pipeline: Sanitary seamless stainless steel tube
Valves: Food grade sanitary direct ball valves, diaphragm valves
Specifications:
Main component schematic
ABOUT TAMI TUBULAR CERAMIC MEMBRANE
The tubular ceramic membrane imported from France is made of completely high purity materials. The geometric shape is diverse and meets the needs of users.
Tubular ceramic membranes are used in different separation ranges: microfiltration, ultrafiltration, and fine ultrafiltration.

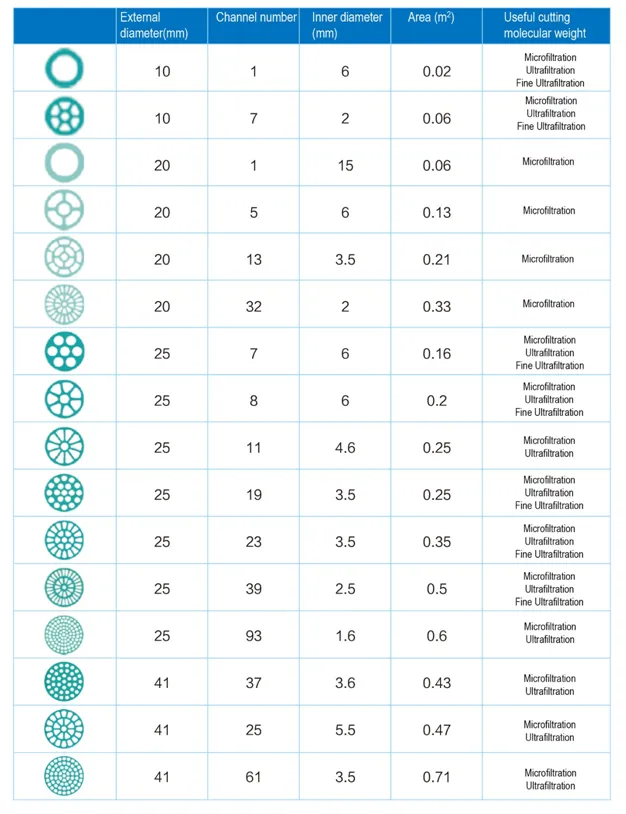

Standard length specifications of the membrane:
Φ10mm:250/600/1201mm
Φ20mm:1178mm
Φ25mm:580/1178mm
Φ41mm:1020mm
Membrane molecular weight
Membrane application field
Membrane select
Model: MCS-90
Process Capacity: 500~2000 L/H
Membrane Element: French original imported ceramic membrane, 1812 roll-type membrane
Contact Material: Material AISI 304, food grade hose
Material Circulation Tank: Effective volume V=1500L
System survey
Ceramic membrane experiment device (MCS-90) can be applied to microfiltration, ultrafiltration and fine ultrafiltration
the membrane can be selected according to the size of material molecular weight, it can separate the material of 1.4 μm -1KD
With advantages of simple and flexible operation and easy cleaning, etc.
Power Unit
Imported GRUNDFOS pump
Frequency converting control
High pressure protection device
Membrane Shell
PH range: 0-14
Working pressure: <95ºC
Maximum working pressure: <10bar
Connection type: ANSI High pressure clamp quick disconnection
Ceramic Membrane Element
French original imported ceramic membrane
Mmebrane type: φ25mm: 580/1178mm
Range of application: Microfiltration, ultrafiltration and fine ultrafiltration
Electrical Control Cabinet
Temperature, pressure, on-line monitoring of liquid velocity
Pump frequency conversion controller, real-time display speed and frequency
Temperature, pressure preset alarm
Material Standard
Contact material part: Material AISI 304, food grade hose material circulation tank
Non-contact material part: Material AISI 304, carbon steel + spray paint
Pipeline: Sanitary seamless stainless steel tube
Valves: Food grade sanitary direct ball valves, diaphragm valves
Specifications:
| Model | MCRS-90 |
| Process Capacity | 500-2000L/H |
| Working Pressure | 0-25 bar |
| Power unit | GRUNDFOS pump, pressure 0-25bar adjustable |
| Membrane type | French original imported ceramic membrane |
| Membrane element loading capacity | 37 piece ceramic membrane element; |
| Single membrane area | 0.25M2 |
| Membrane element length: | 1178mm |
| Burst pressure: | >95bars |
| Maximum working pressure: | 10bars |
| Membrane pore size: | Intercept precision 1.4μm-1KD |
| Valve, flow meter | Health ball valve, rotor flow meter |
| Pipeline | Material AISI 304, sanitory polishing inside and outside, heat exchanger with stainless steel pipe |
| Material circulation tank | AISI 304, effective volume V=1500L |
| Size: | 3.5*2* 2.8 m |
Main component schematic
ABOUT TAMI TUBULAR CERAMIC MEMBRANE
The tubular ceramic membrane imported from France is made of completely high purity materials. The geometric shape is diverse and meets the needs of users.
Tubular ceramic membranes are used in different separation ranges: microfiltration, ultrafiltration, and fine ultrafiltration.
Standard length specifications of the membrane:
Φ10mm:250/600/1201mm
Φ20mm:1178mm
Φ25mm:580/1178mm
Φ41mm:1020mm
Membrane molecular weight
| Fine ultrafiltration | Ultrafiltration | Microfiltration |
| 1kg/mol | 15kg/mol | 0.14um |
| 3kg/mol | 50kg/mol | 0.20um |
| 5kg/mol | 150kg/mol | 0.30um |
| 8kg/mol | 300kg/mol | 0.45um |
| 0.80um | ||
| 1.4um |
Membrane application field
Membrane select
