Midea 255rt Air Cooling Chiller AC Screw Chiller with Adaptive Energy Regulation

Product Description

Midea MBT Introduction

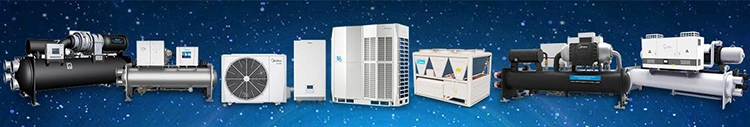

Midea Product Portfolio

Products Show

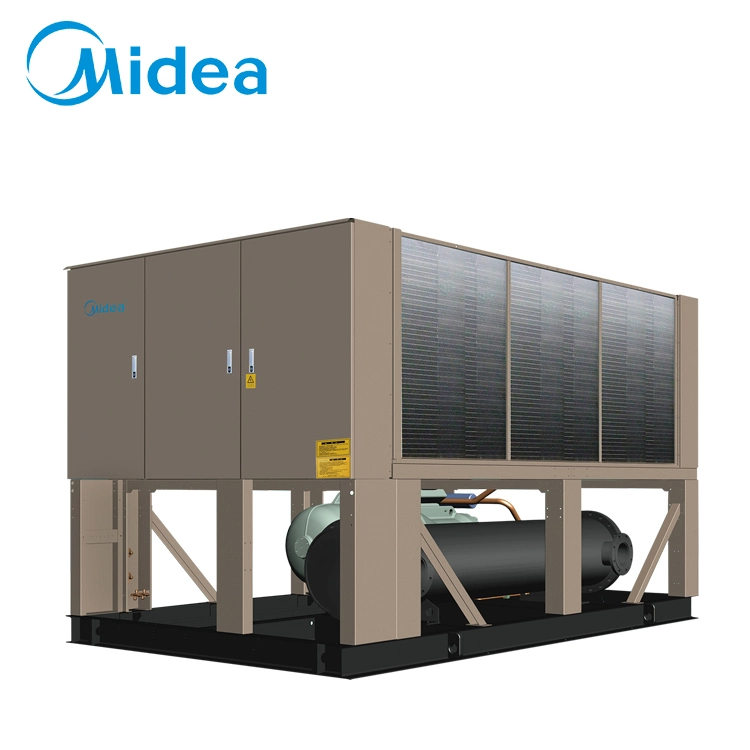

Midea 255rt Air Cooling Chiller AC Screw Chiller with Adaptive Energy Regulation

Midea 255rt Air Cooling Chiller AC Screw Chiller with Adaptive Energy Regulation

Product Details

Midea air-cooled screw chillers are designed to meet current and future requirements in terms
of reliability, energy efficiency and intelligent control. We use the best technologies available
today: Twin-rotor screw compressors with a variable capacity valve are ideally matched to
coolers and condensers optimally configured for superior heat transfer and unit efficiency. It is
ideal for schools, hospitals, shopping malls, office buildings as well as factories and
manufacturing plants.

Power supply		380V-3Ph-50Hz
Cooling Capacity		376.0kw-1419kw
Power input		124.0kw-466.0kw
COP		3.03-3.04kw/kw
IPLV		4.09-4.15kw/kw
Oil recharge type		BSE170
Refrigerant type		R134a
Control type		EXV
Condenser type		Fin-coil

Product Advantages

1.Environmental responsibility

Midea 255rt Air Cooling Chiller AC Screw Chiller with Adaptive Energy Regulation

2.Lowest total cost of ownership
Reliability, low risk of uncomfortable downtime.

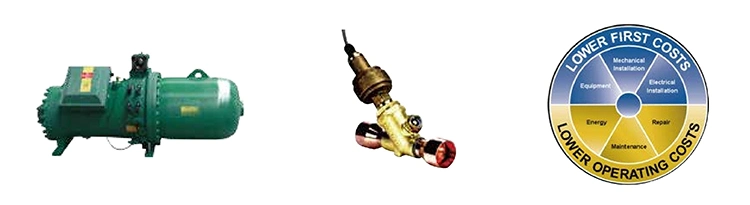

The best parts, Bitzer compressor, Danfoss EXW and Shneider electric.
World-class testing facilities ensure performance and reliability.
Each unit was extensively tested to verify its operational reliability and to ensure a smooth startup.
Serviceability, low maintenance costs.

Midea 255rt Air Cooling Chiller AC Screw Chiller with Adaptive Energy Regulation

3.Silent operation

Midea 255rt Air Cooling Chiller AC Screw Chiller with Adaptive Energy Regulation

4. Design Flexibility
Modular design concept, max.8 units can be combined to meet different capacity requirements.
Possible to increase capacity in the future expansion.
Standard module for flexible stock and fast delivery.
Low initial investment and maintenance cost.

Projects Show

Midea 255rt Air Cooling Chiller AC Screw Chiller with Adaptive Energy Regulation
