Reliable Online Diagnosis for Chiller Machine Semi-Hermetic Screw Compressor Chsh7563- 60y

Product Description

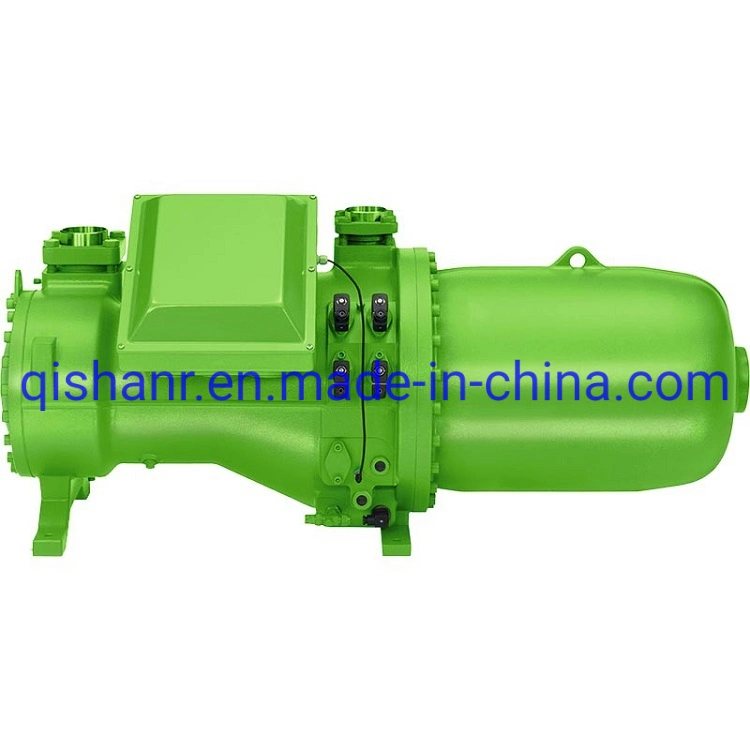

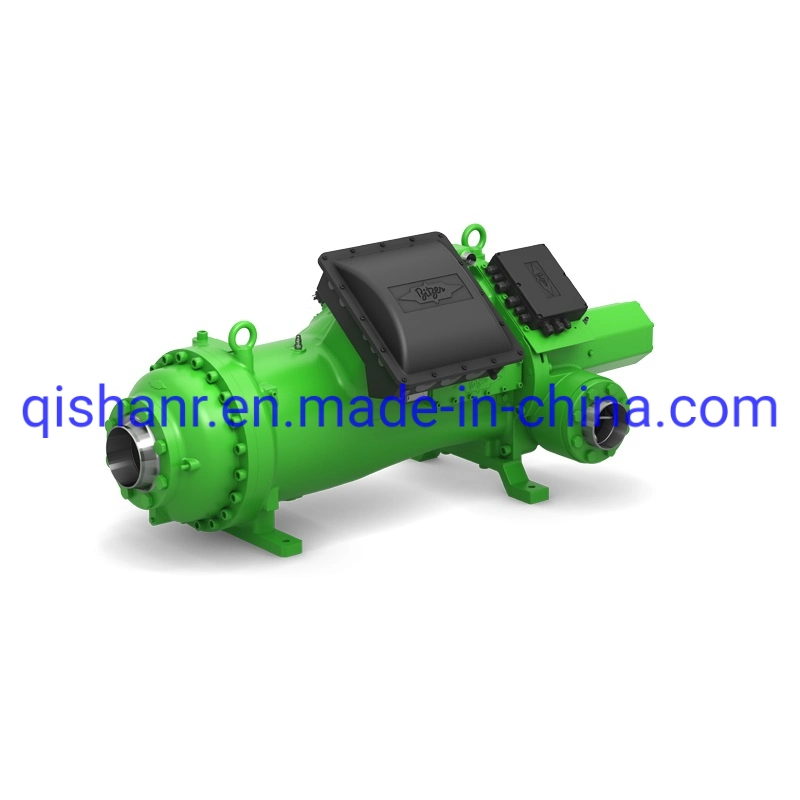

Reliable Online Diagnosis for Chiller Machine Semi-Hermetic Screw Compressor Chsh7563-60y

Compressor Description

Bitzer High Quality Refrigeration Unit with Semi-Hermetical Compressor (2KC-05.2Y)/2KES-05

Bitzer Refrigeration AC Semi-Hermetic Compressor (4VCS-10.2Y)

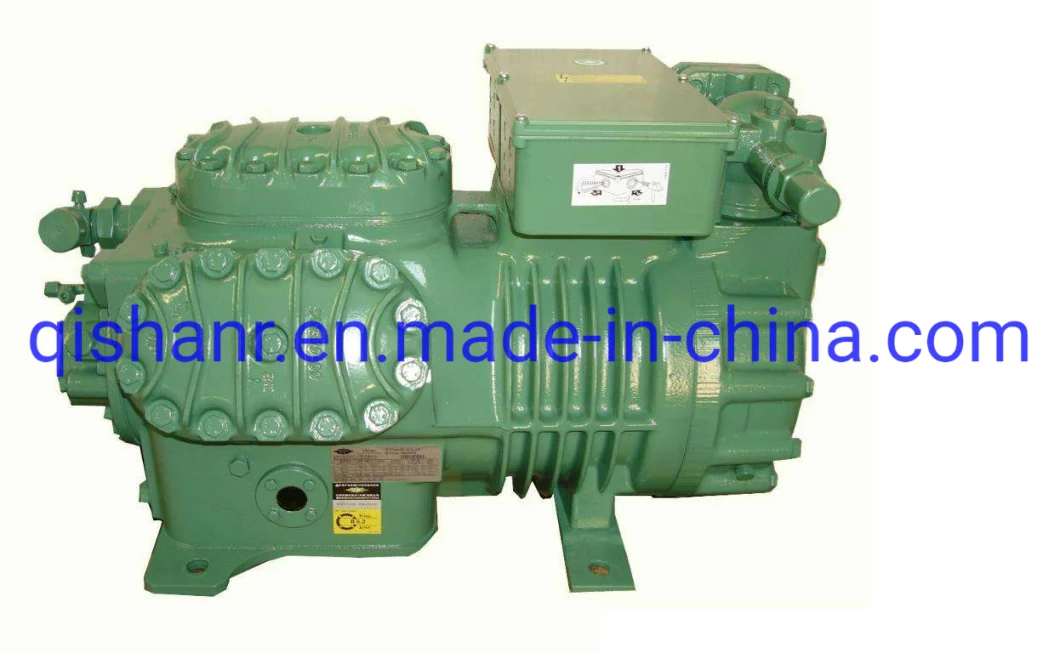

Bitzer Semi-Hermetic Compressor

Based on one technical concept, our semi-hermetic reciprocating compressors cover the entire spectrum of applications of conventional, chlorine-free HFC as well as natural refrigerants.

They distinguish themselves by a robust valve plate design, a high quality and wear resistant drive gear, are easy-to-service and offer good speed control at minimum energy requirements as well as extremely smooth running. In addition, they incorporate an efficient, suction gas cooled integrated motor.

The OCTAGON series of compressors additionally excels by extremely compact dimensions and even further increased smooth running.

Bitzer Technical data and Performance data
compressor type	Motor version	DispIace-ment 50/60Hz	Refrigerating capacity Qo				Oil Charge	Motor connection	Max. operating current	Max. power consum
			R134a		R407C
			to/tc 5ºC/50ºC	to/tc -10ºC/45ºC	to/tc 5ºC/50ºC	to/tc -10ºC/45ºC
		m3/h	W	W	W	W	dm3		A	KW
CSH6553-35Y	2	137/165	75600	41400	-	-	9,5	400V(±10%)/-3-50Hz 460V(±10%)/-3-60Hz Part Winding --- 400V(±10%)-3-50Hz 460V(±10%)-3-60Hz Y/	58	34
CSH6553-50(Y)	1	137/165	75100	41600	106400	61900	9,5		86	52
CSH6563-40Y	2	170/205	94300	52400	-	-	9,5		66	41
CSH6563-60(Y)	1	170/205	94300	52300	133700	77700	9,5		108	65
CSH6583-50Y	2	195/236	108800	60700			10		81	51
CSH6583-50Y	2	195/236	108800	60700			10		81	51
CSH6593-60Y	2	220/266	122800	68500			10		105	56
CSH6593-60Y	2	220/266	122800	68500			10		105	56
CSH7553-50Y	2	197/238	106700	57800	-	-	15		79	52
CSH7553-70(Y)	1	197/238	108400	58600	155000	89200	15		128	78
CSH7563-60Y	2	227/274	125800	68200	-	-	15		98	65
CSH7563-80(Y)	1	227/274	125000	68100	175400	101700	15		144	88
CSH7573-70Y	2	258/311	144600	78500	-	-	15		124	78
CSH7573-90(Y)	1	258/311	145000	79700	203600	119900	15		162	96
CSH7583-80Y	2	295/356	168600	93200	-	-	15		144	88
CSH7583-(100Y)	1	295/356	169100	94200	238200	141700	15		170	102
CSH7593-90Y	2	336/406	192000	106200	-	-	15		162	96
CSH7593-110(Y)	1	336/406	192500	107100	270500	160800	15		180	112
CSH8553-80Y	2	315/380	177500	97300	-	-	22		144	88
CSH8553-110(Y)	1	315/380	181700	102600	256900	151800	22		185	112
CSH8563-90Y	2	359/433	204600	112200	-	-	22		155	96
CSH8563-125(Y)	1	359/433	207000	117000	293000	173000	22		216	132
CSH8573-110Y	2	410/495	239600	133000	-	-	22		182	110
CSH8573-140(Y)	1	410/495	239000	135100	383400	199800	22		246	150
CSH8583-125Y	2	470/567	264800	147300	-	-	19		196	120
CSH8583-160(Y)	1	470/567	259500	143800	378900	217800	19		260	160
CSH8593-140Y	2	535/646	301400	167600	-	-	19		214	131
CSH8593-180(Y)	1	535/646	302400	167500	454500	260300	19		310	186
CSH9553-180(Y)	1	535/646	303800	167800	-	-	30	400V(±10%)-3-50Hz 460V(±10%)-3-60Hz Y/	330	205
CSH9553-180(Y)	1	535/646	303800	167800	443700	254300	30		330	205
CSH9563-160Y	2	615/742	357000	197400	-	-	30		280	155
CSH9563-210(Y)	1	615/742	354300	197200	505000	294300	30		370	246
CSH9573-180Y	2	700/845	417200	230900	-	-	30		310	175
CSH9573-240(Y)	1	700/845	409500	229700	601200	345100	30		420	255
CSH9583-210Y	2	805/972	480500	270200	-	-	30		320	204
CSH9583-280(Y)	1	805/972	471900	265300	688900	398600	30		450	280
CSH9593-240Y	2	910/1098	546000	307100	-	-	30		360	222
CSH9593-300(Y)	1	910/1098	546000	307100	783000	453100	30		450	280
CSH95103-280Y	2	1015/1225	588200	328200	-	-	32		413	254
CSH95103-320(Y)	1	1015/1225	588200	328200	868000	494600	32		566	305
CSH95113-320Y	2	1120/1351	644400	359000			32		447	277

Reliable Online Diagnosis for Chiller Machine Semi-Hermetic Screw Compressor Chsh7563-60y

Qishanr Technologies is a global supplier and marketer of HVAC maintenance and compressor solutions for commercial and residential air conditioning,heating,ventilation and refrigeration field, manufacturing and other industrial applications.
Incorporated in 2010,our innovative products have been used by facilities and plant maintenance personnel worldwide for the maintenance of HVAC systems,and producion of AC and refrigerating equipment.Our products include HVAC maintenance machines,refigeration equipment and compressors.

Core Markets Served:
Commercial/Residential/Maritime/Utility HVAC
Air Conditioning,Refrigerator,Coldroom,Heat Pump Manufacturing
Refrigeration Parts Wholesale and Retail

Certification:
Reliable Online Diagnosis for Chiller Machine Semi-Hermetic Screw Compressor Chsh7563-60y
Packing and Delivery

FAQ

1. How long have you been in this field and where is your company?
We have been in this field for years and we are located in Guangzhou, the Canton Fair host city, and the capital city of Guangdong Province, near to Shenzhen, Hong Kong, very convenient for trading and shipping.

2. What are your main catagories?
- Hermetic Compressor (scroll, rotary, reciprocating)
- Semi hermetic compressor (screw)
- HVAC maintenance supplies
- Refrigeration equipment and parts

3.Can you offer us quality product at the best price?
Of course, Quality is our culture; we always take good care of our clients interest if both are sincere to establish good relationship.

4.What is the term of payment?
T/T, L/C,Western Union; Trade Assurance online.

5.How about the MOQ?
1 unit acceptable.

6. Cooperative Partners?
Gree, Landa, Media, GMCC, LG, Panasonic,Copeland, Maneurop, Performer, Bitzer, Daikin, Hitachi,Highly, Mitsubishi, Secop, Embraco,Chigo, Haier, Sanyo, Wanbao, Sanhua,etc...
