50Hz 688kVA 550kw Yuchai Yc6td840L-D20 Engine Diesel Generator Set

Product Description

230/400V, 50Hz, 0.8PF, 3P4W					YuChai Engine Specification											Alternator		Open Type		Silent Type
Genset Model	Standby Power		Prime Power		Model	Cylinder	Bore	Stroke	Dspl	Exhaust Temp	Lub-oil	Coolant	Max Power	Speed Gov	Fuel Csm.	Brand&Model		Dimension (mm)	Weight (kgs)	Dimension (mm)	Weight (kgs)
Genset Model	kVA	kW	kVA	kW	Model	Cylinder	mm	mm	L	ºC	L	L	kW	Speed Gov	L/H	Stamford	Leroy-Somer	Dimension (mm)	Weight (kgs)	Dimension (mm)	Weight (kgs)
DIY-Y22	22	17.6	20	16	YC4F35-D21	4L	96	103	3.0	550	8	15	23	Elec	4.6	PI144D	TAL-A40F	17609501500	830	224010901685	1340
DIY-Y28	28	22	25	20	YC4FA40Z-D20	4L	96	103	3.0	550	8	15	30.8	Elec	5.7	PI144E	TAL-A40G	17809501500	850	224010901685	1360
DIY-Y40	40	32	37.5	30	YC4FA55Z-D20	4L	96	103	3.0	550	8	15	40.5	Elec	8.3	PI144J	TAL-A42F	17809501500	890	224010901685	1400
DIY-Y44	44	35.2	40	32	YC4D60-D21	4L	108	115	4.2	550	9	15	44	Elec	9.1	PI144J	TAL-A42F	18859501500	955	265010901785	1515
DIY-Y55	55	44	50	40	YC4FA75L-D20	4L	96	103	3.0	550	8	15	55	Elec	11.4	UCI224D	TAL-A42G	21849501500	955	315010901835	1575
DIY-Y63	63	50	56.25	45	YC4D85Z-D20	4L	108	115	4.2	550	9	15	60.5	Elec	12.9	UCI224E	TAL-A42H	21849501500	955	315010901835	1575
DIY-Y66	66	52.8	60	48	YC4D90Z-D21	4L	108	115	4.2	550	9	15	66	Elec	13.7	UCI224E	TAL-A42H	21849501500	965	315010901835	1585
DIY-Y80	80	64	72.5	58	YC4A100Z-D20	4L	108	132	4.8	550	11	15	73.5	Elec	16.6	UCI224F	TAL-A44C	24149501500	1190	360011001835	1920
DIY-Y110	110	88	100	80	YC6B135Z-D20	6L	108	125	6.9	600	18	16	99	Elec	22.8	UCI274C	TAL-A44D	26809501530	1365	385011001835	2195
DIY-Y125	125	100	112.5	90	YC6B155L-D21	6L	108	125	6.9	600	18	16	113	Elec	25.9	UCI274D	TAL-A44E	26809501530	1435	385011001835	2265
DIY-Y138	138	110	125	100	YC6B180L-D20	6L	108	125	6.9	600	18	16	132	Elec	28.5	UCI274ES	TAL-A44E	26809501530	1460	385011001835	2290
DIY-Y165A	165	132	150	120	YC6B-205L-D20	6L	108	125	6.9	600	18	18	152	Elec	34.2	UCI274F	TAL-A44J	28109501530	1530	430011501835	2430
DIY-Y165B	165	132	150	120	YC6A200L-D20	6L	108	132	7.3	600	21	21	145	Elec	34.2	UCI274F	TAL-A44J	28409501530	1530	430011501835	2430
DIY-Y188	188	150	170	136	YC6A230L-D20	6L	108	132	7.3	580	21	21	170.5	Elec	38.8	UCI274G	TAL-A46A	28409501530	1588	430011501835	2488
DIY-Y200	200	160	180	144	YC6G245L-D20	6L	112	132	7.8	550	30	23	181.5	Elec	41.4	UCI274G	TAL-A46A	29909501690	1690	430011501975	2590
DIY-Y250	250	200	230	184	YC6MK350L-D20	6L	123	145	10.3	550	30	20.7	258.5	Elec	51.8	UCDI274J	TAL-A46C	341010201690	2070	500013102174	3120
DIY-Y275	275	220	250	200	YC6MK350L-D20	6L	123	145	10.3	550	30	20.7	258.5	Elec	56.9	UCDI274K	TAL-A46D	341010201690	2120	500013102174	3170
DIY-Y344	344	275	312.5	250	YC6MK420L-D20	6L	123	145	10.3	550	30	20.7	309	Elec	71.2	HCI444ES	TAL-A46G	341010201690	3600	500013102174	4650
DIY-Y385	385	308	350	280	YC6MJ480L-D20	6L	131	145	11.7	550	30	20.7	352	Elec	79.7	HCI444E	TAL-A46H	341010201690	3692	500013102174	4742
DIY-Y413	413	330	375	300	YC6MJ500L-D20	6L	131	145	11.7	550	35	20.7	363	ECU	81.5	HCI444FS	TAL-A46J	341010201690	3962	500013102174	5012
DIY-Y440	440	352	400	320	YC6T550L-D21	6L	145	165	16.3	550	52	36	405	Elec	91.1	HCI444F	TAL-A46J	373013601690	3438	500016102260	4558
DIY-Y500	500	400	450	360	YC6T600L-D22	6L	145	165	16.3	550	52	36	441	Elec	103.5	HCI544C	TAL-A47B	373013601690	3480	500016102260	4600
DIY-Y550	550	440	500	400	YC6T660L-D20	6L	145	165	16.3	550	52	36	485	Elec	113.9	HCI544C	TAL-A47C	378013601690	3600	500016102260	4720
DIY-Y575	575	460	525	420	YC6T700L-D20	6L	145	165	16.3	550	52	36	515	Elec	119.1	HCI544D	TAL-A47D	378013601690	3692	500016102260	4812
DIY-Y625	625	500	570	456	TC6TD780L-D20	6L	152	180	19.6	550	52	46.5	572	ECU	123.5	HCI544E	TAL-A47E	363013601690	3962	500016102260	5082
DIY-Y688	688	550	625	500	YC6TD840L-D20	6L	152	180	19.6	550	52	46.5	616	ECU	135.9	HCI544FS	TAL-A47F	363013601690	4102	500016102260	5222
DIY-Y825	825	660	750	600	YC6C1020L-D20	6L	200	210	39.6	550	150	89.5	748	Elec	170.8	LVI634B	TAL-A49B	480020802190	6972	20'GP Container	10172
DIY-Y880	880	704	800	640	YC6C1070L-D20	6L	200	210	39.6	550	150	89.5	787	Elec	182.2	HCI634G	TAL-A49C	480020802190	7182	20'GP Container	10382
DIY-Y1000	1000	800	910	728	YC6C1220L-D20	6L	200	210	39.6	550	150	89.5	897	ECU	197.6	HCI634H	TAL-A49D	480020802190	7242	20'GP Container	10442
DIY-Y1100	1100	880	1000	800	YC6C1320L-D20	6L	200	210	39.6	550	150	89.5	968	ECU	217.4	HCI634J	TAL-A49E	480020802190	7472	20'GP Container	10672
DIY-Y1375	1375	1100	1250	1000	YC12VC1680L-D20	12L	200	210	79.1	550	280	160	1230	ECU	271.8	LVI634G	LSA50.2M6	570625062723	11122	40'HQ Contianer	17622
DIY-Y1650	1650	1320	1500	1200	YC12VC2070L-D20	12L	200	210	79.1	550	280	160	1520	ECU	326.1	PI734C	LSA50.2L8	570625062723	11392	40'HQ Contianer	17892
DIY-Y1875	1875	1500	1700	1360	YC12VC2270L-D20	12L	200	210	79.1	550	280	160	1670	ECU	370.6	PI734E	LSA52.3S5	574025602723	12680	40'HQ Contianer	19180
DIY-Y2000	2000	1600	1875	1500	YC12VC2510L-D20	12L	200	210	79.1	550	280	160	1850	ECU	395.3	PI734E	LSA52.3S5	574025602723	12918	40'HQ Contianer	19418

50Hz 688kVA 550kw Yuchai Yc6td840L-D20 Engine Diesel Generator Set

Today, the electrical industry has become an essential guarantee for modern life. Electricity is like the blood vessels in the human body, transmits energy to every corner of the city. DIY power is a comprehensive power company focusing on generator sets, committed to power generation, substation, transmission, distribution, backup power, and other power fields, engaged in the production, marketing, construction, installation, commissioning, and after-sales service of power equipment.

Since its establishment in 2000, we have taken our own factories as an opportunity and starting point, combined upstream and downstream industrial resources, integrated the industrial chain and provided customers with the most suitable project solutions. Among the domestic counterparts, we are in a leading position, providing power support and logistical support for many projects. In terms of foreign trade exports, our business covers 6 continents of Asia, North America, South America, Europe, Asia, and Australia, and Southeast Asia, the Middle East, and South America. , Africa and other countries and regions have more than 10 exclusive agents.

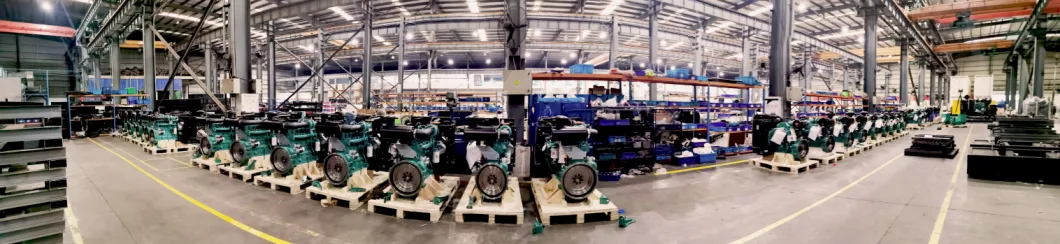

In the field of diesel generator sets, we are a professional manufacturer, which integrates customized power solutions, production, sales, and maintenance service. Our new factory was established in 2007, locates in Hongkuan Industrial Zone, Fuqing City, China. Their occupiers are more than 320,000m² of modern advanced workshops and facilities, meanwhile composed of nearly 900 well-trained and committed staff & engineers team.

Those ensure our annual productive capacity of 6000 units of gensets from 7 to 4000kVa. Brands including Cummin, Perkin, Caterpiller, Weichai, Doosan, Deutz, Volvo, MTU, SDEC … …

50Hz 688kVA 550kw Yuchai Yc6td840L-D20 Engine Diesel Generator Set

1. Why Choose us?
DIY Power has a wide range of cooperative supplier groups. Whether you need to find which power equipment products, DIY Power can help you quickly enter the Chinese supply system and obtain the latest market products and competitive prices.

2. Delivery Time?
Spare parts for about 3-5 days.
Diesel generator set about 30-50 days.

3. Manufacturer or Trade Company?
We have our own factory for OEM manufacturing producing, also trade with all electrical parts.

4. Global Warranty?
Yes, usually with global warranty 1 year / 1000 hours.
Provide extended warranty service for 2 years / 2000 hours, 3 years, 5 years ... ...

5. Payment terms?
L/C, T/T, OA, Western Union, PayPal

6. Customized service?
Provide customized services according to your requirements.
