Dia3/32′ ′ Wolfram Tungsten Welding Rods Electrodes Pure Tungsten Arc Welding Electrodes
Product Description2022 Best Quality Black/Ground Surface Tungsten Electrode rods & WT20,WP,WC20,WY20,WL20&WZ8 electrodes for weldingLanthanated Tungsten Electrodes Products Description:1)Available sizes: (10pcs in one plastic packing) 1.0mmX150mm, 1.0mmX175mm 1.6mmX150m......
Send Inquiry
Product Description
Product Description
2022 Best Quality Black/Ground Surface Tungsten Electrode rods & WT20,WP,WC20,WY20,WL20&WZ8 electrodes for welding
Lanthanated Tungsten Electrodes Products Description:

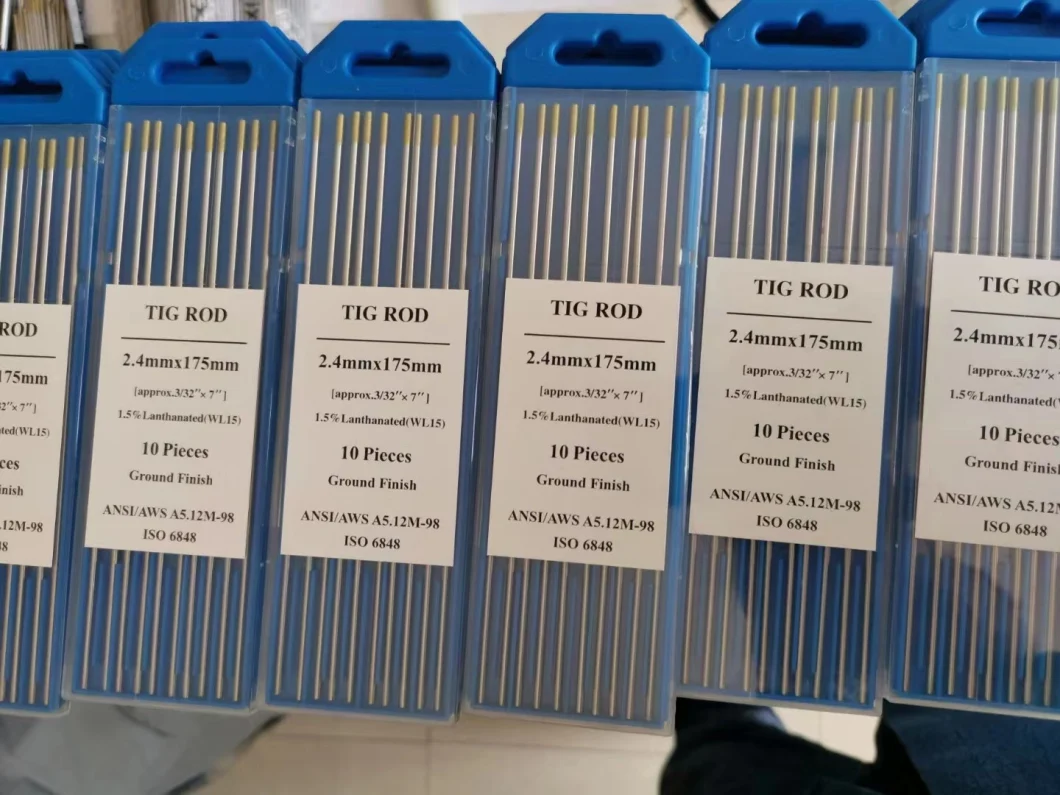

1)Available sizes: (10pcs in one plastic packing)
1.0mmX150mm, 1.0mmX175mm
1.6mmX150mm, 1.6mmX175mm
2.0mmX150mm, 2.0mmX175mm
2.4mmX150mm, 2.4mmX175mm
3.0mmX150mm, 3.0mmX175mm
3.2mmX150mm, 3.2mmX175mm
4.0mmX150mm, 4.0mmX175mm
5.0mmX150mm, 5.0mmX175mm
6.0mmX150mm, 6.0mmX175mm

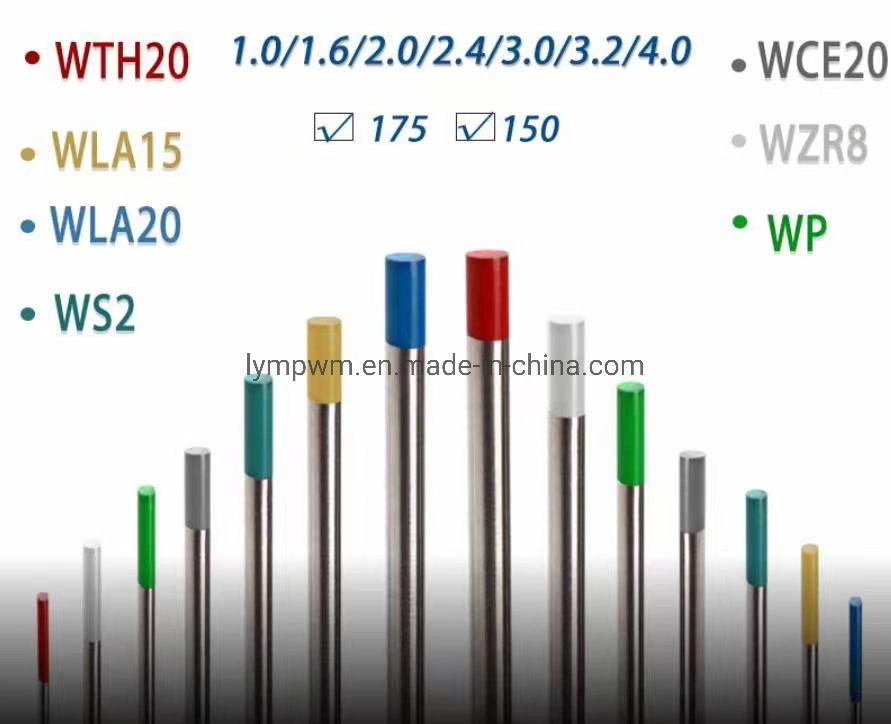

WL10 WL15 WL20 Color&Brand
We have also many kinds of tungsten electrode type:
Electrodes Size: diameter 1.0, 1.2 ,1.6, 2.0, 2.4, 3.0, 3.2, 4.0, etc. (dia1/8′′, dia3/32′′, dia1/16′′, etc)
Length: 150mm, 175mm, 800-1100mm, etc. We also can supply the length as the customers' need
Surface: polished, ground, black.
Density: >18g/cm3

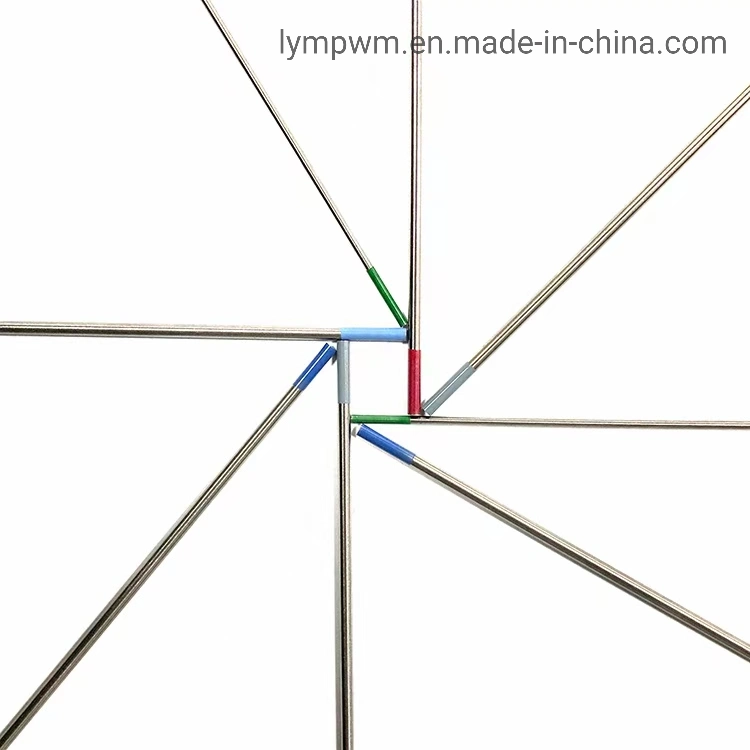

Pure tungsten electrodes- WP(marked green color)
Lanthanum tungsten electrodes-WT10(marked black color)
WL15(marked gold color)
WL20(marked blue color)
Cerium tungsten electrodes- WC20(marked gray color)
Yttrium tungsten electrodes- WY20(marked sky blue color)
Zirconiated tungsten electrodes- WZ3(marked brown color)
WZ8(marked white color)
Thorium Tungsten Electrodes Color&Brand
Thoriated tungsten electrodes- WT10(marked yellow color)
WT20(marked red color)
WT30(marked purple color)
WT40(marked orange color)
Thoriated Tungsten Electrodes Detailed:
Thoriated Tungsten Electrodes contain about 2% of ThO2. It has much more advanced comprehensive welding performance than pure tungsten electrodes. Provides excellent resistance from weld pool contamination while at the same time offers the welder easier arc starting capabilities and a more stable arc. Thoriated Tungsten electrodes are the most commonly used tungsten material. Generally used for DC welding such as carbon steel, stainless steel, nickel alloy, titanium and copper.
WC20
WP pure Tungsten electrode

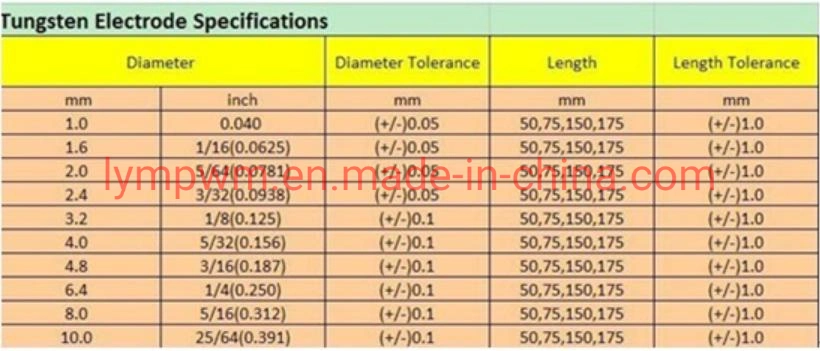

Our Tungsten Electrodes Specification as follows:

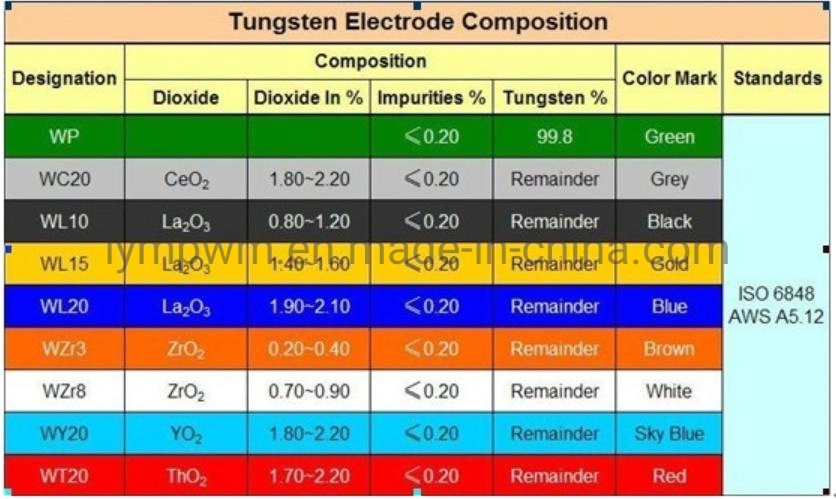

Our different Tungsten Electrodes Chemical Component as follows:

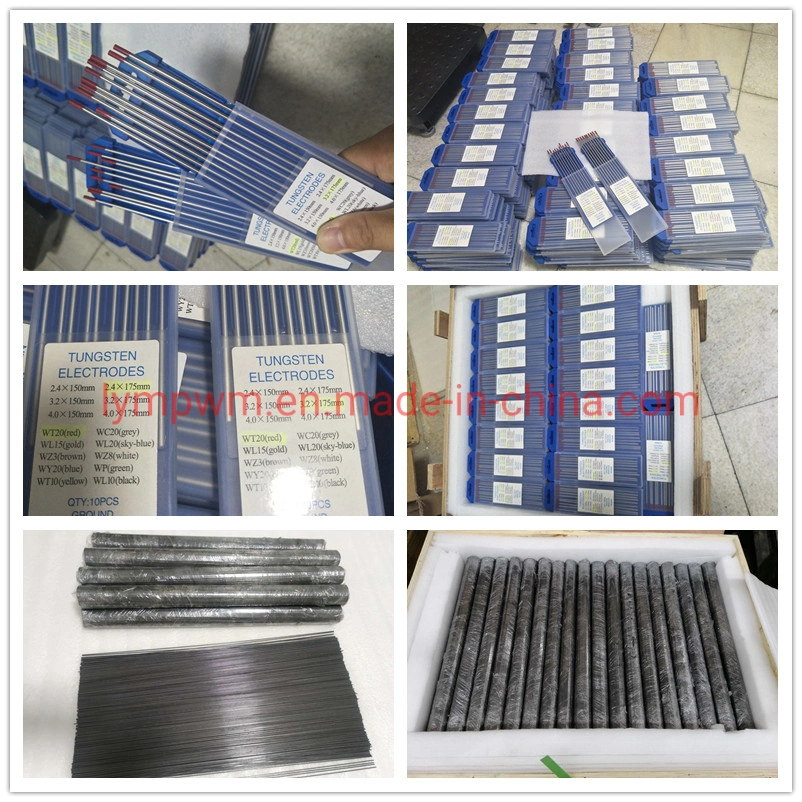

4. Our Tungsten Electrodes Packing:
Standard and safe Packing
paper wrapped the sheets, then plastic paper protected from moisture
Foam board around the the inner wooden case
Standard exported plywood case outside
5. Delivery
Sample Delivery: 7-10 days is ok
Big order quantity: Usually we can supply within 20 days
6 Shipment Methods:
By express(EMS,TNT,DHL,UPS,FedEx)
By Sea or Air transportation
By land
By YWWEN special line or other special line
We also can deliver as the customers' need,send the material to the port.

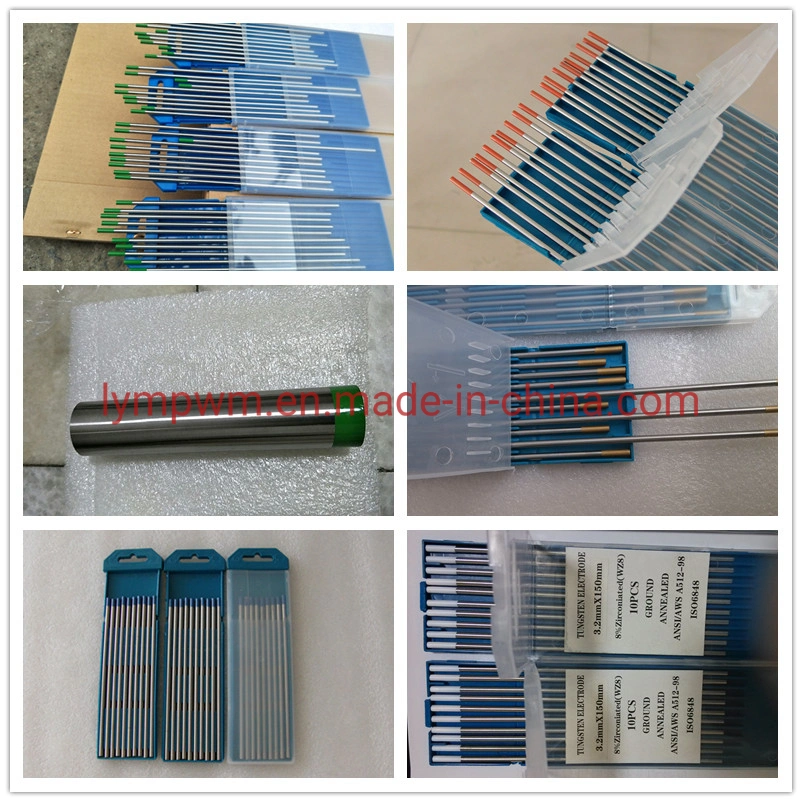

More Tungsten Electrodes Rods product photoes,hope you are interested in them
We supply other following tungsten products,
Tungsten ribbon, foils
Tungsten bar , Tungsten rod with black surface or polished
Tungsten wire, black Tungsten wire, polished Tungsten wire, straight Tungsten wire, super thin Tungsten wire, W-Al wire
Tungsten screw, Cu-W alloy, Tungsten powder, high specific gravity Tungsten alloy materials, Tungsten part and other Tungsten products.
More information about Luoyang Mopei Tungsten&Molybdenum Material Co.LTD
The advantage of us:
1) We already have more than 11 years tungsten beads producing and exporting experience
2) Competitive price in the market,factory direct sales.
3) the whole production line from powder to finished products, top and steady quality assured
4) fast delivery and best after-sale service
5) Every month we export more beas to European,America,New Zealand,Korea etc
Lanthanated Tungsten Electrodes Products Description:
1)Available sizes: (10pcs in one plastic packing)
1.0mmX150mm, 1.0mmX175mm
1.6mmX150mm, 1.6mmX175mm
2.0mmX150mm, 2.0mmX175mm
2.4mmX150mm, 2.4mmX175mm
3.0mmX150mm, 3.0mmX175mm
3.2mmX150mm, 3.2mmX175mm
4.0mmX150mm, 4.0mmX175mm
5.0mmX150mm, 5.0mmX175mm
6.0mmX150mm, 6.0mmX175mm
WL10 WL15 WL20 Color&Brand
| Type | Trade Mark | Added impurity | Impurity quantity % | Other impurities% | Tungsten% | Electric discharged | Color sign |
| Lanthanated Tungsten Electrode | WL10 | La203 | 0.8-1.2 | < 0.20 | The rest | 2.6-2.7 | Black |
| WL15 | 1.3-1.7 | 2.8-3.0 | Gold | ||||
| WL20 | 1.8-2.2 | 2.8-3.2 | Blue |
Electrodes Size: diameter 1.0, 1.2 ,1.6, 2.0, 2.4, 3.0, 3.2, 4.0, etc. (dia1/8′′, dia3/32′′, dia1/16′′, etc)
Length: 150mm, 175mm, 800-1100mm, etc. We also can supply the length as the customers' need
Surface: polished, ground, black.
Density: >18g/cm3
Pure tungsten electrodes- WP(marked green color)
Lanthanum tungsten electrodes-WT10(marked black color)
WL15(marked gold color)
WL20(marked blue color)
Cerium tungsten electrodes- WC20(marked gray color)
Yttrium tungsten electrodes- WY20(marked sky blue color)
Zirconiated tungsten electrodes- WZ3(marked brown color)
WZ8(marked white color)
Thorium Tungsten Electrodes Color&Brand
Thoriated tungsten electrodes- WT10(marked yellow color)

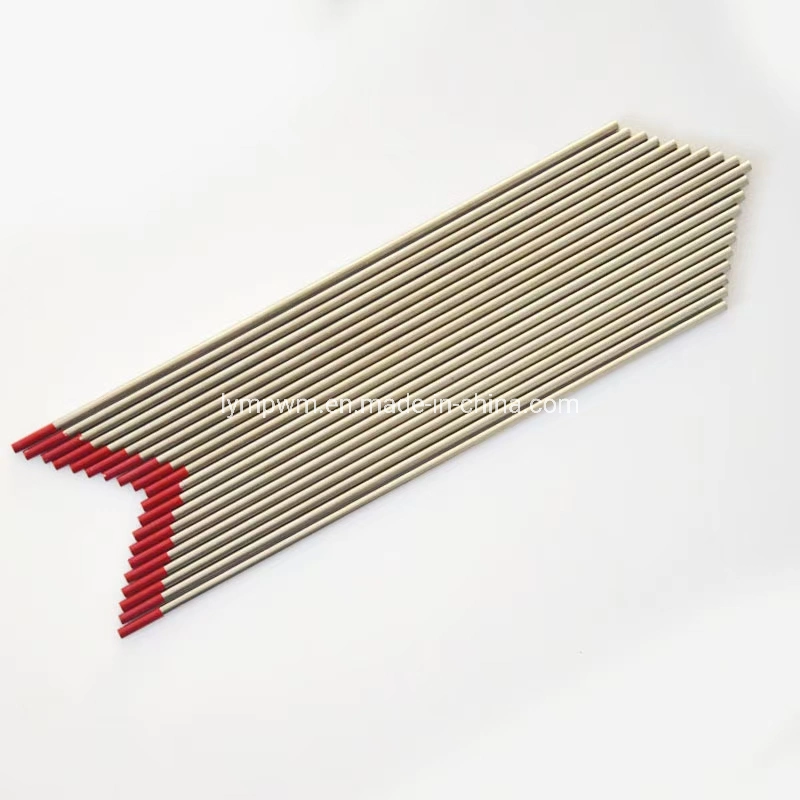

WT20(marked red color)
WT30(marked purple color)
WT40(marked orange color)
Trade mark | Added impurity | Impurity quantity | Other impurities | Tungsten | color sign |
| WT10 | Th02 | 0.9-1.2 | < 0.2 | The rest | yellow |
| WT20 | Th02 | 1.8-2.2 | < 0.2 | The rest | Red |
| WT30 | Th02 | 2.8-3.2 | < 0.2 | The rest | Purple |
| WT40 | Th02 | 3.8-4.2 | < 0.2 | The rest | Orange |
Thoriated Tungsten Electrodes contain about 2% of ThO2. It has much more advanced comprehensive welding performance than pure tungsten electrodes. Provides excellent resistance from weld pool contamination while at the same time offers the welder easier arc starting capabilities and a more stable arc. Thoriated Tungsten electrodes are the most commonly used tungsten material. Generally used for DC welding such as carbon steel, stainless steel, nickel alloy, titanium and copper.
WC20
| Type | Trade Mark | Added Impurity | Impurity Quantity% | Other Impurity% | Tungsten% | Electric Discharged | Color Sign |
| Ceriated Tungsten | WC 20 | CeO2 | 1.80-2.20 | <0.20 | The Rest | 2.7-2.8 | Grey |
WP pure Tungsten electrode
| Type | Trade Mark | Added Impurity | Impurity Quantity% | Other Impurity% | Tungsten% | Electric Discharged | Color Sign |
| Pure Tungsten electrode | WP | -- | -- | <0.20 | The Rest | 4.5 | Green |
Our Tungsten Electrodes Specification as follows:
Our different Tungsten Electrodes Chemical Component as follows:4. Our Tungsten Electrodes Packing:Standard and safe Packing
paper wrapped the sheets, then plastic paper protected from moisture
Foam board around the the inner wooden case
Standard exported plywood case outside
5. Delivery
Sample Delivery: 7-10 days is ok
Big order quantity: Usually we can supply within 20 days
6 Shipment Methods:
By express(EMS,TNT,DHL,UPS,FedEx)
By Sea or Air transportation
By land
By YWWEN special line or other special line
We also can deliver as the customers' need,send the material to the port.
More Tungsten Electrodes Rods product photoes,hope you are interested in them
We supply other following tungsten products,Tungsten ribbon, foils
Tungsten bar , Tungsten rod with black surface or polished
Tungsten wire, black Tungsten wire, polished Tungsten wire, straight Tungsten wire, super thin Tungsten wire, W-Al wire
Tungsten screw, Cu-W alloy, Tungsten powder, high specific gravity Tungsten alloy materials, Tungsten part and other Tungsten products.
More information about Luoyang Mopei Tungsten&Molybdenum Material Co.LTD
The advantage of us:
1) We already have more than 11 years tungsten beads producing and exporting experience
2) Competitive price in the market,factory direct sales.
3) the whole production line from powder to finished products, top and steady quality assured
4) fast delivery and best after-sale service
5) Every month we export more beas to European,America,New Zealand,Korea etc
