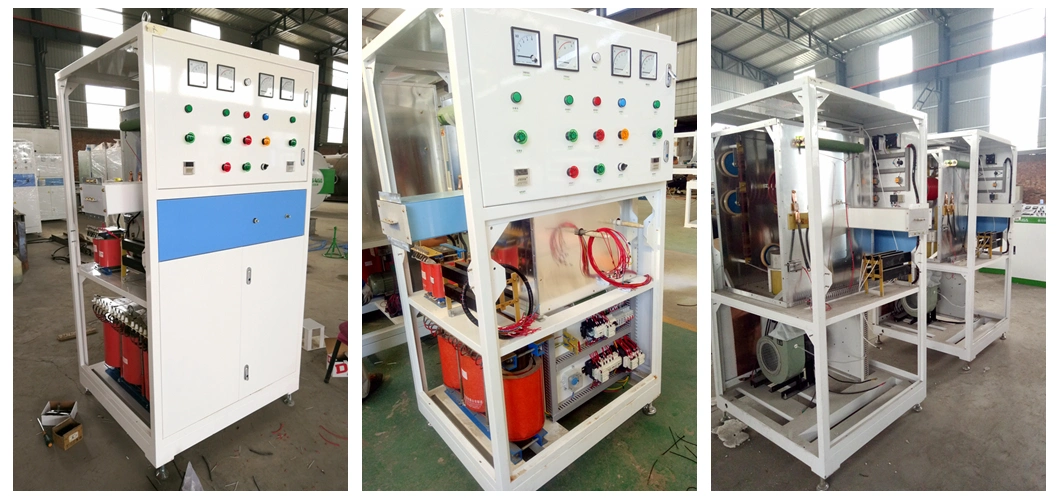

High Frequency Generator For Wood From SAGA
High frequency generator(Radio frequency generator) is a plant which can turn normal electric power to high frequency(electronic-magnetic) power, apply this power to the load equipment or electrode, the water or glue molecule with in the work pieces is polarized and rapidly change direction or move follow the frequency change of the electronic-magnetic power, thus cause suddenly friction, this friction between molecule makes the temperature raises, thus the water vaporized and glue bond. High frequency generator is suitable for curved plywood forming or wood panel jointing or hard wood drying, it is a core pant for high frequency machinery.
Main Application

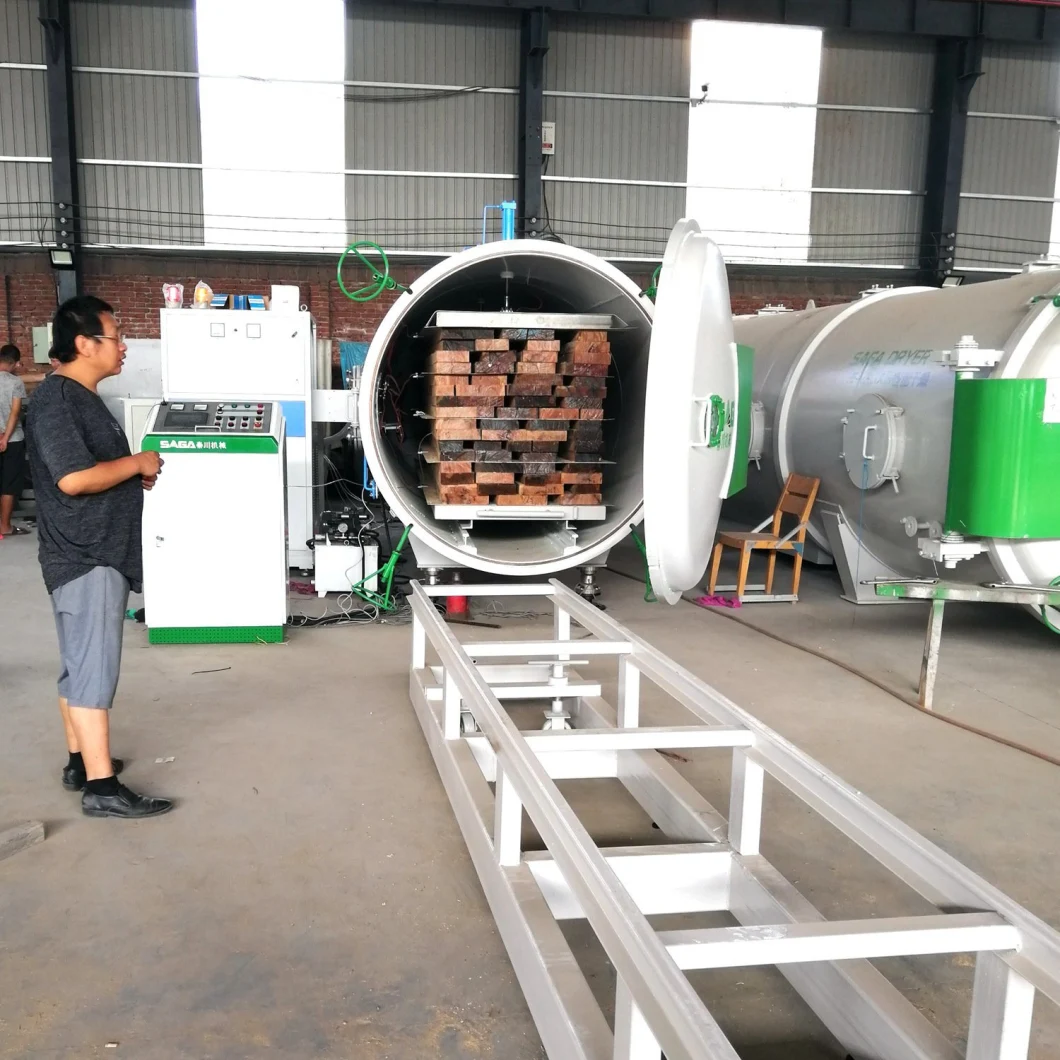

Wood drying

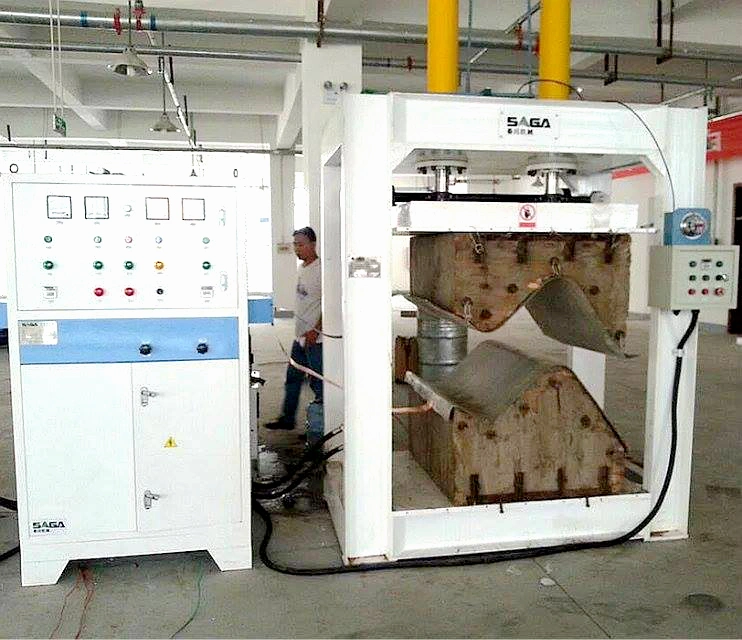

Wood Bending

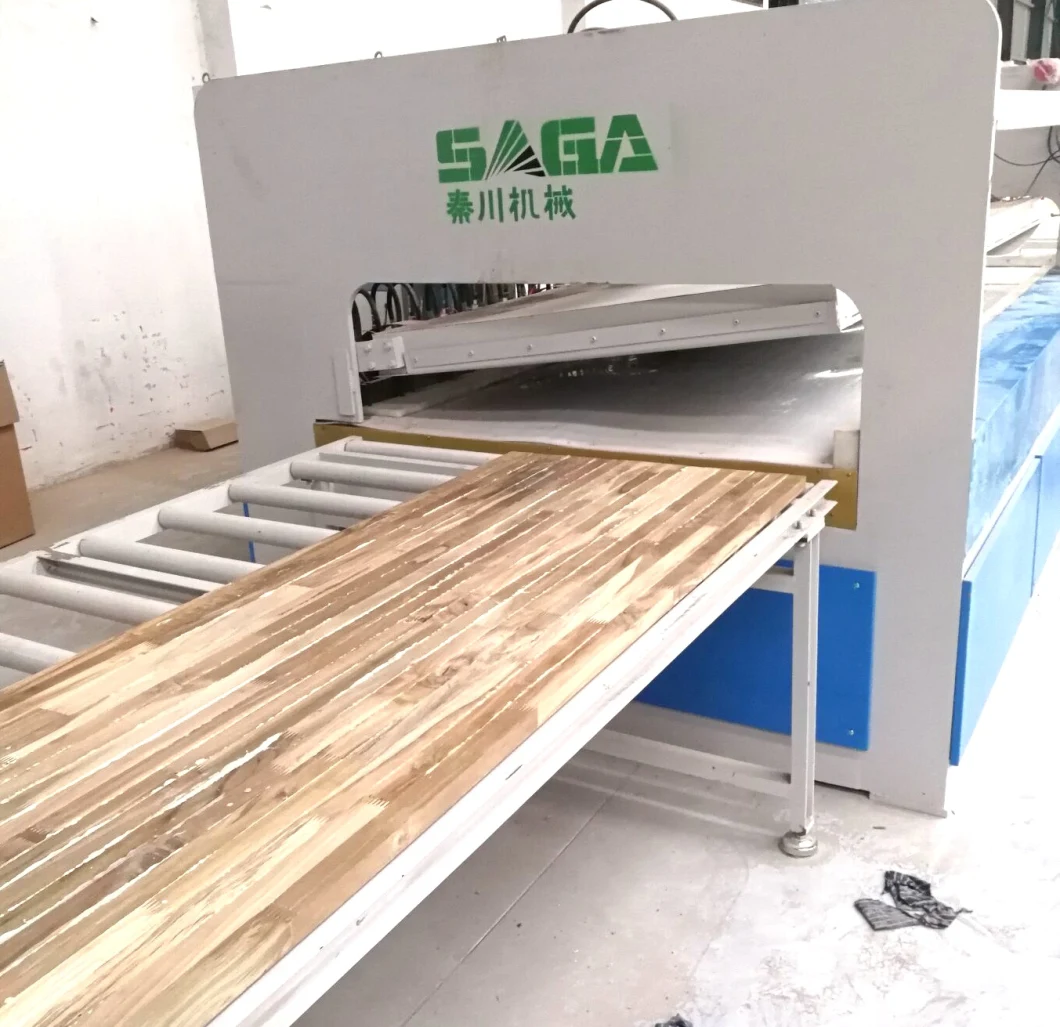

Wood board edge joining and gluing
Specifications
Power:50Hz, 3Phase 4Wire;Input Power: 30/40/70KVA; Output Power: 20/30/50KW; Oscillation:6.78MHz;Various Protections; Tuning Vacuum Capacitor; Forced wind cooling; 2output
1)High Frequency Oscillator (radio frequency generator, high frequency generator) is a plant which can turn normal electric power to high frequency(electromagnetic) power.
2)It is suitable for fast curing of glue or water.
3)high Frequency Oscillator is suitable for curved plywood forming or wood panel jointing or hard wood drying.
4)It is a core plant for high frequency machinery.
The High Quality Spares We Use
Certificate
About SAGA
High frequency generator(Radio frequency generator) is a plant which can turn normal electric power to high frequency(electronic-magnetic) power, apply this power to the load equipment or electrode, the water or glue molecule with in the work pieces is polarized and rapidly change direction or move follow the frequency change of the electronic-magnetic power, thus cause suddenly friction, this friction between molecule makes the temperature raises, thus the water vaporized and glue bond. High frequency generator is suitable for curved plywood forming or wood panel jointing or hard wood drying, it is a core pant for high frequency machinery.
Main Application
Wood drying
Wood Bending
Wood board edge joining and gluing
Specifications
Power:50Hz, 3Phase 4Wire;Input Power: 30/40/70KVA; Output Power: 20/30/50KW; Oscillation:6.78MHz;Various Protections; Tuning Vacuum Capacitor; Forced wind cooling; 2output
1)High Frequency Oscillator (radio frequency generator, high frequency generator) is a plant which can turn normal electric power to high frequency(electromagnetic) power.
2)It is suitable for fast curing of glue or water.
3)high Frequency Oscillator is suitable for curved plywood forming or wood panel jointing or hard wood drying.
4)It is a core plant for high frequency machinery.
SPECIFICATIONS FOR HIGH FREQUENCY GENERATOR | ||||
HF15-SA | HF20-SA | HF30-SA | HF50-SA | |
POWER | 380V 50HZ 3PHASE 4WIRE OR CUSTOMIZED | |||
INPUT POWER | 20KVA | 30KVA | 40KVA | 75KVA |
OUTPUT POWER | 15KW | 20KW | 30KW | 50KW |
OSCILLIATION | 6.78Mhz | |||
PROTECTION | Overload protection,wind pressure detection ,filament protection,cooling fan protection | |||
TUNNING MODE | Tunable vacuum capacitor | |||
COOLING MODE | Forced wind cooling | |||
OUTPUT | 2 output | |||
OVER SIZE | 950x1000x1800mm | 950x1000x1850mm | 1000x1100x1850mm | 1100x1200x1950mm |
WEIGHT | 500kg | 600kg | 650kg | 980kg |

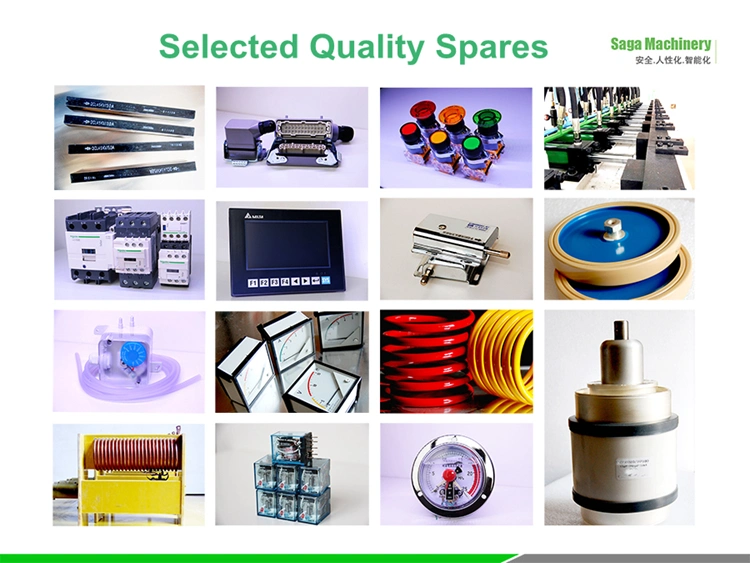

The High Quality Spares We Use
Certificate

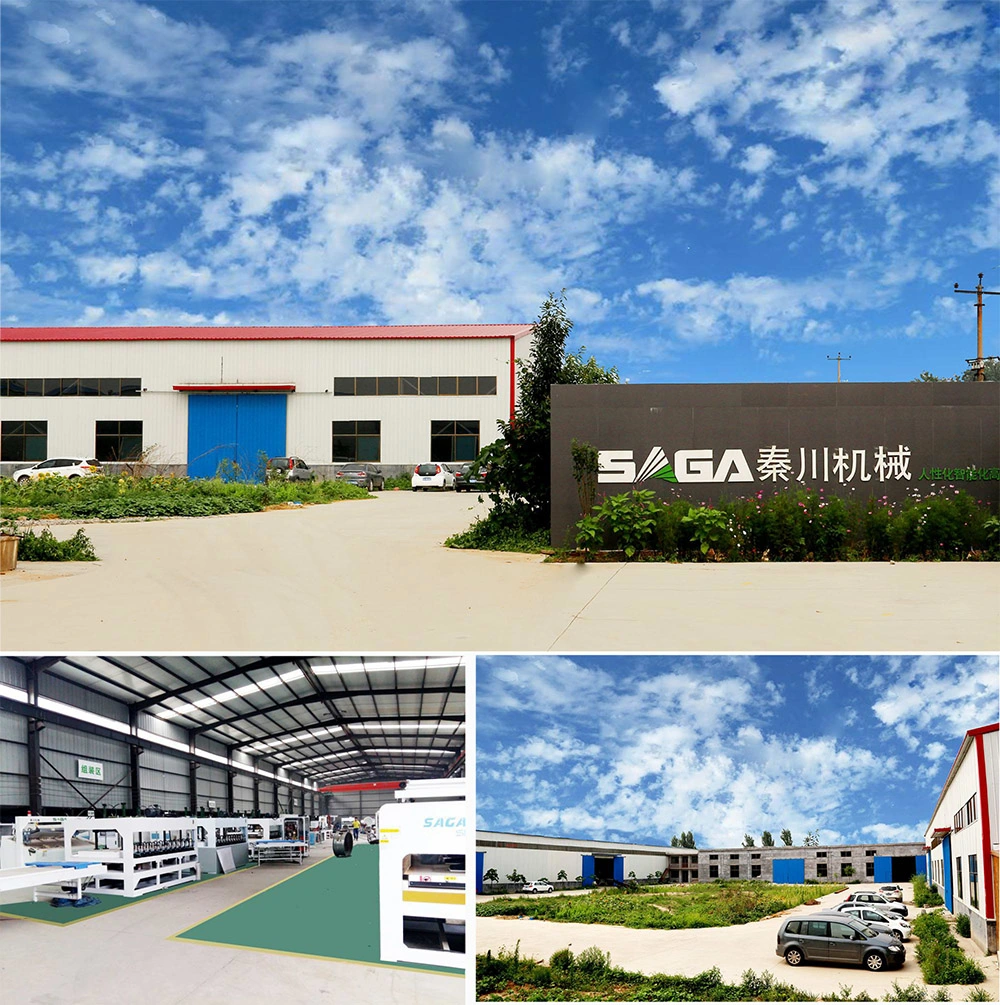

About SAGA
