Product Description
Stainless Steel Bag Filter Housing Description:
Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.
Different stainless steel single bag or multi-bags filter housing can be customized, as long as you offer us picture and drawing.

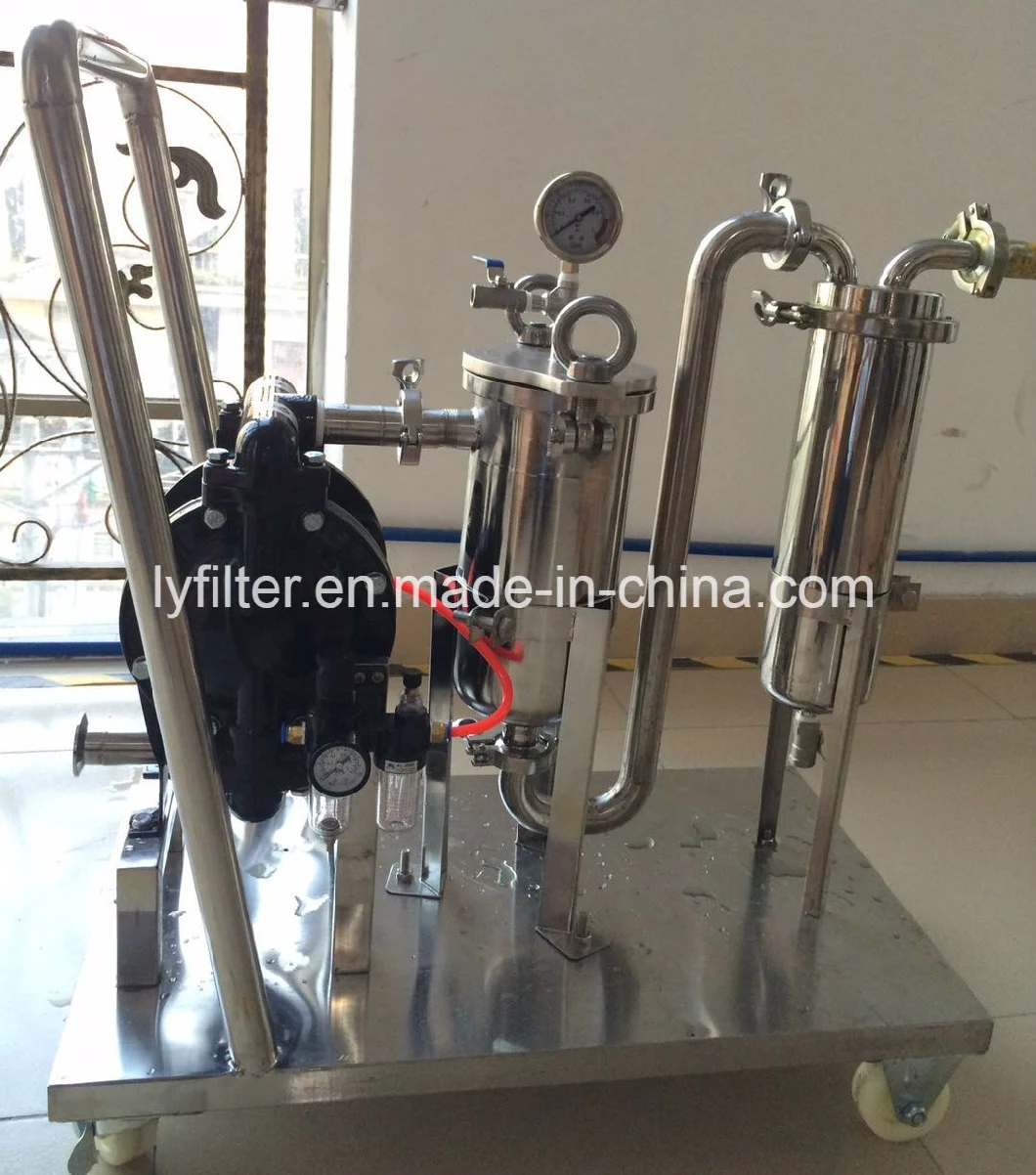

Industrial pneumatic oil filtration system with bag filter equipment and mobile trolley:

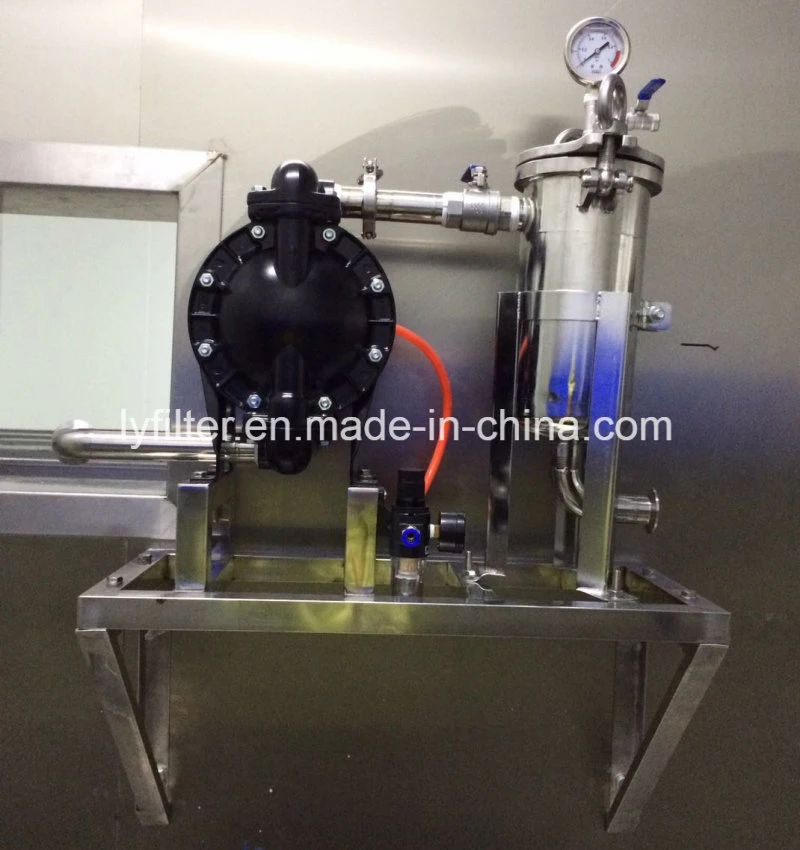

OEM Wall-mounted pneumatic stainless steel bag filter system:

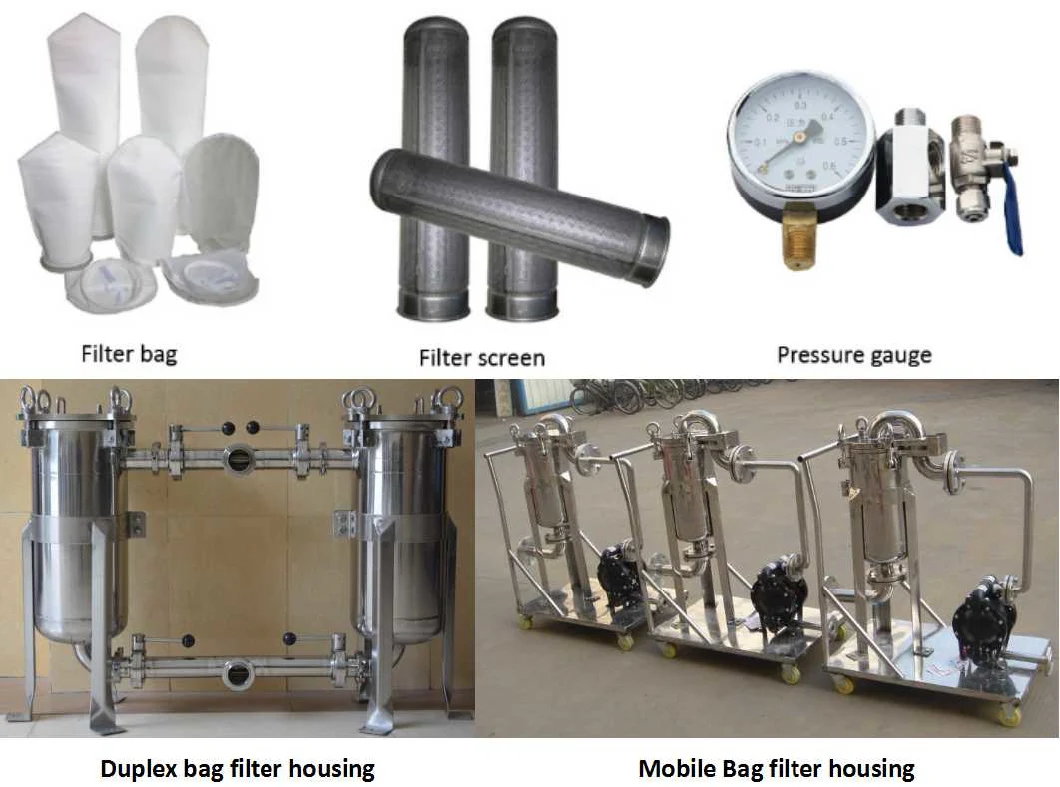

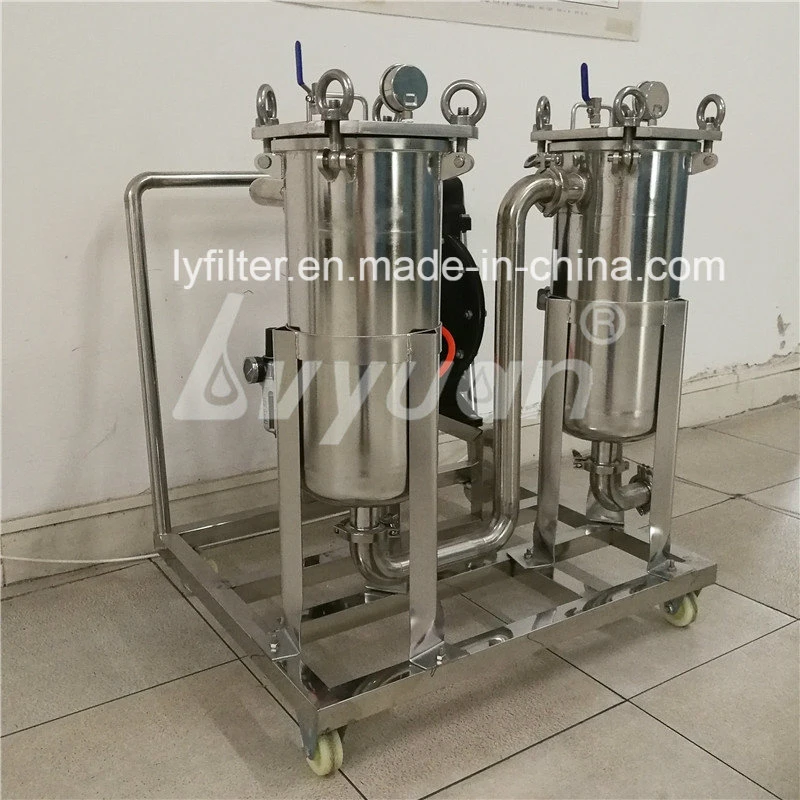

Custom-made Dual Bag Filter Housing with trolley, pneumatic system available for option:
Stainless steel bag filter housing Feature:
1. material: SS304, SS316L
2. stainless steel multi bag housing, the bag quantity can be customized from 1 to 18.
3. inlet and outlet port is flange connection.
4. Polished or sandblast external surface.
Stainless steel bag filter housing Application:
1. Food and beverage industry: beer, wine, wine, sake, liquor, wine, fruit juice, bottled water, tea drinks,
soy milk, syrup, dairy products, food additives, water filtration to clarify the process and CIP.
2. Petrochemical industry: all kinds of lubricants and oil, glue, chemical fiber manufacturing process of
various solution was filtered.
3. Oil and gas industry: amine desulfurization, dehydration flux filter, oil field water, completion fluid filtration.
4. Car paint, painting industry: paint, electrophoretic paint, pre-treatment fluid, paint and paint raw materials
and solvent filtration.
5. Textile, printing and dyeing, paper making industry: spinning liquid, dyes, flux, water, additives, adhesives filter.
6. Edible oils and soap industry: polishing purification of edible oil, soap raw materials and water filtration.
7. Pharmaceutical industry: a variety of pharmaceutical intermediates, pharmaceutical raw materials, solvent filtration.
material | SS304/SS316/SS316L |
Bag quantity | Single or multi-bags, 1 to 18 bags |
Bag dimension | NO. 1, 2, 3, 4 |
surface treatment | Polished or sandblast external |
Top Cap installed type | lifting bolts, flange, clamp, quick opening |
| Inlet/outlet connection | Screw thread, flange |
seal O-ring | silicon,NBR, EPDM, Viton |
usage | liquid |
accept | OEM |
| Bag No. | Flow rate (m³/H) | Filtration Area (m2) | Size (DiameterxLength) |
| #1 | 20 | 0.25 | 7''x16'' (180mmx410mm) |
| #2 | 40 | 0.50 | 7''x32'' (180mmx810mm) |
| #3 | 6 | 0.10 | 4''x8.25'' (102mmx210mm) |
| #4 | 12 | 0.15 | 4''x14'' (102mmx356mm) |
| #5 | 25 | 0.30 | 6 7/8''x34'' (175mmx870mm) |
Stainless steel bag filter housing Models:

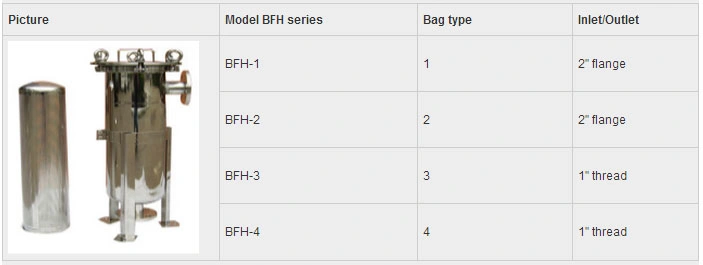

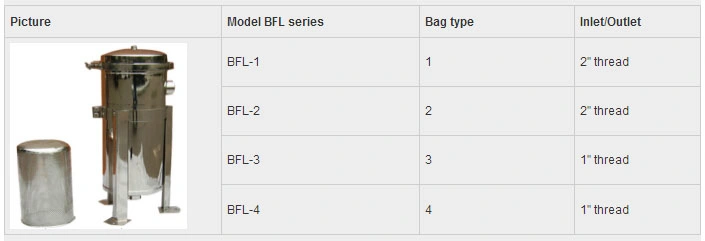

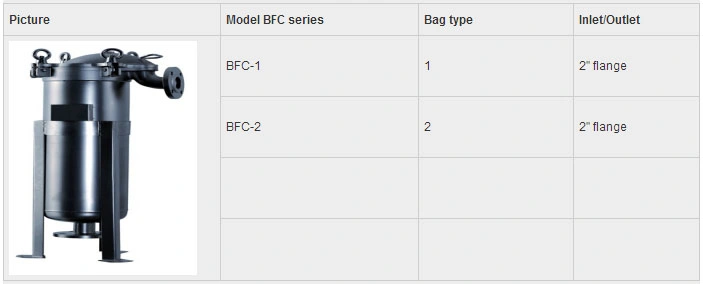

SS single bag filter housing

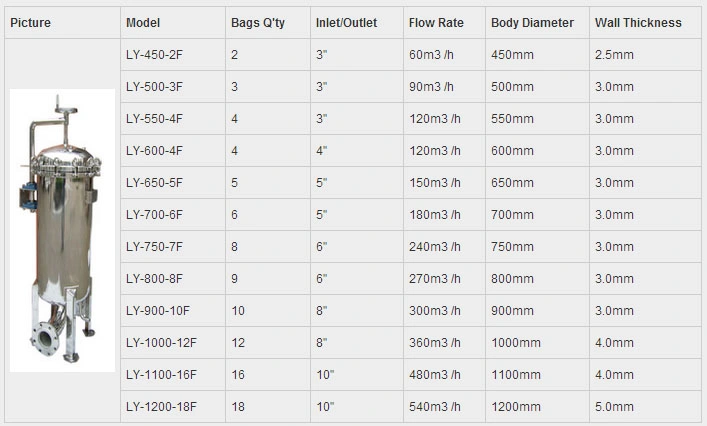

SS Multi-bag filter housing
