Portable Welding Fume Extraction Smoke Extractor Absorber with Two Suction Arms
Portable Welding Fume Extraction Smoke Extractor Absorber with Two Suction ArmsModelLW1201E-022AFLW1201E-030AFLW1201E-030BFDimension680*680*1350mm680*680*1350mm680*680*1350mmProcess Capacity2000m³/h2800m³/h2800m³/hMotor Power2.2KW3KW3KWVoltage(customizable)380V/50HZ380V/50HZ380V......
Send Inquiry
Product Description

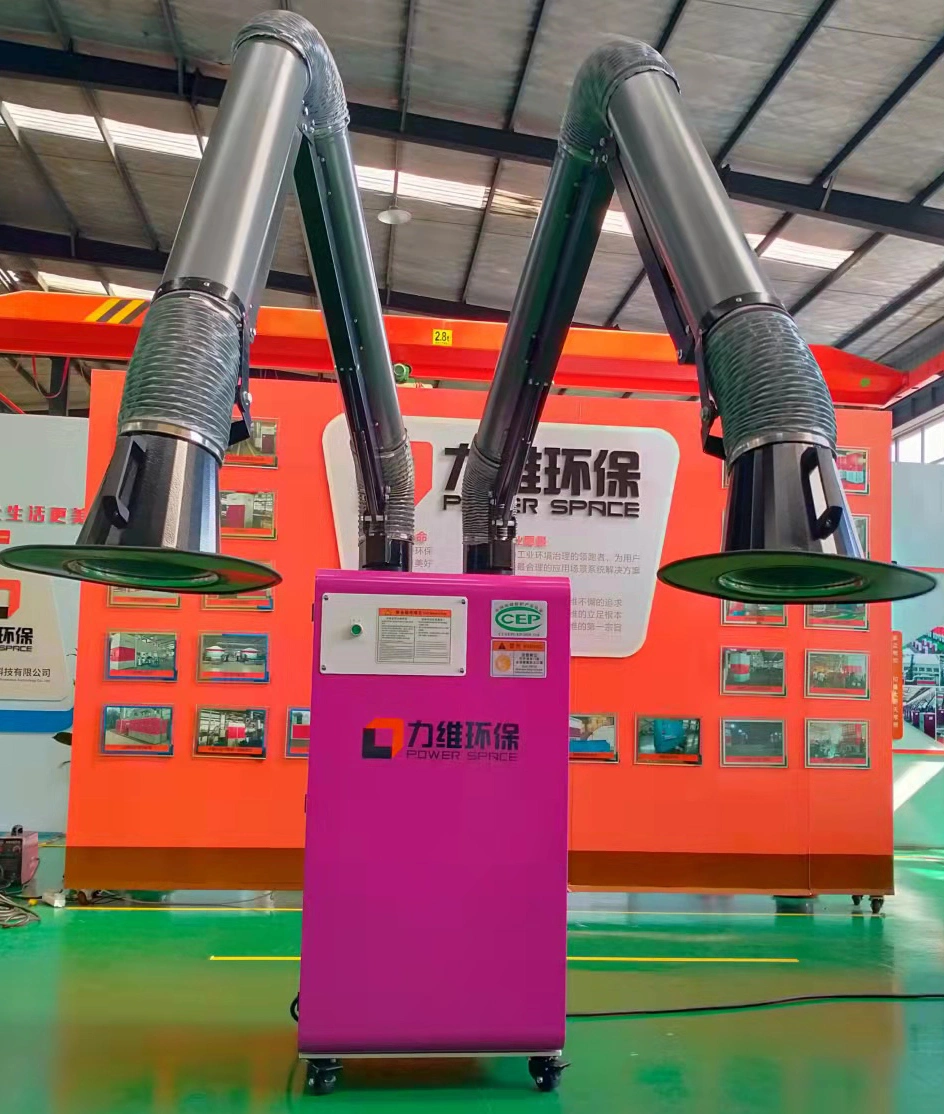

Portable Welding Fume Extraction Smoke Extractor Absorber with Two Suction Arms
| Model | LW1201E-022AF | LW1201E-030AF | LW1201E-030BF |
| Dimension | 680*680*1350mm | 680*680*1350mm | 680*680*1350mm |
| Process Capacity | 2000m³/h | 2800m³/h | 2800m³/h |
| Motor Power | 2.2KW | 3KW | 3KW |
| Voltage(customizable) | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Noise | <=72db | <=72db | <=72db |
| Filter cartridge | 1pc | 1pc | 1pc |
| Filter Area | 16.5m² | 16.5m² | 16.5m² |
| Filter Efficiency | 0.3μm;>=99.9% | 0.3μm;>=99.9% | 0.3μm;>=99.9% |
| Filter Element | Ahlstrom nano flame-retardant | Ahlstrom nano flame-retardant | Ahlstrom nano flame-retardant |
| Cleaning method | Automatic | Automatic | Automatic |
| Certification | CE | CE | CE |
| Exhaust arm | 1*3m | 1*3m | 2*3m |
| Packing Volume | 2cbm | 2cbm | 2cbm |
| G.W: | 275kgs | 275kgs | 316kgs |

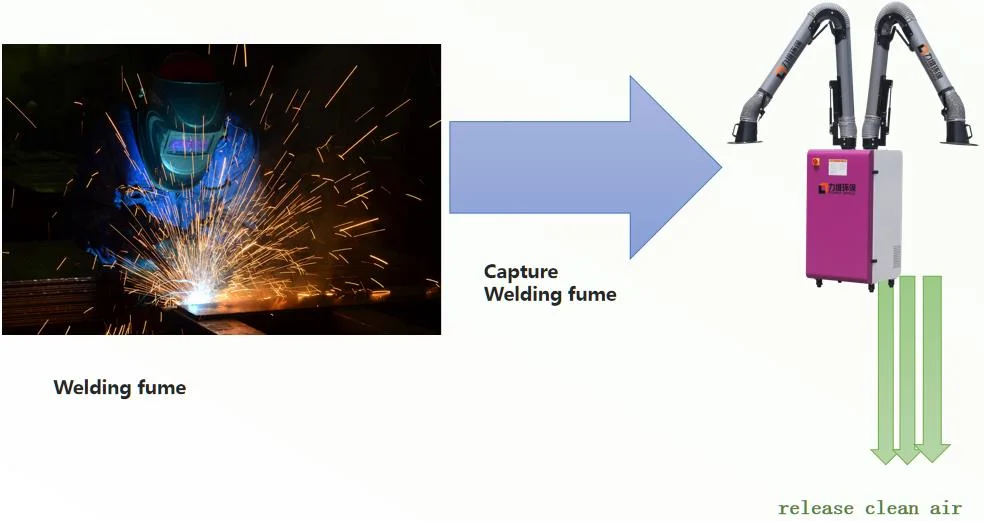

Fume Extraction Process:
The harm of welding fume
Welding has been widely used in the field of metal processing.
And the welding process produces a lot of smoke and fume.
Welding fume can irritate the eyes and respiratory system, causing coughing, eye irritation and other physiological stimuli.
It is generally believed that particles with aerodynamic force diameter less than 7 microns can enter deep lung and permanently reside in the lung, which may cause chronic lung diseases such as pneumoconiosis.
If there is no fume removal device or the fume removal effect is not good, welding fume will seriously pollute the working environment and endangers the health of workers.
Aiming at the characteristics of small smoke and fume particles, large body size and long suction duct of laser cutting machine, Qingdao Power Space specially developed LW1201 series products for welding fume extraction. This series of fume extractor is equipped with high efficiency fan, high quality nano flame retardant filter material, spark catcher, etc., and is equipped with high efficiency pulse automatic back blow cleaning system, which can effectively remove the dust blocked on the filter cartridge, make the fume extractor run for a long time and prolong the service life of the filter cartridge. More compact flow path design concept, so that the product fume extracting performance is good, small volume, low noise and high safety performance, which can help metal processing customers to better solve the problem of dust pollution in welding process.
Main Advantages:
01.High performance fan impeller
Self-developed high-performance Fan impeller. With high negative pressure and large air flow, could effectively deal with welding fume.
02.International Famous Brand Motors
Equipped with overload and over current protection
Self-developed high-performance Fan impeller. With high negative pressure and large air flow, could effectively deal with welding fume.
02.International Famous Brand Motors
Equipped with overload and over current protection
02.High-efficiency automatic pulse blow back system
Could effectively clean the filter cartridge and prolong the service life of the filter cartridge.

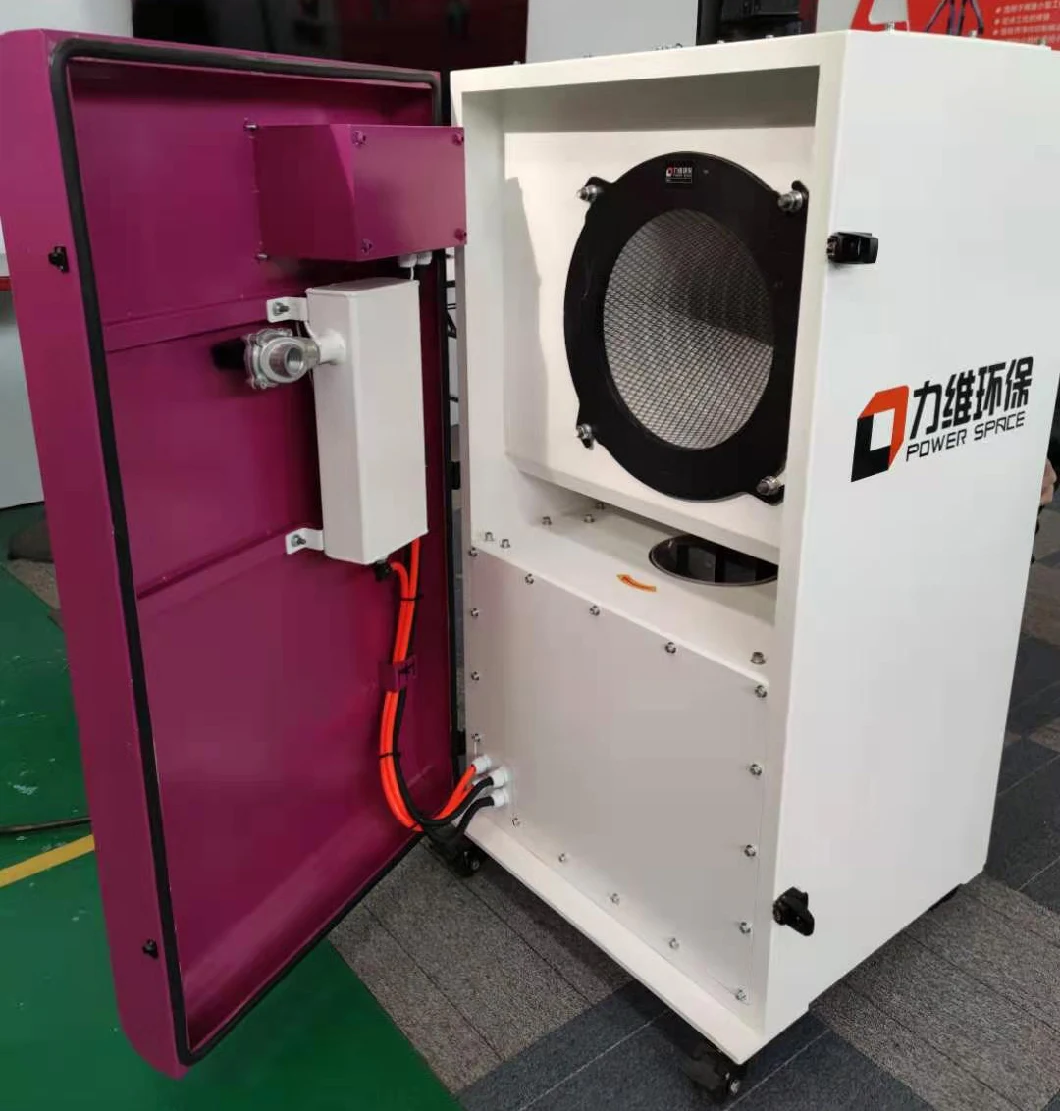

03.Imported high-quality filter element
Ahlstrom Nano flame-retardant filter . With high filtration efficiency( 0.3μm; >99.9%) and good performance.
Could effectively clean the filter cartridge and prolong the service life of the filter cartridge.
03.Imported high-quality filter element
Ahlstrom Nano flame-retardant filter . With high filtration efficiency( 0.3μm; >99.9%) and good performance.
04.Standard Brake Casters
with flexible movement and reliable fixation.

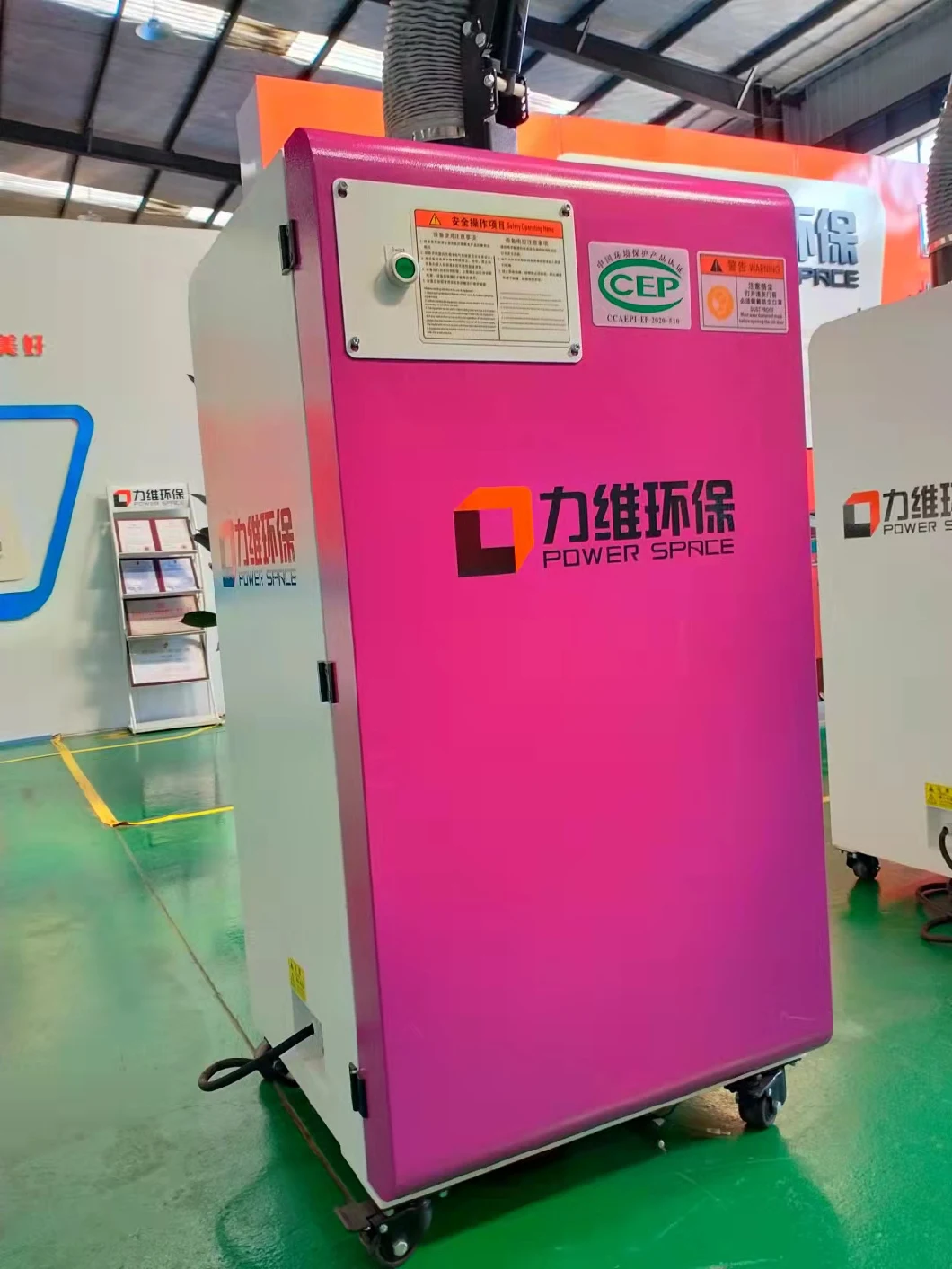

05.Strong and thick Cabinet sheet
High-quality and high-strength galvanized sheet(2mm),and the surface adopts electrostatic spraying of multi-layer anti-corrosion rust process.

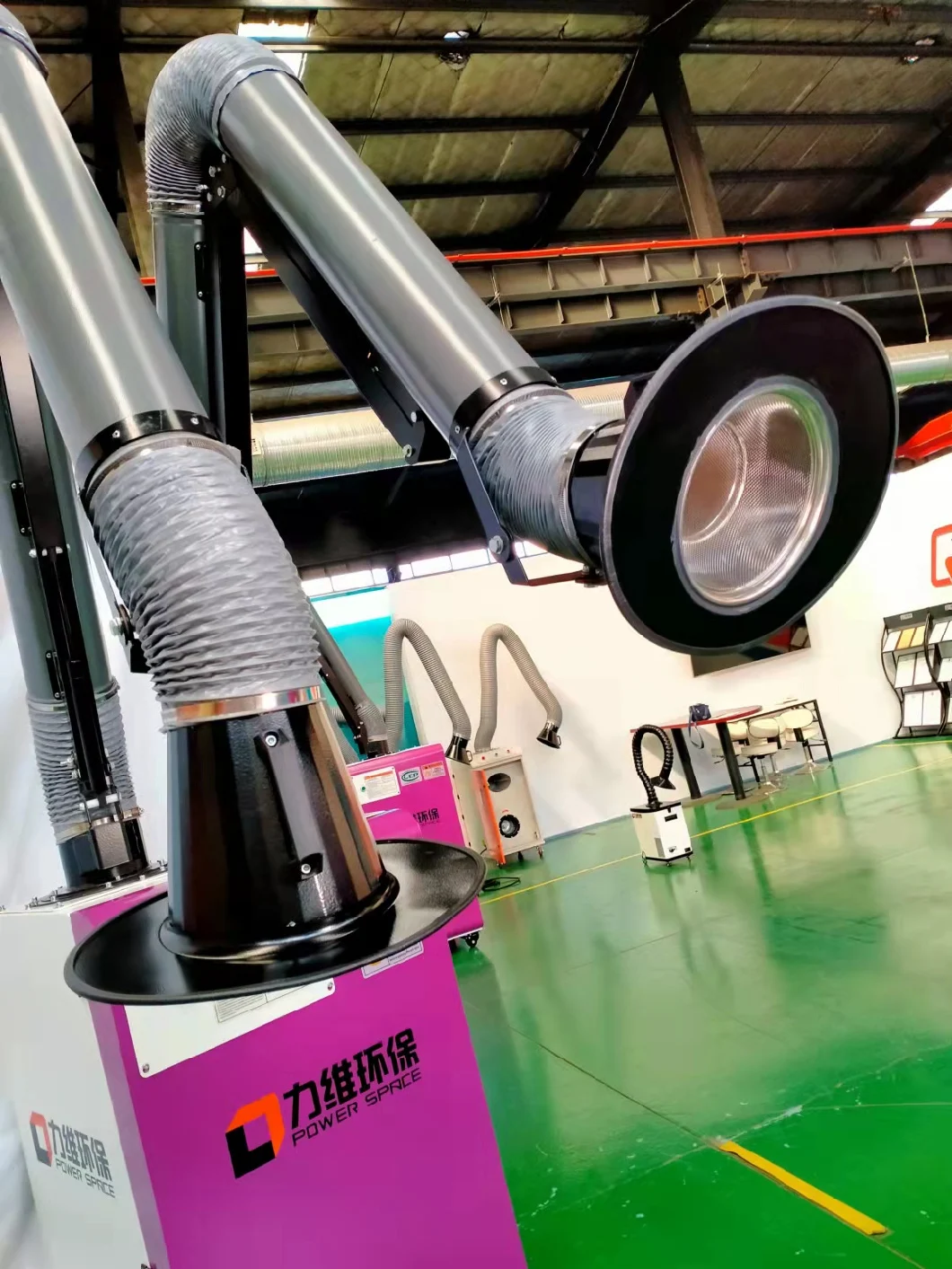

07.Two external framwork suction arms.
Using precision slewing bearings,360 ° arbitrary rotation stop, and has large moving range. The suction hood is simulation designed,equipped with a stainless steel spark trap net.
08.Special design of air duct adopts downflow baffle structure.
It is more reasonable , the loss of wind pressure is small and dust collection efficiency is high,no escape. Drawer-type dust collector is convenient and quick to clean dust.
Using precision slewing bearings,360 ° arbitrary rotation stop, and has large moving range. The suction hood is simulation designed,equipped with a stainless steel spark trap net.
08.Special design of air duct adopts downflow baffle structure.
It is more reasonable , the loss of wind pressure is small and dust collection efficiency is high,no escape. Drawer-type dust collector is convenient and quick to clean dust.
Certification:

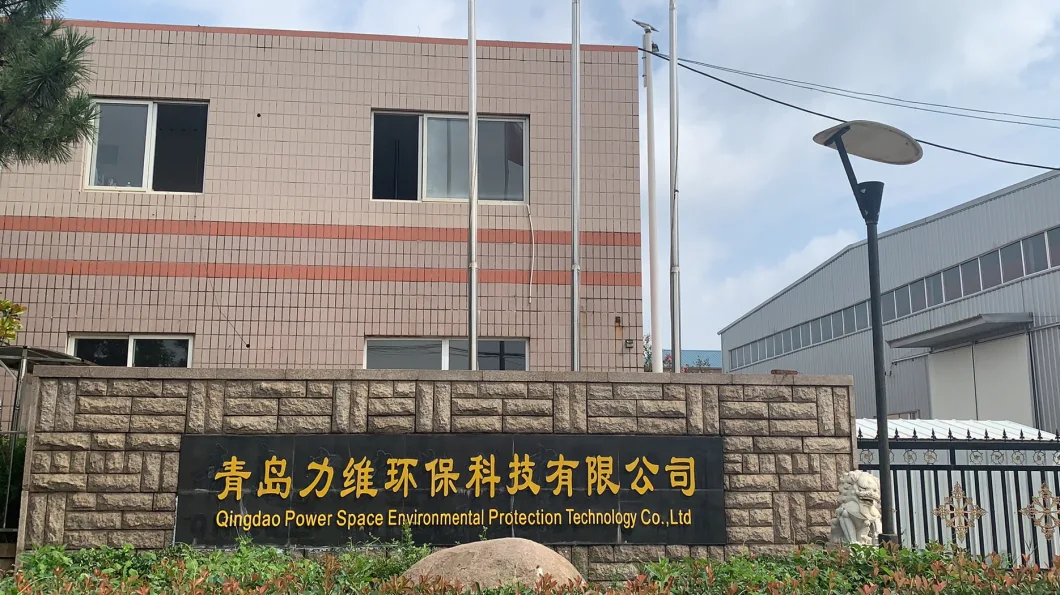

Company Profile
Qingdao Power Space Environmental Protection Co.Ltd is a professional enterprise engaging in the research and development, manufacturing industrial environmental protection equipment such as fume extractor, dust collector, dust collector for laser or plasma cutting, downdraft work table...
We have own Brand of POWERSPACE, and OEM available.
We are national high-tech enterprise, and we are school-enterprise cooperation unit of Qingdao University and Qingdao University of Science and Technology. We have independent R&D and manufacturing bases.
We have passed the China Environmental Protection Product CCAEPI-EP certification, and we have certificates of ISO9001 , ISO14001, OHSAS18001, and CE certificate.
We absorb advanced foreign technology, introduces a number of well-known industry experts, and transforms a number of advanced fume and dust treatment technologies. We have 37 national patents and 7 patents are pending.
we are suppliers of Ferroli, Carraro, Koike, Saint-Gobain, Desmi, Esab, Ideagro...etc. And sure,many Chinese companies certainly, such as Senfeng Leiming, Bodor, Thunder, Gweike, He laser, Qiao Lian......
We fulfill the mission of 'making manufacturing more environmentally friendly and making life better', cooperates with domestic and foreign industry colleagues, scientific research institutions and other institutions, do our best to become a worldwide leader of environmental governance, and provide users with the more reasonable system solutions.
Exhibition:

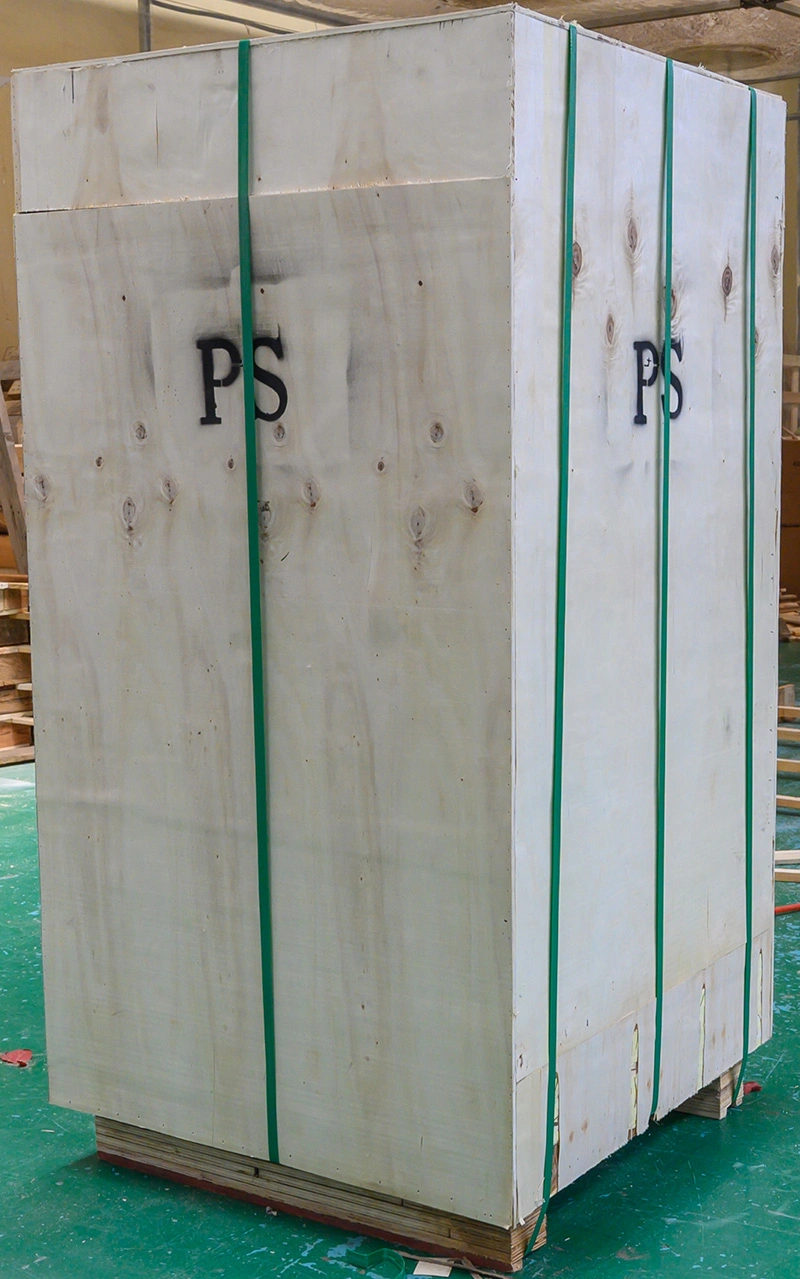

Packing&Shipping:
3 layers packing:
Layer 1:Air buble film
Layer 2:Honey Comb
Layer3:Plywood Case
Delivery time:about 15-20days after receive deposits
Port of Loading:Qingdao,China
Layer 1:Air buble film
Layer 2:Honey Comb
Layer3:Plywood Case
Delivery time:about 15-20days after receive deposits
Port of Loading:Qingdao,China
FAQ:
Q:Do you have stock products to sell?
A:Yes,we have stock with our own brand of POWER SPACE.OEM order is also acceptable.
Q:What is your minimum order quantity?
A:1 set.
Q:What certificates can offer?
A:CE, ISO
Q:What kind of payment do you accept ?
A:T/T, L/C, Alibaba Credit Insurance,etc
Q:What is the status of After-sale Services for customers and machines?
A:We provide on-line free technical support for whole life. Also ,if necessary, engineers available to service machinery overseas,but extra charges are needed.
Q:How many years since you have been in this field ?
A:We have been in this field for more than 12 years .We have very rich experience for designing and manufacturing the machinery.
