Type B298 Industrial Wrapped Rubber V Belt for Machine
Product DescriptionProduct Description Property--- Equal power transmission--- High loads,low elongation and long service life--- Excellent operational safety--- Temperature range from -55ºC to 70ºC--- Static conductive to ISO1813--- Oil,heat,Ozone and abrasion resistant Structur......
Send Inquiry
Product Description
Product Description
Property
--- Equal power transmission
--- High loads,low elongation and long service life
--- Excellent operational safety
--- Temperature range from -55ºC to 70ºC
--- Static conductive to ISO1813
--- Oil,heat,Ozone and abrasion resistant
--- Equal power transmission
--- High loads,low elongation and long service life
--- Excellent operational safety
--- Temperature range from -55ºC to 70ºC
--- Static conductive to ISO1813
--- Oil,heat,Ozone and abrasion resistant

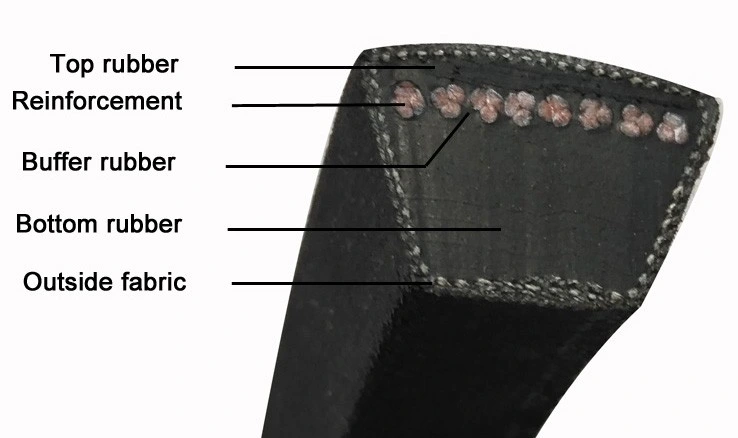

Structure
Top rubber: NR,SBRReinforcement: Polyester cord
Buffer rubber: NR,SBR
Bottom rubber: NR,SBR
Outside fabric: Polyester cotton canvas

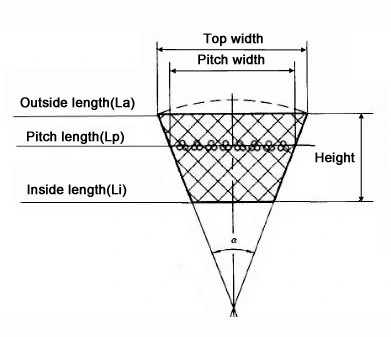

Classical V belt:
| Type | Top width | Pitch width | Height | Length range | Angle |
| mm | mm | mm | mm | ||
| Z/M/FM/O | 10 | 8.5 | 6 | 280---2480 | 40° |
| A | 13 | 11 | 8 | 330---8000 | 40° |
| B | 17 | 14 | 11 | 457---17000 | 40° |
| C | 22 | 19 | 14 | 700---17000 | 40° |
| D | 32 | 27 | 19 | 1100---17000 | 40° |
| E | 38 | 32 | 23 | 3300---17000 | 40° |
Narrow V belt
| Type | Top width | Pitch width | Height | Length range | Angle |
| mm | mm | mm | mm | ||
| 3V | 9.5 | / | 8 | 375--3353 | 40° |
| 5V | 16 | / | 13.5 | 795---17000 | 40° |
| 8V | 25.5 | / | 23 | 2500---17000 | 40° |
| SPZ | 10 | 8 | 8 | 375---3353 | 40° |
| SPA | 13 | 11 | 10 | 475---7200 | 40° |

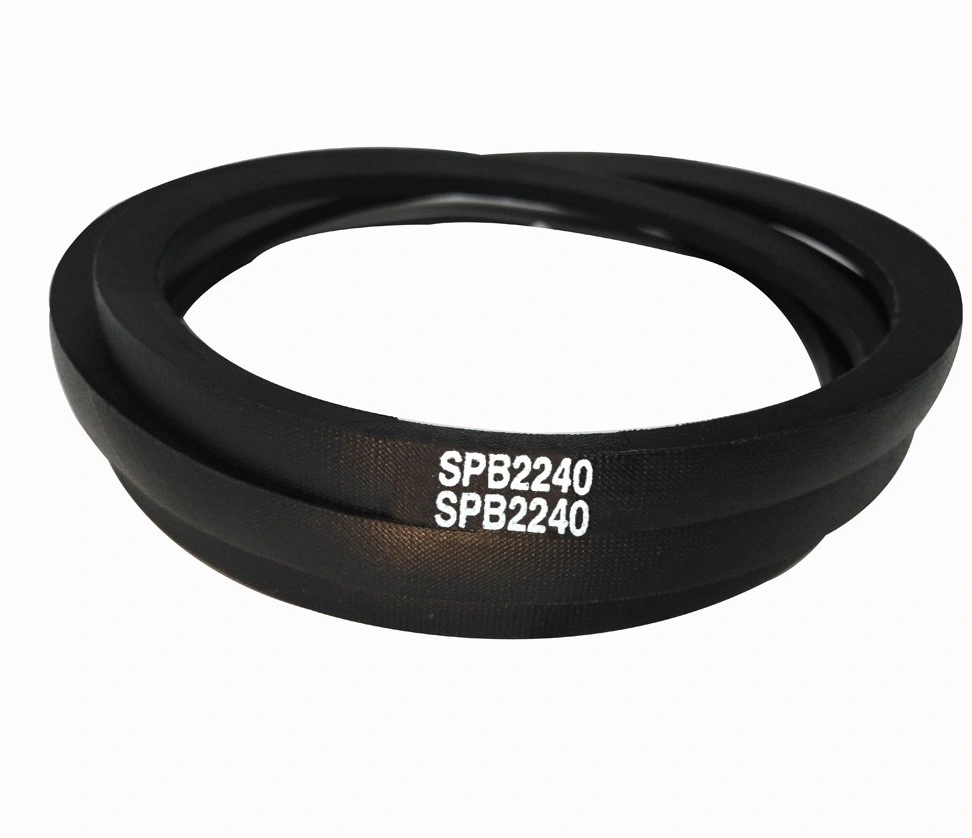

| SPB | 17 | 14 | 14 | 750---17000 | 40° |
| SPC | 22 | 19 | 18 | 1350---17000 | 40° |
Other special types:
| Type | Top width | Pitch width | Height | Angle |
| mm | mm | mm | ||
| 3L | 9.8 | / | 5.6 | 40° |

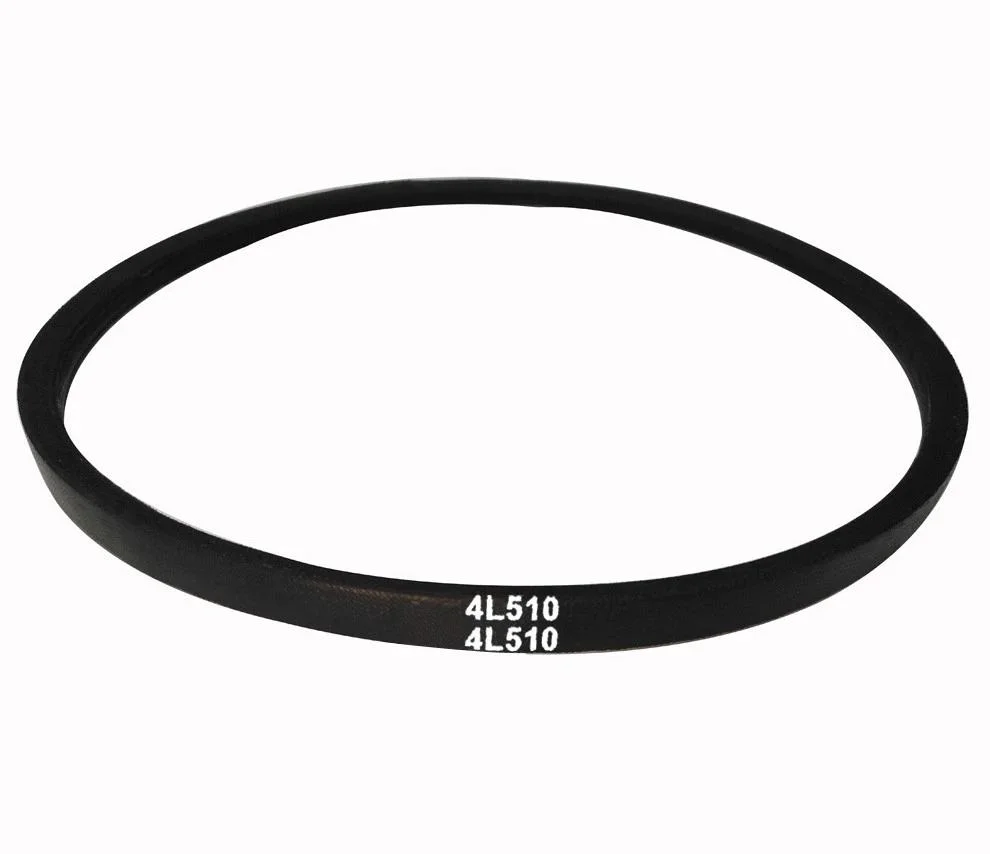

| 4L | 12.7 | / | 8 | 40° |
| 5L | 16.8 | / | 10.5 | 40° |
| 8.5*8 | 10.5 | 8.5 | 8 | 40° |

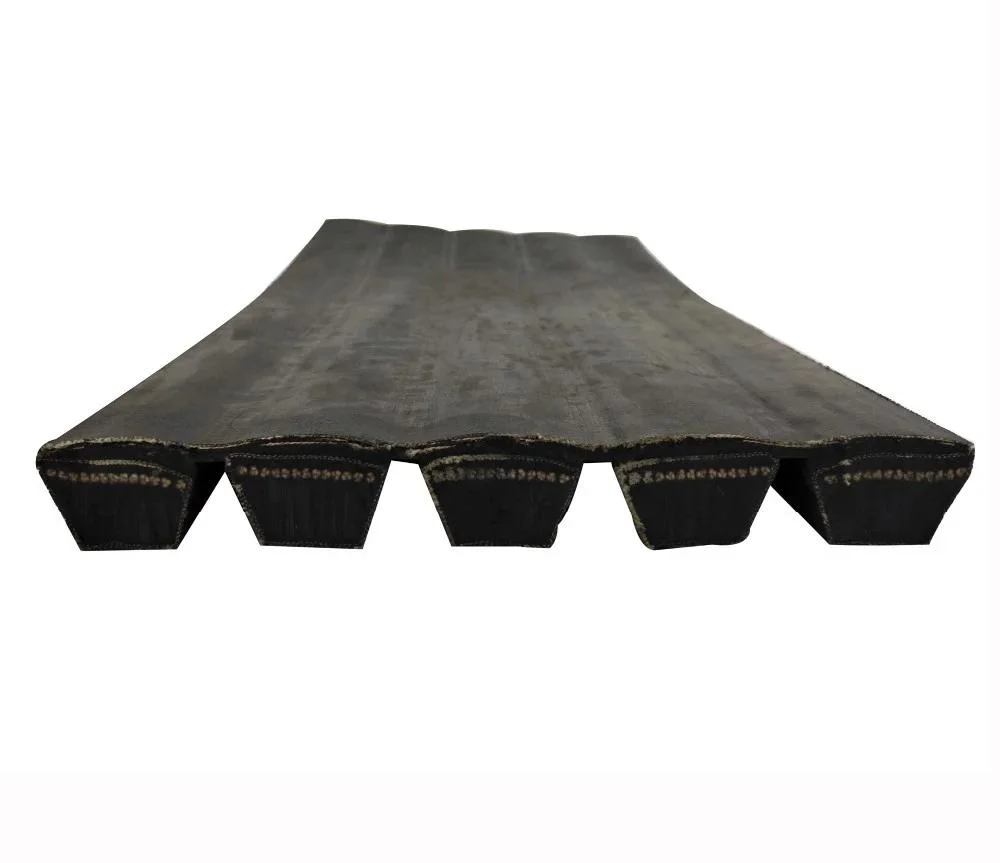

Banded Jointed Rubber V belt:
| Type | Top width | Height | Angle |
| mm | mm | ||
| RB | 17 | 13 | 40° |
| RC | 22.4 | 16 | 40° |
| RD | 32.8 | 21.5 | 40° |
| RE | 38 | 26 | 40° |
| R3V | 9.7 | 9.7 | 40° |
| R5V | 15.8 | 15.8 | 40° |
| 58V | 25.4 | 25.4 | 40° |
| RSPZ | 9.7 | 9.7 | 40° |
| RSPB | 15.8 | 15.8 | 40° |
| RSPC | 22 | 22 | 40° |
Q1. Can I have a sample order for V belt?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.
Q3. Do you have any MOQ limit for V belt order?
Low MOQ, 1pc for sample checking is available
Q4. Is it OK to print my logo on V belt product?
Yes. Please inform us your logo or design before mass production
